Walter BCMT160508R-G55 WSP45S Tiger-tec Silver Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

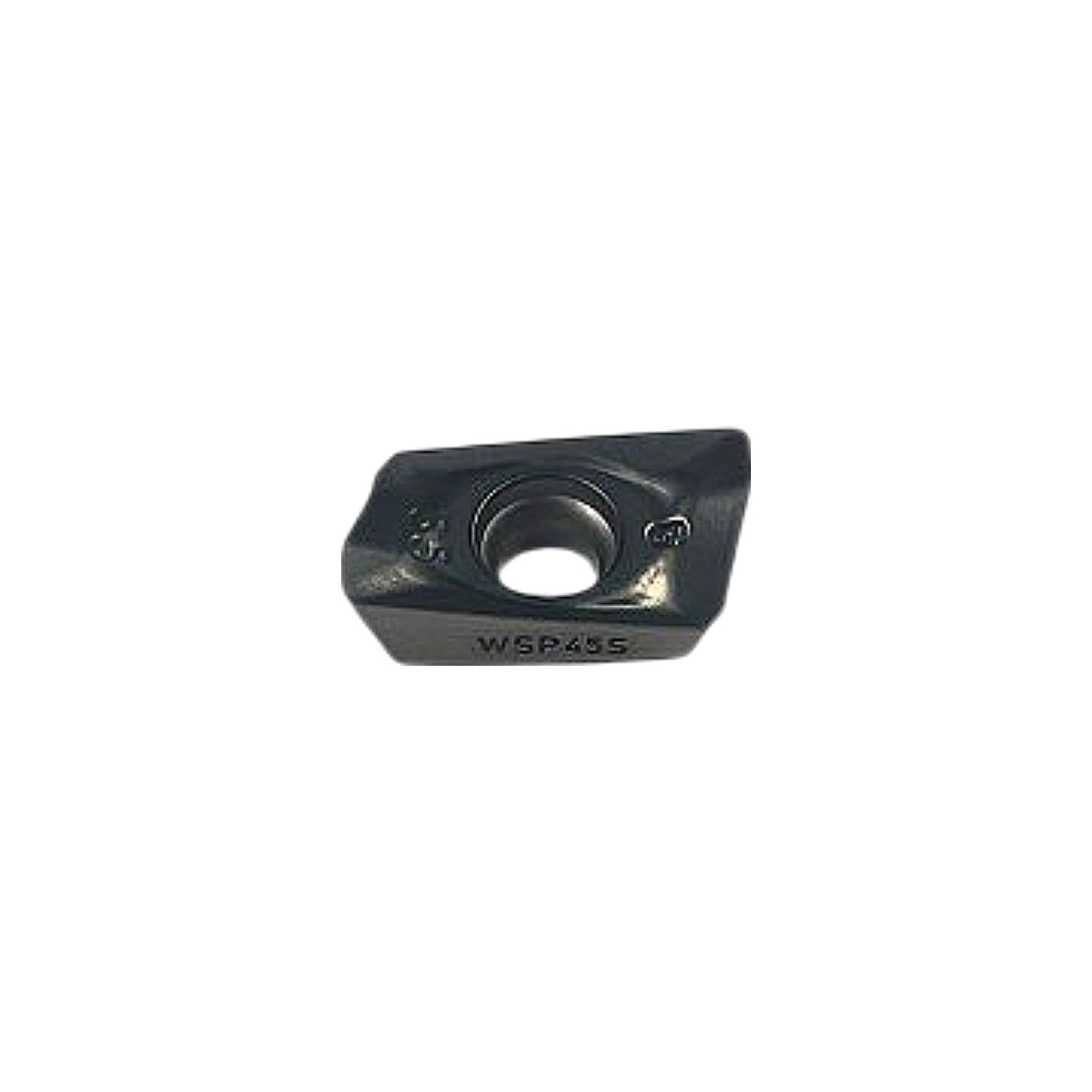

The Walter BCMT160508R-G55 WSP45S is a new, indexable carbide milling insert in Walter's Tiger·tec Silver CVD coating platform, designed for high-performance shoulder and face milling. Decoding the ISO-style designation: B = parallelogram shape (82° included angle), C = 7° clearance angle, M = medium tolerance class, T = with hole and one-sided chipbreaker land, 160508 = 16.0 mm inscribed circle / 5.0 mm thickness / 0.8 mm nose radius, R = right-hand cutting, G55 = Walter's proprietary chipbreaker geometry optimized for steel and stainless steel milling. The WSP45S substrate is a Tiger·tec Silver CVD-coated cerium-oxide-enhanced Al₂O₃ + TiCN multilayer grade rated for ISO P (steel) and ISO M (stainless steel) applications at medium-to-heavy chip loads, as confirmed by the two-dot ratings for P, M, and S on the package label. This insert is Made in Germany and is compatible with Walter's F4042, F4033, and other BCMT-seat shoulder milling cutters requiring 16 mm BCMT-style inserts.
Product Specifications
| Brand | Walter |
| MPN | BCMT160508R-G55 WSP45S |
| Grade / Coating | WSP45S Tiger·tec Silver CVD |
| ISO Insert Shape | B – Parallelogram (82° included angle) |
| Clearance Angle | 7° (C) |
| Tolerance Class | M |
| Insert Type | Screw-on, one-sided chipbreaker (T) |
| Inscribed Circle (IC) | 16.0 mm |
| Insert Thickness | 5.0 mm |
| Nose Radius | 0.8 mm |
| Hand of Cut | Right (R) |
| Chipbreaker | G55 |

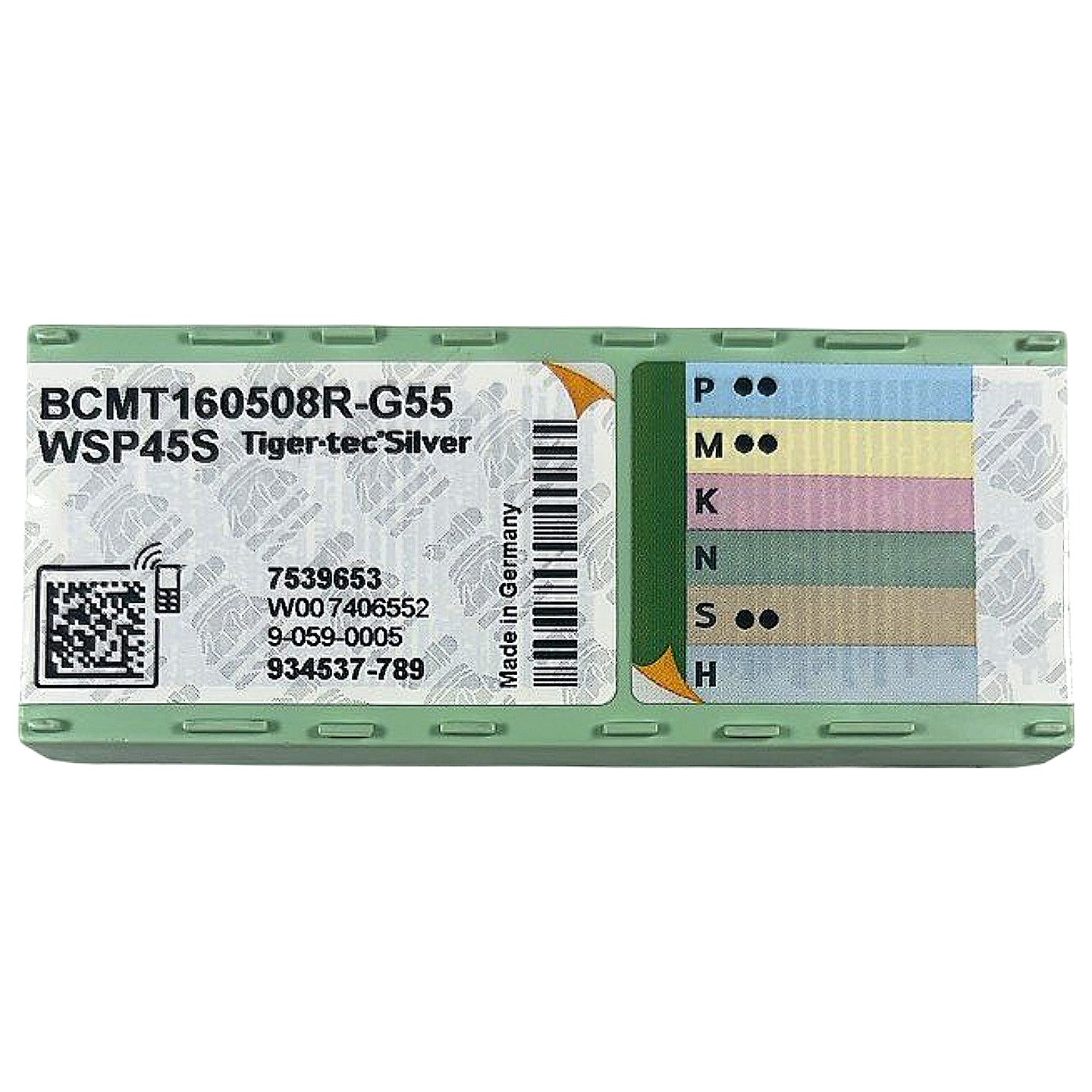

| ISO Material Groups | P (steel) ••, M (stainless) ••, S (superalloy) •• |
| Coating Type | CVD multilayer Al₂O₃ + TiCN |
| Country of Origin | Germany |

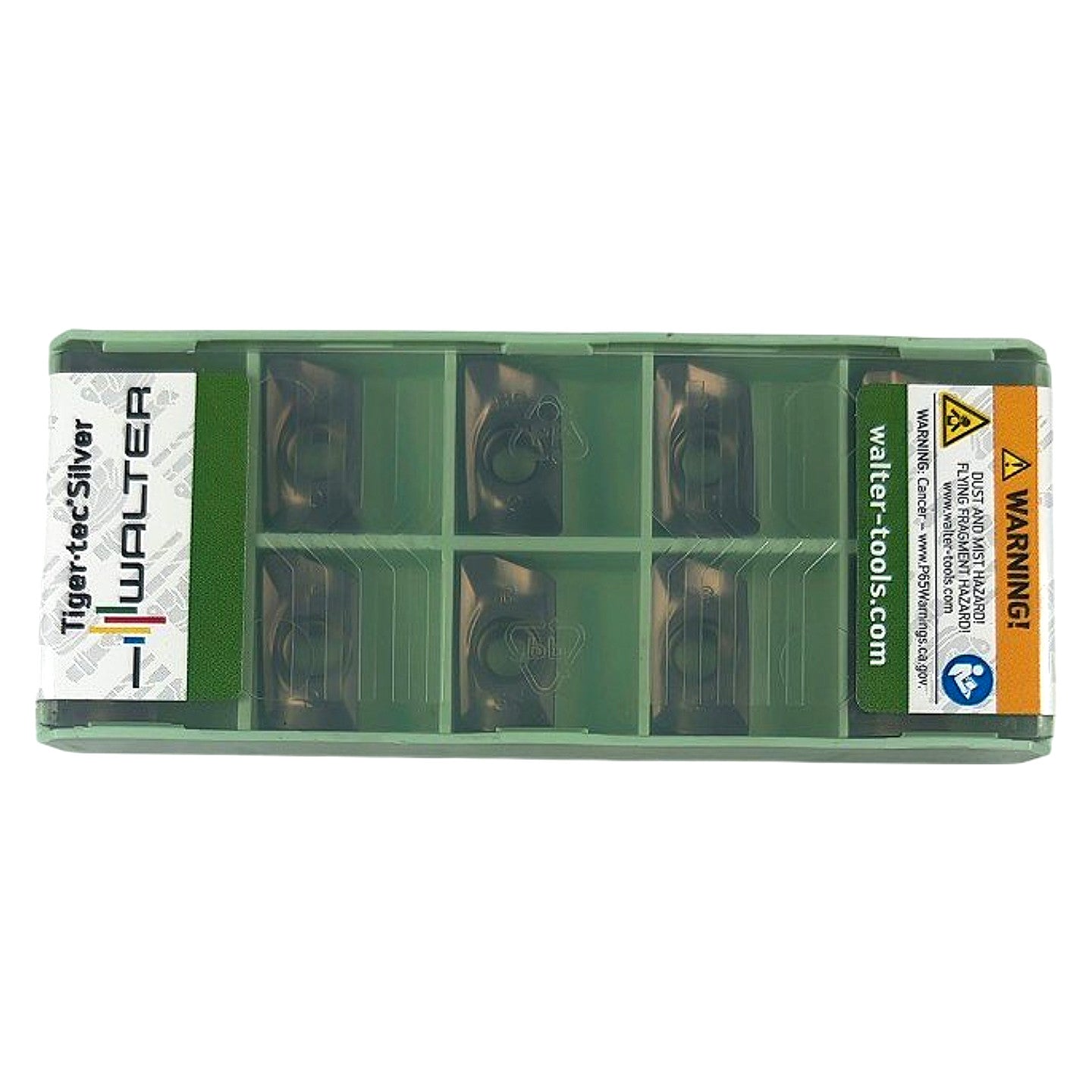

| Quantity per Pack | 10 |
| Walter Item No. | 7539653 |
