Walter CNMG120412-MP5 WPP10S Tiger-tec Silver Carbide Turning Insert

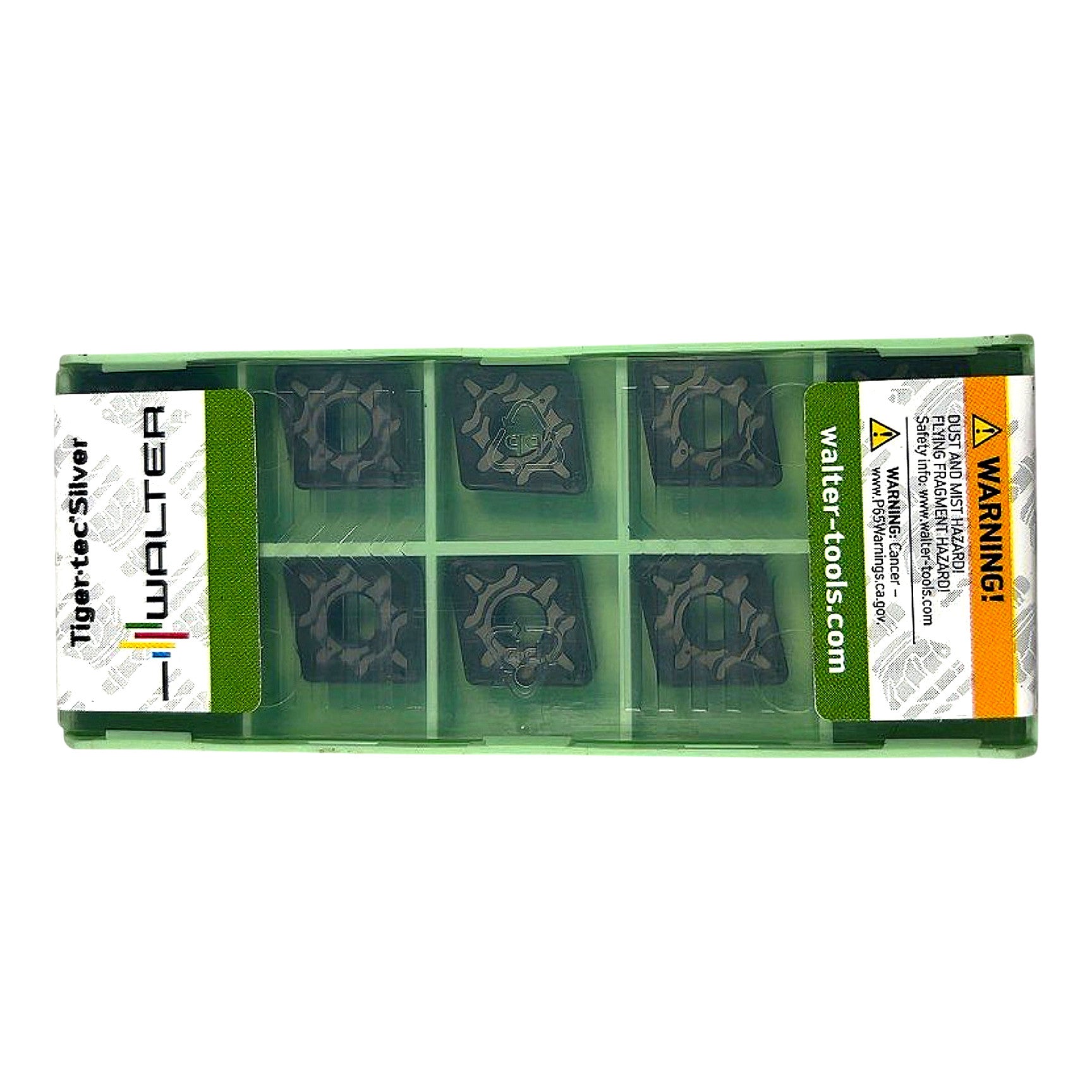

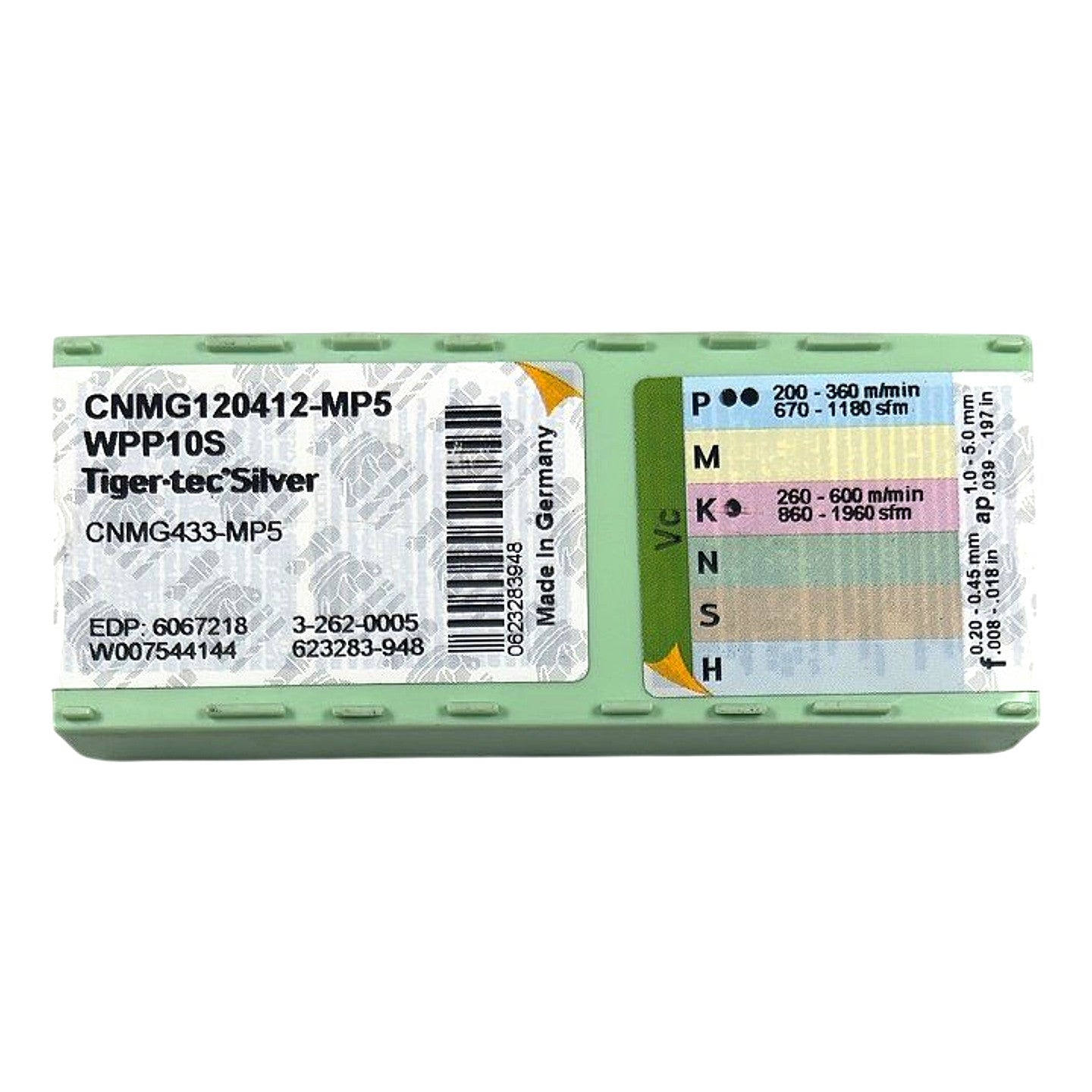

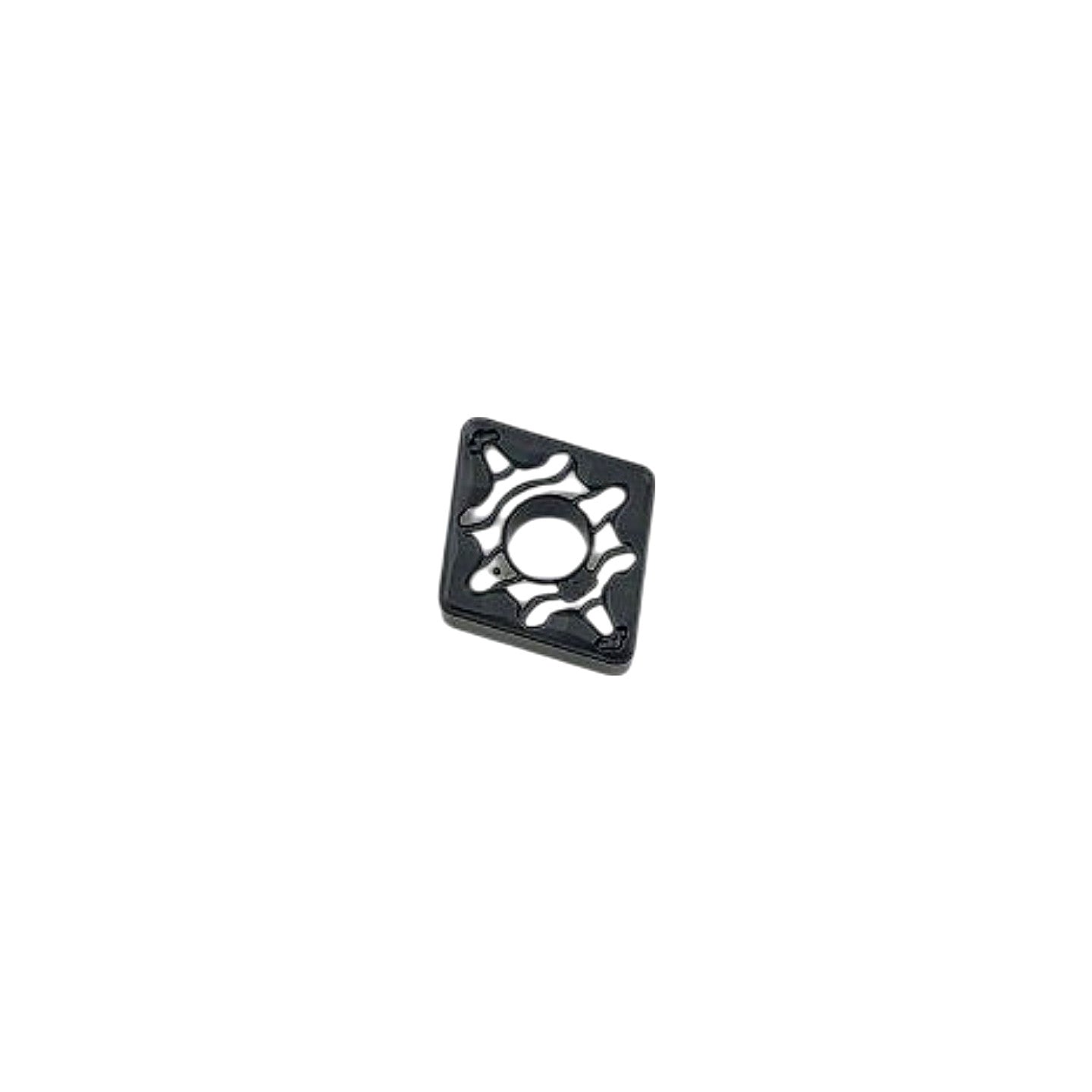

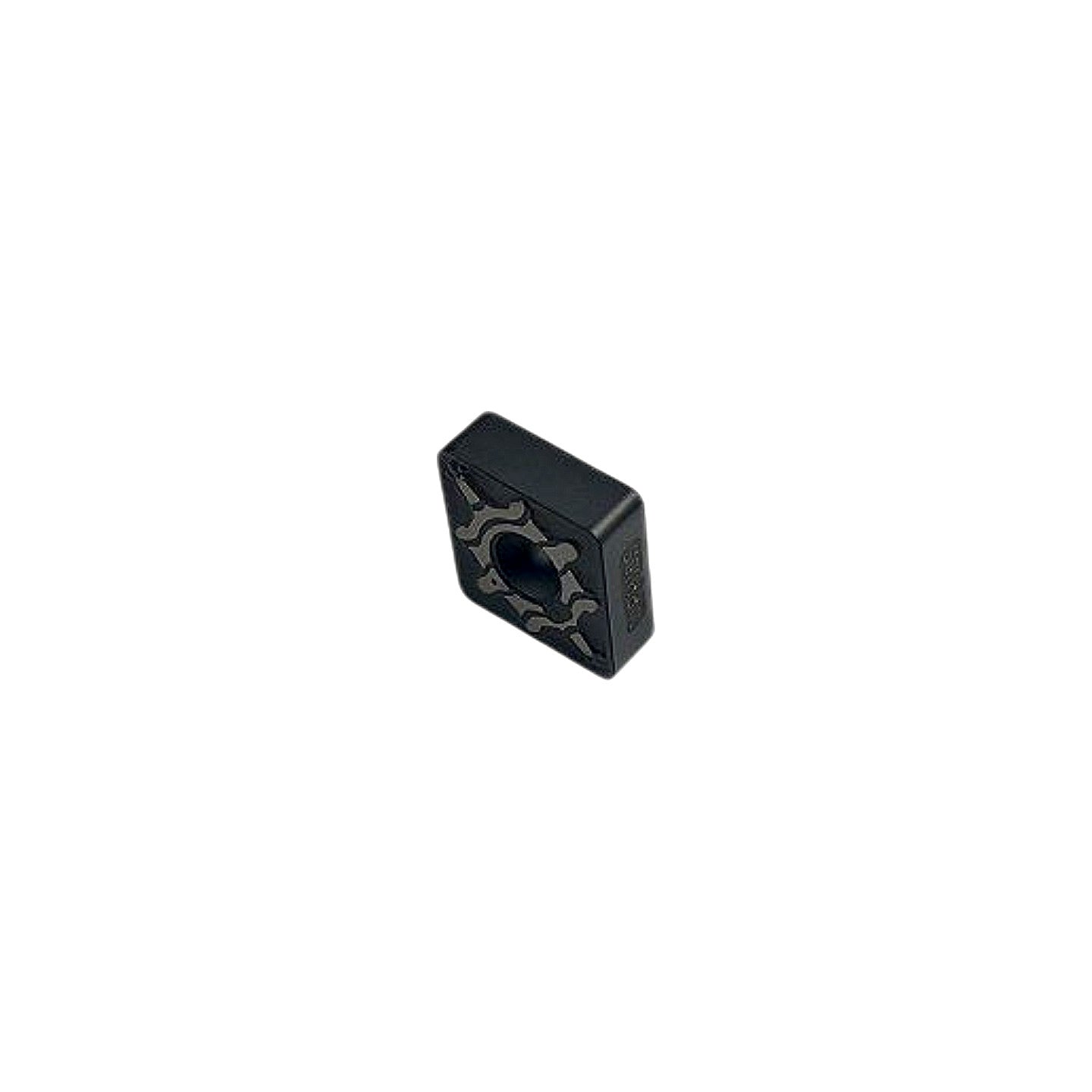

The Walter CNMG120412-MP5 WPP10S is a new, factory-fresh indexable carbide turning insert in Tiger-tec Silver grade WPP10S, designed for steel turning (ISO P) with secondary applicability in cast iron (ISO K). Decoding the ISO designation: C = 80° rhombic shape, N = 0° clearance angle, M = M-tolerance, G = with hole and chipbreaker, 12 = 12.7 mm inscribed circle, 04 = 4.76 mm thickness, 12 = 1.2 mm nose radius, MP5 = Walter's medium positive chipbreaker geometry optimized for medium-depth finishing to medium roughing passes. The Tiger-tec Silver WPP10S grade features a CVD-coated Al₂O₃/MT-TiCN multilayer coating on a tough carbide substrate, delivering the recommended cutting speed range of 200–360 m/min (670–1180 sfm) for steel and 260–600 m/min (860–1960 sfm) for cast iron, with depth of cut ap 1.0–5.0 mm and feed f 0.20–0.45 mm/rev. These inserts are compatible with CNMG-style negative toolholders (PCLNR/L, MCLNR/L, DCLNR/L, etc.) and are sold in a standard 10-piece tray pack (EDP 6067218). Made in Germany.

Product Specifications
