Walter CNMG190616-RP5 WPP20S Tiger-tec Silver Carbide Turning Insert (10 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

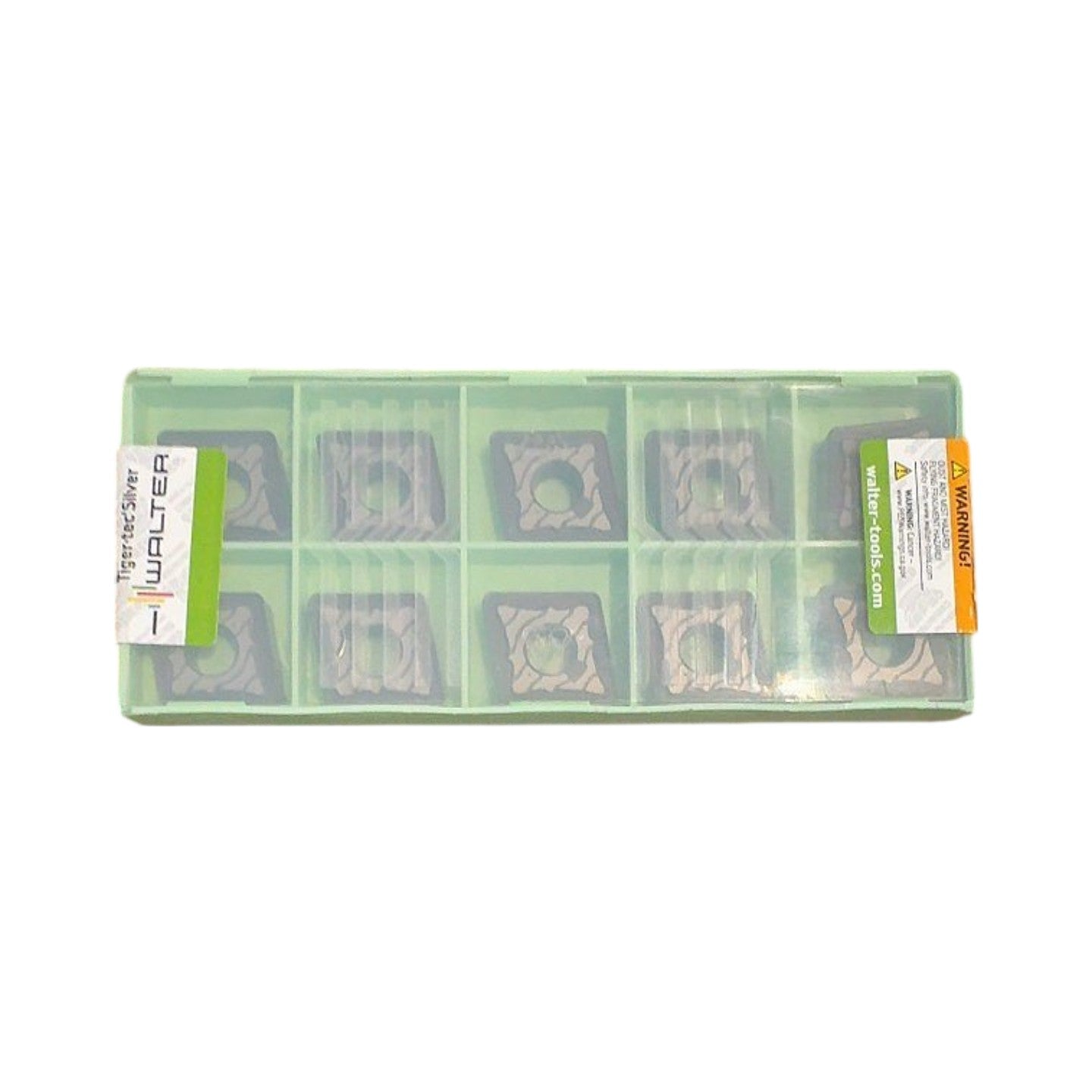

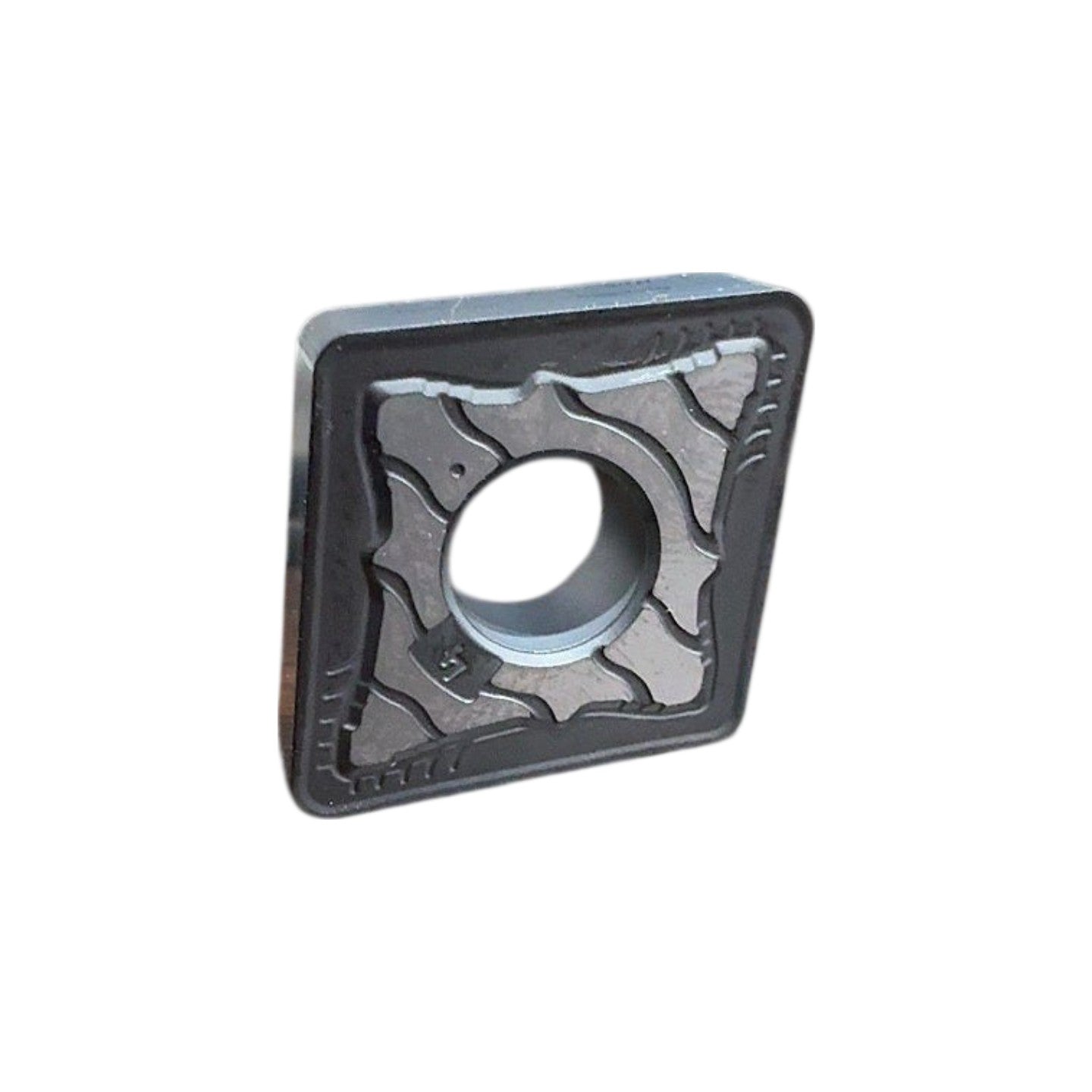

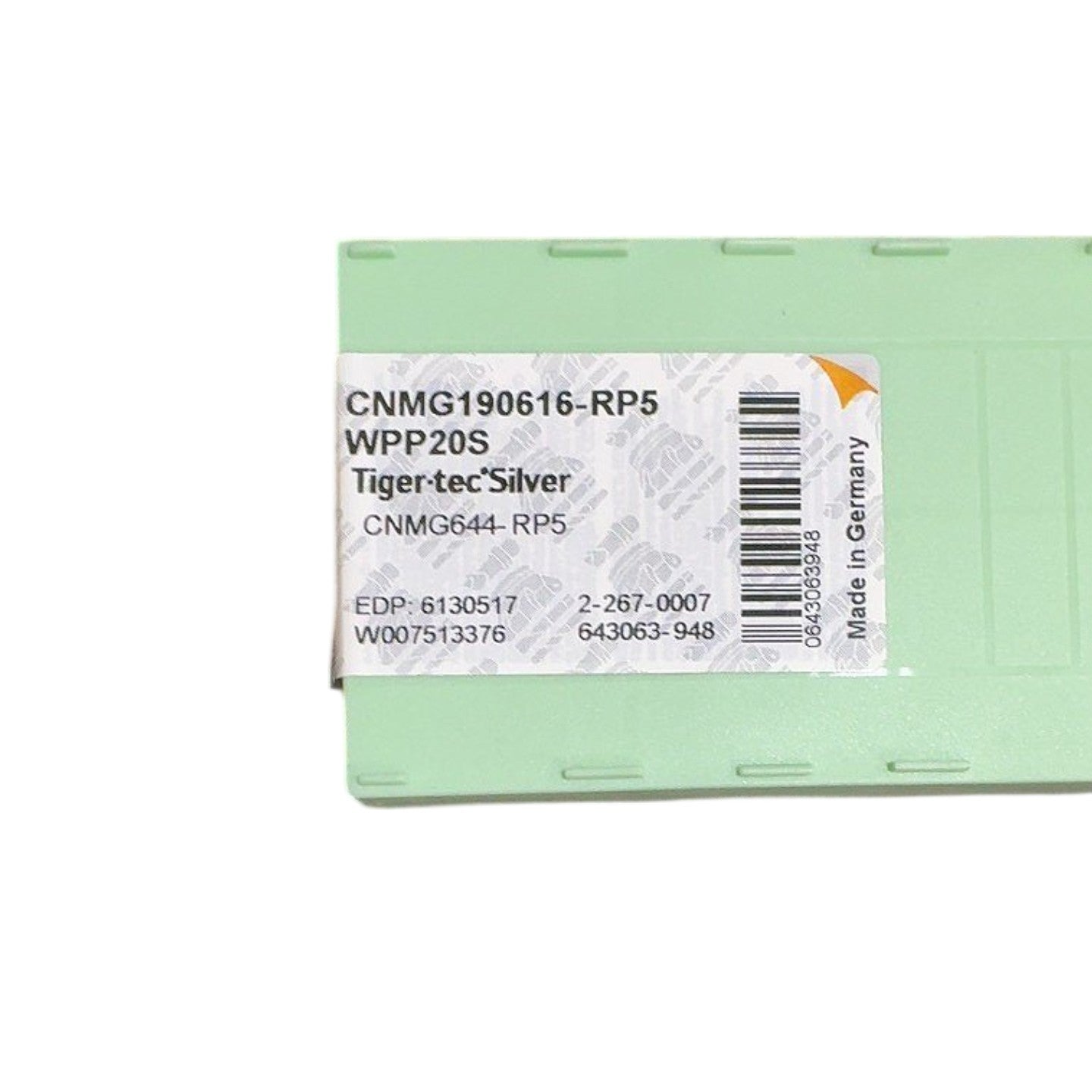

Walter CNMG190616-RP5 WPP20S is a new, factory-sealed box of 10 indexable carbide turning inserts in Walter's Tiger-tec Silver CVD coating platform, grade WPP20S, optimized for machining steel (ISO P) in the medium-to-rough cutting range. The CNMG ISO designation specifies an 80° diamond (rhombic) shape, 0° clearance angle (N), medium tolerance (M), with a central clamping hole and chipbreaker geometry (G); the 190616 suffix decodes to 19.05 mm inscribed circle, 6.35 mm thickness, and 1.6 mm nose radius. The RP5 chipbreaker is a robust positive geometry designed for heavy interrupted cuts and variable depths of cut in steel components, providing excellent chip control and edge security under demanding conditions. These inserts are compatible with CNMG-style negative toolholders in the 190616 (CNMG 644 inch equivalent) pocket size, such as Walter's MCLNR/L, DCLNR/L, and PCLNR/L turning toolholder families. Made in Germany; EDP 6130517, Walter part number W007513376.
Product Specifications
| Brand | Walter |
| MPN | CNMG190616-RP5 WPP20S |
| ISO Designation (Metric) | CNMG190616-RP5 |
| ISO Designation (Inch Equiv.) | CNMG644-RP5 |
| Insert Shape | 80° Diamond (C) |
| Clearance Angle | 0° (N) |
| Tolerance Class | M |
| Mounting / Type | Central hole w/ chipbreaker (G) |
| Inscribed Circle (IC) | 19.05 mm |
| Insert Thickness | 6.35 mm |
| Nose Radius | 1.6 mm |
| Chipbreaker | RP5 (robust positive, heavy interrupted cuts) |
| Grade | WPP20S |
| Coating Technology | Tiger-tec Silver CVD |
| ISO Application Range | P (steel) |
| Country of Origin | Germany |
| EDP Number | 6130517 |
| Walter Part Number | W007513376 |
| Quantity per Package | 10 |
| Condition | New |
