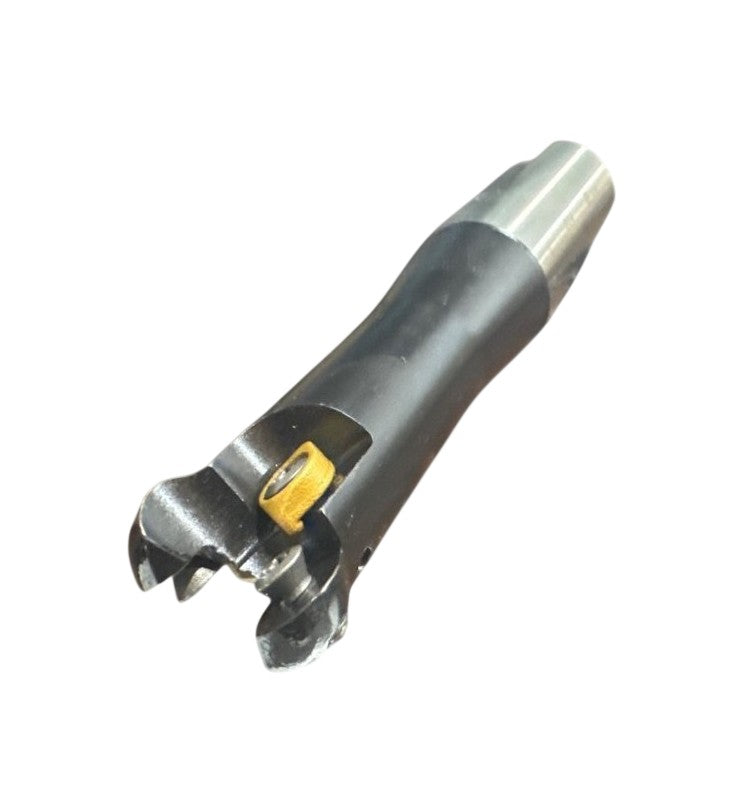

The Walter F2231.W.024.Z02.06.L is a new, indexable-insert end mill from Walter's Xtra·tec® or equivalent F2231 series, designed for ramping, helical interpolation, and general-purpose peripheral milling operations. The part number decodes as follows: F2231 = product series (long-edge or copy milling end mill body), W = Weldon-flat cylindrical shank interface, 024 = 24 mm cutting diameter, Z02 = 2 cutting teeth/flutes, 06 = insert size designation (compatible with RD.. or RDHX 06-series round inserts), L = long reach variant. The tool body features an anti-vibration geometry with a dark-finish (likely nitride or oxidation treated) steel body, accepts 06-size round indexable carbide inserts (one visible with a gold/TiN or TiAlN-style coating), and is suited for milling steel, stainless, and cast iron on CNC machining centers with Weldon-flat shank toolholders. With only 2 flutes at 24 mm diameter, this configuration is optimized for aggressive material removal and deep axial reach rather than fine finishing passes.
Product Specifications
| Brand | Walter |
| MPN | F2231.W.024.Z02.06.L |
| Series | F2231 |
| Cutting Diameter | 24 mm |
| Shank Type | Weldon flat cylindrical (W) |
| Number of Flutes | 2 |
| Insert Size Code | 06 |
| Insert Shape | Round (RD / RDHX type) |
| Reach | Long (L suffix) |
| Tool Body Material | Steel w/ dark oxide/nitride treatment |
| Condition | New |
| Origin | Made in China |
