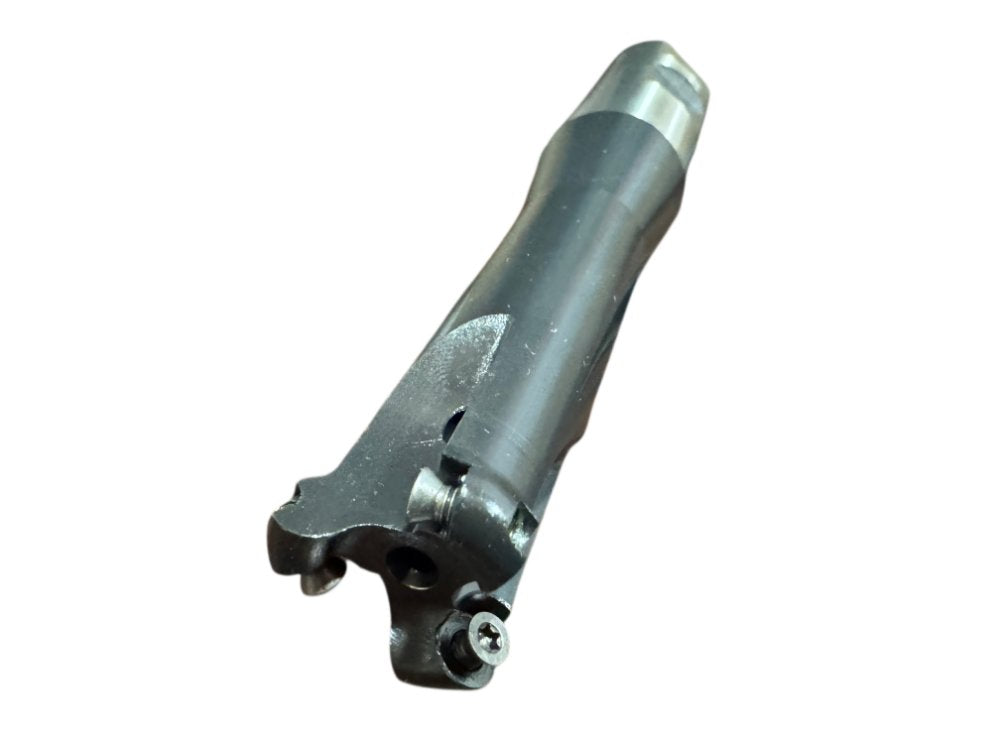

Walter F2234.UW26.026.Z03.04 0.996in 3-Flute Indexable Drill Body

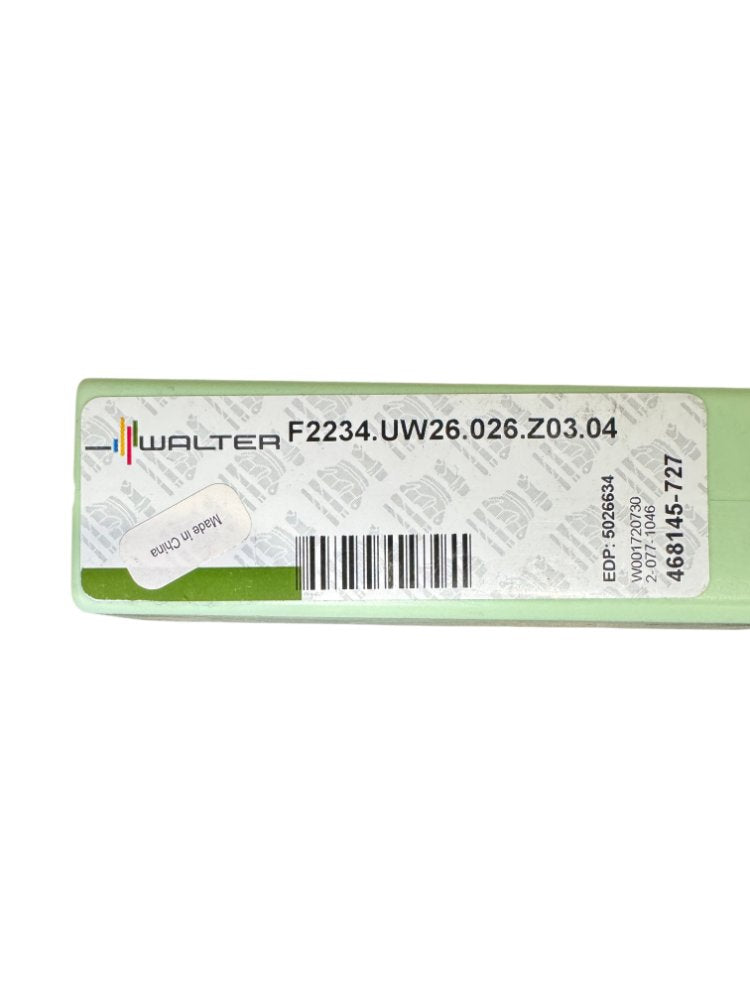

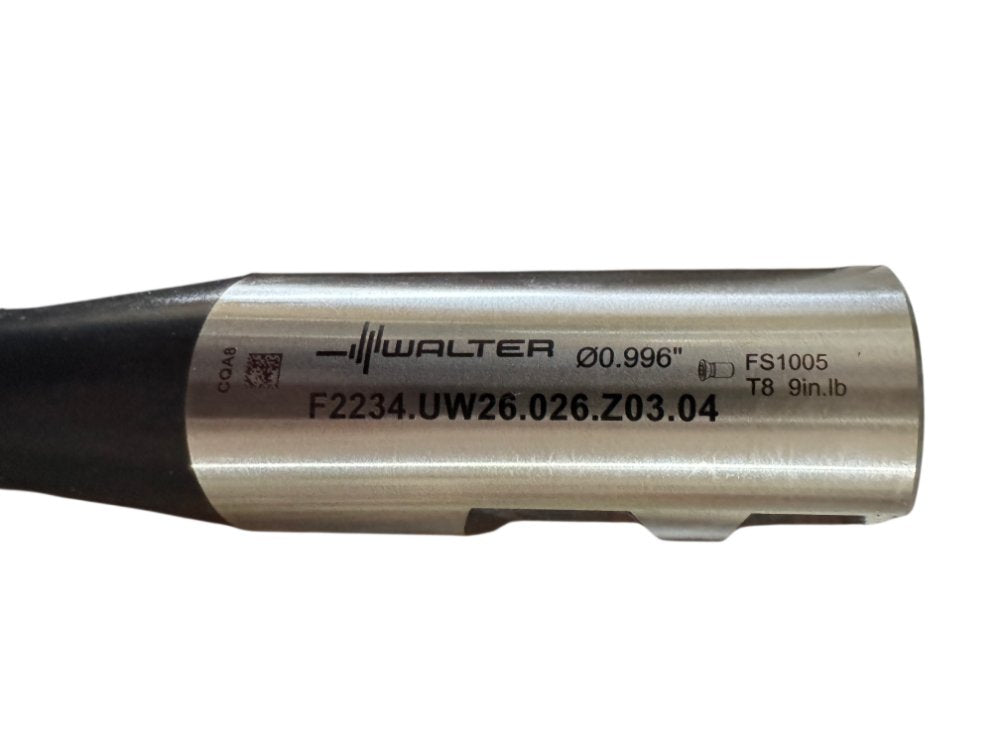

The Walter F2234.UW26.026.Z03.04 is a new, unused indexable insert drill body from Walter's Xtra·tec line, designed for 0.996 in (approximately 26 mm) drilling diameter with a straight shank configuration. The body accommodates 3 insert pockets (Z03) and is engineered for 04-size inserts, accepting FS1005-series indexable inserts torqued to 9 in·lb per the label marking; the shank diameter is 26 mm (UW26) with through-coolant capability typical of this series. This drill body is suited for holemaking operations in steel, stainless, and cast iron on CNC machining centers and lathes where consistent hole quality and high material removal rates are required. Compatible insert grades include Walter's WMP, WSP45, and WXP45 series in the appropriate FS1005 seat size; the body itself is manufactured from alloy tool steel with precision-ground insert seats. EDP number 5026634 and Walter catalog reference W001720730 confirm authenticity.

Product Specifications
