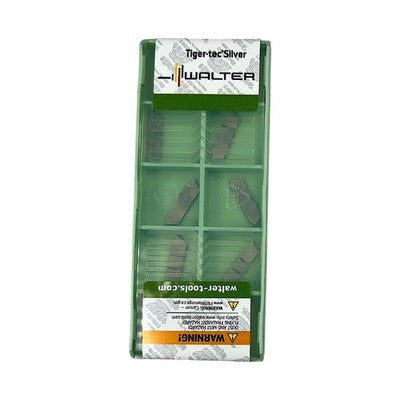

Walter GX16-0E150N01-CF6 WSM33S Tiger-tec Silver Carbide Grooving Insert

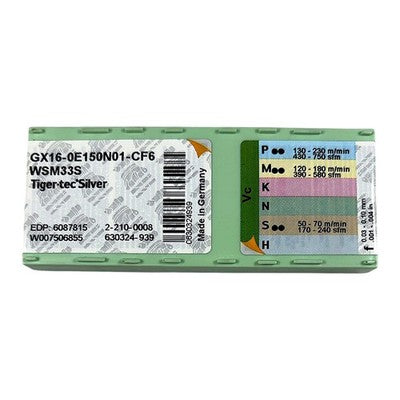

The Walter GX16-0E150N01-CF6 is a new, indexable carbide grooving/parting insert in the Walter Cut GX system, coated in WSM33S Tiger-tec Silver grade — a PVD-coated (AlTiN-based) cemented carbide developed for superior wear resistance and toughness in grooving and parting operations. Decoding the MPN: GX16 designates the Walter Cut GX system size 16; 0E indicates a neutral/symmetrical cutting edge geometry; 150 denotes a 1.50 mm cutting width; N01 specifies the insert seat/geometry variant; and CF6 is the chipbreaker designation optimized for light-to-medium feed grooving. WSM33S Tiger-tec Silver is a PVD-coated grade rated for ISO P (steel, 130–230 m/min / 430–750 sfm), ISO M (stainless steel, 120–180 m/min / 390–580 sfm), and ISO S (superalloys/heat-resistant alloys, 50–70 m/min / 170–240 sfm) materials, with a recommended feed range of 0.03–0.10 mm/rev (0.001–0.004 in/rev). This insert is designed for use in Walter Cut GX16 toolholders and is sold in a factory pack of 10 inserts; the double-sided design provides two usable cutting edges per insert for maximum economy in external and internal grooving and parting applications on CNC lathes.

Product Specifications
