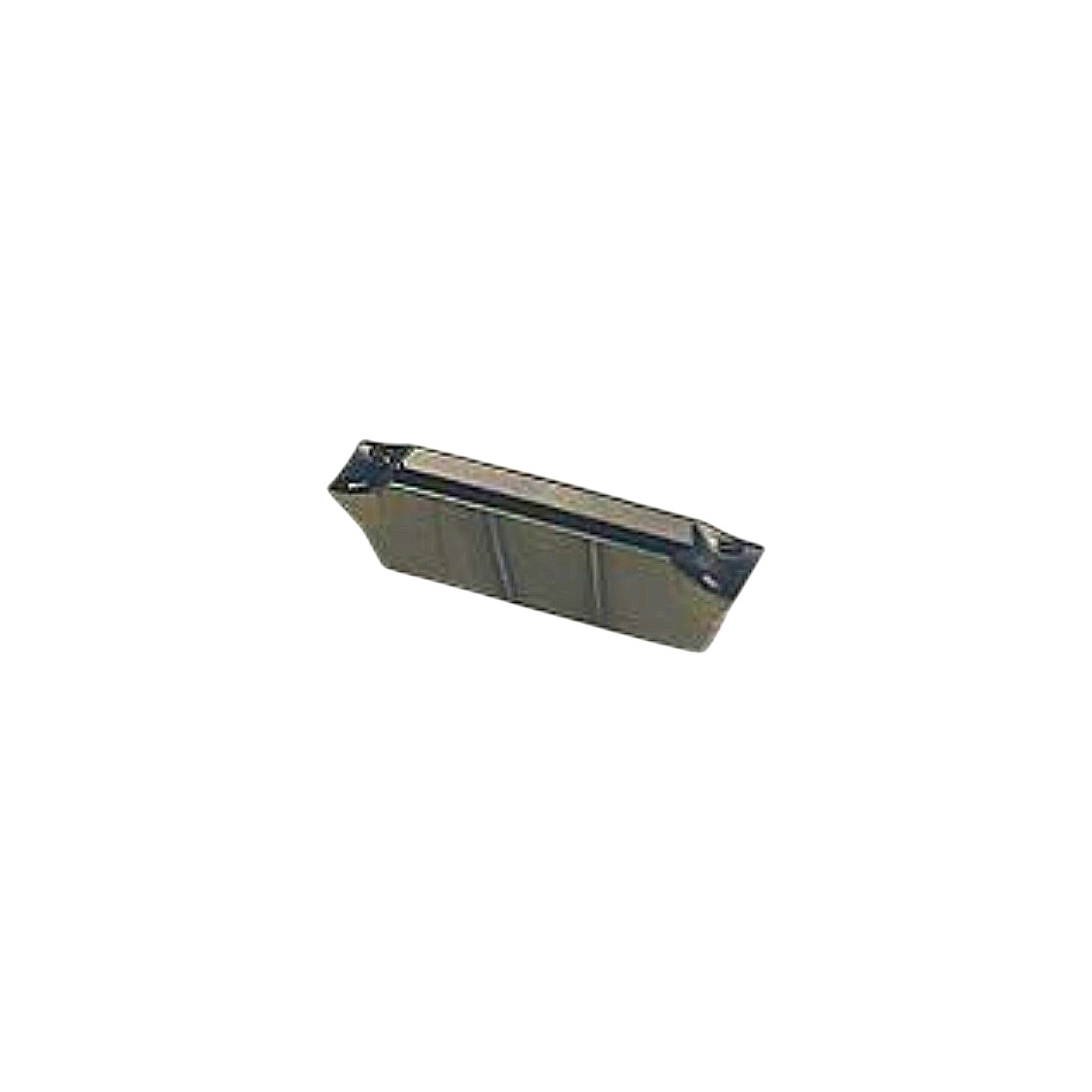

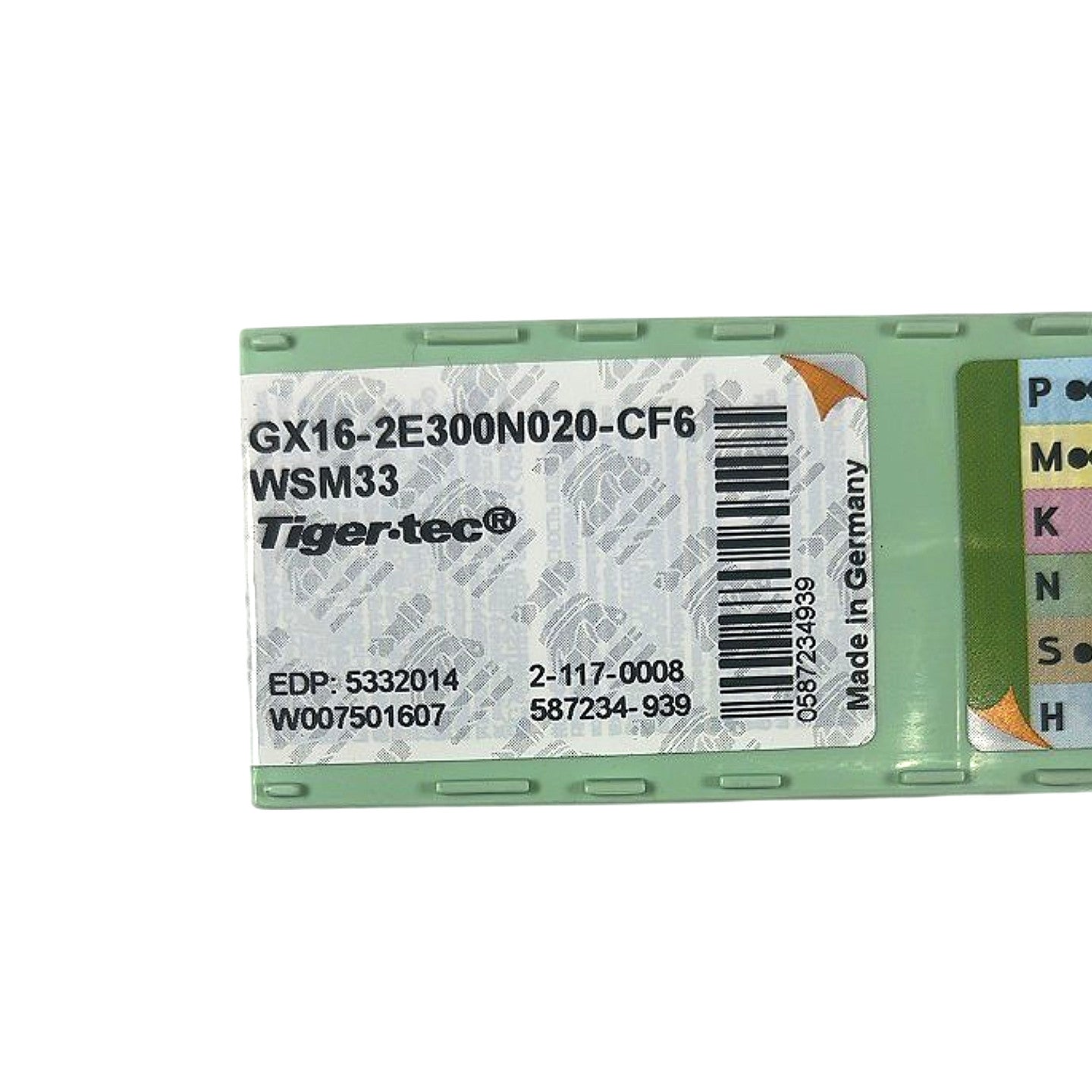

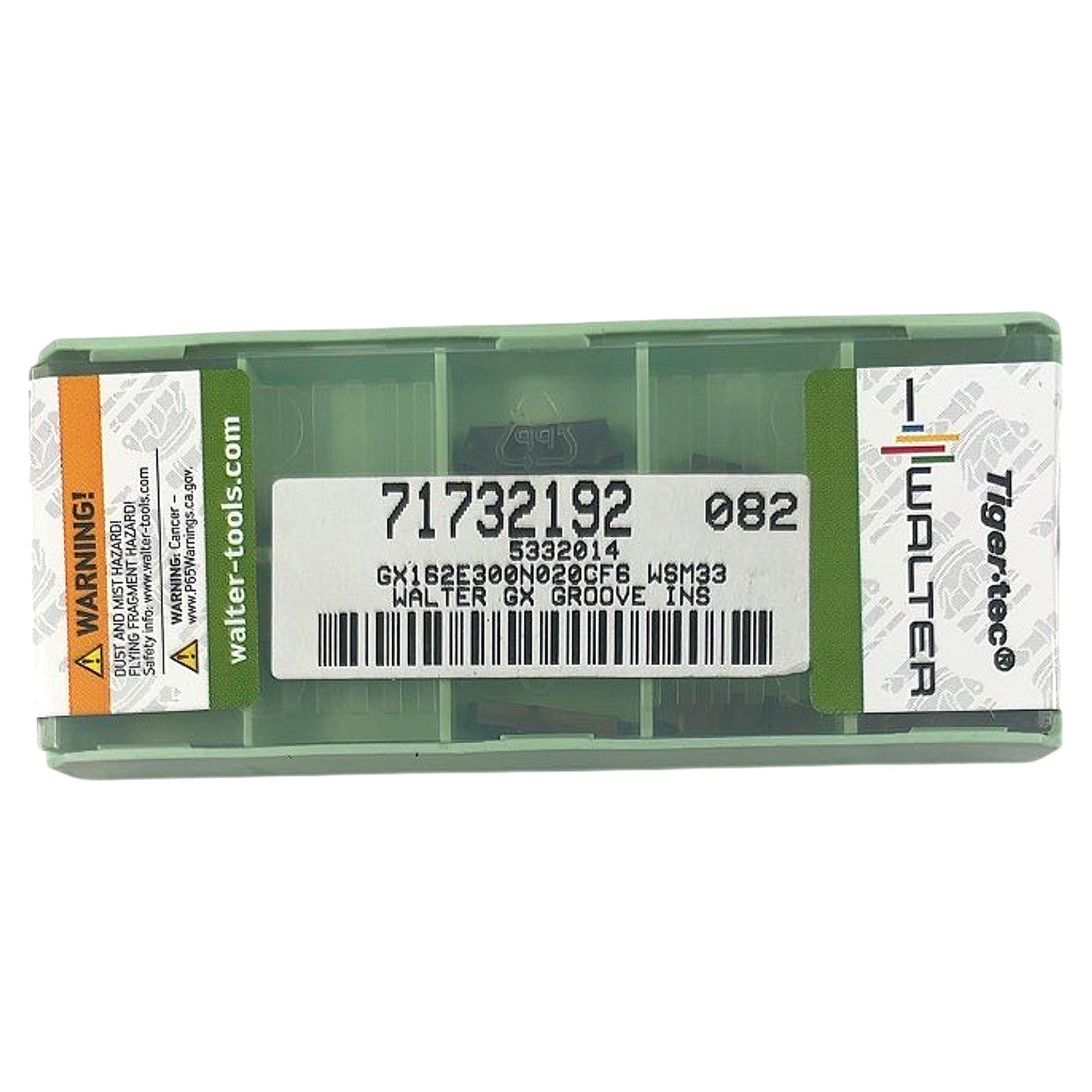

Walter GX16-2E300N020-CF6 WSM33 Tiger·tec 3mm Carbide Grooving Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Walter GX16-2E300N020-CF6 is a new, indexable carbide grooving insert from Walter's GX system, designed for use in GX16-2 double-ended toolholders. The MPN decodes as follows: GX = Walter GX grooving system; 16 = 16mm insert length class; 2E = double-ended (two cutting edges), E-style seat; 300 = 3.00mm grooving/parting width; N = neutral/straight cutting edge; 020 = 0.20mm corner radius; CF6 = chipbreaker geometry optimized for finish grooving of steel and stainless steel. The insert is manufactured in the WSM33 grade — a Tiger·tec Silver PVD-coated cemented carbide grade (AlTiN/TiSiN-based multilayer coating) rated for ISO P and M material groups, delivering high wear resistance and thermal stability for grooving stainless steel, carbon steel, and alloy steels. The CF6 chipbreaker geometry produces reliable chip control at low-to-moderate depths with cutting widths of 3.00mm, making this insert suited for external grooving, recessing, and undercut operations on CNC lathes using compatible Walter GX16-2 toolholders such as the GX16-2B080 series. EDP number 5332014; made in Germany.
Product Specifications
| Brand | Walter |
| MPN | GX16-2E300N020-CF6 |
| EDP Number | 5332014 |
| Grade | WSM33 |
| Coating | Tiger·tec Silver PVD (AlTiN/TiSiN multilayer) |
| System | Walter GX Grooving System |
| Insert Style | Double-ended (2 cutting edges) |
| Grooving Width | 3.00 mm |
| Corner Radius | 0.20 mm |
| Chipbreaker | CF6 (finish grooving, steel/stainless) |
| Cutting Edge Style | Neutral (N) |
| ISO Material Group | P, M, S |
| Insert Length Class | 16 mm |
| Condition | New |
| Country of Origin | Germany |
| Compatible Toolholder System | Walter GX16-2 toolholders |
| Inserts per Package | 10 |
