Walter GX24-3E500N03-CE4 WSM43S 5mm Carbide Grooving Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

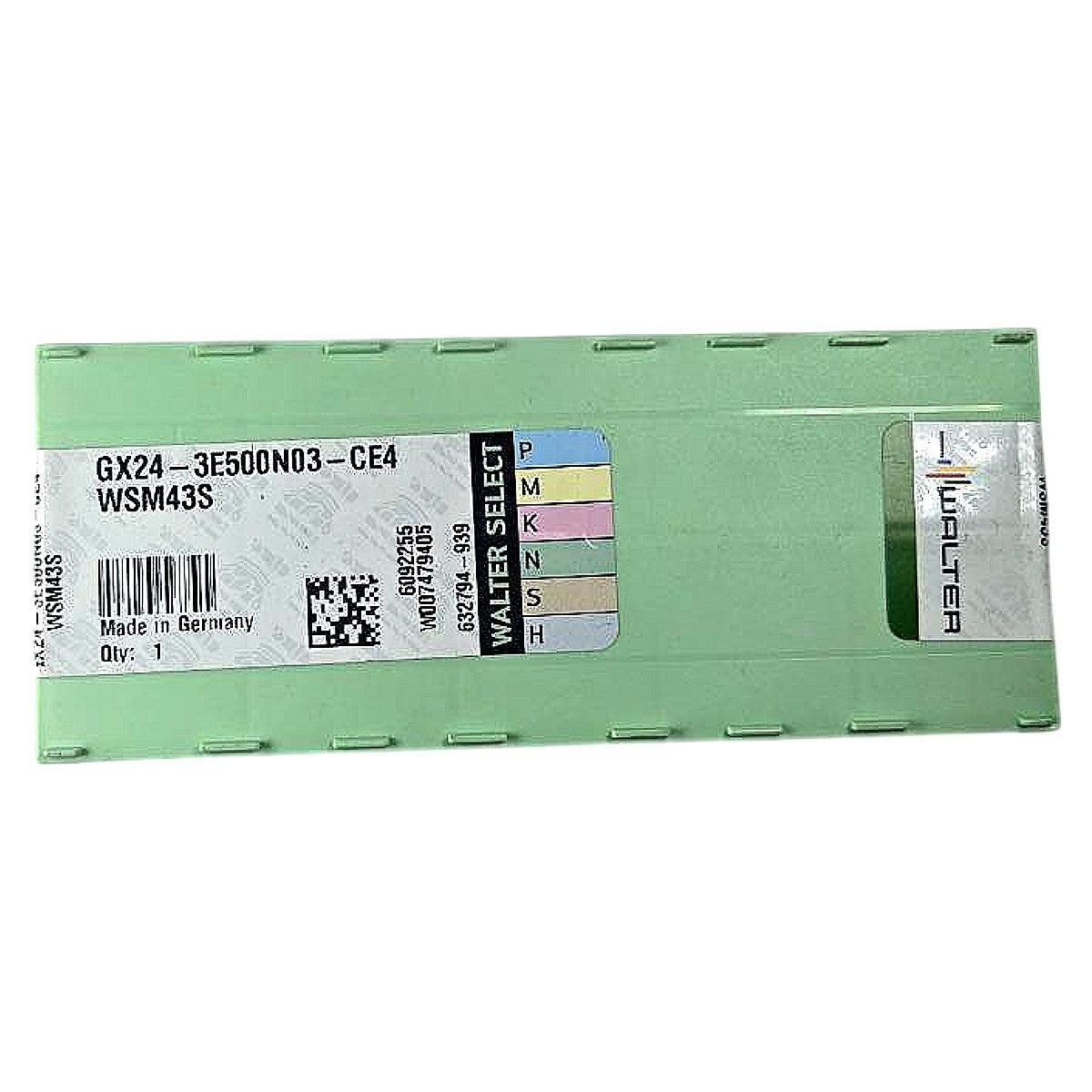

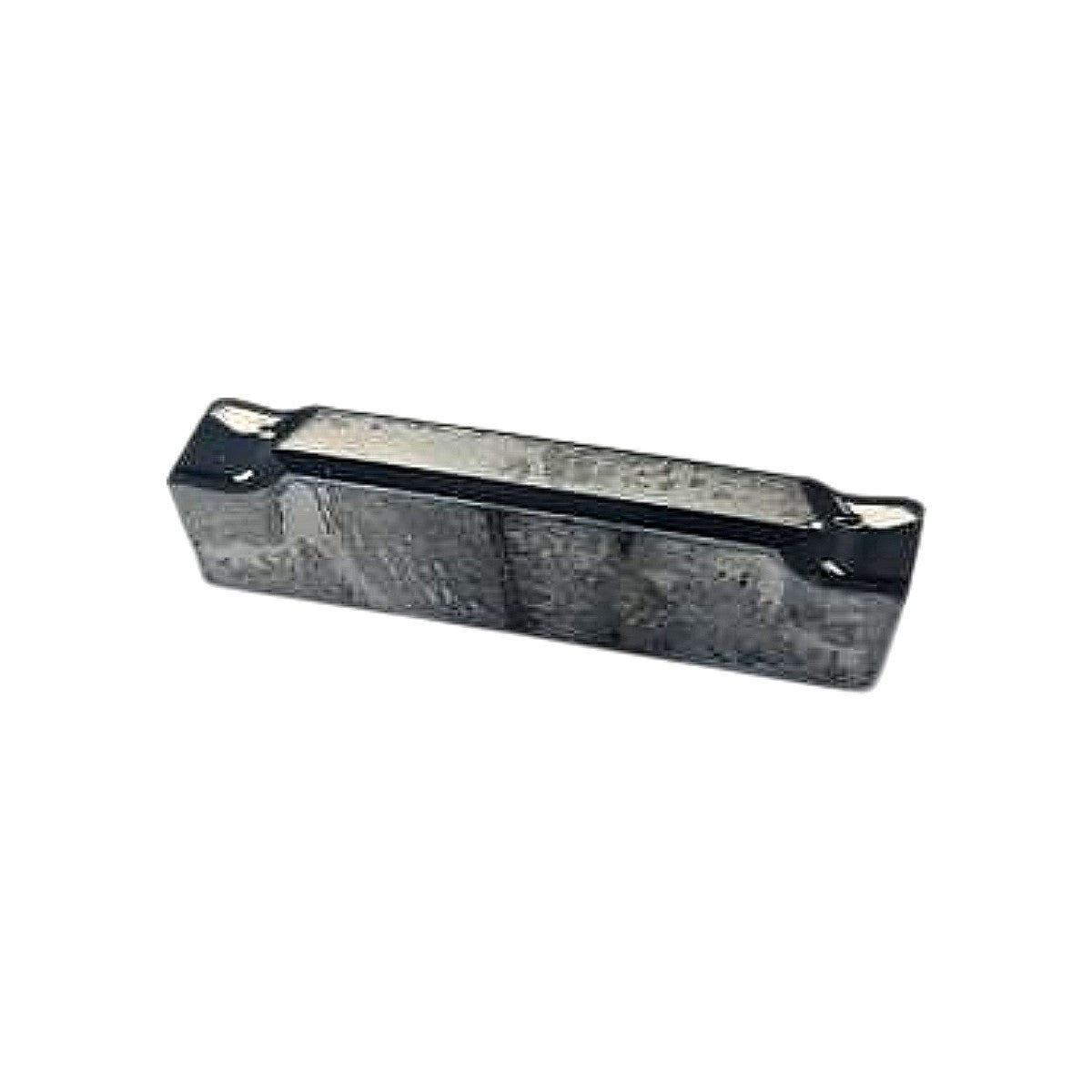

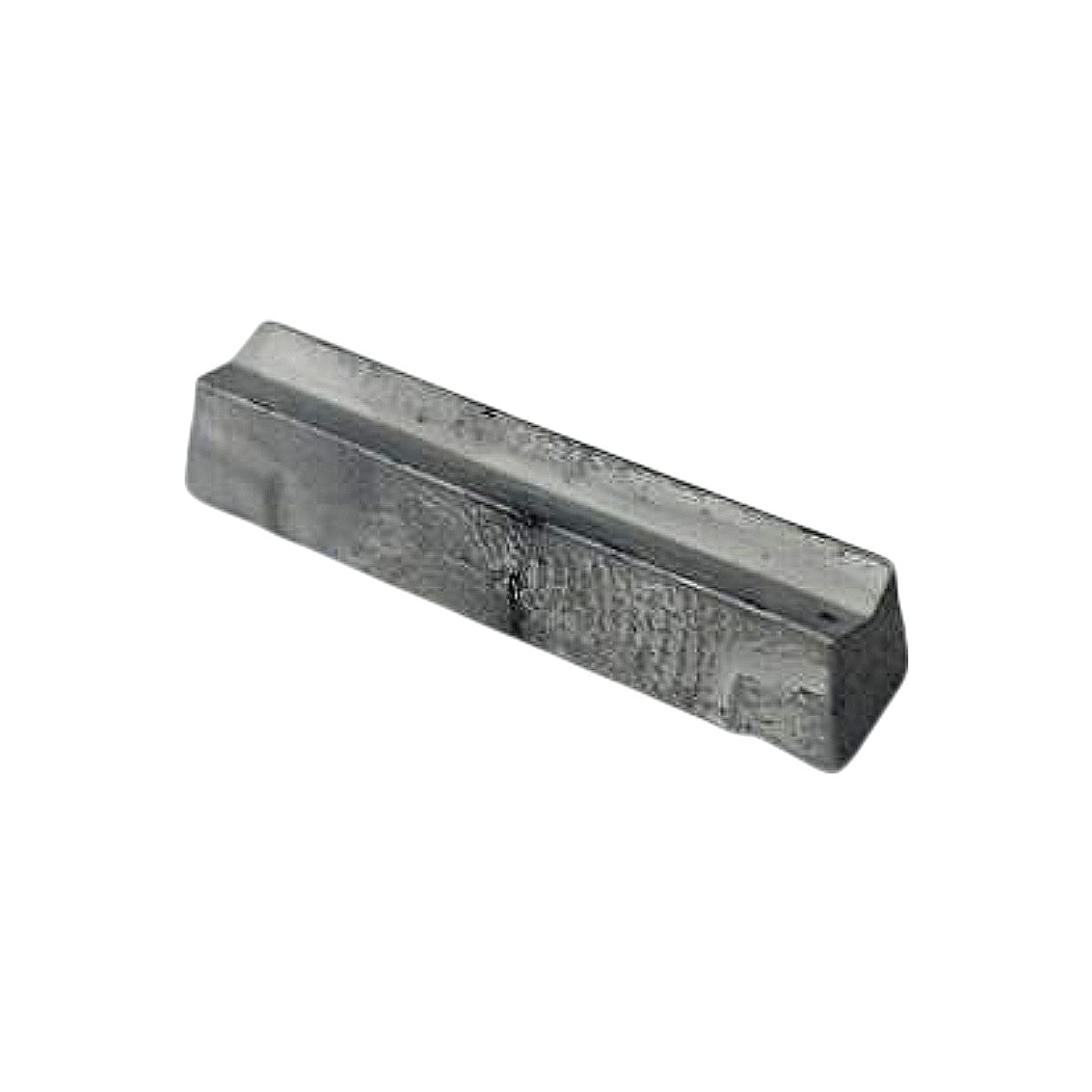

The Walter GX24-3E500N03-CE4 WSM43S is a new, genuine Walter-branded single-sided carbide grooving insert in the Walter Cut GX24 system, designed for parting and grooving operations on CNC lathes. Decoding the part number: GX24 identifies the Walter Cut grooving system with a 24° locking angle; 3E indicates a single-edge (one cutting edge) insert with an E-style clamping geometry; 500 encodes a 5.00 mm cutting width; N03 specifies a neutral (straight) cutting edge geometry with a 0.3 mm nose radius on each corner; CE4 denotes the chipbreaker geometry optimized for medium-material cutting conditions. The grade WSM43S is a Walter Select CVD-coated carbide grade rated for ISO material groups P (steel), M (stainless steel), and K (cast iron) as indicated by the color-coded label visible on the packaging — the "S" suffix in WSM43S denotes a Tiger·tec Silver CVD Al₂O₃/TiCN coating engineered for high thermal stability, excellent flank wear resistance, and consistent tool life across a broad cutting speed range. This insert is compatible with Walter Cut GX24 toolholders and grooving/parting blade systems accepting the GX24 double-ended pocket style, and is manufactured in Germany as confirmed by the package label.
Product Specifications
| Brand | Walter |
| MPN | GX24-3E500N03-CE4 WSM43S |
| Insert System | Walter Cut GX24 |
| Cutting Width | 5.00 mm |
| Number of Cutting Edges | 1 (single-edge) |
| Cutting Edge Geometry | Neutral (N) |
| Nose Radius | 0.3 mm |
| Chipbreaker | CE4 |
| Grade | WSM43S |
| Coating | Tiger·tec Silver CVD (Al₂O₃/TiCN) |
| ISO Material Groups | P (steel), M (stainless), K (cast iron) |
| Insert Type | Grooving / Parting |
| Country of Origin | Germany |
| Condition | New |
| Qty per Package | 1 |
