Walter MC111-12.0A4A-WJ30TF 12mm 4-Flute Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

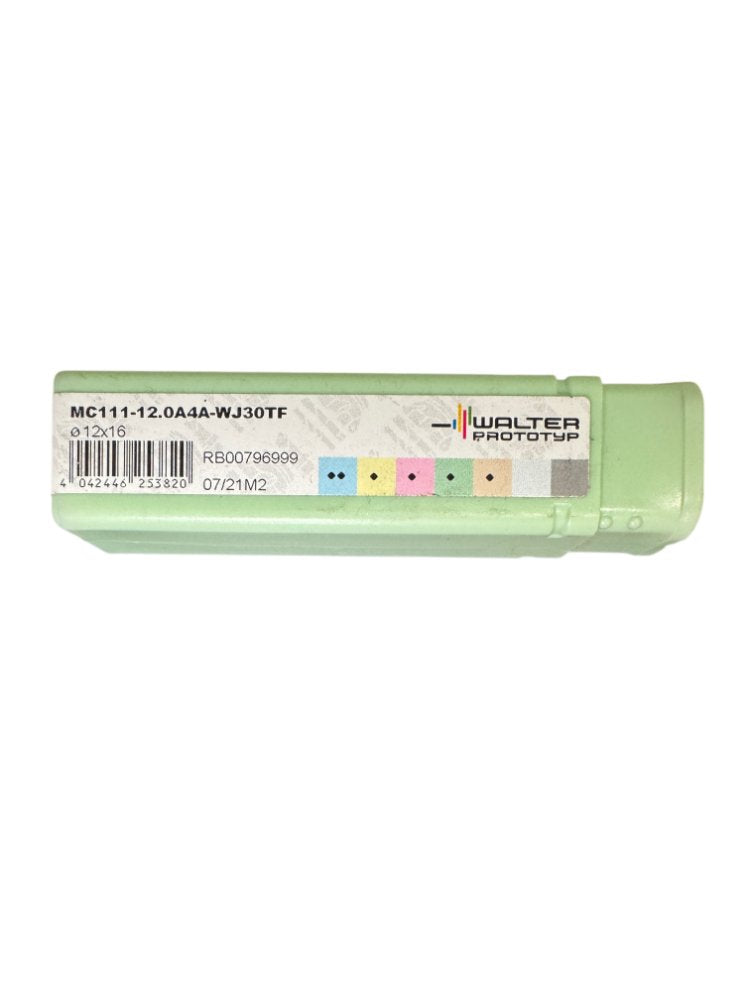

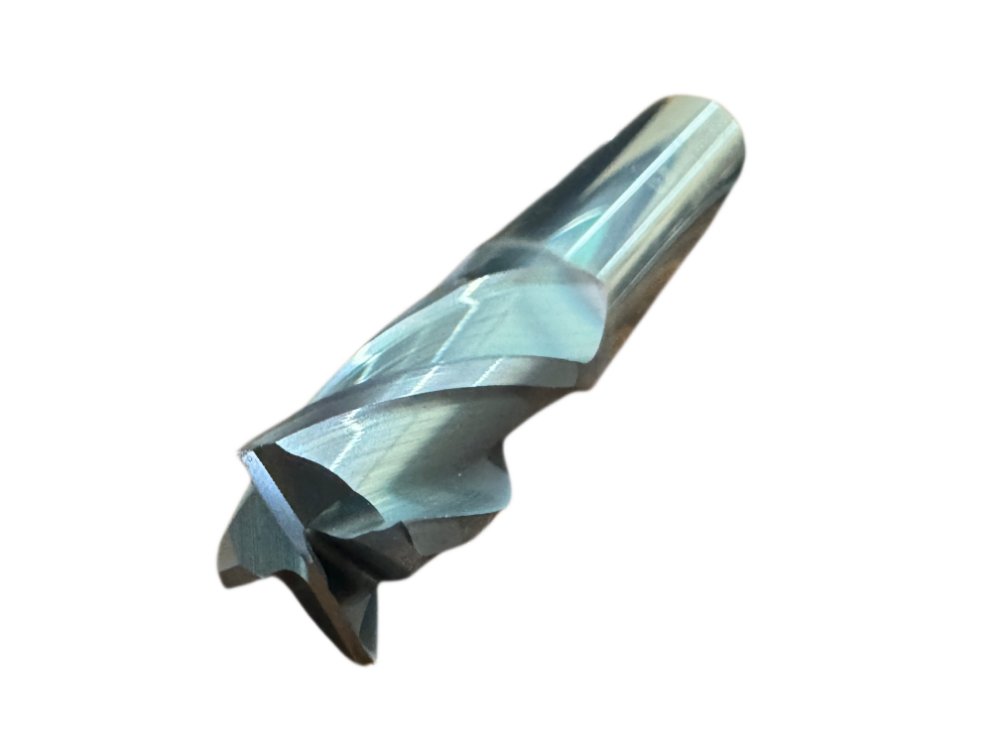

The Walter Prototyp MC111-12.0A4A-WJ30TF is a new, solid carbide 4-flute square-end end mill with a 12mm cutting diameter and 16mm shank diameter, as confirmed by the label designation Ø12x16. The MC111 series belongs to Walter's Perform line of general-purpose solid carbide end mills, and the WJ30TF grade designation indicates a TiAlN-based physical vapor deposition (PVD) coating engineered for extended tool life in steel, cast iron, and stainless steel milling applications. The '4A' in the part number designates 4 flutes with a standard helix configuration suited for peripheral and slot milling on machining centers using ER or Weldon-style toolholders accepting a 16mm shank. Manufactured in 07/2021 per the lot code on the label, this tool remains in original, unused condition in its Walter Prototyp packaging.
Product Specifications
| Brand | Walter Prototyp |
| MPN | MC111-12.0A4A-WJ30TF |
| Cutting Diameter | 12 mm |
| Shank Diameter | 16 mm |
| Number of Flutes | 4 |
| End Style | Square (Flat) |
| Tool Material | Solid Carbide |
| Grade | WJ30TF |
| Coating | TiAlN PVD (WJ30TF) |
| Series | MC111 |
| Manufacture Date | 07/2021 |
| Condition | New |
