Walter P3204-D19.05 WSP46 Tiger-tec Carbide Milling Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

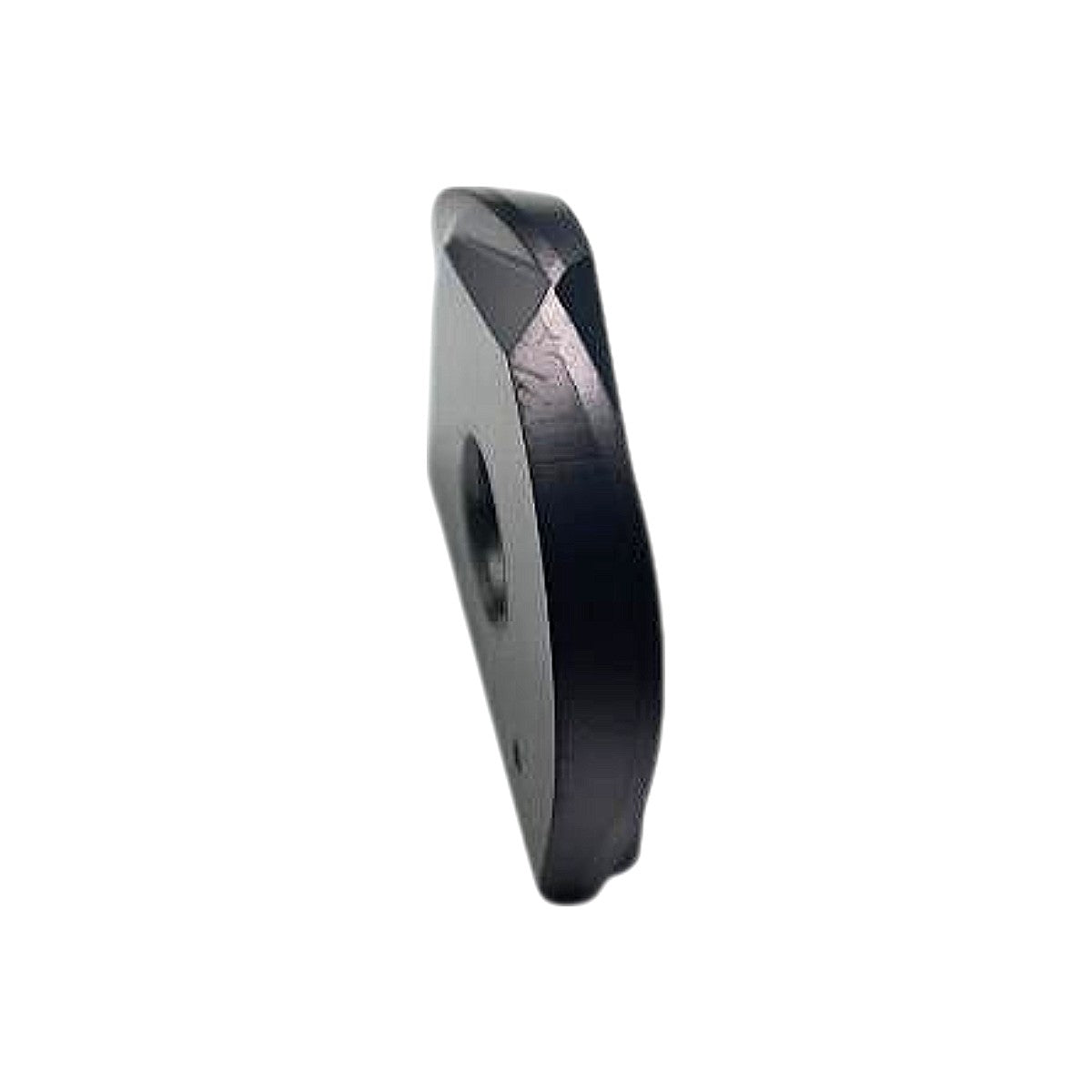

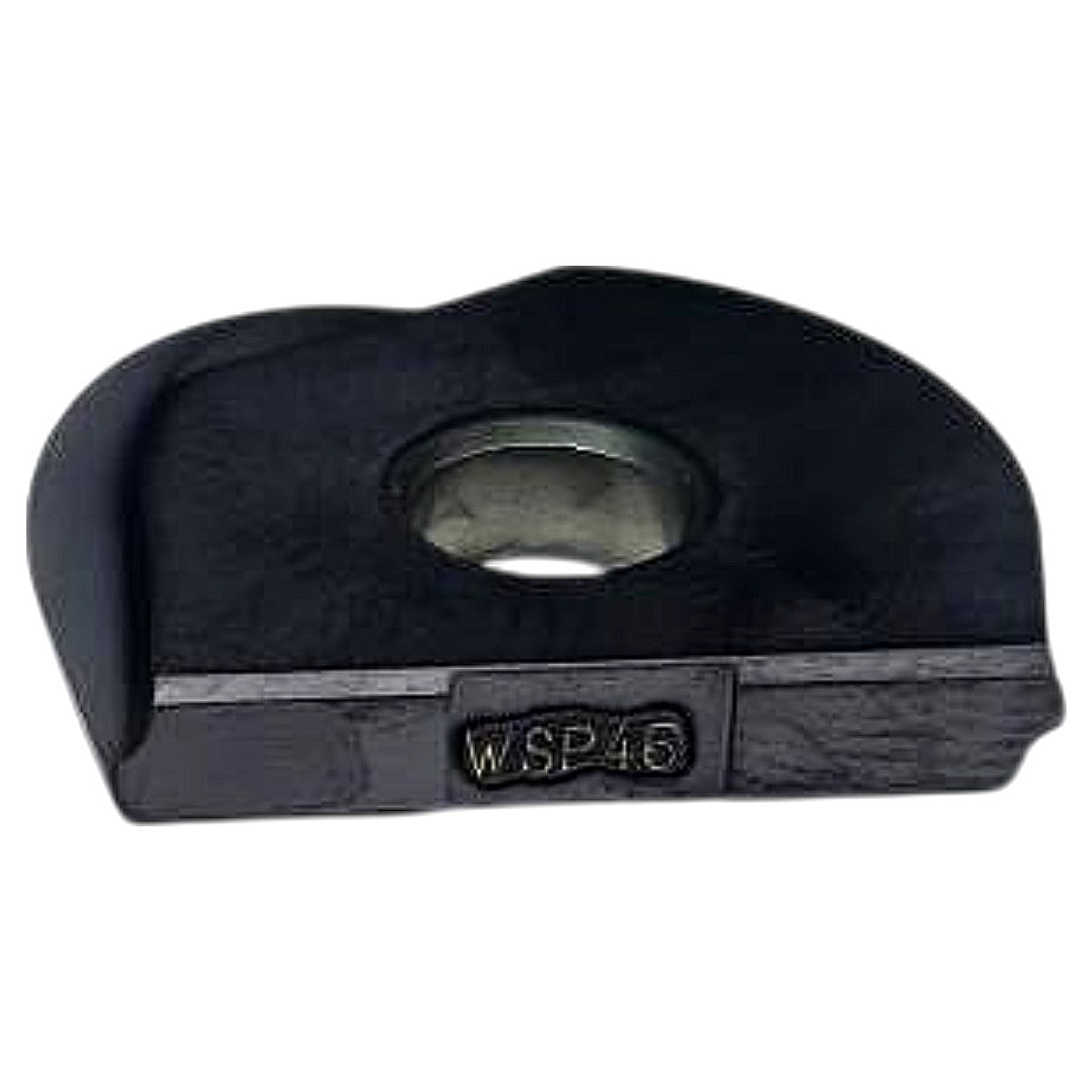

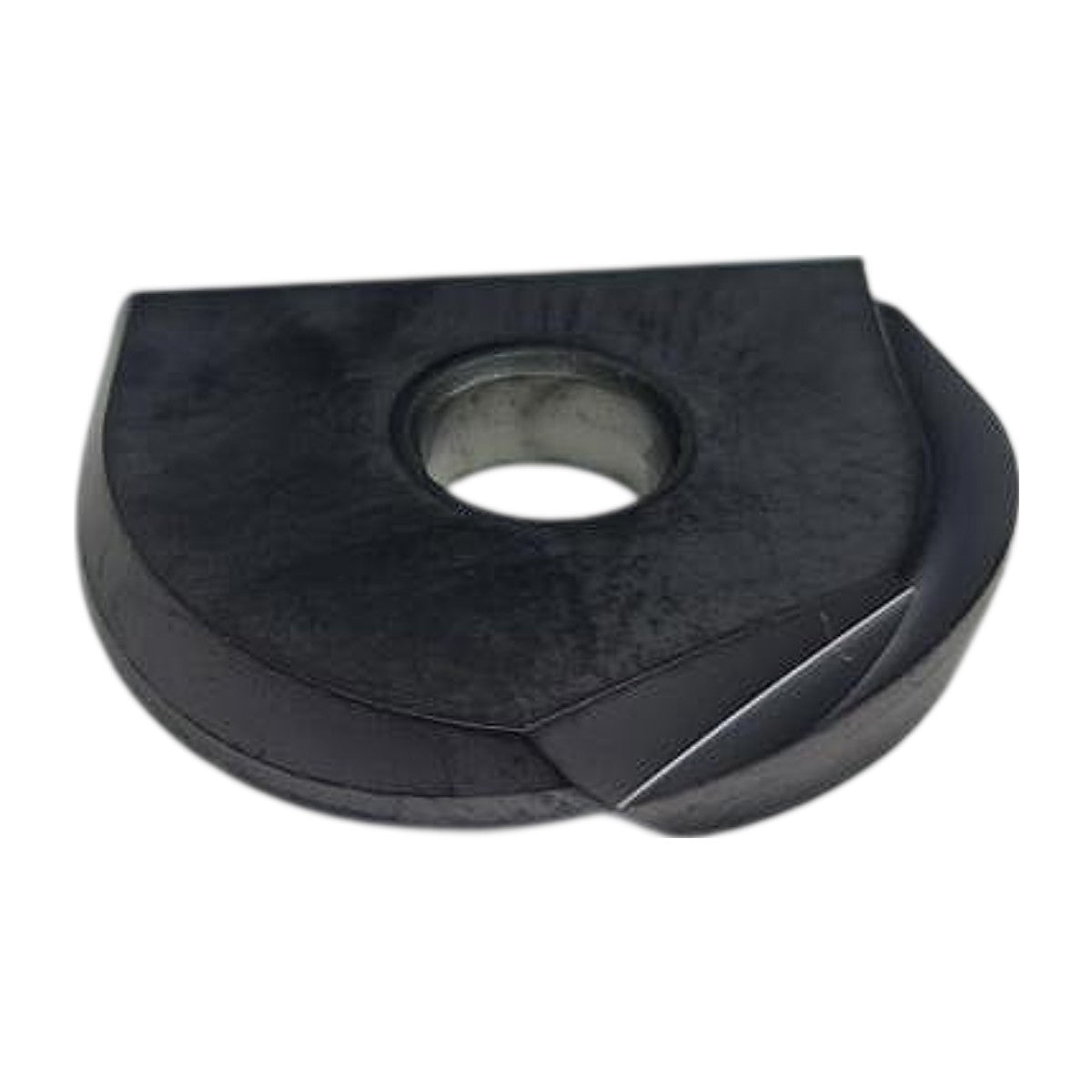

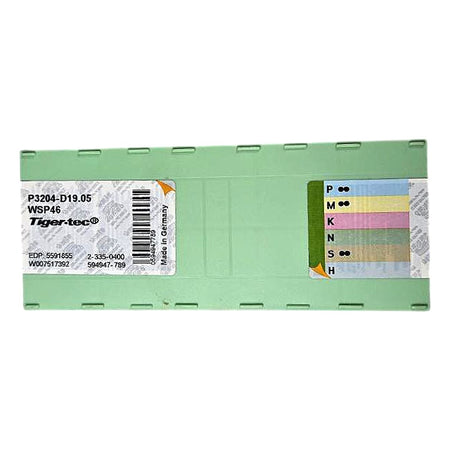

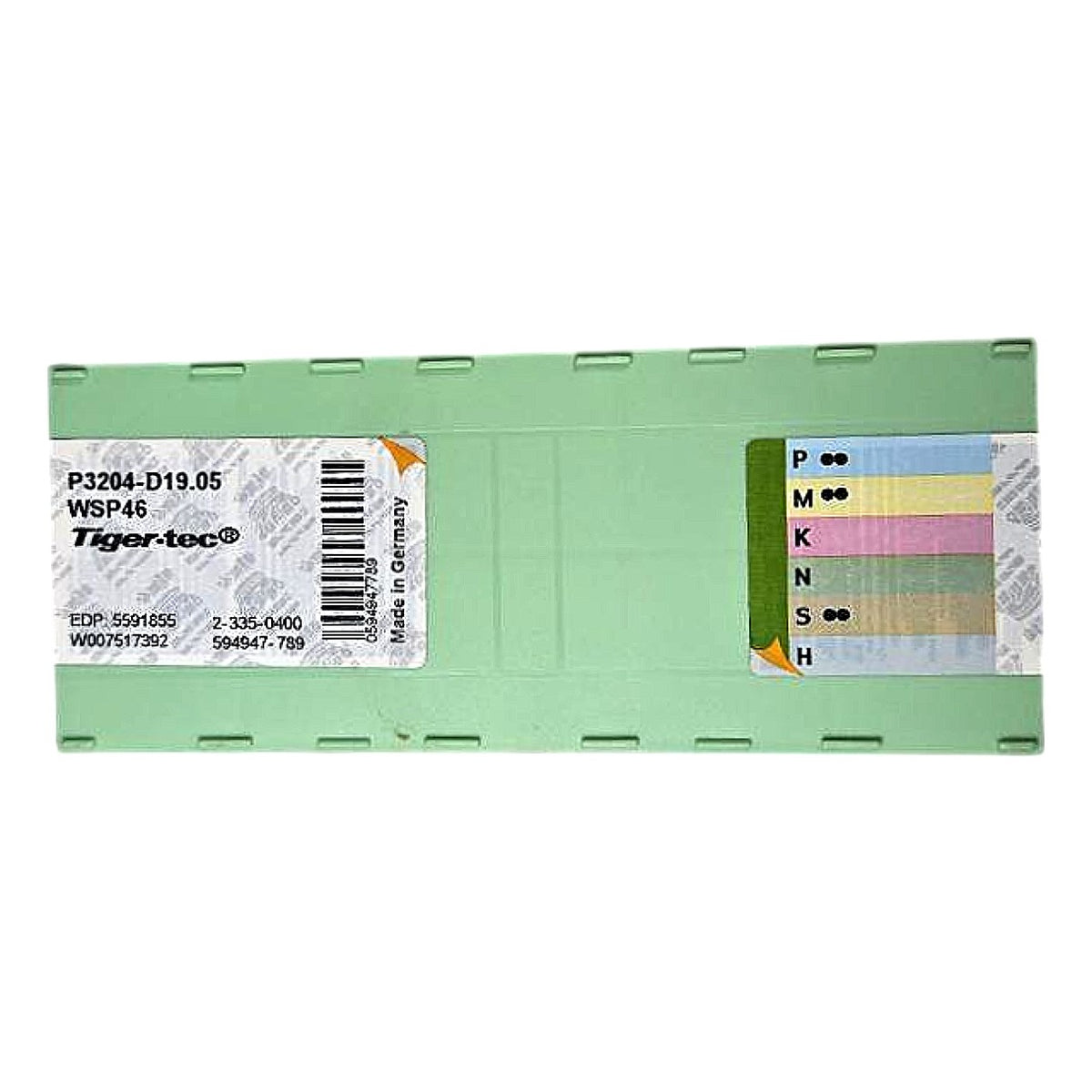

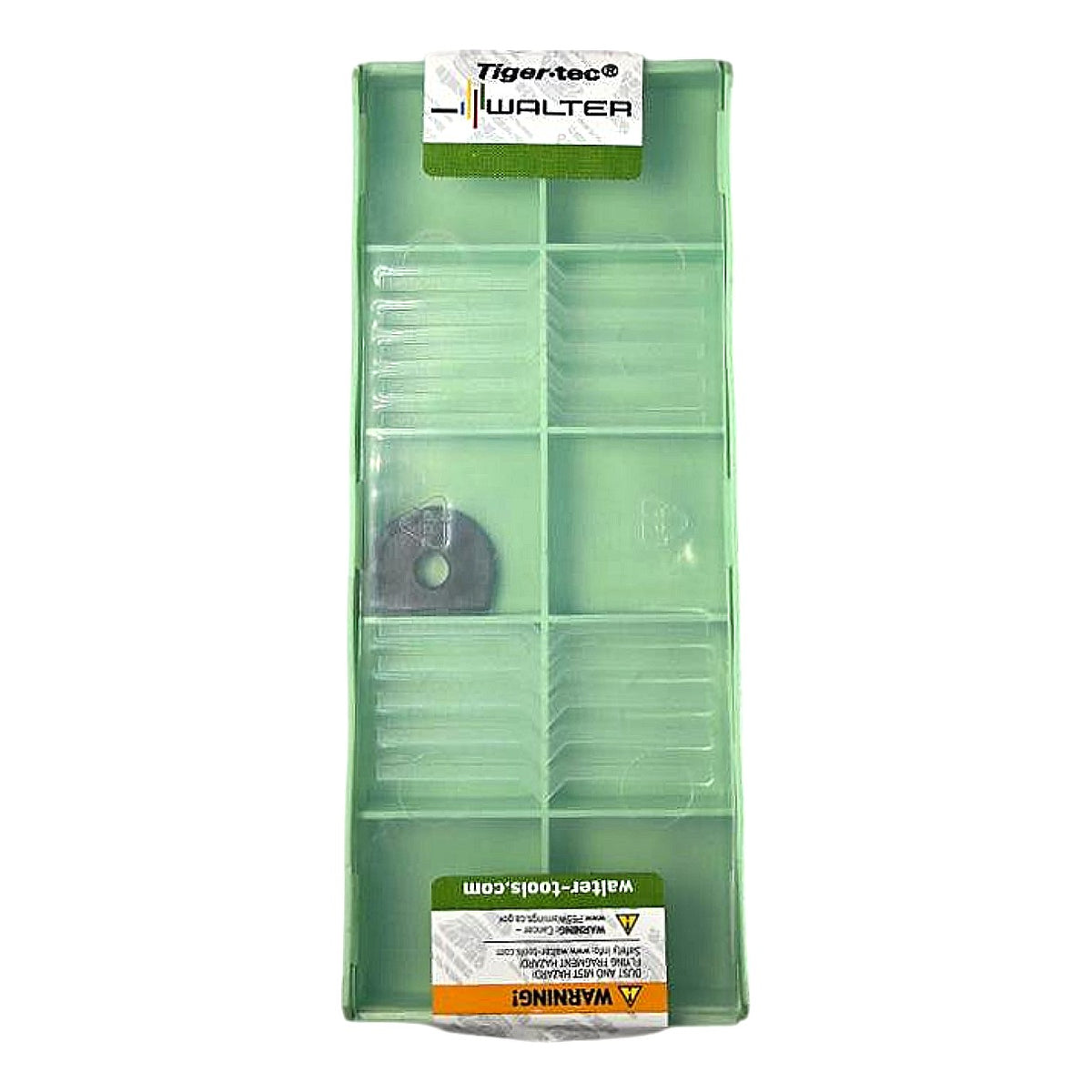

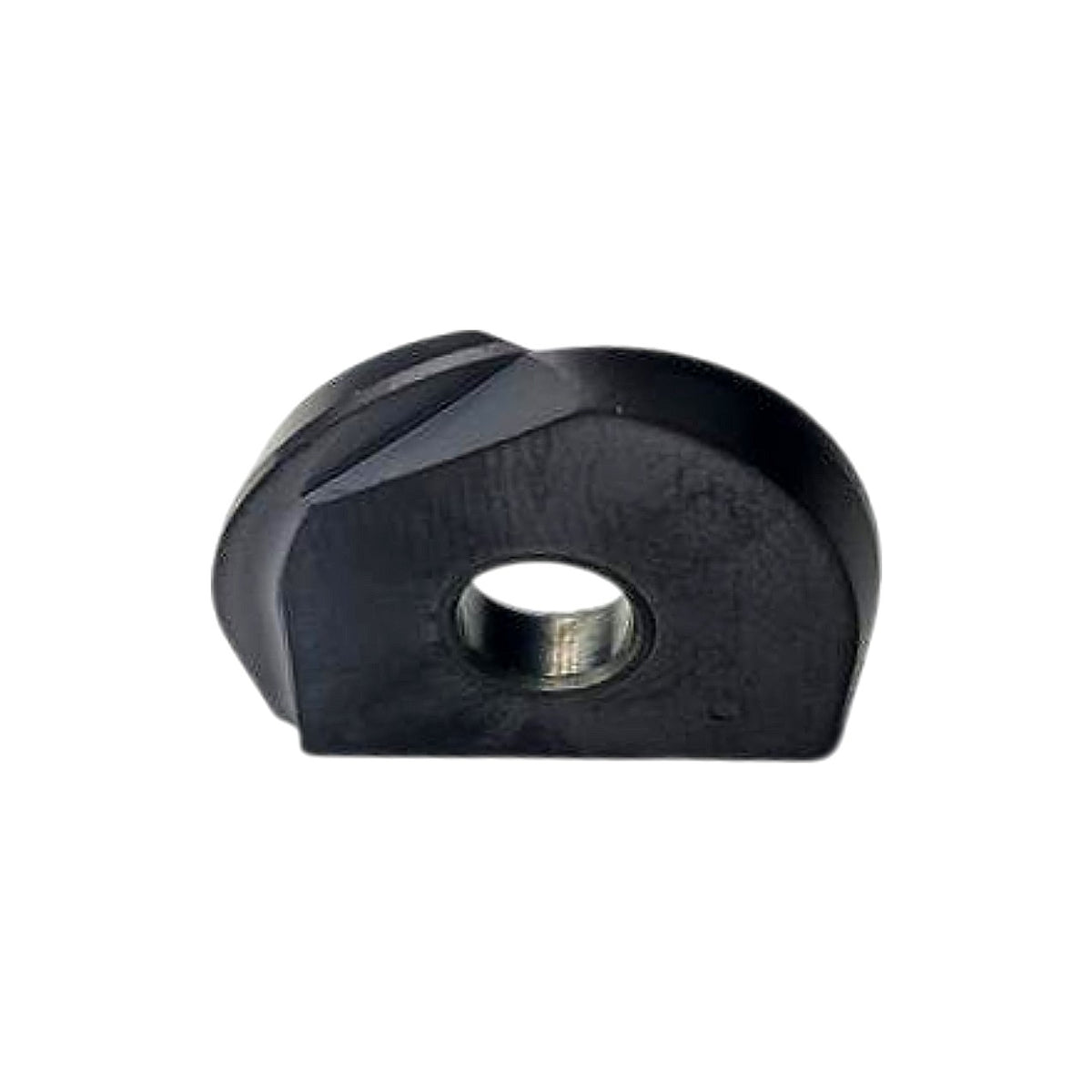

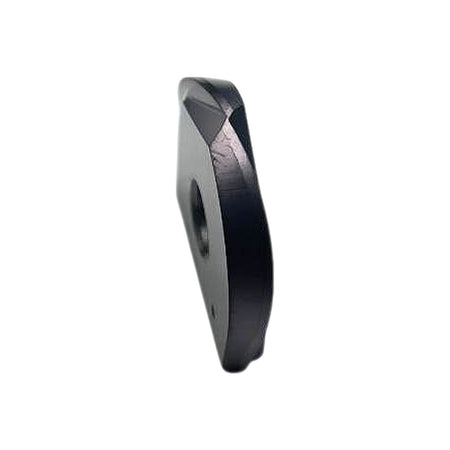

The Walter P3204-D19.05 is a new, round (circular) indexable carbide milling insert in the Tiger-tec® WSP46 grade, designed for Walter's F4042 and compatible round-insert face and shoulder milling cutters. The insert designation encodes a round (P = circular/round form in Walter's proprietary milling insert system) shape with a 19.05 mm (3/4 in) inscribed circle diameter and 05 mm thickness; the steel-bushing center bore accepts the standard clamping screw for secure, repeatable seating. WSP46 is a PVD-coated (TiAlN-based Tiger-tec® Silver) cemented carbide grade rated for P (steel) and M (stainless/austenitic) materials at medium to heavy milling — the package label confirms P●● and M●● suitability, with additional S●● (superalloy) capability visible on the application chart. The full-round geometry provides a continuously variable entering angle (0°–90° depending on axial depth of cut), delivering smooth ramping, helical interpolation, and circular milling; the insert is produced in Germany and carries Walter EDP 5591855.
Product Specifications
| Brand | Walter |
| MPN | P3204-D19.05 |
| Grade | WSP46 |
| Grade Series | Tiger-tec® |
| Coating | PVD TiAlN (Tiger-tec® Silver) |
| Insert Shape | Round (full circular) |
| Inscribed Circle (IC) Diameter | 19.05 mm (3/4 in) |
| Insert Thickness | 5.0 mm |
| EDP Number | 5591855 |
| Country of Origin | Germany |
| ISO Material Group (P) | P●● — Steel |
| ISO Material Group (M) | M●● — Stainless / Austenitic |
| ISO Material Group (S) | S●● — Superalloys / Heat-Resistant |
| ISO Material Group (K) | K — Cast Iron (limited) |
| Application | Face milling, shoulder milling, ramping, helical interpolation |
| Insert Type | Indexable milling insert, round form |
| Condition | New |
