Walter P3204-D19.05 WSP46 Tiger-tec Carbide Milling Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

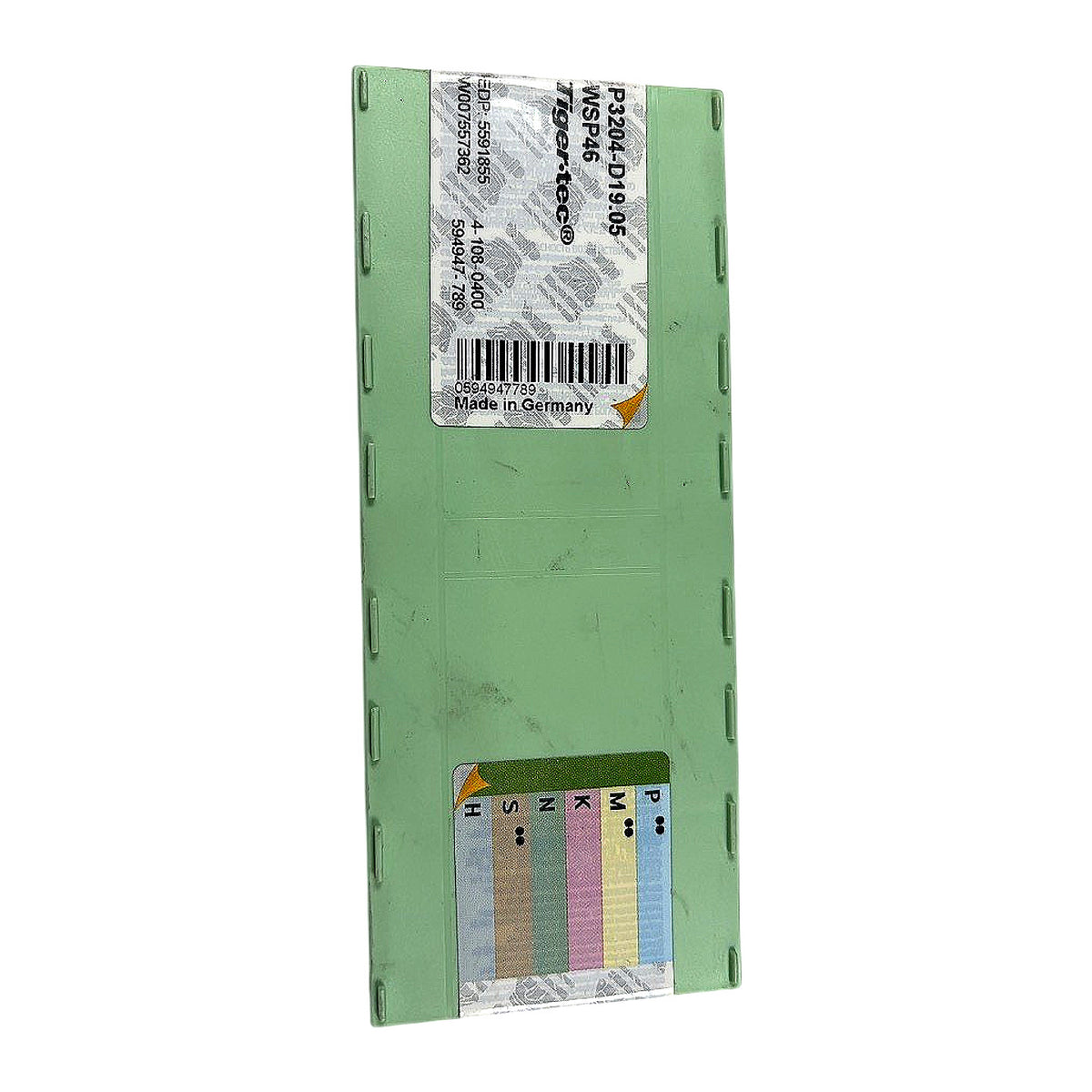

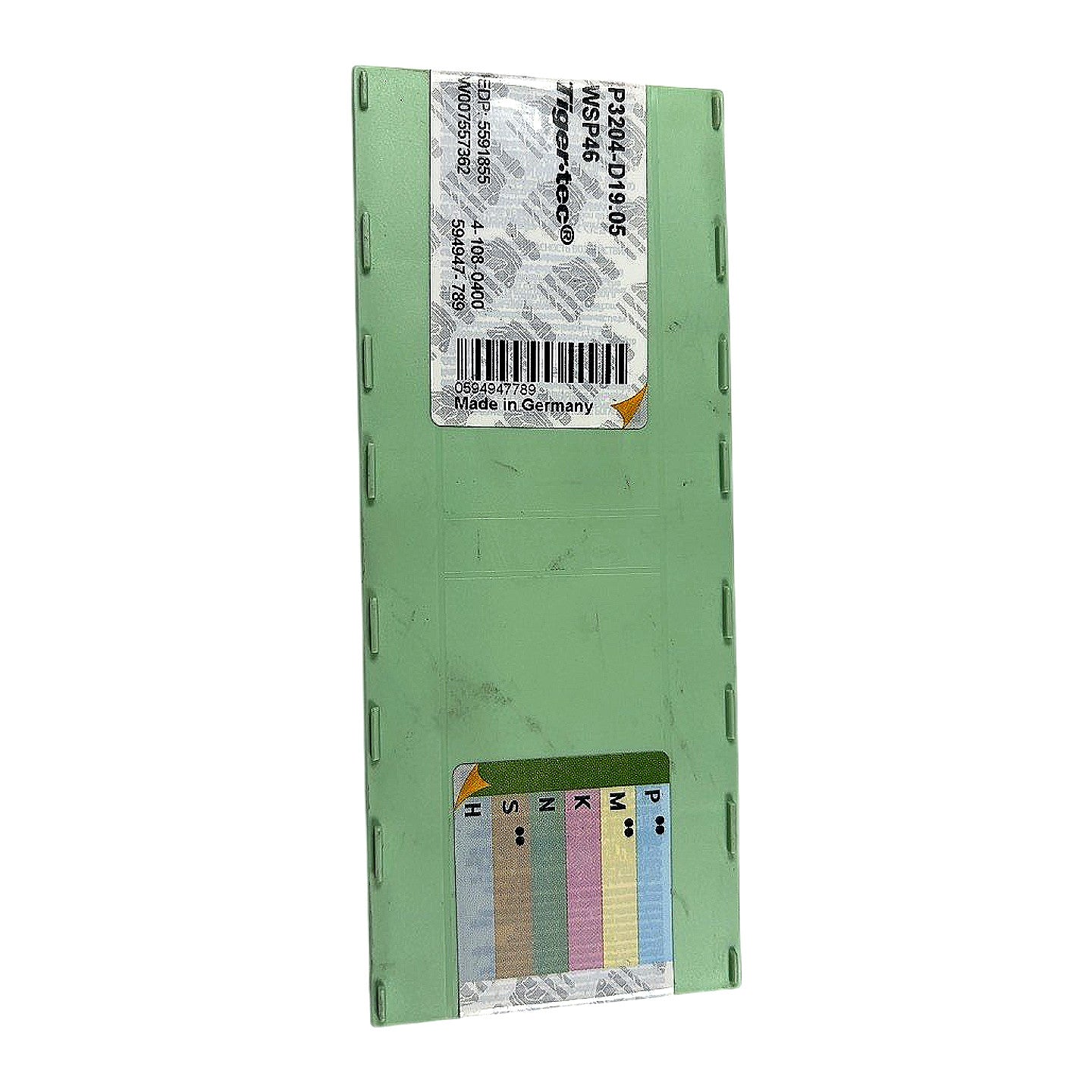

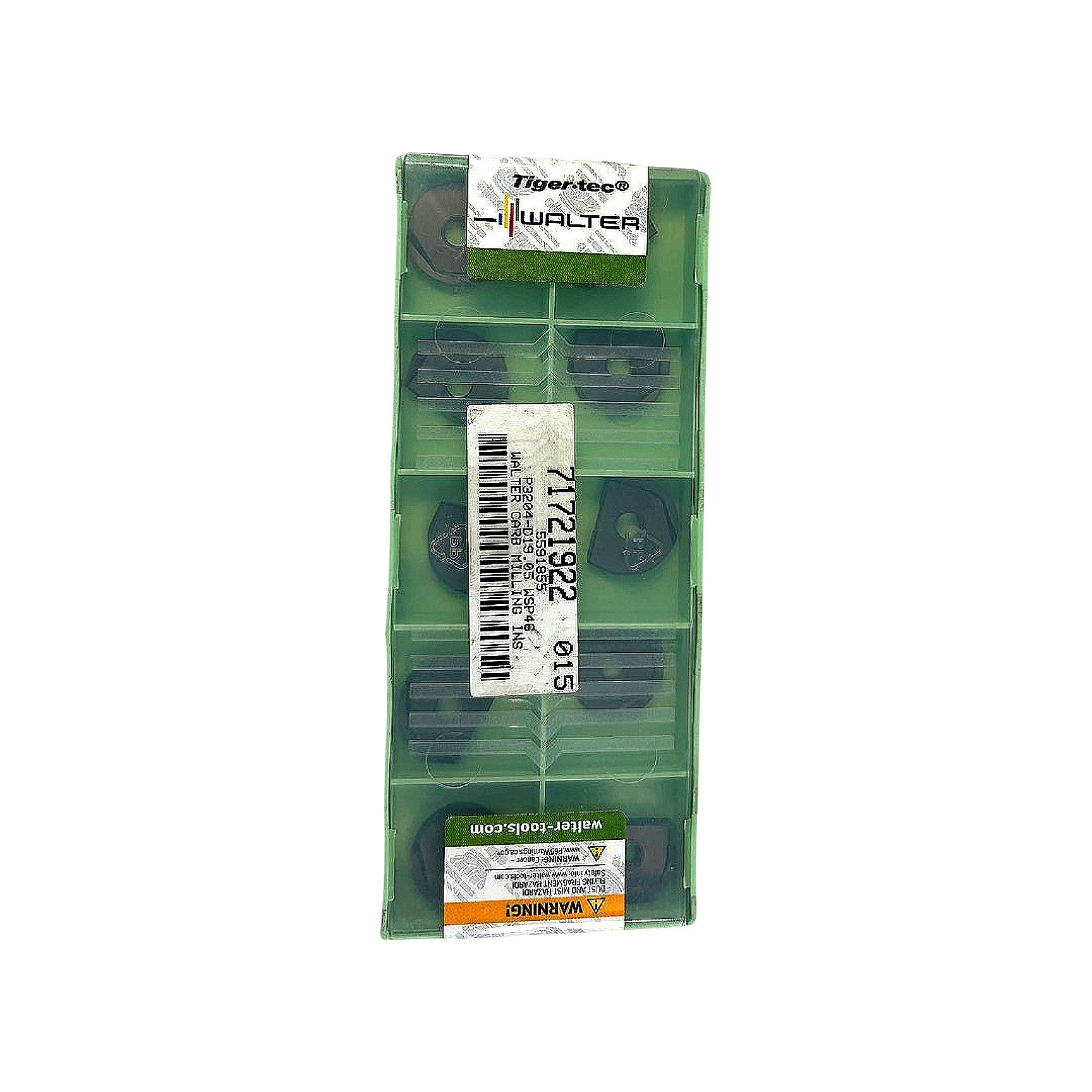

This is a new, factory-sealed box of 10 Walter P3204-D19.05 carbide milling inserts in grade WSP46, part of Walter's Tiger-tec Silver PVD coating platform. The P3204 designation identifies a round (circular) insert geometry with a 19.05 mm (3/4 in) diameter and 05 mm thickness, designed for use in Walter's F4042 and compatible round-insert face and shoulder milling cutters. WSP46 is a Tiger-tec Silver PVD-coated grade optimized primarily for milling steel (ISO P) and stainless steel (ISO M), delivering a fine-grain alumina-free PVD multilayer coating for improved toughness and wear resistance at higher cutting speeds. The material applicability chart on the packaging confirms primary ratings for ISO P (steel) and ISO M (stainless), with secondary suitability for ISO K (cast iron), consistent with Walter's published grade data for WSP46. Made in Germany.
Product Specifications
| Brand | Walter |
| MPN | P3204-D19.05 |
| Grade | WSP46 |
| Coating | Tiger-tec Silver PVD multilayer |
| Insert Shape | Round (circular) |
| Insert Diameter | 19.05 mm (3/4 in) |
| Insert Thickness | 5.0 mm |
| ISO Material Group (Primary) | P (steel), M (stainless steel) |
| ISO Material Group (Secondary) | K (cast iron) |
| Application | Milling |
| Country of Origin | Germany |
| Quantity | 10 inserts per box |
| Condition | New, factory sealed |
