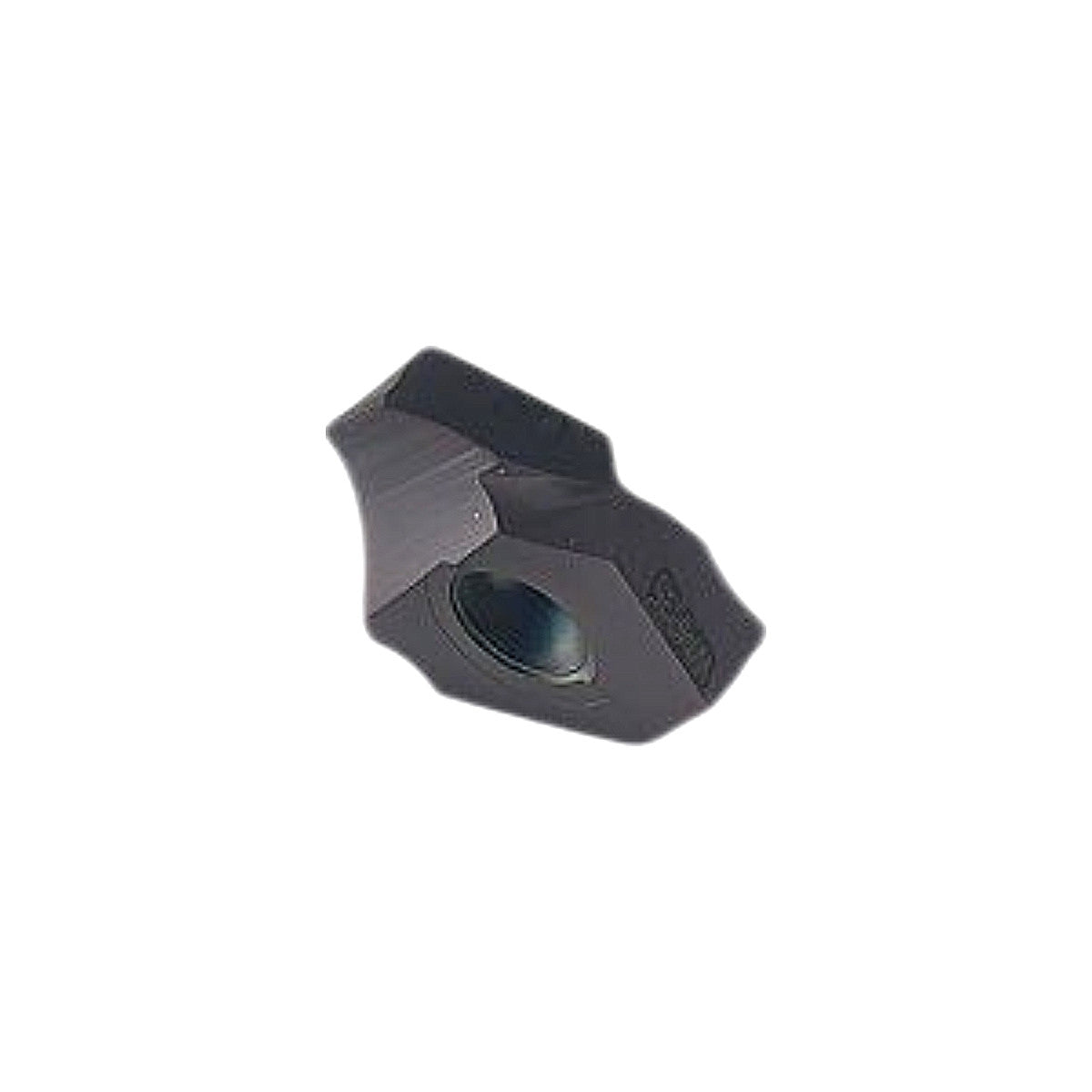

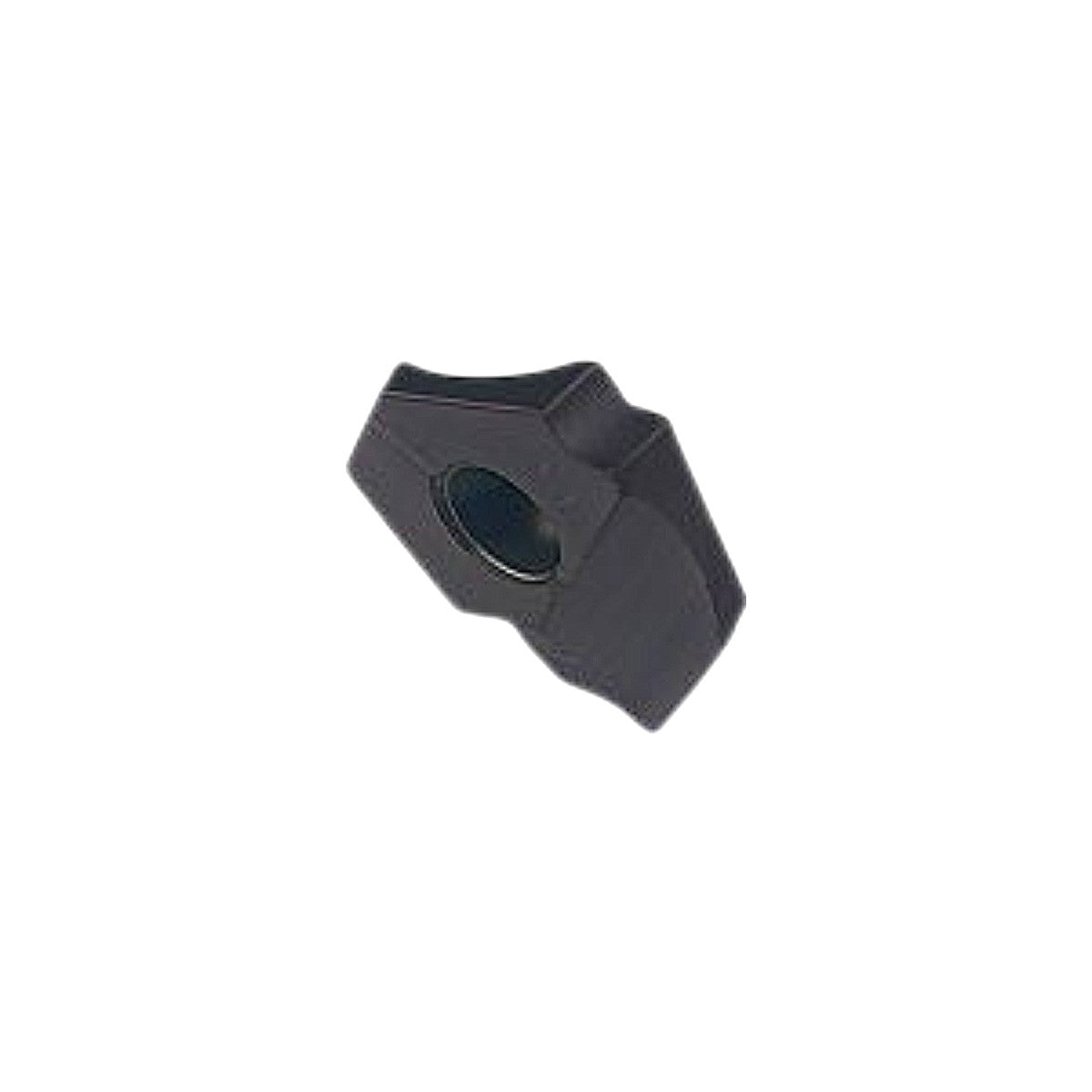

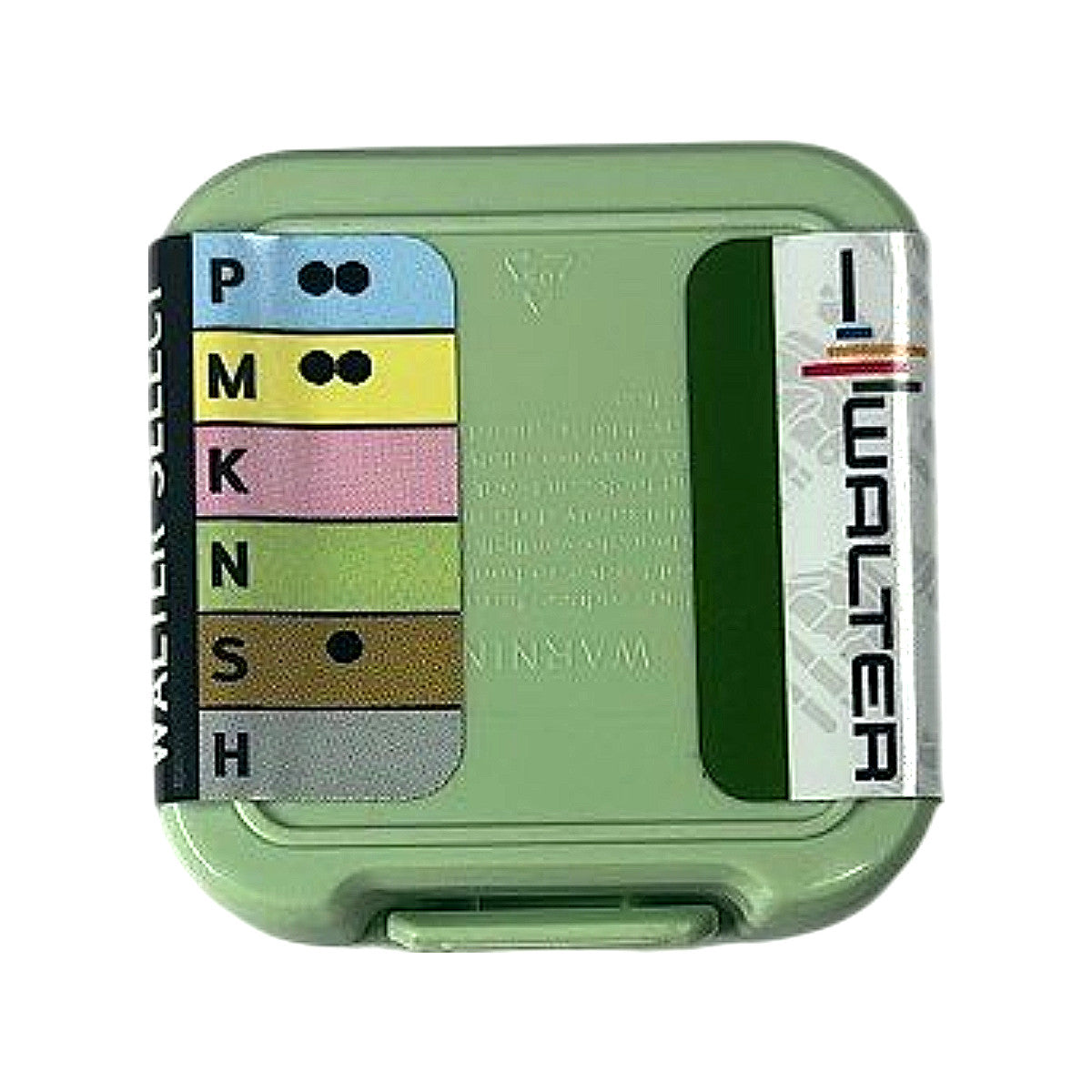

The Walter P6003-D17,07R WMP35 is a new, genuine OEM carbide indexable drilling insert from Walter's B4009 / B4011 / B4012 Titex modular drill system, designed specifically for use as the peripheral (outer) cutting insert in Walter's P6000-series indexable insert drills. The MPN P6003 designates the peripheral insert geometry for the P6000 drill family; "D17,07" indicates the compatible drill diameter of 17.07 mm, and "R" denotes the right-hand cutting orientation. The WMP35 grade is Walter's CVD-coated cemented carbide grade engineered for medium to roughing drilling operations in ISO P (steel) and ISO M (stainless steel) workpiece materials, as confirmed by the application matrix visible on the packaging showing suitability ratings for P (2 dots) and M (2 dots) materials, with single-dot suitability for S (superalloys). The asymmetric polygonal insert body features a central through-hole for screw clamping and a precision ground seating surface for repeatable indexing, and is manufactured in Germany to Walter quality standards.
Product Specifications
| Brand | Walter |
| MPN | P6003-D17,07R |
| Grade | WMP35 |
| Compatible Drill Diameter | 17.07 mm |
| Cutting Direction | Right-Hand (R) |
| Insert Position | Peripheral (outer) insert |
| Insert Family | P6003 (Walter P6000-series indexable drill) |
| Substrate | Cemented carbide |
| Coating | CVD (WMP35 grade) |
| ISO Material Applicability | P (steel), M (stainless steel), S (superalloys) |
| Clamping Method | Center screw (through-hole) |
| Country of Origin | Germany |
| Walter Item Number | 6254996 |
| Condition | New |
