Walter P6003-D21,41R WMP35 Carbide Milling Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

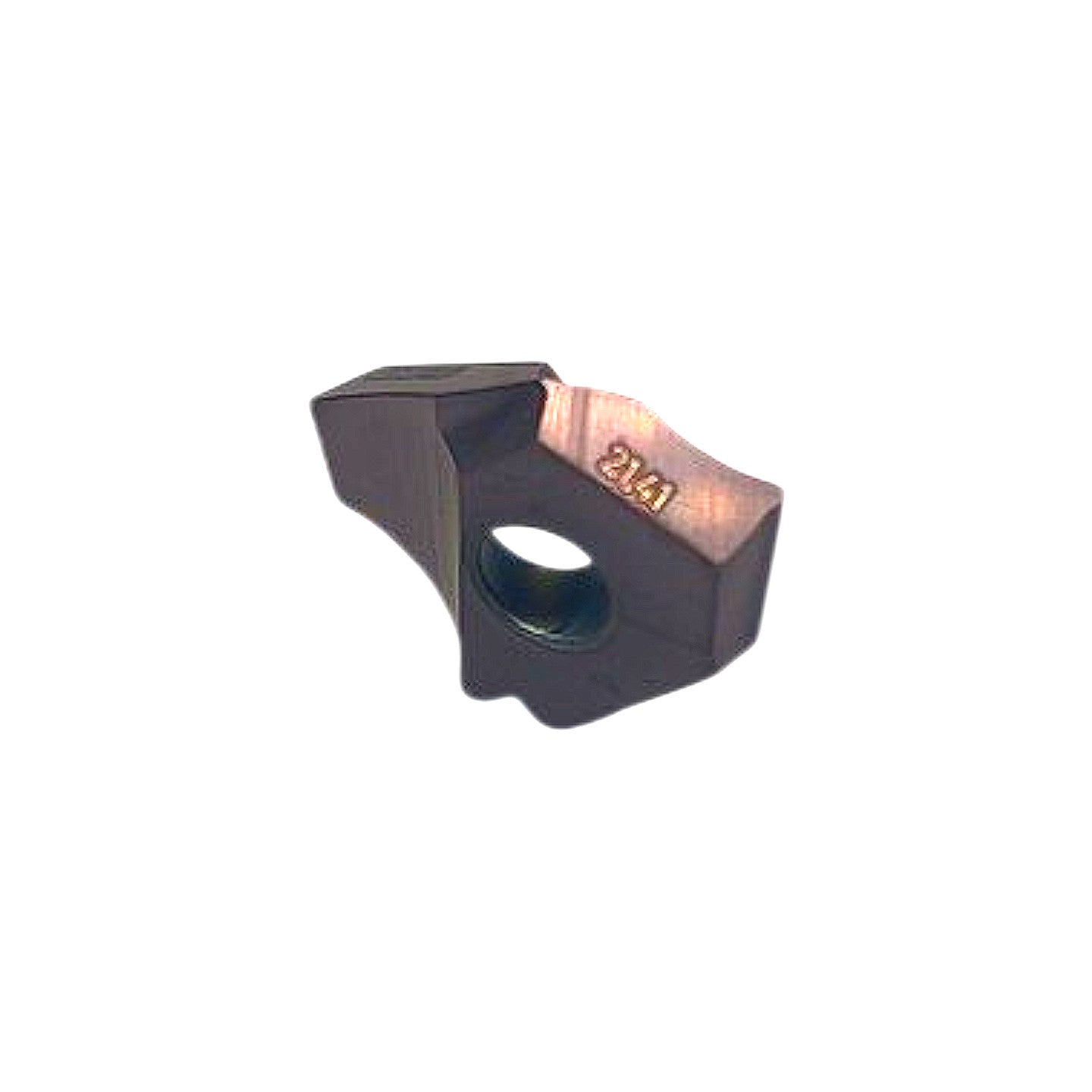

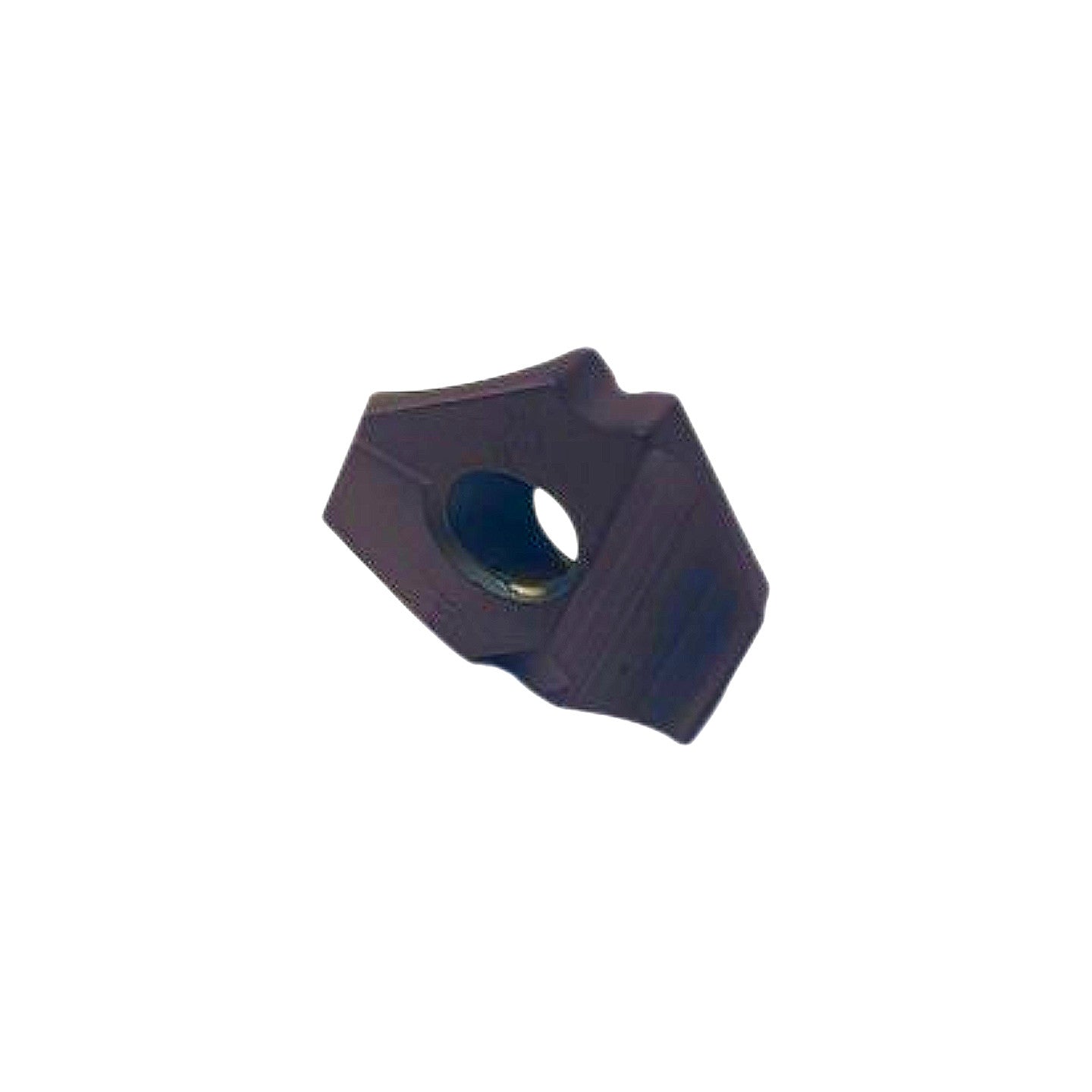

The Walter P6003-D21,41R is a new, indexable solid carbide milling insert in grade WMP35, designed for Walter's Xtra·tec® XT shoulder milling system and compatible high-feed milling cutters. The insert designation P6003 identifies it as a pentagonal-profile high-feed insert; "D21,41" encodes the insert's dimensional specifications (21.41 mm inscribed circle / seating geometry), and "R" denotes right-hand cutting orientation — visible in the photos as the asymmetric rake face geometry. Grade WMP35 is Walter's PVD-coated (AlTiN-based dark violet/grey appearance confirmed in photos) cemented carbide grade engineered for medium-to-heavy milling of steel (ISO P, ●●) and stainless steel (ISO M, ●●), with moderate suitability for superalloys (ISO S, ●), as shown on the Walter SELECT application chart on the packaging. Made in Germany, this insert features a molded-in chipbreaker geometry optimized for high metal removal rates and stable chip control in interrupted and continuous cuts on steel and stainless steel workpieces.
Product Specifications
| Brand | Walter |
| MPN | P6003-D21,41R |
| Grade | WMP35 |
| Cutting Direction | Right-Hand (R) |
| Insert Shape | Pentagonal (high-feed profile) |
| Coating | PVD (AlTiN-based) |
| ISO Material Group P | ●● (recommended — steel) |
| ISO Material Group M | ●● (recommended — stainless steel) |
| ISO Material Group S | ● (suitable — superalloys/titanium) |
| ISO Material Group K | Not rated |
| ISO Material Group N | Not rated |
| ISO Material Group H | Not rated |
| Country of Origin | Germany |
| Condition | New |
| Walter Order Code | W007432079 |
| Compatible System | Walter Xtra·tec XT / F6003 milling cutters |
