Walter Prototyp 3TC420-8116085 3/4-16 UNF HSS-E-PM TiNF Thread Forming Tap
Regular price
$72.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

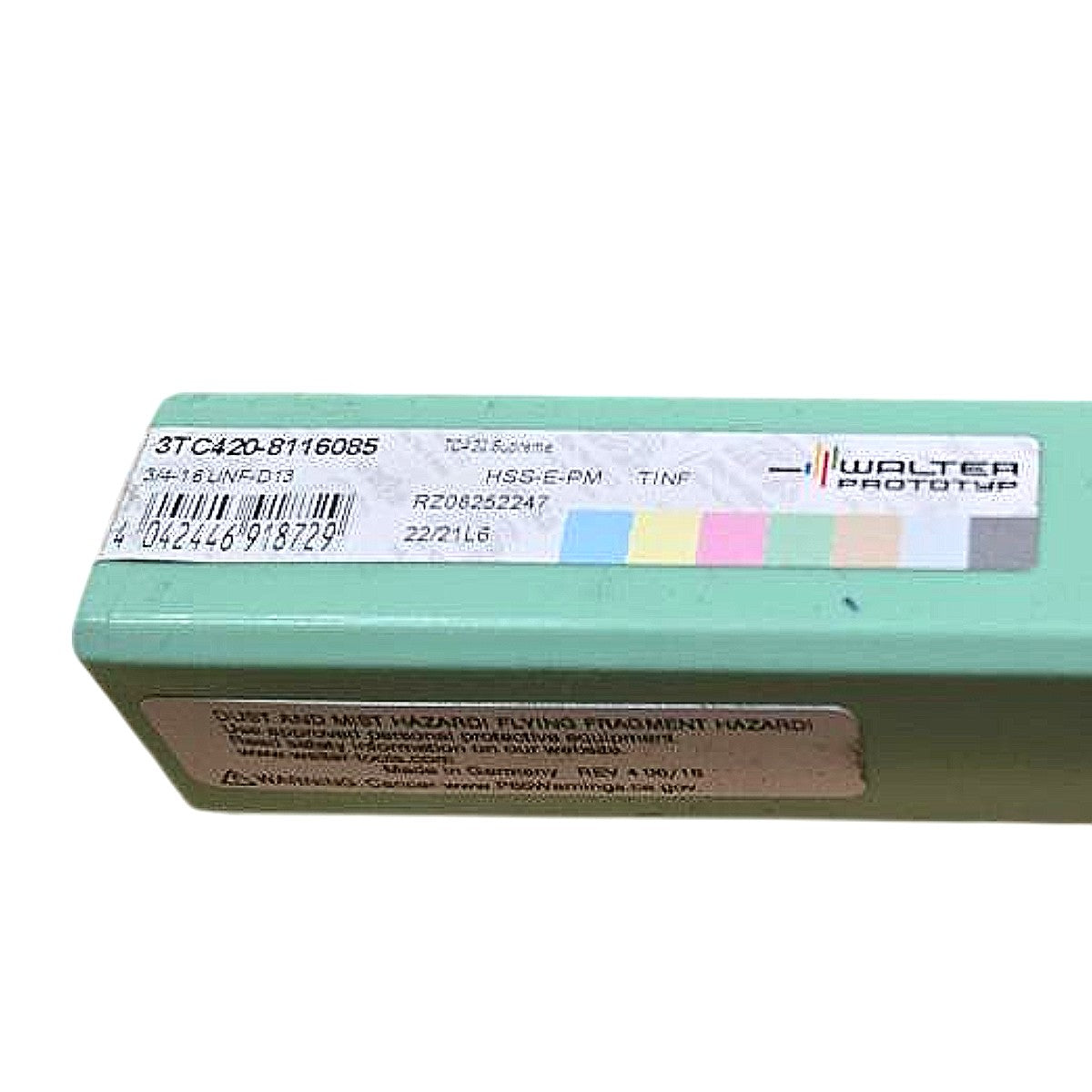

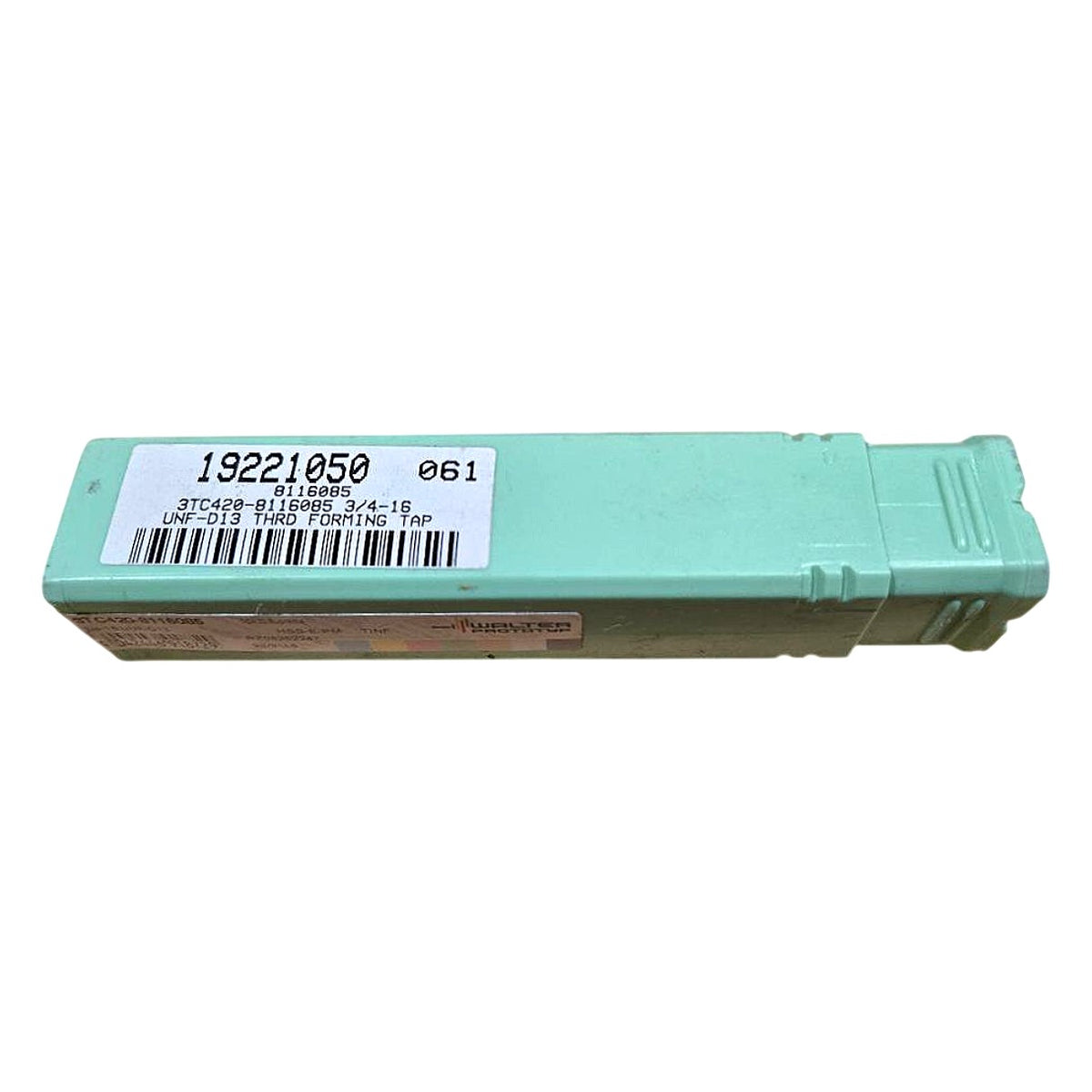

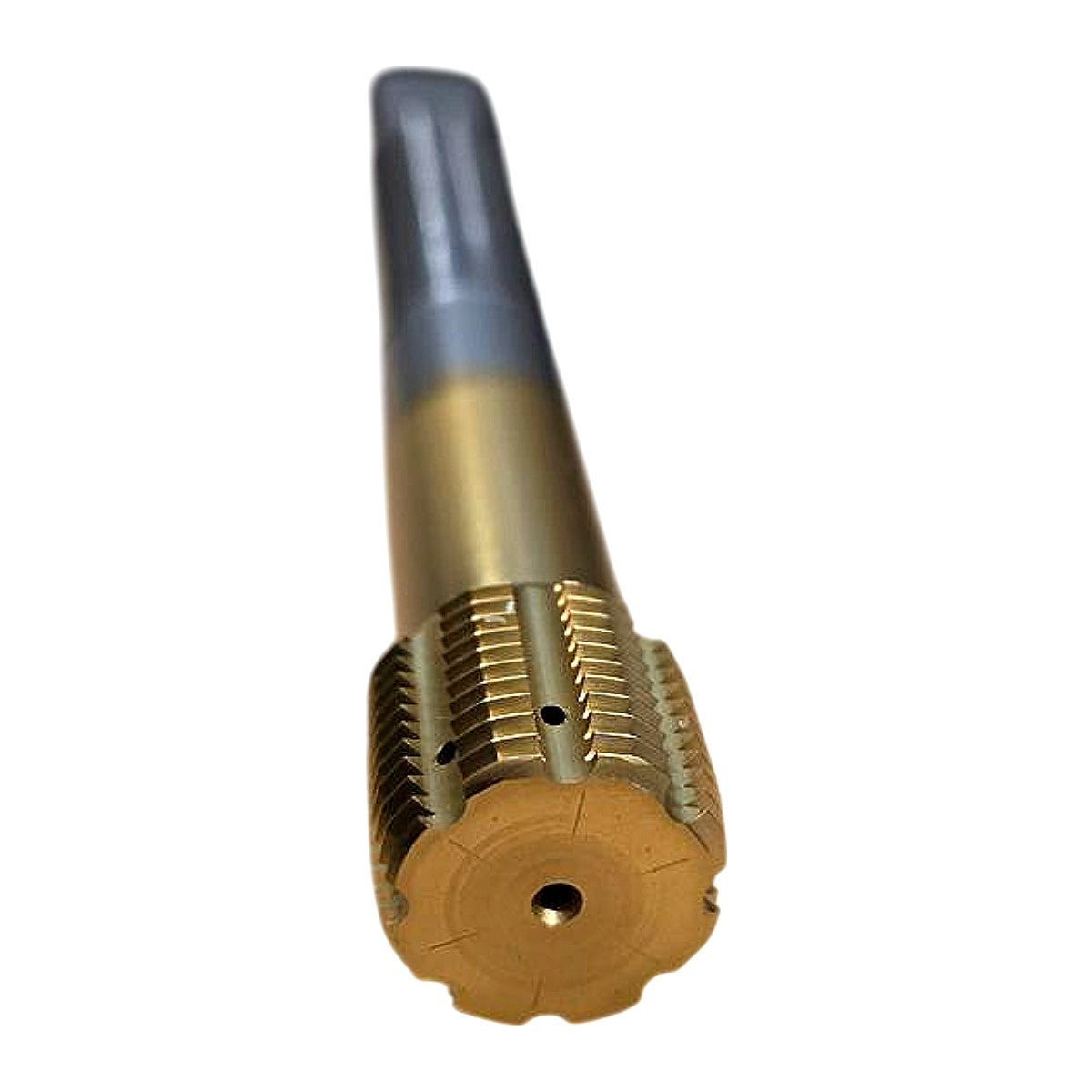

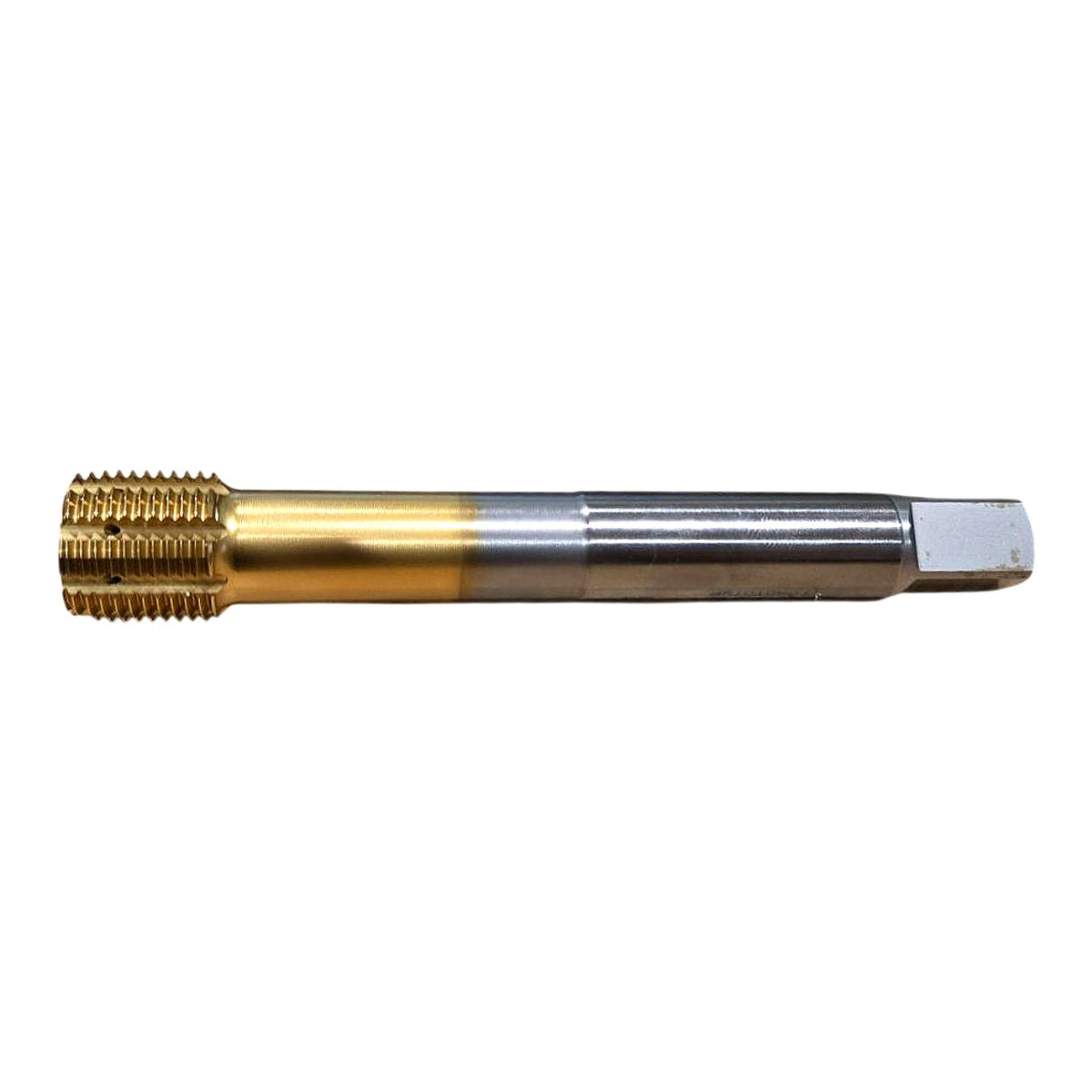

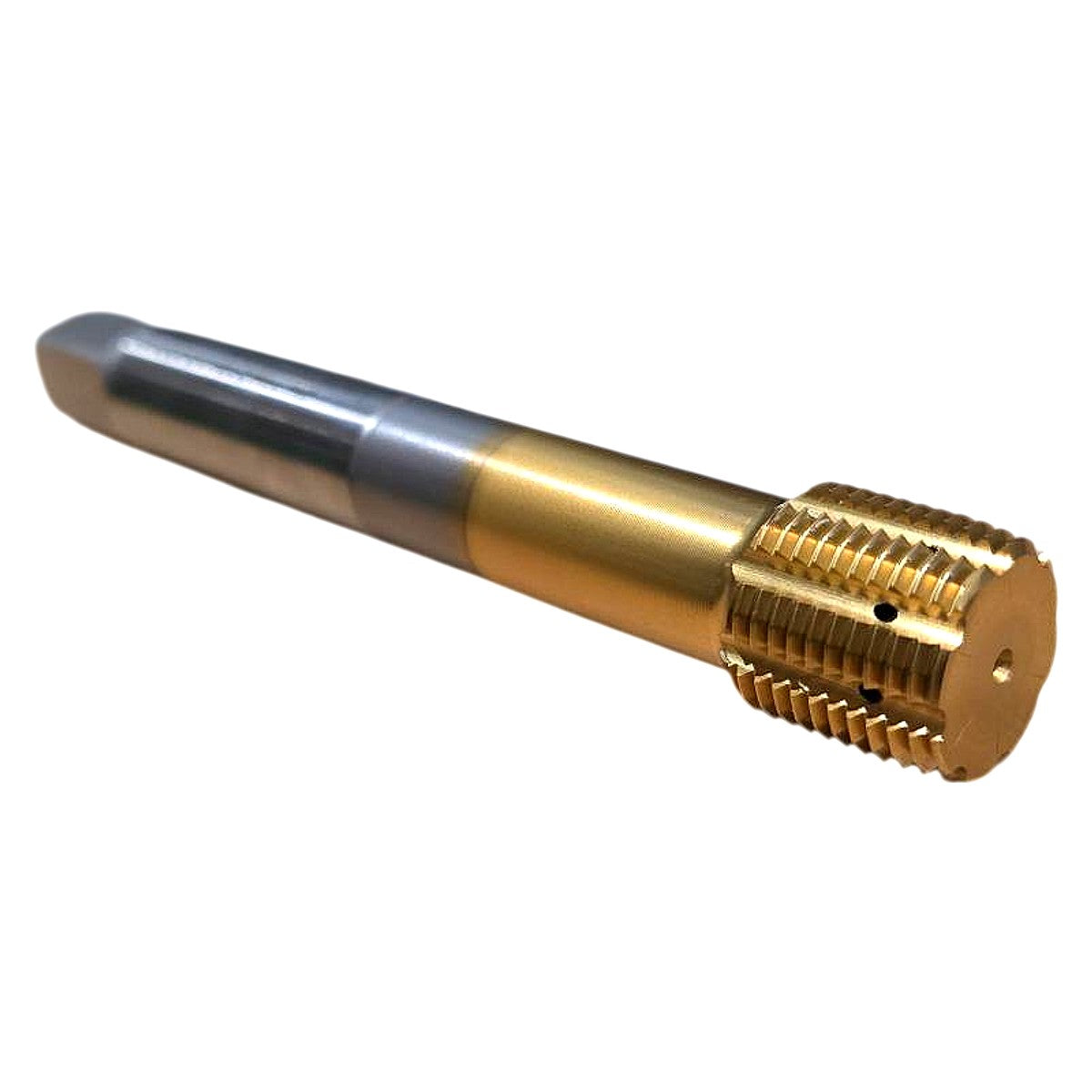

This Walter Prototyp 3TC420-8116085 is a 3/4-16 UNF thread forming (roll) tap with a D13 tolerance designation, made from HSS-E-PM powder metallurgical high speed steel with a TiNF coating. Thread forming taps displace material to produce the internal thread without cutting chips, and this tap has a lobed polygonal profile with a lubrication groove pattern along the form section, plus an axial coolant hole in the end face and radial coolant exits visible near the thread form. The shank is a ground cylindrical shank with a driving square, and the tap was manufactured in Germany. This tap is new.
Product Specifications
| Brand | Walter Prototyp |
| MPN | 3TC420-8116085 |
| Item Number | 19221050 |
| Thread Size | 3/4-16 UNF |
| Thread Standard | UNF |
| Tolerance Class | D13 |
| Tap Type | Thread Forming |
| Material | HSS-E-PM |
| Coating | TiNF |
| Threads Per Inch | 16 TPI |
| Thread Direction | Right Hand |
| Internal Coolant | Yes, axial coolant hole |
| Shank Type | Cylindrical w/ driving square |
| Operation | Tapping, Internal Thread Forming |
| Country of Origin | Germany |
| UPC/EAN | 4042446918729 |
