Walter TCMT16T304-RK4 WKK20S Tiger-tec Silver Carbide Turning Insert
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

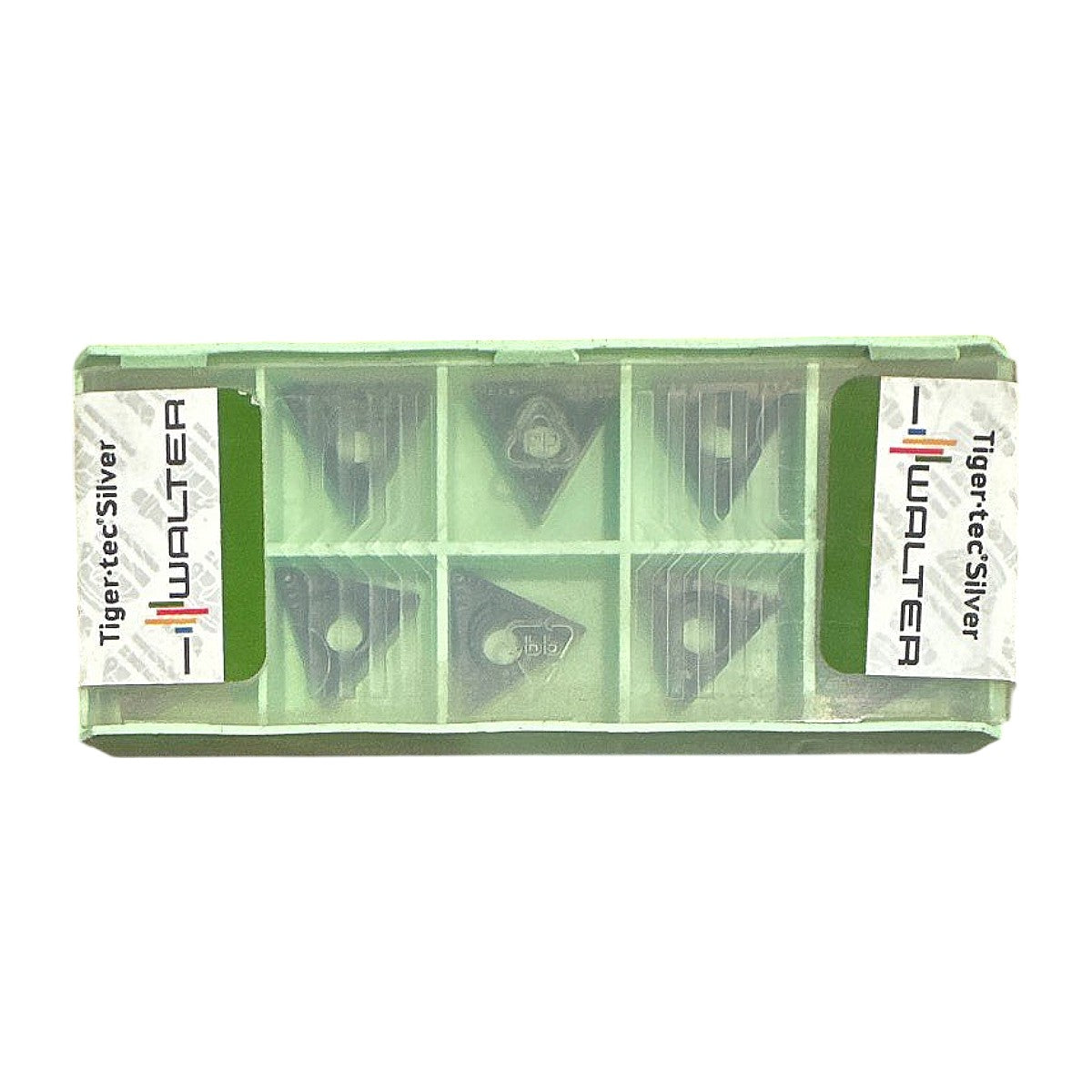

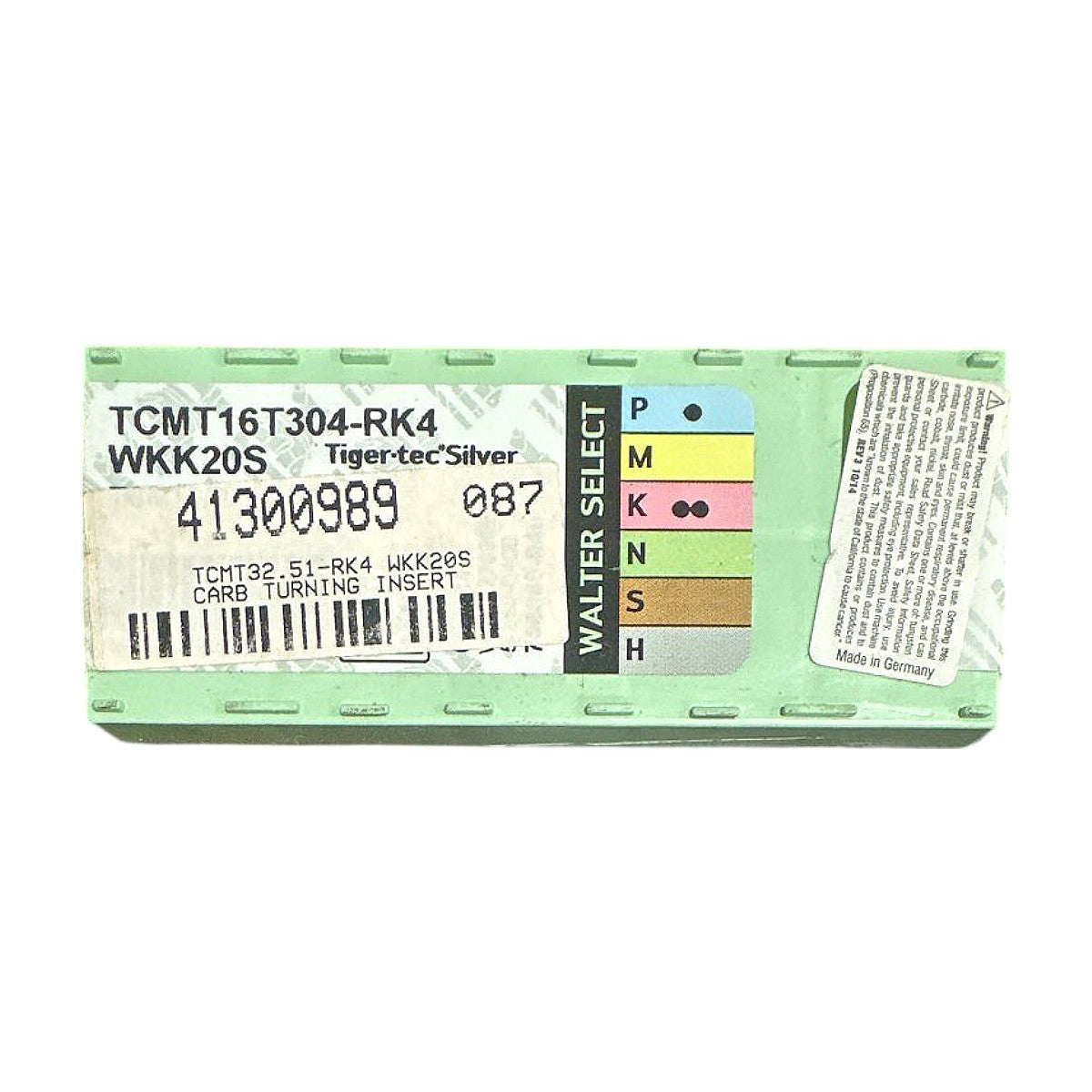

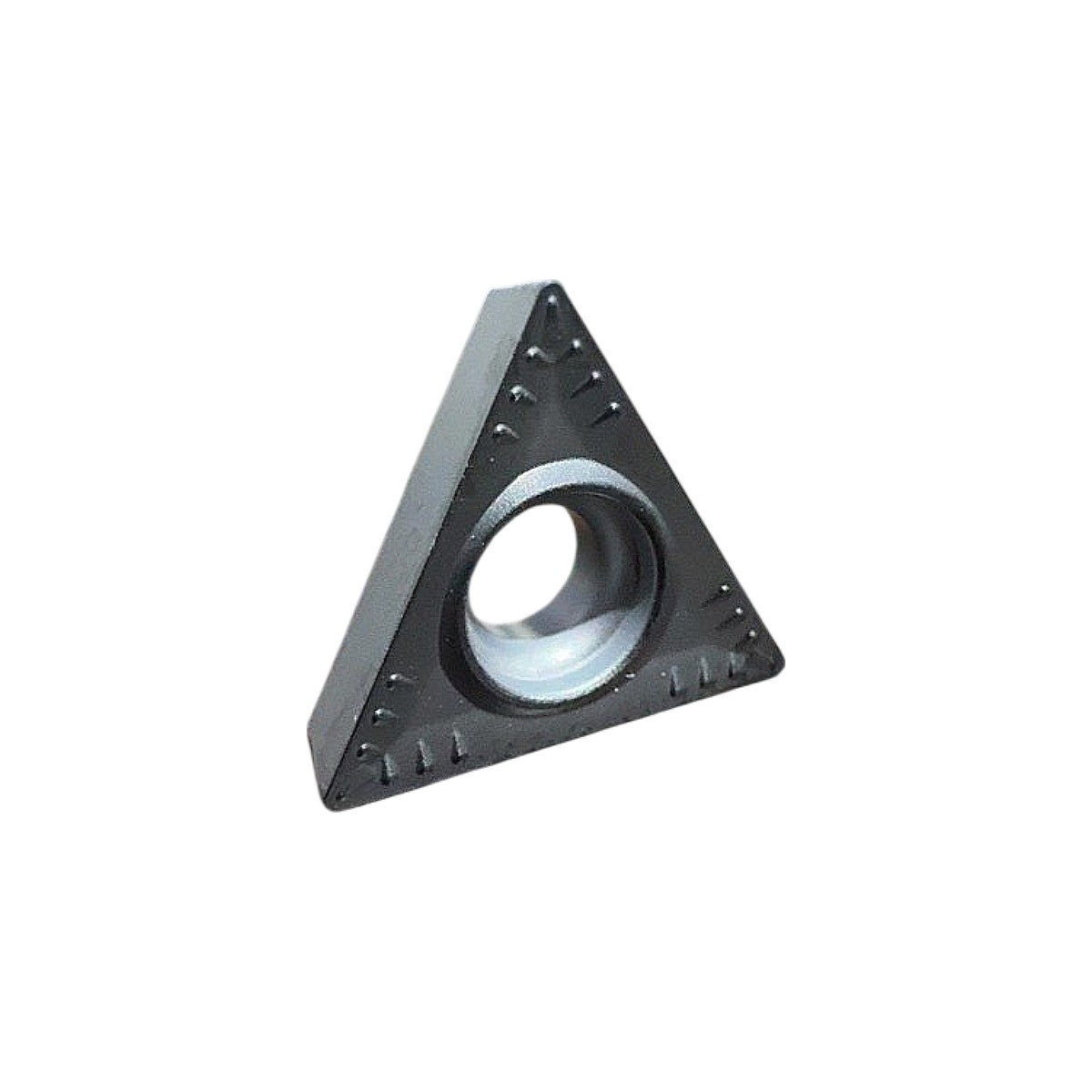

This Walter TCMT16T304-RK4 is a 60° triangular positive-rake turning insert (ANSI TCMT32.51) in grade WKK20S with Walter's Tiger-tec Silver CVD coating on a carbide substrate. The ISO code gives a 7° clearance angle, M tolerance, a single-sided chip groove with a 40-60° countersunk center hole, a 9.525 mm (3/8 in) inscribed circle, 3.97 mm thickness and a 0.4 mm nose radius, with the RK4 chipbreaker geometry. The Walter Select panel on the box marks ISO K (cast iron) as the primary application area and ISO P (steel) as a secondary one, for external turning. The insert is new, in the original Walter box, and is marked Made in Germany.
Product Specifications
| Brand | Walter |
| Manufacturer Part Number | TCMT16T304-RK4 |
| Grade | WKK20S |
| Series | Tiger-tec Silver |
| EDP Number | 41300989 |
| ANSI Designation | TCMT32.51 |
| Insert Shape | Triangle (T), 60° |
| Clearance Angle | 7° |
| Tolerance Class | M |
| Insert Type | Single-sided, countersunk hole 40-60° |
| Inscribed Circle | 9.525 mm (3/8 in) |
| Cutting Edge Length | 16.5 mm |
| Thickness | 3.97 mm (5/32 in) |
| Nose Radius | 0.4 mm |
| Chipbreaker | RK4 |
| Material | Carbide |
| Coating | Tiger-tec Silver (CVD) |
| Operation | Turning |
| ISO Workpiece Material | K (primary), P (secondary) |
| Country of Origin | Germany |
