Walter TCMT16T308-FP4 WPP10G Carbide Turning Insert (1 pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

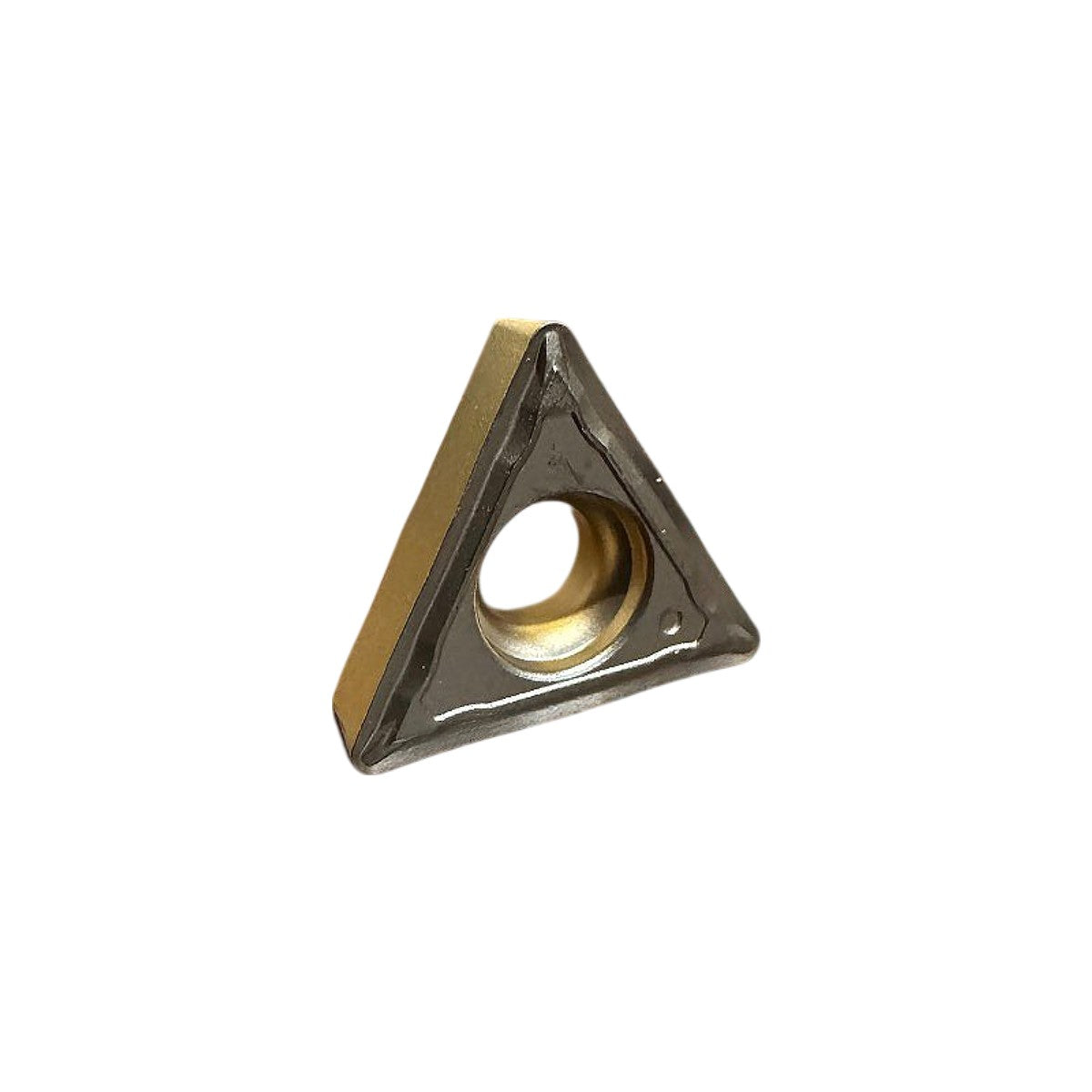

The Walter TCMT16T308-FP4 WPP10G is a new, single-sided triangular carbide turning insert from Walter's "Walter Select" line, made in Germany and decoded per ISO standard as: T = triangular (60°) shape, C = 7° clearance angle, M = ±0.08mm tolerances on inscribed circle/thickness (medium tolerance), T = cylindrical hole with top and bottom countersink, 16 = 9.525mm (3/8 in) inscribed circle, T3 = 3.97mm thickness, 08 = 0.8mm nose radius, FP4 = medium-finishing/positive chipbreaker geometry for steel. The grade WPP10G is a CVD-coated (TiCN/Al₂O₃) carbide grade from Walter's WPP series optimized for the P (steel) ISO material group — WPP10G targets light to medium finishing cuts on carbon, alloy, and stainless steels, delivering excellent surface finish and long tool life under stable conditions. The gold-colored top face visible in the photo confirms CVD coating; the dark PVD-style flank treatment is consistent with Walter's G-grade post-coat treatment for reduced friction. This insert is compatible with STUCR/STUCL and MTUCR/MTUCL style toolholders accepting TCMT 16T3 inserts (e.g., Walter A2012H-STUCR11 boring bars and equivalent external turning holders).
Product Specifications
| Brand | Walter |
| MPN | TCMT16T308-FP4 WPP10G |
| ISO Equivalent | TCMT3(2.5)2-FP4 WPP10G |
| Insert Shape | Triangular (60°), T |
| Clearance Angle | 7° (C) |
| Tolerance Class | M (±0.08mm IC & thickness) |
| Fixing / Chip Breaker Type | T (hole + countersink, top & bottom) |
| Inscribed Circle (IC) | 9.525 mm (3/8 in) |
| Thickness | 3.97 mm |
| Nose Radius | 0.8 mm |
| Chipbreaker | FP4 (medium finishing, positive geometry) |
| Grade | WPP10G |
| Coating | CVD TiCN/Al₂O₃ |
| ISO Material Group | P (steel) — primary |
| Application | Light to medium finishing, steel turning |
| Country of Origin | Germany |
| Condition | New |
| Quantity per Package | 1 |
