Walter TCMT16T308-FP4 WPP10G Carbide Turning Insert (4 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

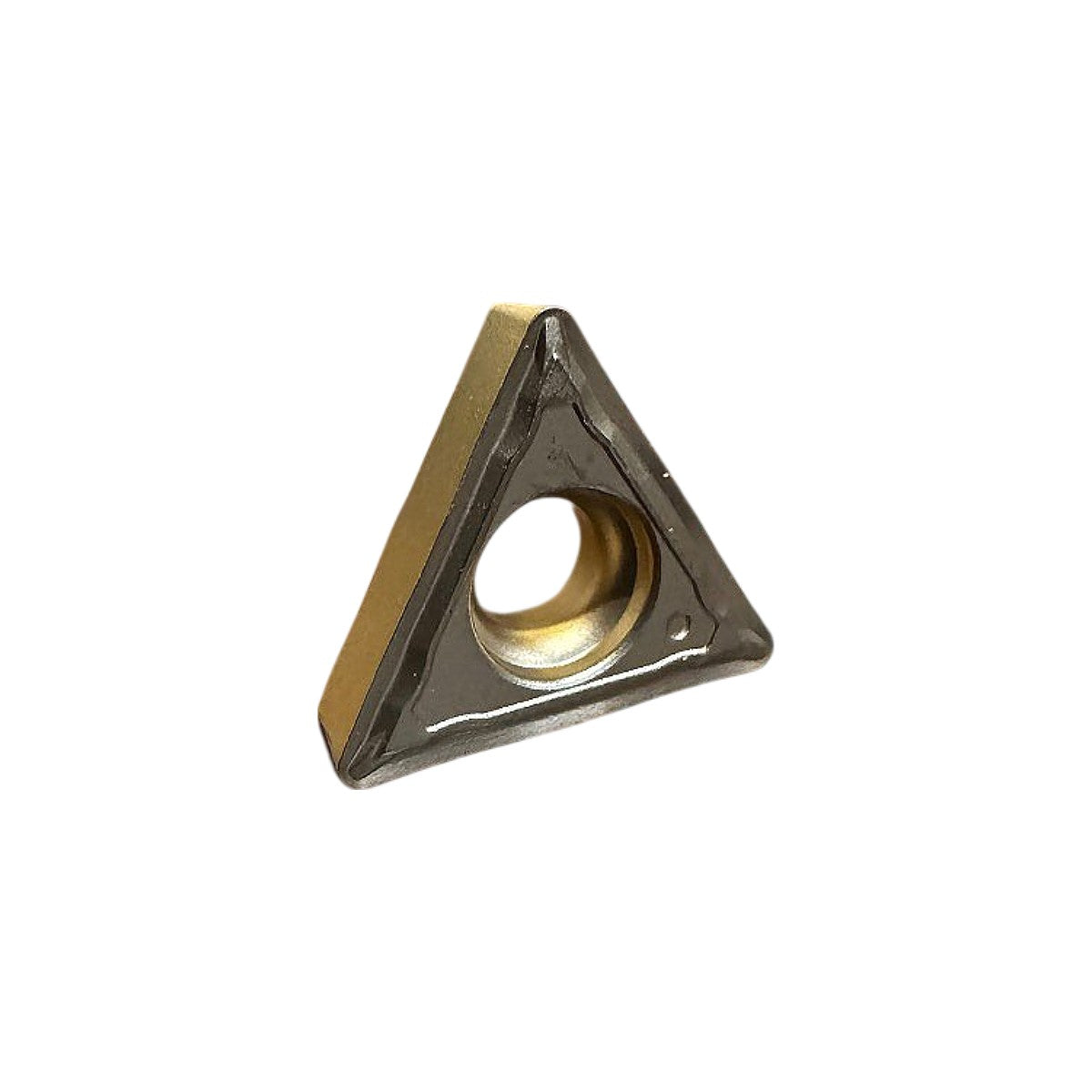

The Walter TCMT16T308-FP4 WPP10G is a new, triangular (60°) carbide turning insert from Walter's SELECT line, manufactured in Germany. Decoded per ISO 1832: T = triangular shape (60° included angle), C = 7° clearance angle, M = ±0.08 mm tolerances on inscribed circle and thickness, T = insert with hole and single-sided chipbreaker, 16T3 = 9.525 mm inscribed circle (3/8 in IC), 08 = 2.381 mm thickness, 08 = 0.8 mm nose radius. The FP4 chipbreaker geometry is optimized for finishing to medium finishing passes on steel (ISO P), providing low cutting forces and excellent surface finish at light-to-moderate depths of cut; the WPP10G grade is a CVD-coated (TiCN/Al₂O₃) fine-grained carbide substrate within Walter's WPP family targeting ISO P (steel) applications with outstanding wear resistance and edge toughness. Compatible with TCMT-style toolholders (e.g., STFCR/L, MTJNR/L) accepting a 3/8 in IC triangular insert; this 4-piece box is new and factory-sealed.
Product Specifications
| Brand | Walter |
| MPN | TCMT16T308-FP4 WPP10G |
| ISO Designation | TCMT16T308-FP4 |
| Insert Shape | Triangular (T), 60° included angle |
| Clearance Angle | 7° (C) |
| Tolerance Class | M (±0.08 mm IC & thickness) |
| Insert Type | Hole + single-sided chipbreaker (T) |
| Inscribed Circle (IC) | 9.525 mm (3/8 in) |
| Thickness | 2.381 mm (3/32 in) |
| Nose Radius | 0.8 mm (5/64 in) |
| Chipbreaker | FP4 (finishing to medium finish, steel) |
| Grade | WPP10G |
| Coating | CVD TiCN/Al₂O₃ |
| Substrate | Fine-grained cemented carbide |
| ISO Material Group | P (Steel) — primary; M secondary |
| Country of Origin | Germany |
| Quantity per Package | 4 inserts |
| Condition | New (factory sealed) |
