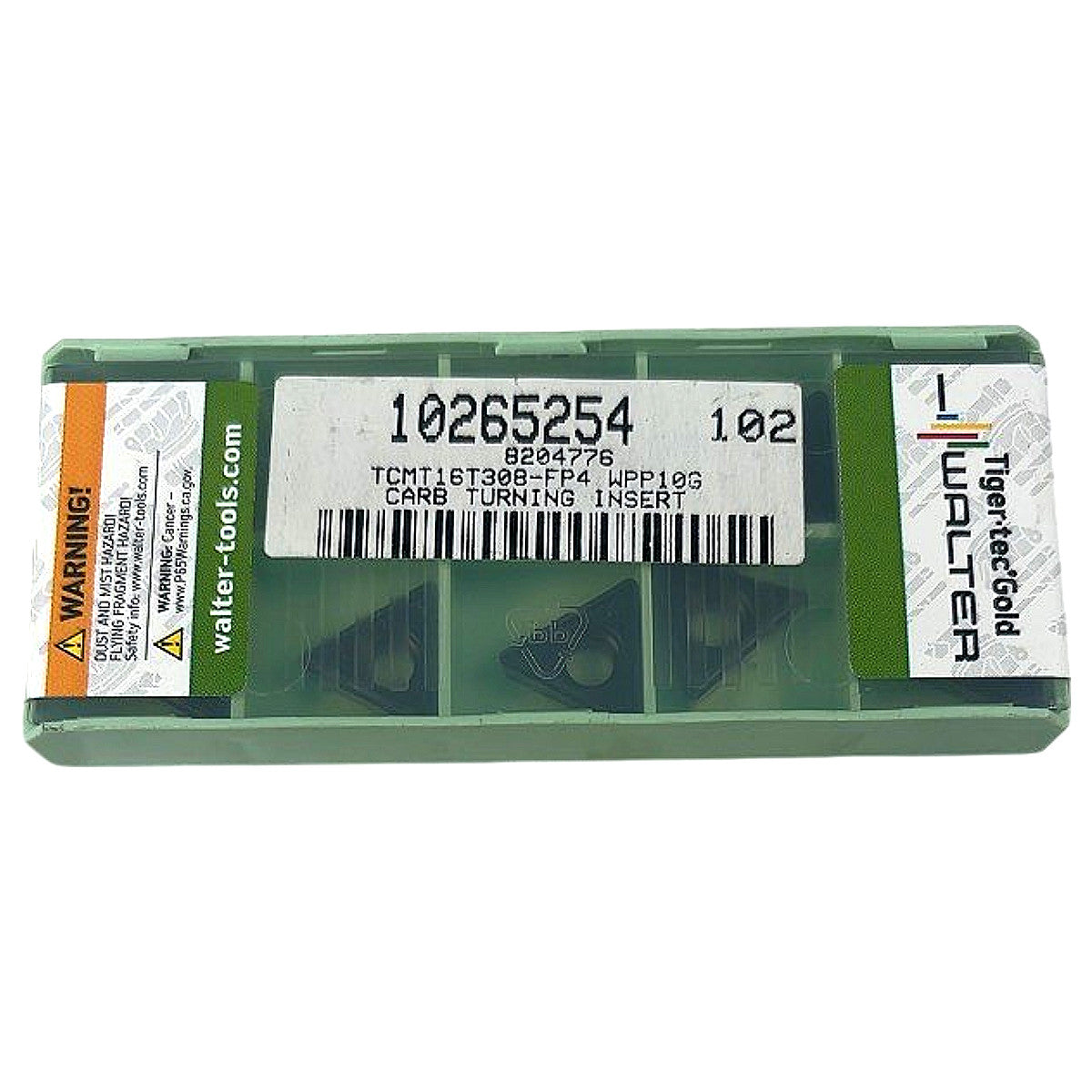

Walter TCMT16T308-FP4 WPP10G Tiger-tec Gold Carbide Turning Insert (10pc)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

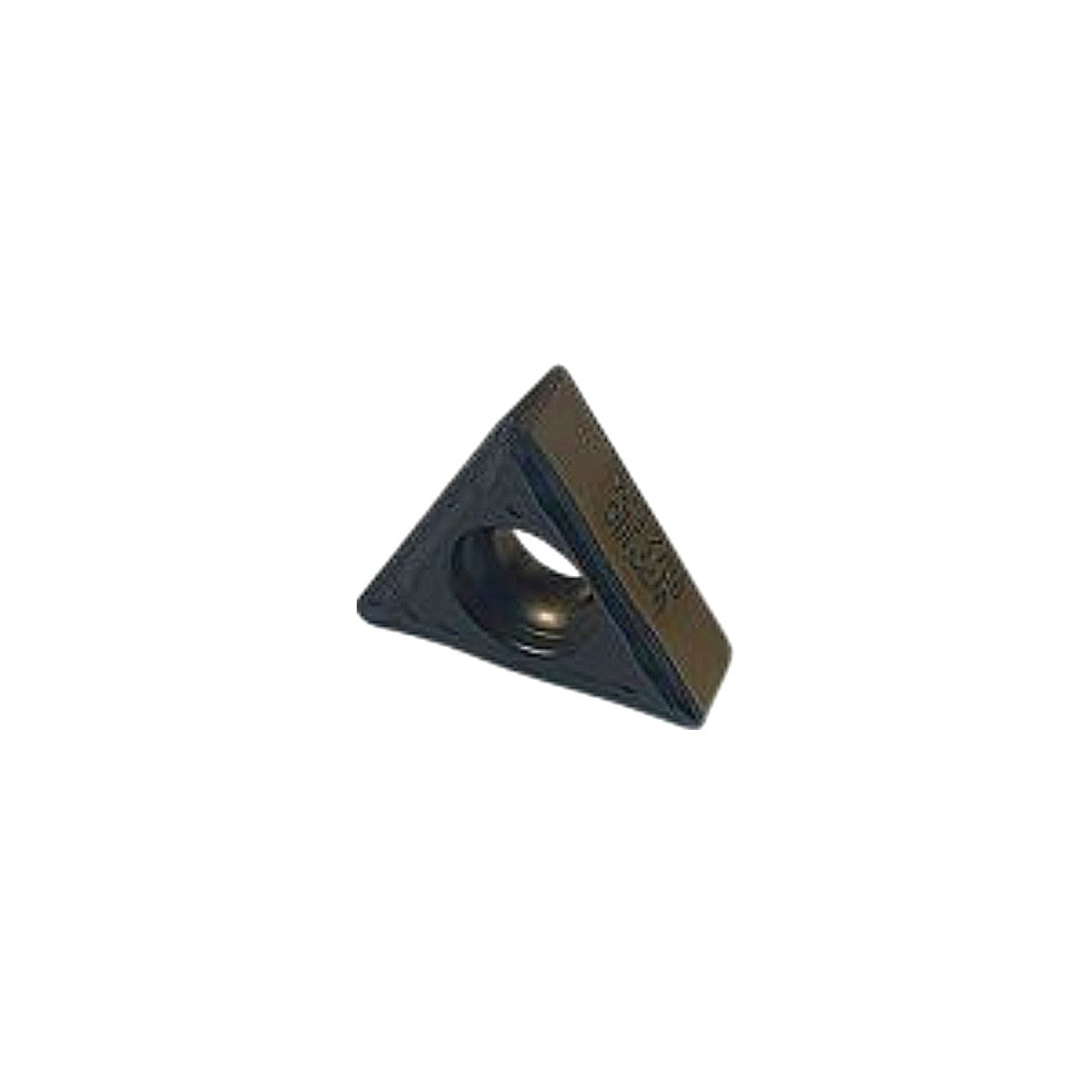

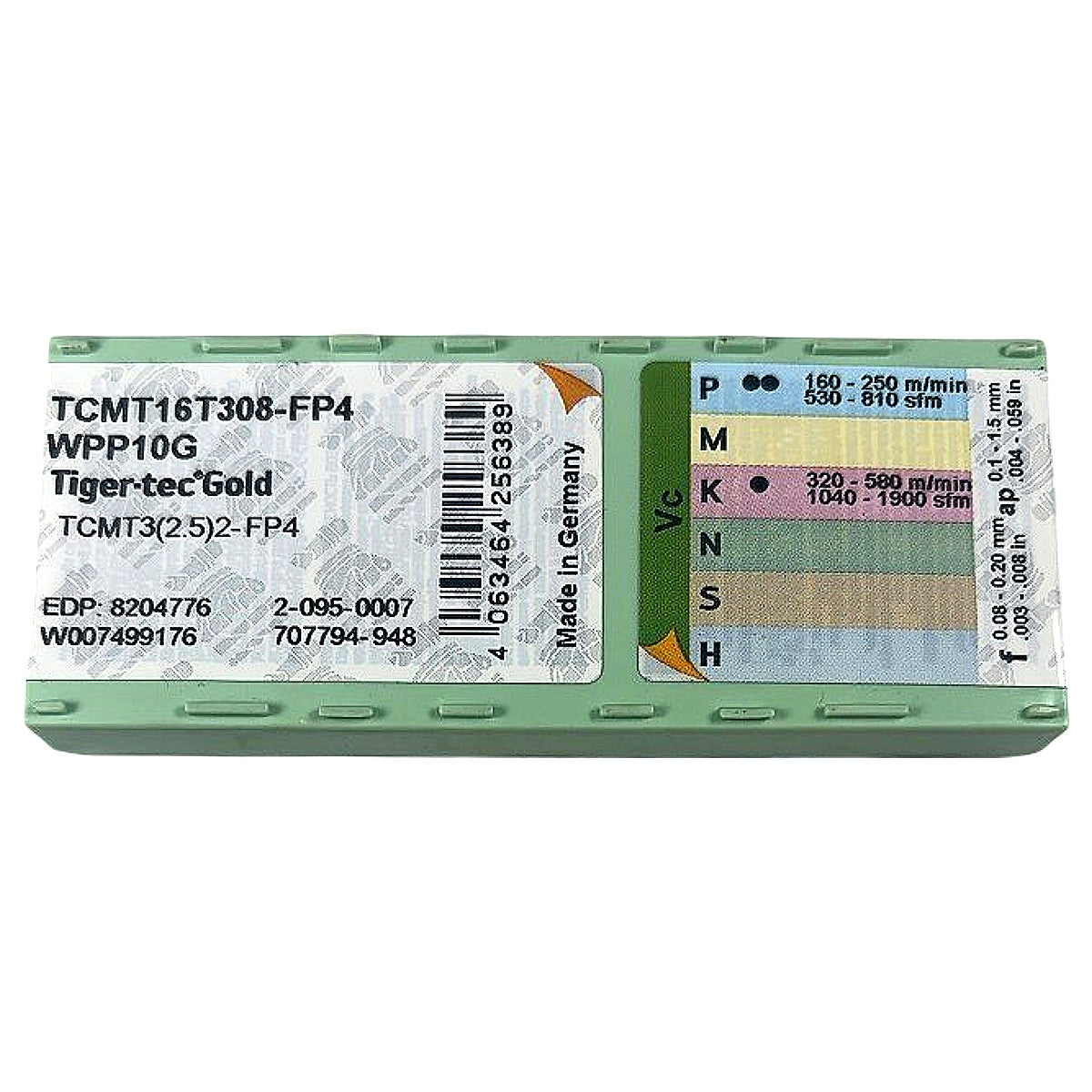

The Walter TCMT16T308-FP4 WPP10G is a new, indexable triangular carbide turning insert in Walter's Tiger-tec Gold grade, designed for external and internal turning on CNC lathes. Decoding the ISO designation: T = 60° triangular shape, C = 7° clearance angle, M = medium tolerance class, T = with hole and top chipbreaker, 16T3 = 9.525 mm (3/8 in) inscribed circle / metric size 16, 08 = 4.76 mm (3/16 in) thickness, 08 = 0.8 mm nose radius; the FP4 chipbreaker geometry is optimized for finishing and light medium turning, and the WPP10G grade is a CVD-coated (TiAlN/Al₂O₃ Tiger-tec Gold multilayer) substrate targeting ISO P (steels) primarily, with secondary application in ISO K (cast irons). Per Walter's published data, cutting speed ranges are 160–250 m/min (530–810 sfm) for P-class steels and 320–580 m/min (1040–1900 sfm) for K-class cast irons, with depth of cut 0.1–1.5 mm and feed 0.08–0.20 mm/rev. The insert is manufactured in Germany (EDP 8204776, W007499176) and is compatible with TCMT-style toolholders using a center-lock screw system.
Product Specifications
| Brand | Walter |
| MPN | TCMT16T308-FP4 WPP10G |
| EDP Number | 8204776 |
| ISO Insert Designation | TCMT16T308-FP4 |
| Metric Equiv. Designation | TCMT3(2.5)2-FP4 |
| Insert Shape | Triangular (60°) — T |
| Clearance Angle | 7° — C |
| Tolerance Class | M (medium) |
| Insert Type | With hole & top chipbreaker — T |
| Inscribed Circle (IC) | 9.525 mm (3/8 in) |
| Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.8 mm |
| Chipbreaker | FP4 (finishing / light-medium turning) |
| Grade | WPP10G |
| Coating | CVD TiAlN/Al₂O₃ Tiger-tec Gold multilayer |
| ISO Application Range | P (primary), K (secondary) |
| Cutting Speed — P Steel | 160–250 m/min (530–810 sfm) |
| Cutting Speed — K Cast Iron | 320–580 m/min (1040–1900 sfm) |
| Depth of Cut (ap) | 0.1–1.5 mm (0.004–0.059 in) |
| Feed Rate (f) | 0.08–0.20 mm/rev (0.003–0.008 in/rev) |
| Country of Origin | Germany |
| Quantity per Pack | 10 |
| Condition | New |
