Walter Titex A1149XPL-1.3 1.3mm XPL Coated Solid Carbide Drill Bit 5pc
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

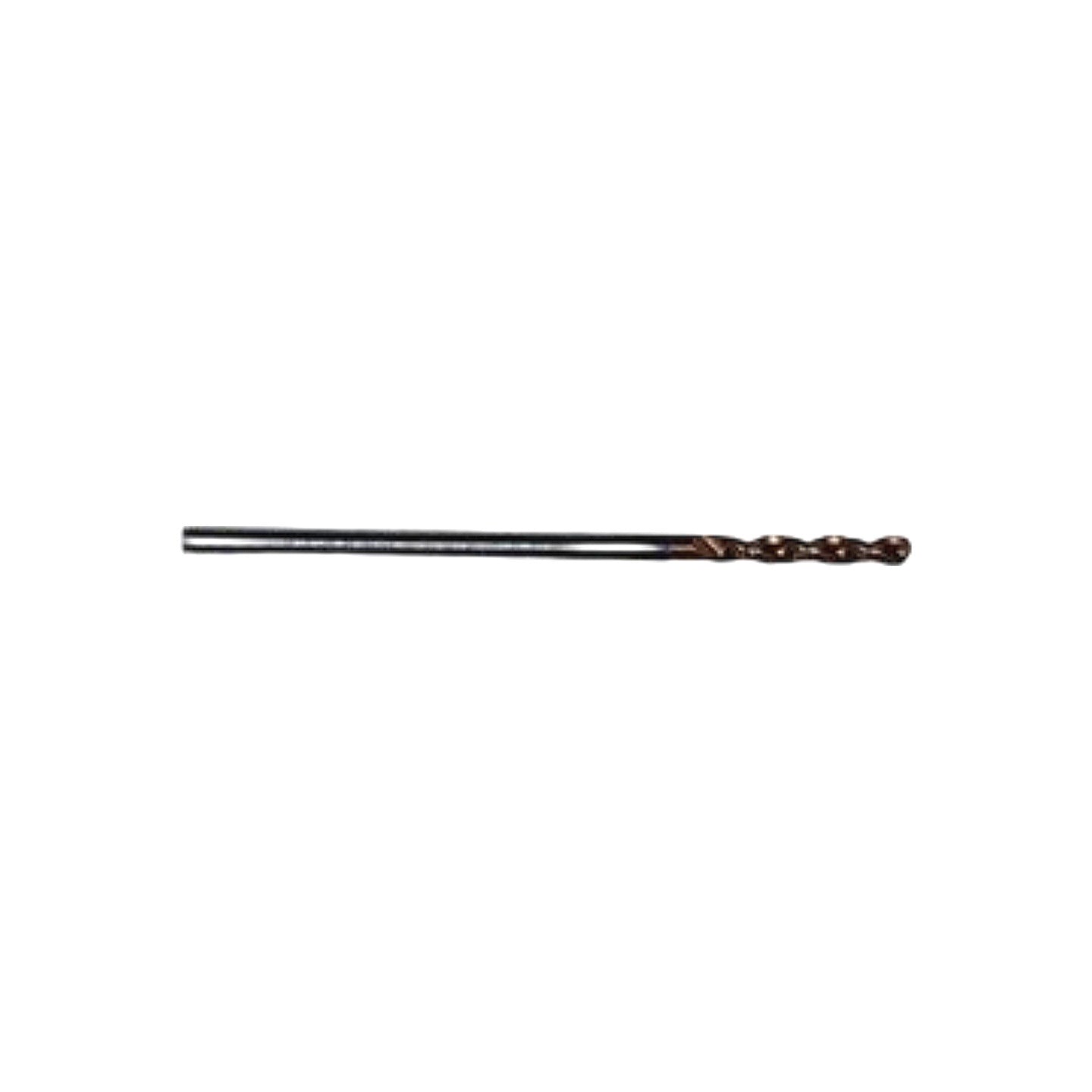

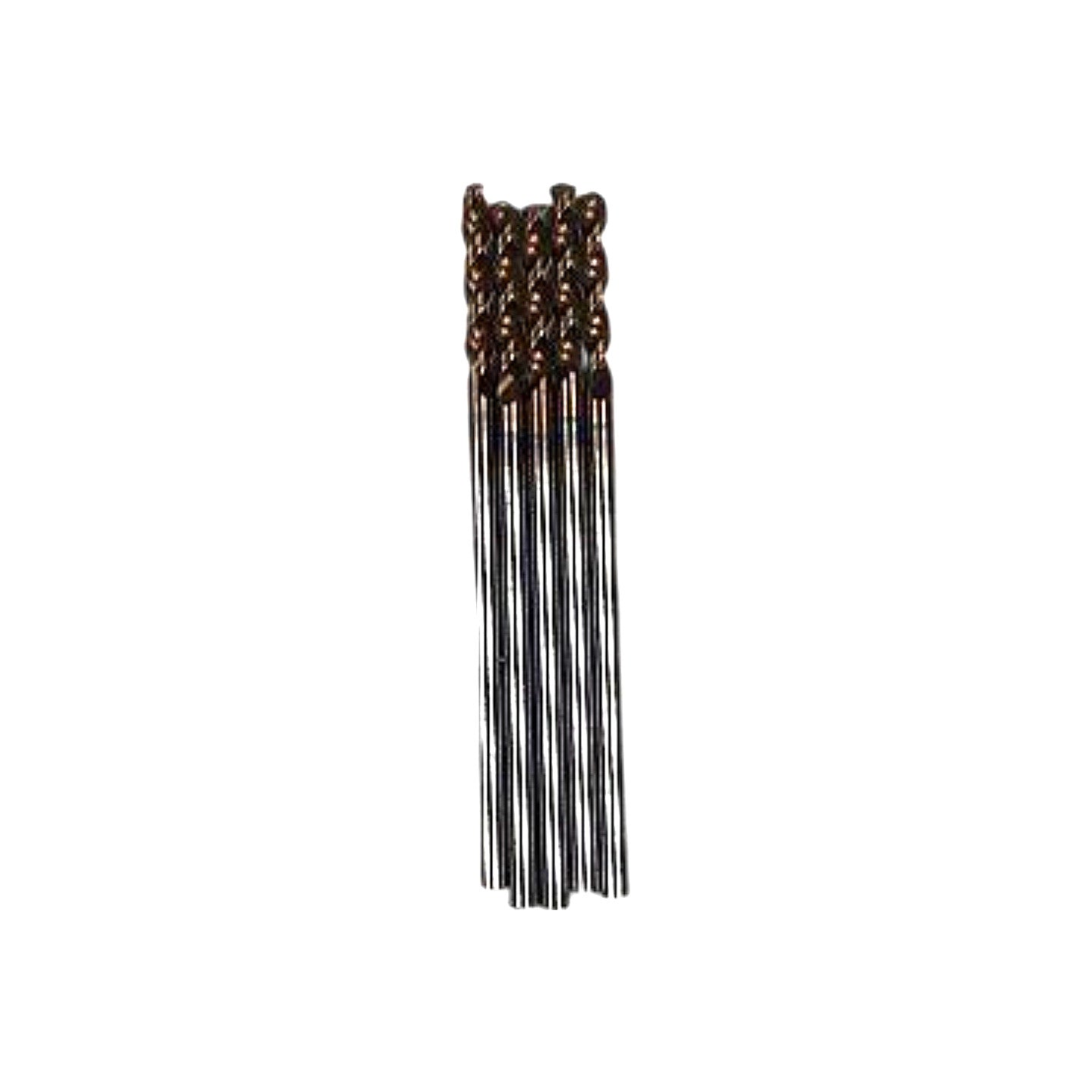

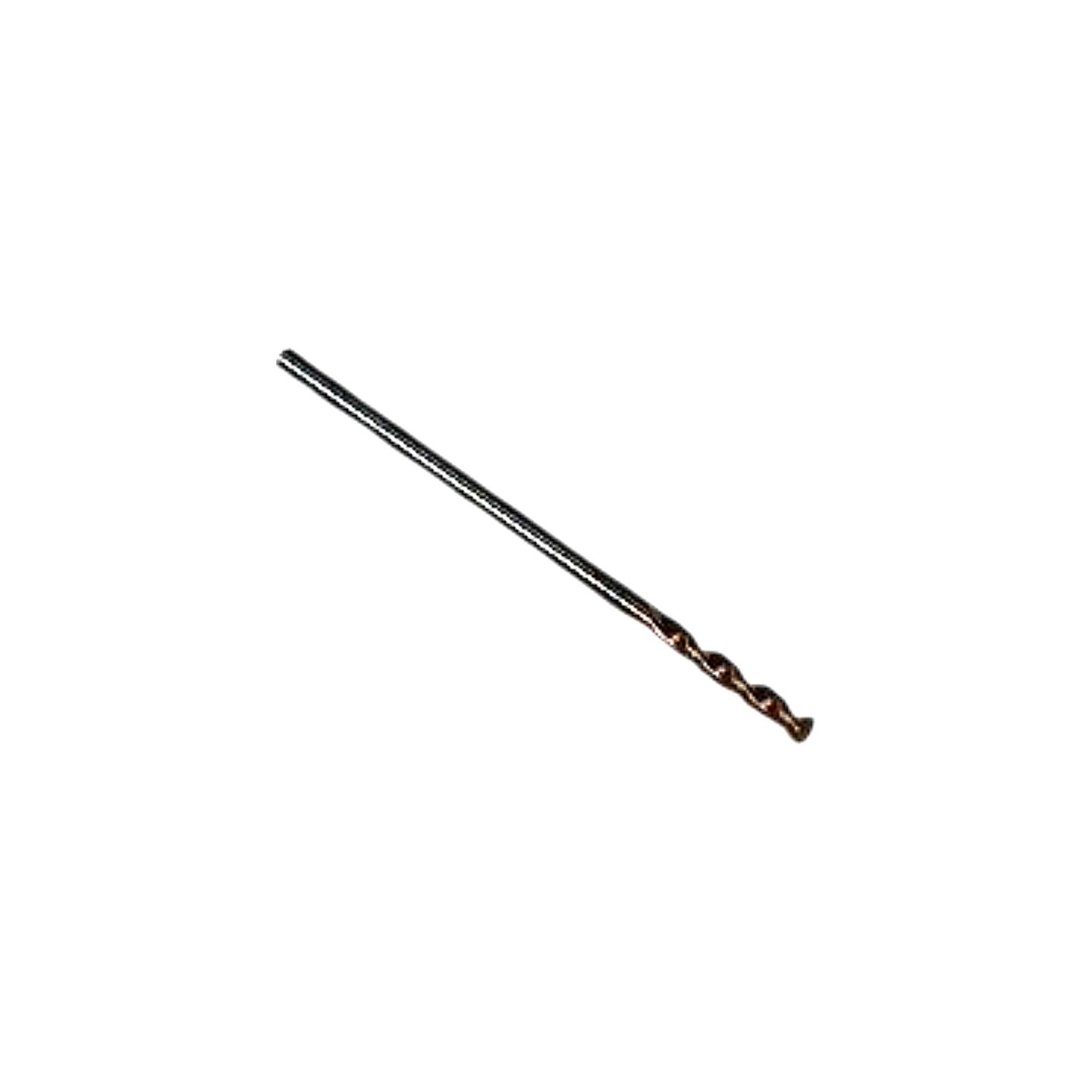

The Walter Titex A1149XPL-1.3 is a new solid carbide micro drill with a 1.3 mm diameter, offered here as a factory pack of 5 pieces (RS1870980), manufactured in France. The A1149 series is a two-flute, straight-shank solid carbide drill designed for drilling in steel, stainless steel, cast iron, and non-ferrous materials; the "XPL" suffix denotes Walter's premium TiAlN-based XPL (extra-performance long-life) multilayer PVD coating, which provides enhanced heat and wear resistance for high-productivity drilling in demanding materials. The drill features a standard 118° point angle geometry typical of the A1149 series and a cylindrical shank suitable for collet or precision drill chuck clamping. At 1.3 mm diameter this micro-drill is used in precision component drilling, PCB work, medical device manufacturing, mold and die work, and other fine-feature applications requiring tight hole tolerances.
Product Specifications
| Brand | Walter Titex |
| MPN | A1149XPL-1.3 |
| Catalog / Order No. | RS1870980 |
| Quantity per Pack | 5 pcs |
| Drill Diameter | 1.3 mm |
| Material | Solid Carbide |
| Coating | XPL (TiAlN-based multilayer PVD) |
| Number of Flutes | 2 |
| Shank Type | Cylindrical (straight) |
| Country of Origin | France |
| Condition | New |
