Walter Titex A3289DPL-10.3 10.3mm 140° Coolant-Through Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

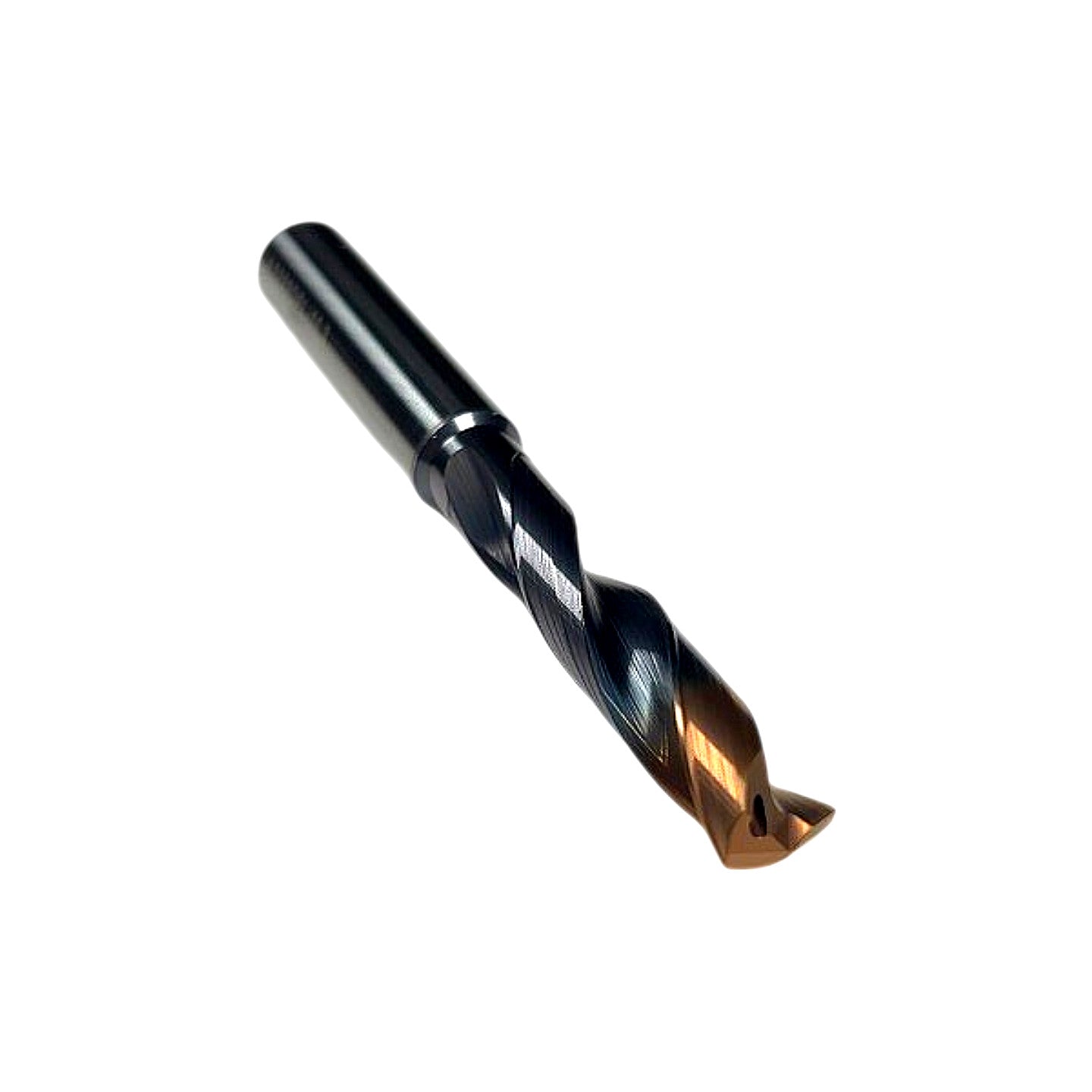

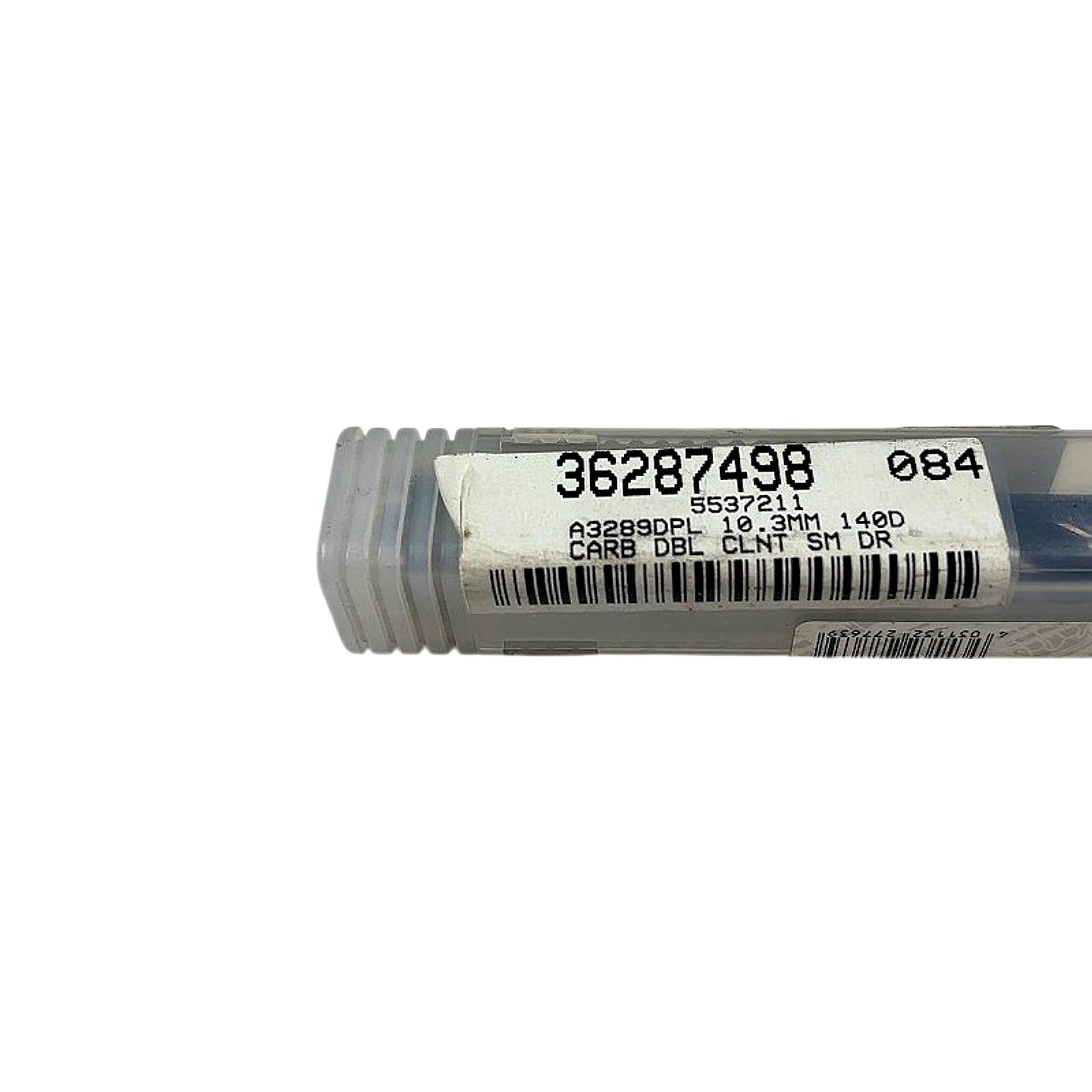

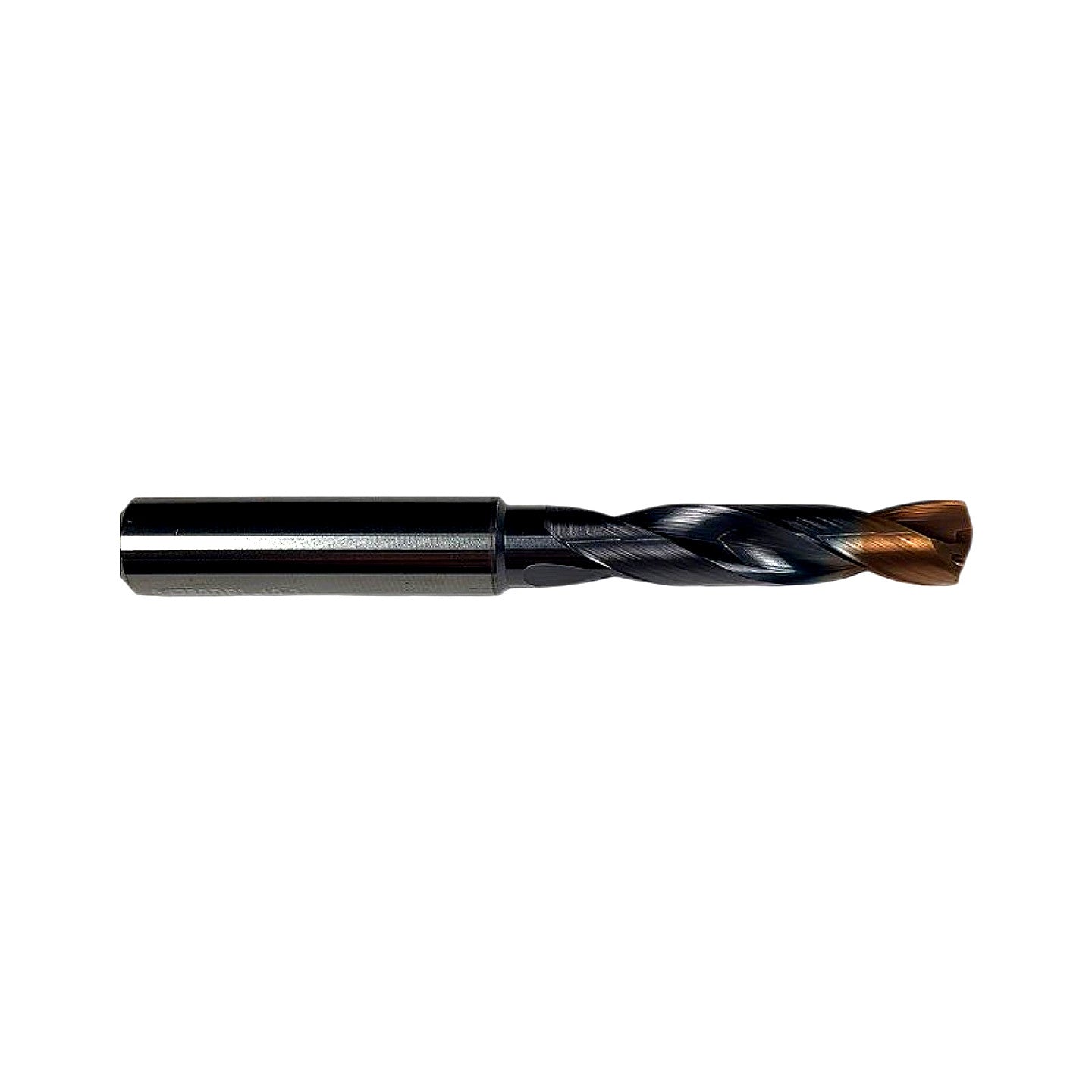

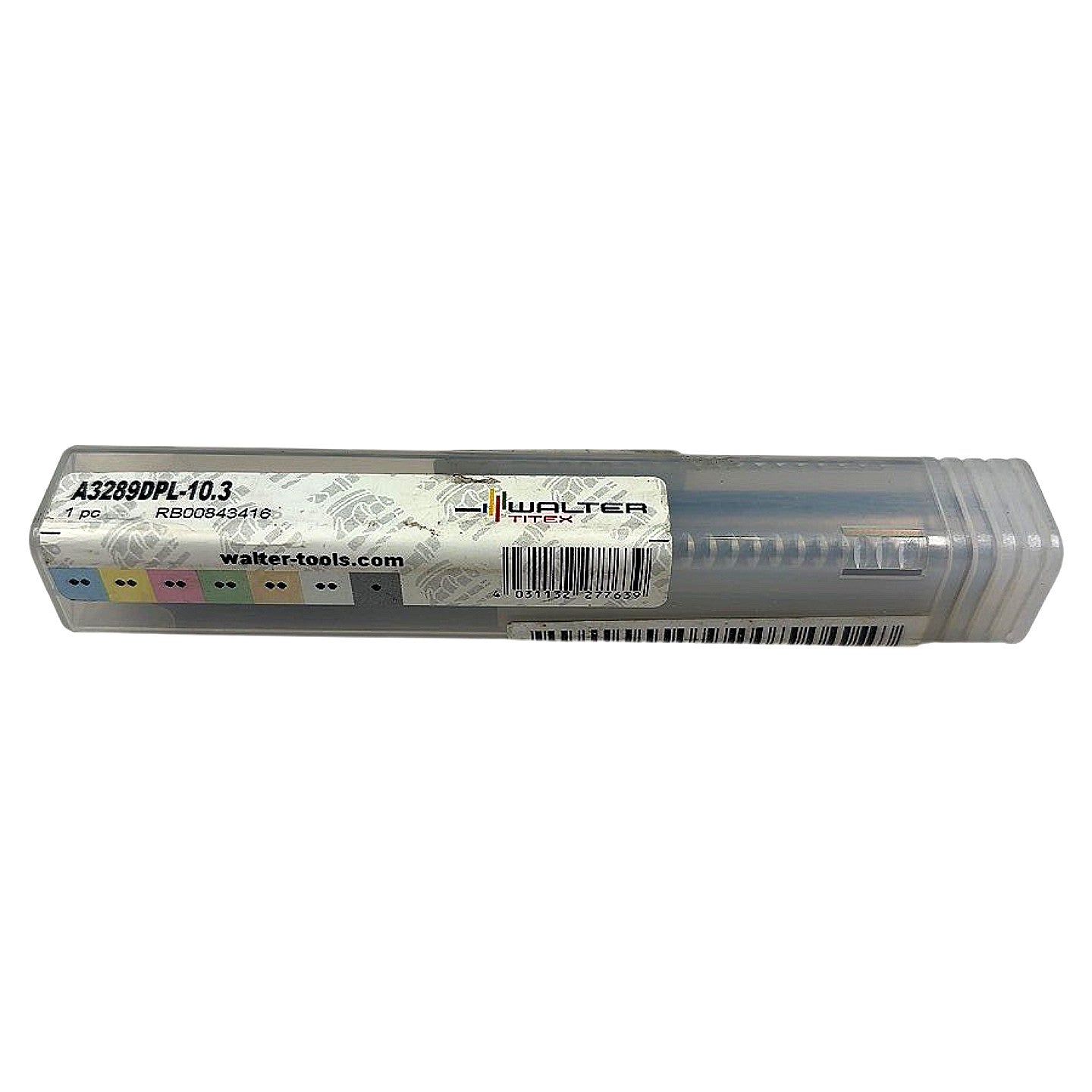

The Walter Titex A3289DPL-10.3 is a new solid carbide, 2-flute, through-coolant jobber-style drill with a 10.3 mm cutting diameter and 140° point angle, belonging to Walter's X·treme Evo Plus (A3289) series designed for universal application in steel, cast iron, stainless, and non-ferrous materials. The drill features an AlTiN-based dual-coating (flute body in dark PVD anti-friction coating, tip in the characteristic bronze/copper-tone TiAlN-based AlCrN wear-resistant coating) that dramatically reduces built-up edge and extends tool life in demanding CNC machining center operations. Internal through-coolant channels (labeled "DBL CLNT" — double coolant — on the end-label) deliver coolant directly to the cutting edge, enabling high-speed, deep-hole drilling with improved chip evacuation. The cylindrical shank is sized to suit standard ER, hydraulic, or shrink-fit collet chucks. This is a new, unused piece in the original Walter Titex plastic tube packaging, part number confirmed on both the tube label (A3289DPL-10.3) and the distributor end-label (A3289DPL 10.3MM 140D CARB DBL CLNT SM DR).
Product Specifications
| Brand | Walter Titex |
| MPN | A3289DPL-10.3 |
| Cutting Diameter | 10.3 mm |
| Point Angle | 140° |
| Number of Flutes | 2 |
| Tool Material | Solid Carbide |
| Coolant | Through-Coolant (Double) |
| Coating | Dual PVD: AlCrN tip + anti-friction flute |
| Shank Type | Cylindrical (straight) |
| Shank Diameter | 12 mm |
| Series | X·treme Evo Plus (A3289) |
| Drill Style | Short / Stub Length (DPL designation) |
| Condition | New |
| Overall Length (OAL) | 89 mm |
| Flute Length | 35 mm |
