Walter TNMG160308-MP5 WPP20G Tiger-tec Gold Carbide Turning Insert (6pc)

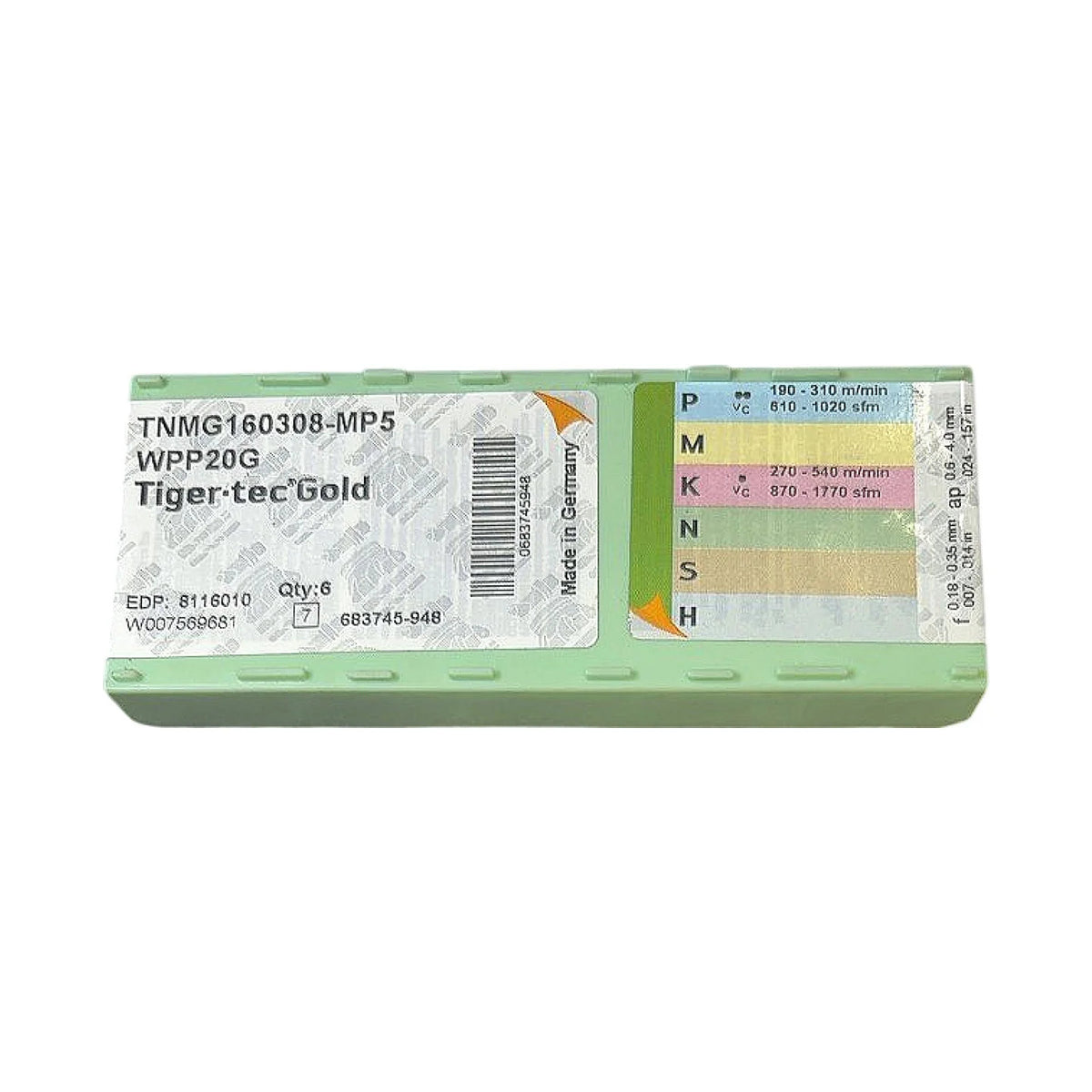

Walter TNMG160308-MP5 WPP20G Tiger-tec Gold carbide turning inserts are new, factory-sealed, and made in Germany, sold as a box of 6 (EDP 8116010). The ISO designation decodes as follows: T = triangular shape (60°), N = 0° clearance angle, M = medium tolerance class, G = single-sided with chipbreaker/hole, 16 = 16mm inscribed circle, 03 = 3.18mm thickness, 08 = 0.8mm nose radius, MP5 = Walter's medium-to-finishing chipbreaker geometry optimized for positive cutting action and low cutting forces. The WPP20G grade is a CVD-coated (Tiger-tec Gold technology) cemented carbide targeting ISO P materials (steels), with the gold TiN outer layer providing visual wear detection; the box label confirms suitability for P and K workpiece materials. Recommended cutting speeds are 190–310 m/min (610–1020 sfm) for P-class steels and 270–540 m/min (870–1770 sfm) for K-class cast irons, with feed range 0.18–0.35 mm/rev and depth of cut 0.5–4.0 mm. These inserts are compatible with MTJN/MTJNR/MTJNL and other T-style negative toolholders accepting TNMG 16 inserts.
