Wanner D04XABGHFECK Hydra-Cell Seal-Less Hydraulic Diaphragm Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

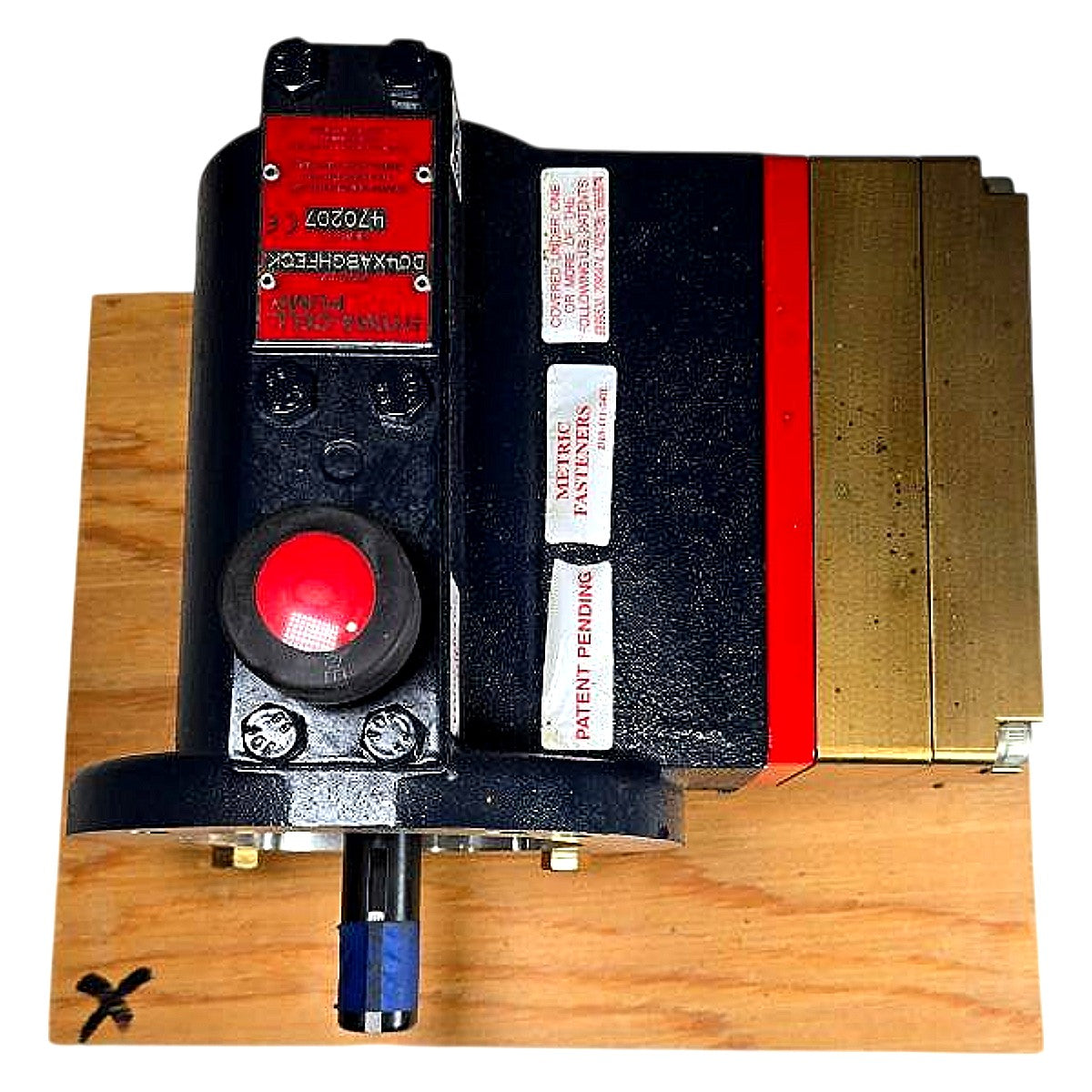

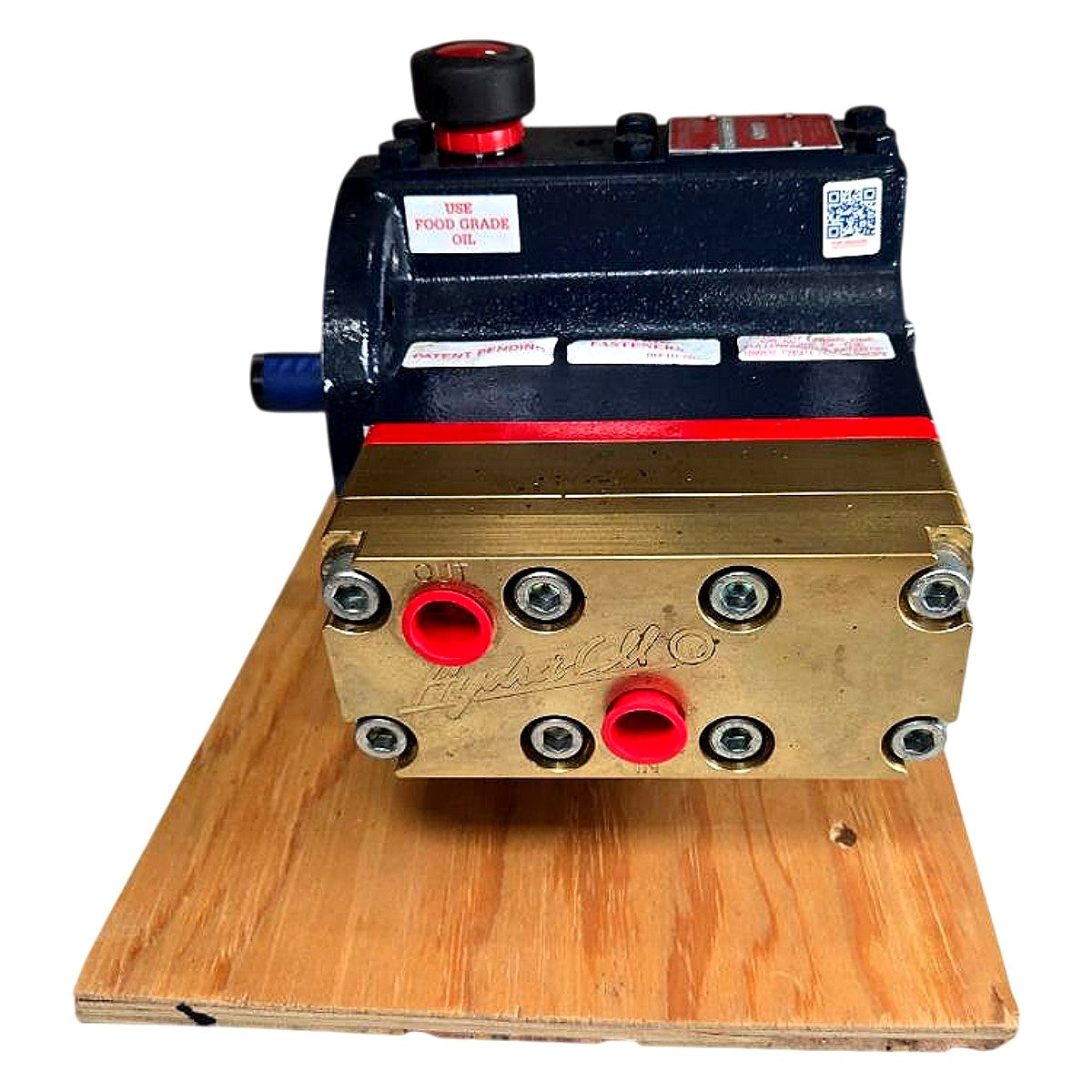

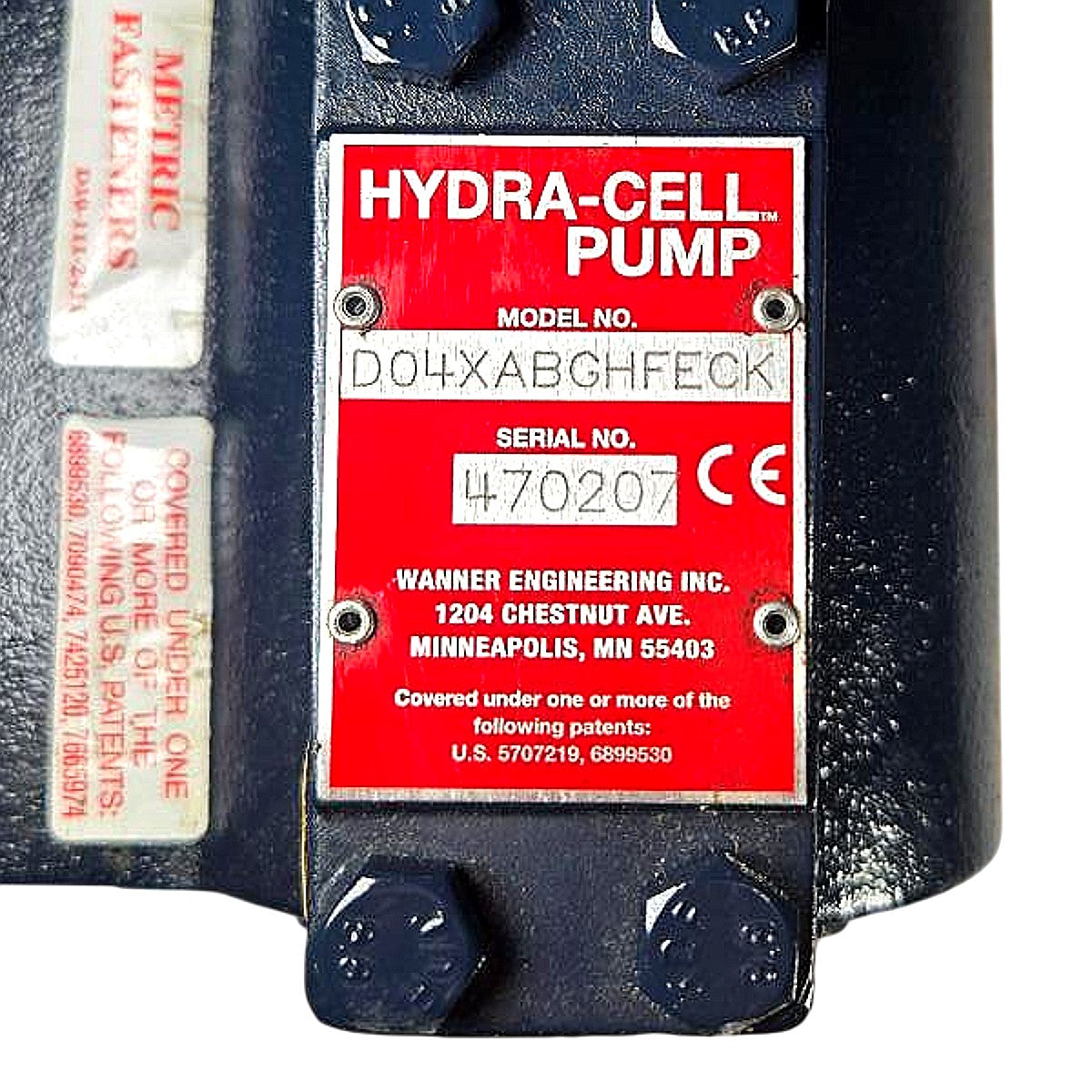

The Wanner Engineering Hydra-Cell D04XABGHFECK is a new, seal-less hydraulic diaphragm pump manufactured in the USA by Wanner Engineering Inc. (Minneapolis, MN), covered under U.S. Patents 5,707,219 and 6,899,530. The D04 series model number encodes the following configuration: "D04" = D-Series 4-diaphragm pump head (compact, high-pressure capable); "X" = no motor/drive included (bare pump); "A" = cast iron drive housing; "B" = brass pump head (confirmed visible in photos — large brass manifold block); "G" = food-grade lubrication oil fill (confirmed by "USE FOOD GRADE OIL" label visible in photo); "H" = PTFE/EPDM diaphragm material; "F" = PTFE valve seats; "E" = EPDM O-rings; "C" = 3/8 in NPT inlet/outlet porting; "K" = SAE B 2-bolt flange mount. The pump features a hydraulically-balanced multi-diaphragm design with no dynamic seals contacting the process fluid, allowing it to handle abrasives, corrosives, viscous fluids, and shear-sensitive media without seal wear or leakage. Typical applications include chemical injection, food and beverage processing, high-pressure cleaning, reverse osmosis, and precision metering of aggressive fluids. The brass pump head, PTFE wetted components, and EPDM elastomers make this configuration well-suited for food-grade, pharmaceutical, and chemical service. Metric fasteners are used throughout the pump head assembly, as confirmed by the "METRIC FASTENERS" label visible on the unit. The unit ships on a wood pallet board and includes port plugs (red dust caps visible in photos).
Product Specifications
| Brand | Wanner Engineering / Hydra-Cell |
| Model Number | D04XABGHFECK |
| Serial Number | 470207 |
| Pump Series | D04 (D-Series, 4-diaphragm) |
| Drive Type | Bare pump, no motor (X = no drive) |
| Drive Housing Material | Cast iron (code: A) |
| Pump Head Material | Brass (code: B) |
| Lubrication | Food grade oil required (code: G) |
| Diaphragm Material | PTFE/EPDM (code: H) |
| Valve Seat Material | PTFE (code: F) |
| O-Ring Material | EPDM (code: E) |
| Port Size | 3/8 in NPT inlet & outlet (code: C) |
| Mounting | SAE B 2-bolt flange (code: K) |
| Pump Design | Seal-less hydraulic diaphragm, multi-diaphragm |
| Fasteners | Metric |
| CE Marked | Yes |
| Country of Origin | USA |
| Max Flow Rate (D04 series) | 1.1 GPM (4.2 LPM) at rated speed |
| Max Pressure (D04 series) | 1500 PSI (103 bar) |
| Condition | New |
