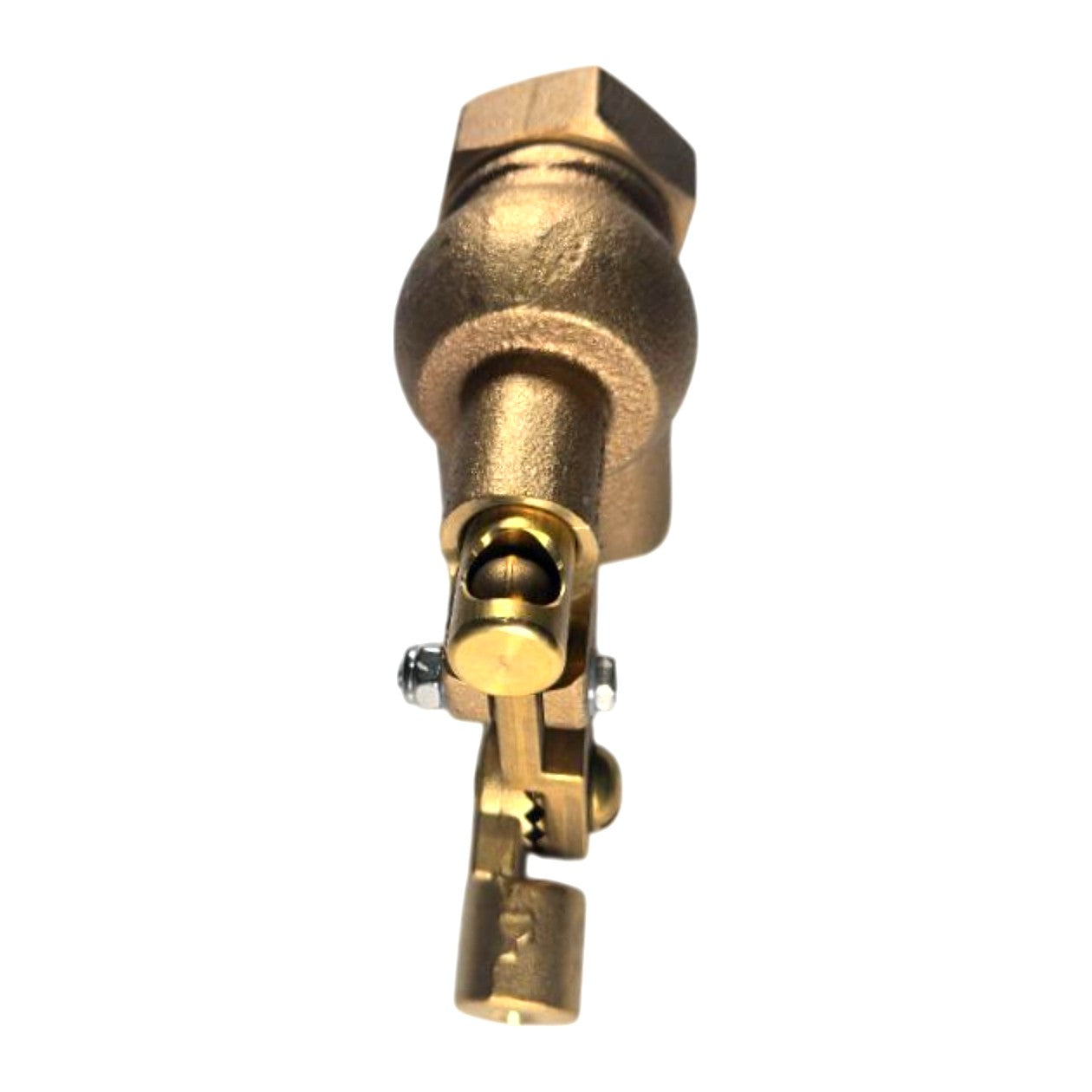

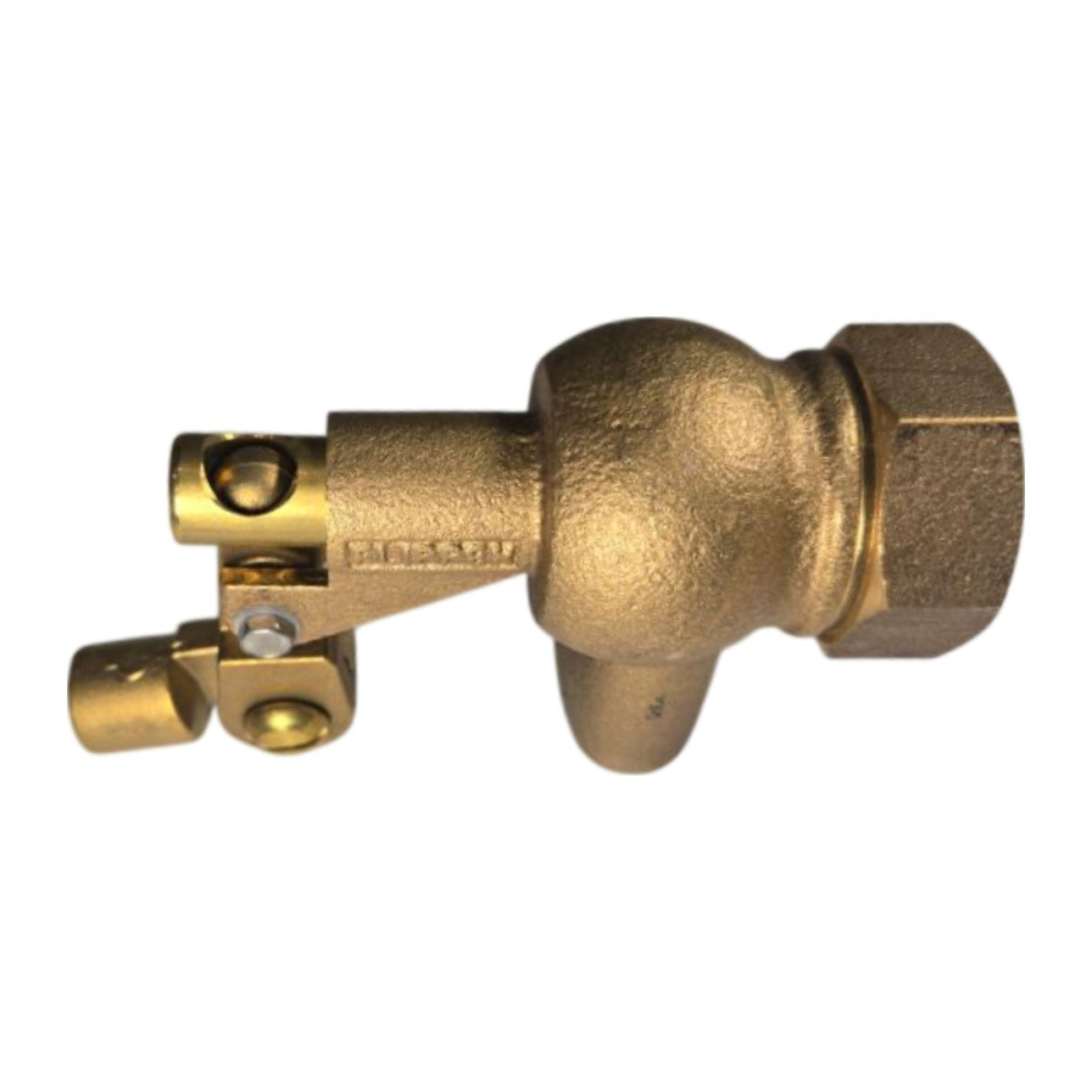

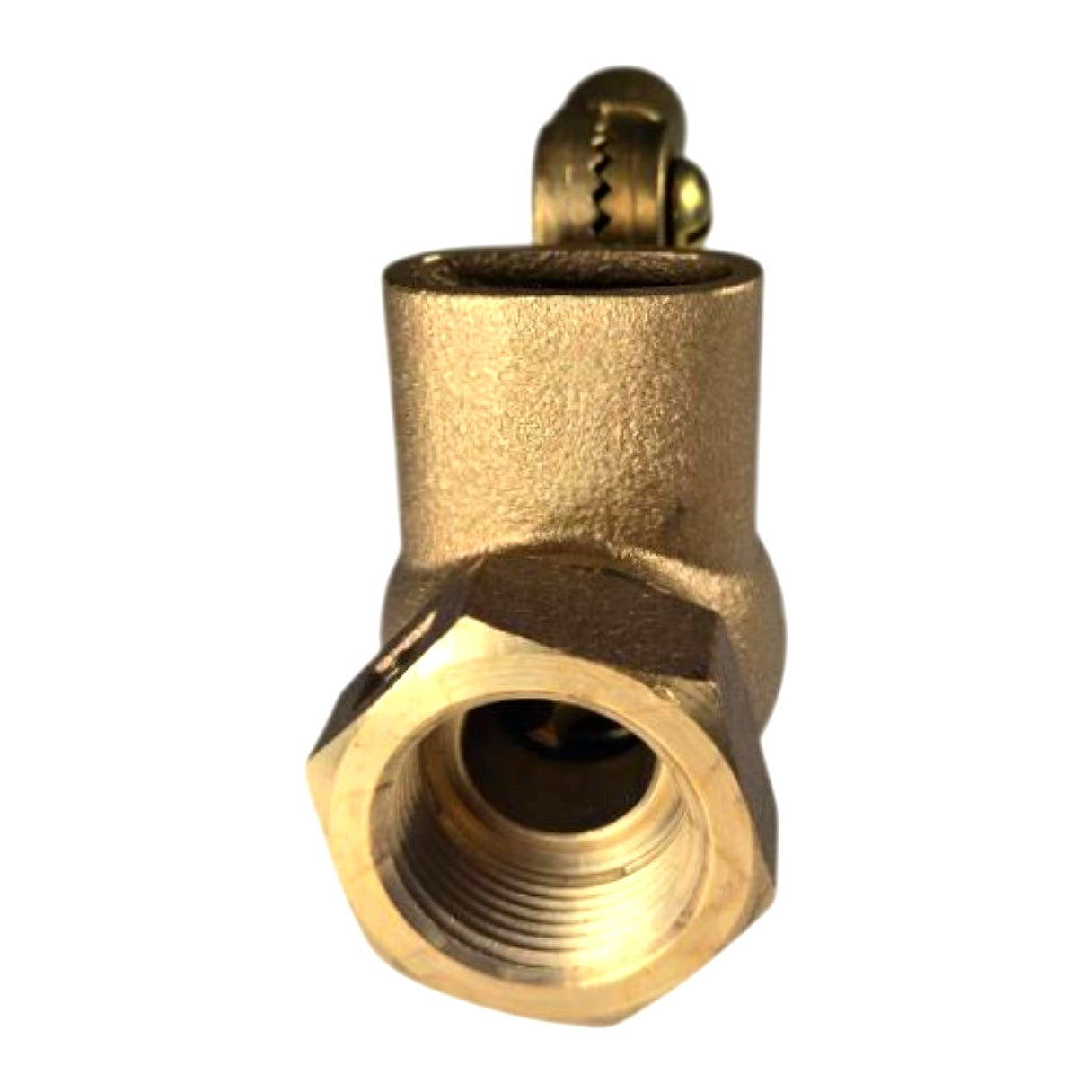

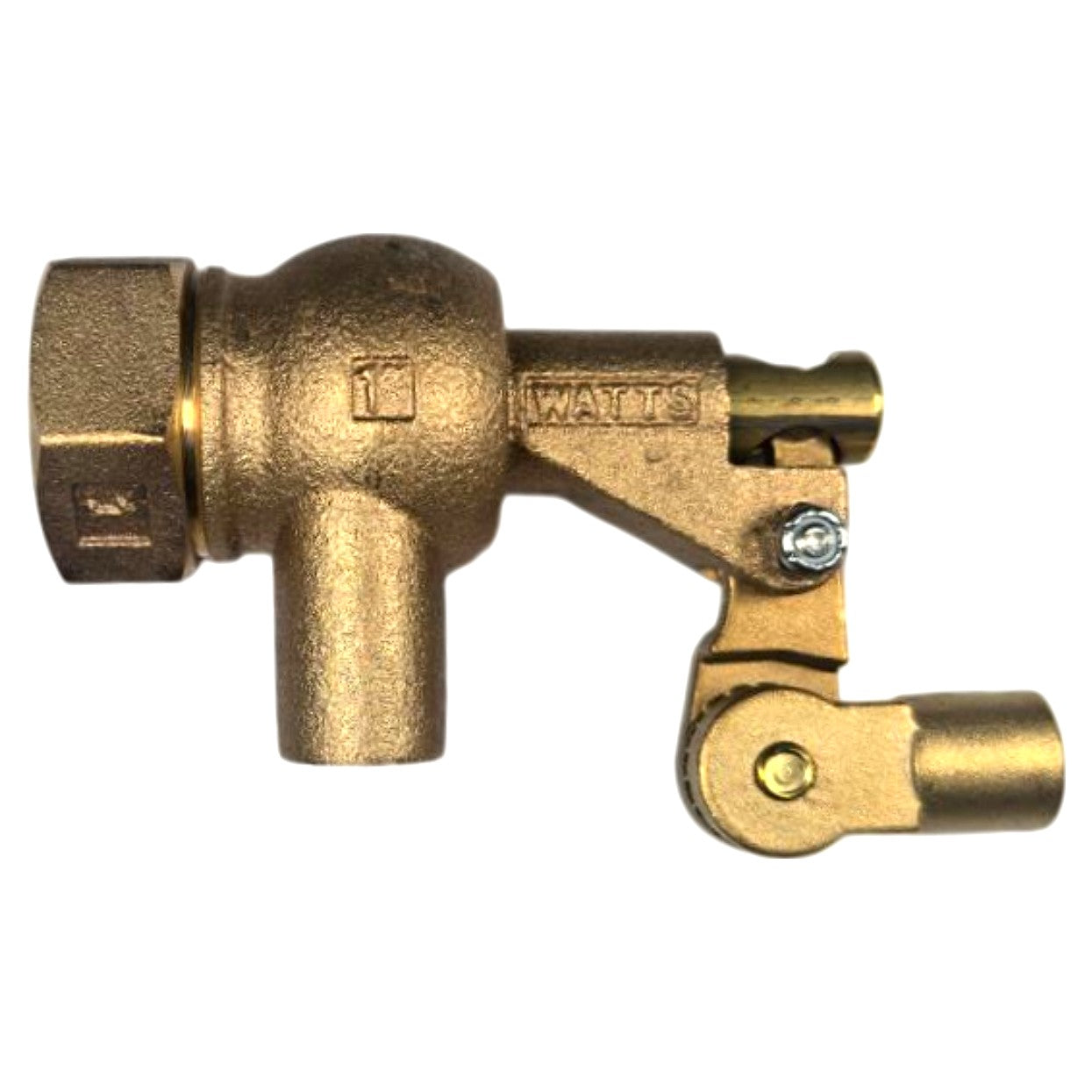

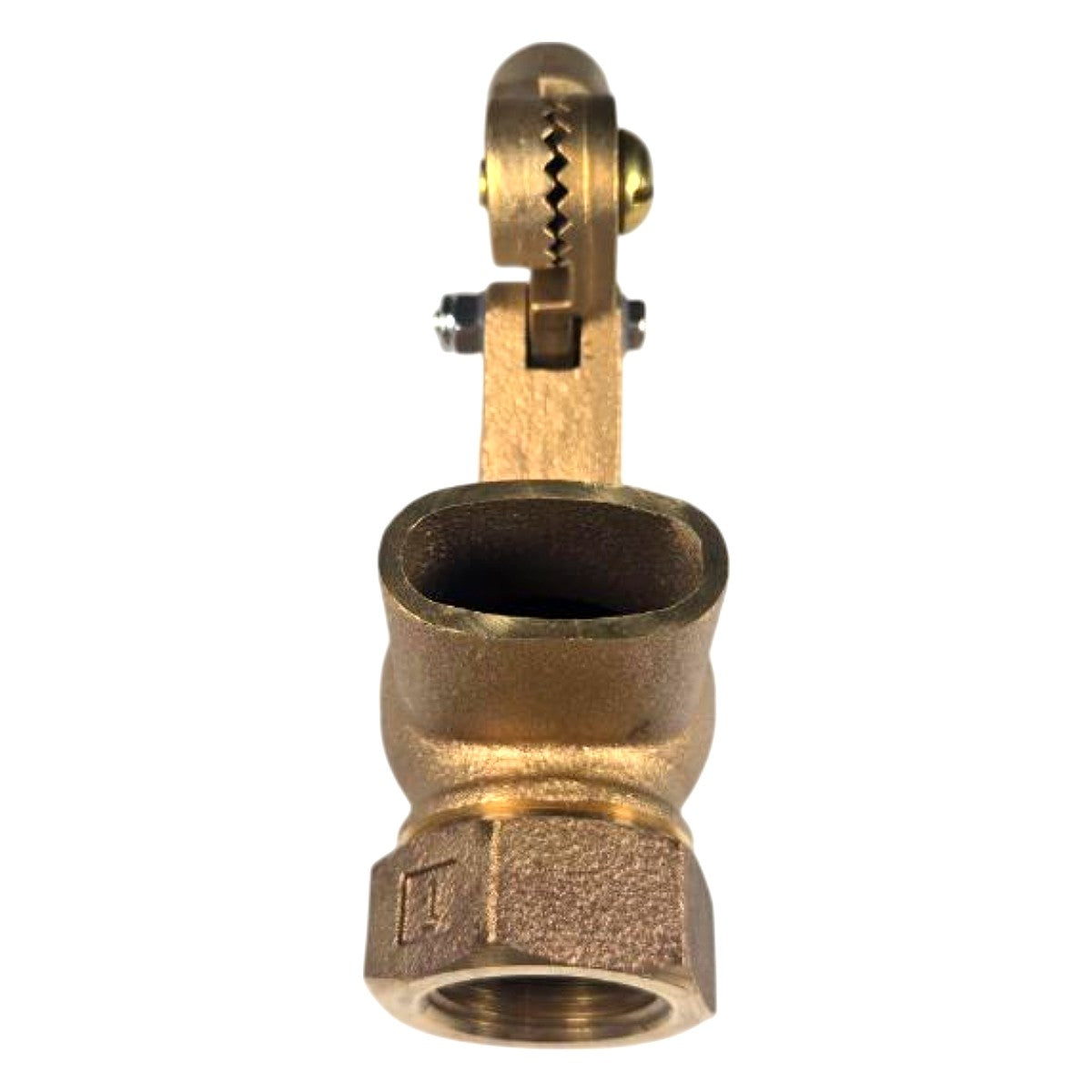

Watts 0780150 1 in FPT x FPT 165 psi Bronze Mechanical Float Valve
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Watts 0780150 is a new, 1-inch bronze mechanical float valve (Watts series LF Series / 0780150) designed for automatic liquid level control in tanks, reservoirs, and cooling towers. The valve features female pipe thread (FPT) connections on both the inlet and outlet, a cast bronze body rated to 165 psi maximum working pressure, and a brass float-and-arm assembly with an adjustable arm linkage that allows fine-tuning of the shutoff water level. The internal piston/plug mechanism opens and closes in direct response to float position, providing reliable, self-regulating fill control without external power or actuators. Typical applications include industrial and commercial water storage tanks, livestock watering systems, and HVAC make-up water systems where a dependable, pressure-rated bronze body is required.
Product Specifications
| Brand | Watts |
| Manufacturer Part Number (MPN) | 0780150 |
| Pipe Size | 1 in |
| End Connection Type | FPT x FPT (Female NPT both ends) |
| Body Material | Bronze |
| Float/Arm Material | Brass |
| Maximum Working Pressure | 165 psi |
| Valve Type | Mechanical Float Valve |
| Actuation | Float-controlled, self-actuating (no external power) |
| Arm Adjustment | Adjustable float arm linkage |
| Condition | New |
