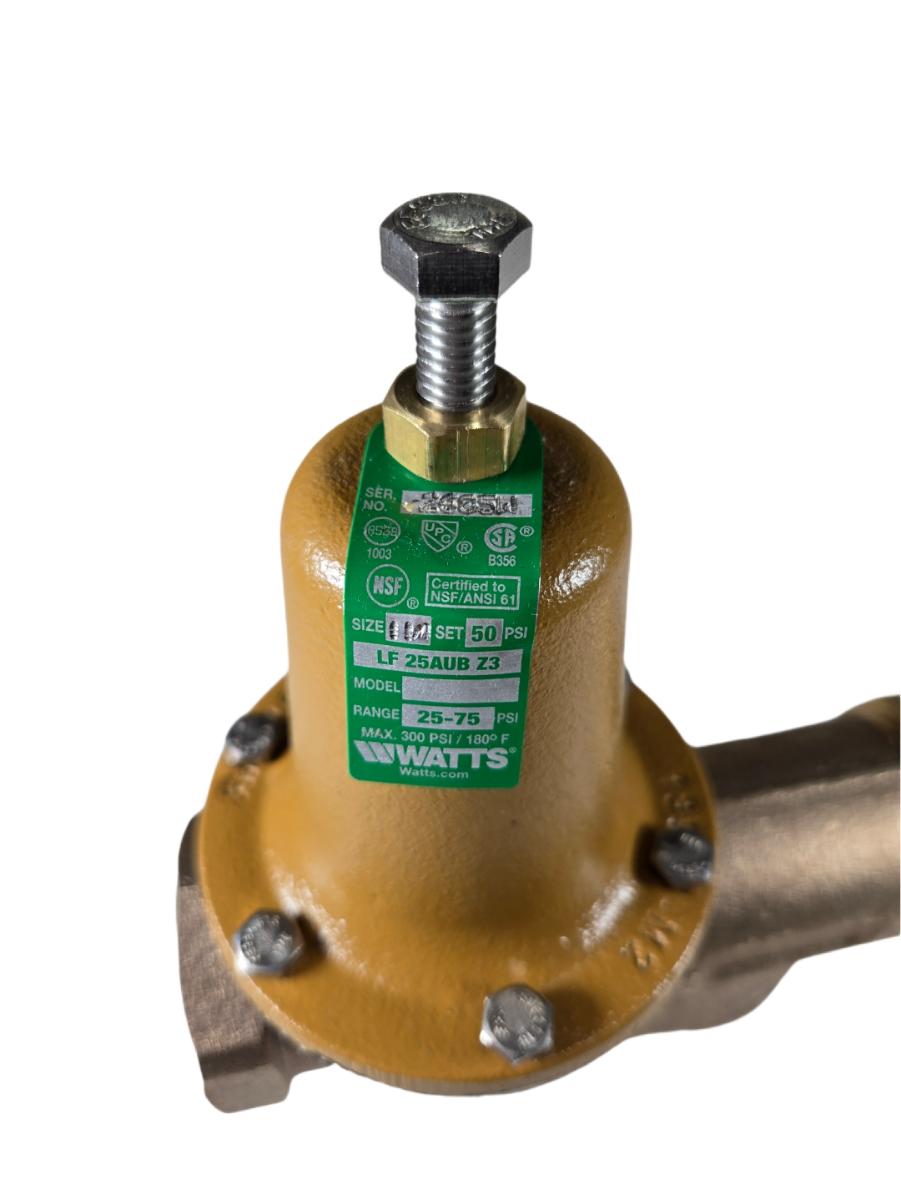

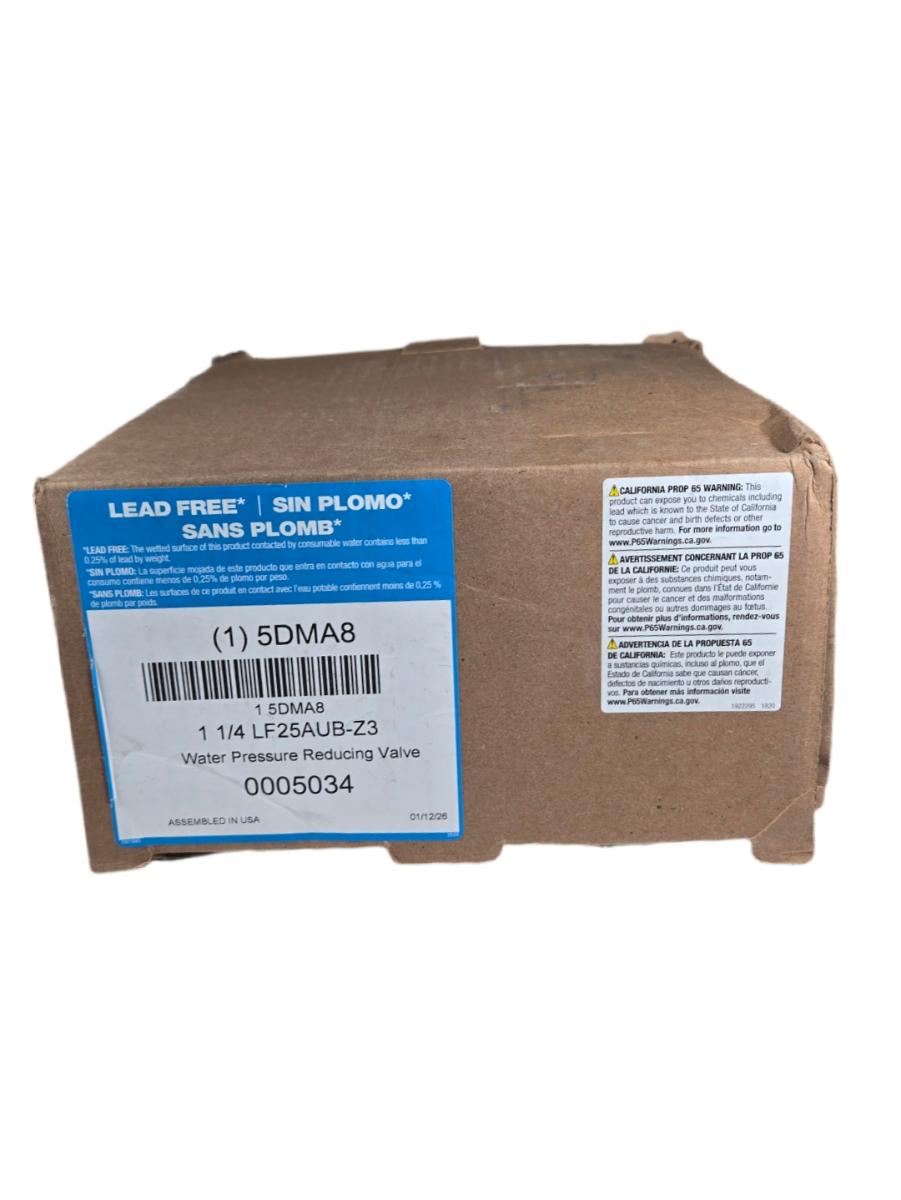

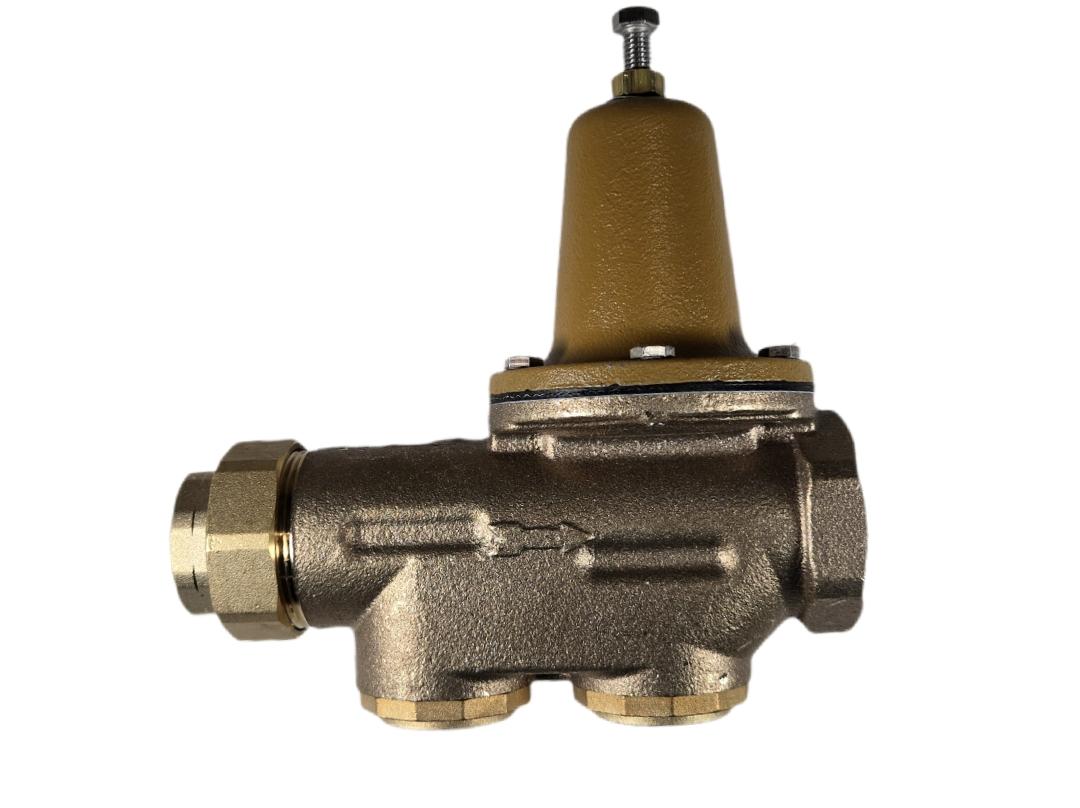

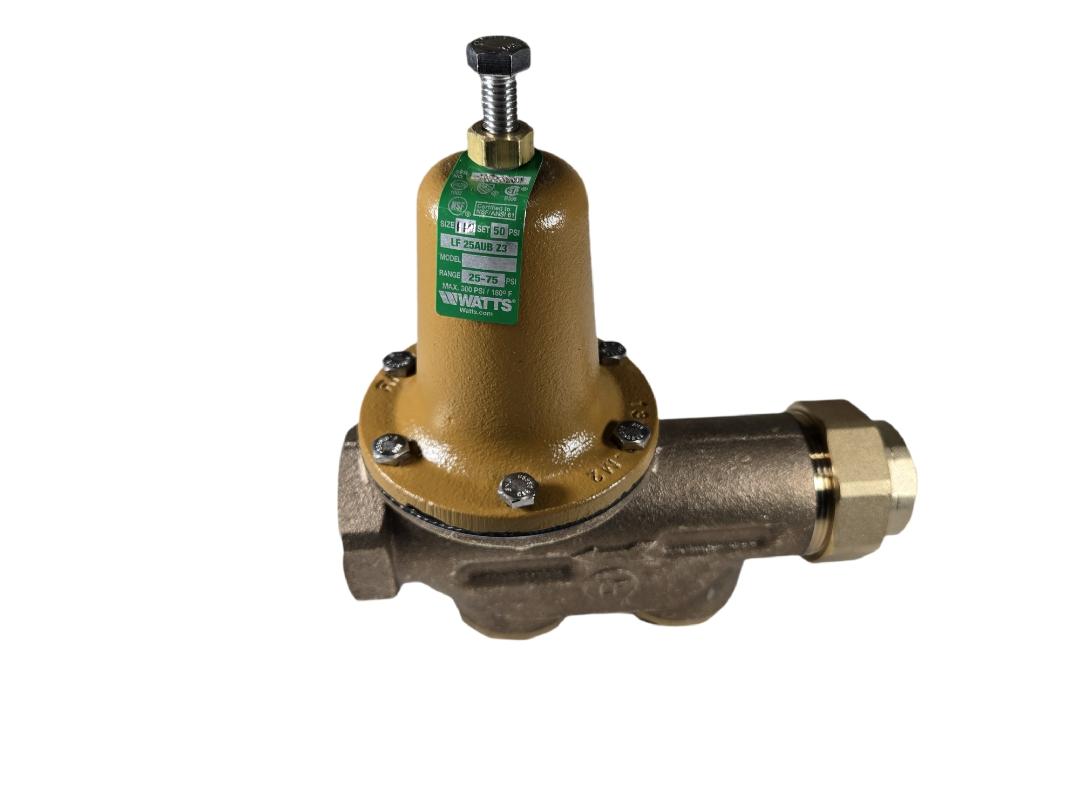

Watts 1 1/4 LF25AUB-Z3 Water Pressure Reducing Valve 25-75 PSI New

Out of stock
SKU: 8775t110B
Regular price $836.10

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The Watts 1 1/4 LF25AUB-Z3 is a lead-free water pressure reducing valve designed for potable water systems and certified to NSF/ANSI Standard 61, meeting California Proposition 65 requirements. The valve features a 1 1/4-inch female NPT inlet and outlet connection, with an adjustable set pressure range of 25–75 PSI and maximum rated pressure of 300 PSI at 180°F. The internal design uses a spring-loaded diaphragm mechanism to automatically reduce inlet water pressure to a user-set downstream pressure, protecting plumbing fixtures and appliances from damage caused by excessive municipal water pressure. This new unit is factory-sealed and comes with an integral gauge port for field pressure monitoring and adjustment via the top-mounted screw. Installation is compatible with standard 1 1/4-inch female NPT plumbing fittings in residential and light commercial water distribution systems.

Product Specifications

Brand Watts Water Technologies
Part Number LF25AUB-Z3
Connection Size 1 1/4 inch NPT female
Pressure Setting Range 25–75 PSI
Maximum Rated Pressure 300 PSI at 180°F
Valve Type Direct-acting diaphragm pressure reducing valve
Material Brass body, internal brass and stainless steel components
Lead Content Lead-free (NSF/ANSI 61 certified)
Temperature Rating 180°F maximum
Certifications NSF/ANSI Standard 61, California Proposition 65 compliant, UPC registered
Outlet Gauge Port Yes, integral 1/4-inch NPT
Adjustment Method Hex screw adjustable spring tension
Condition New, factory sealed
