Watts 2 009M2-QT 2in FNPT 175 PSI RPZ Backflow Preventer Bronze

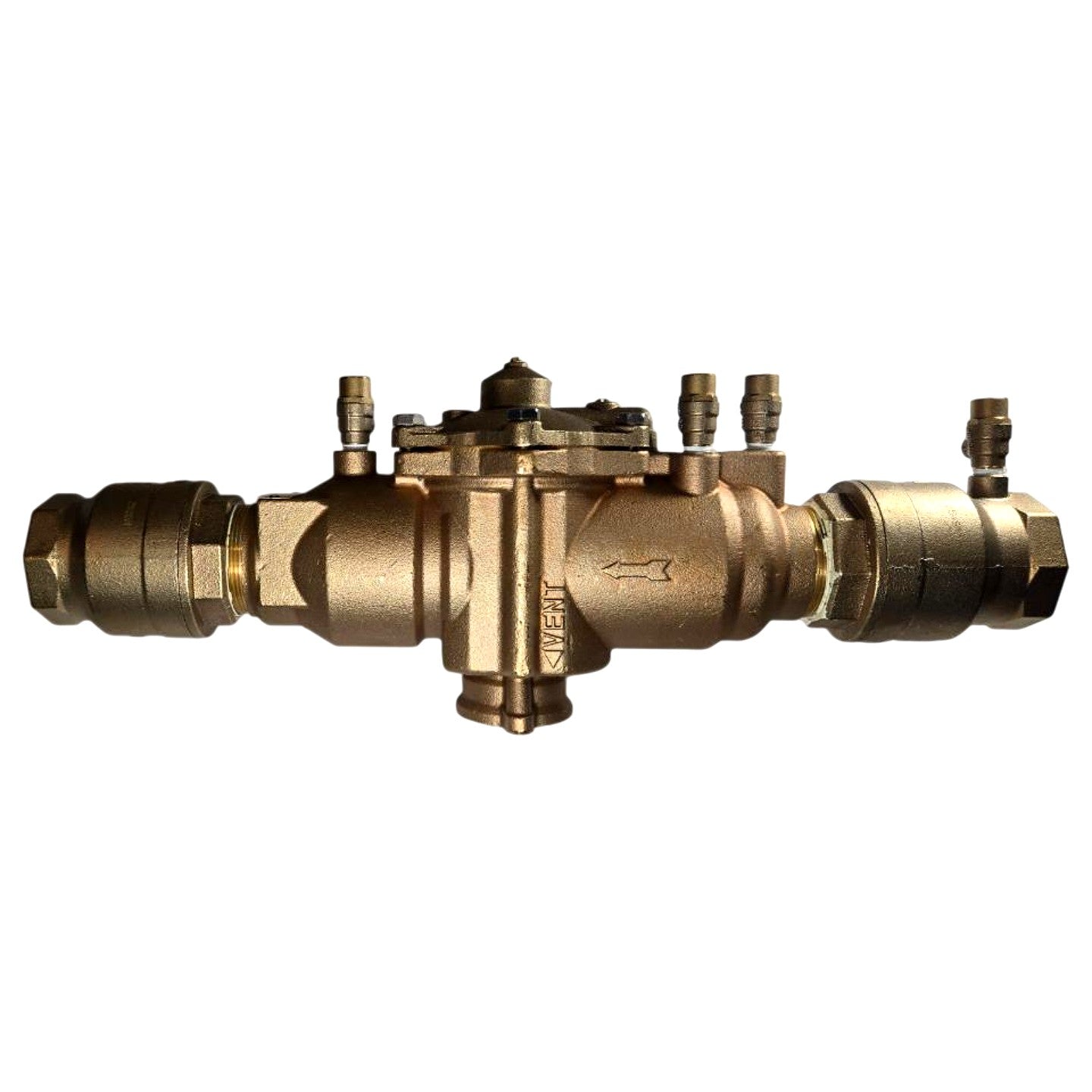

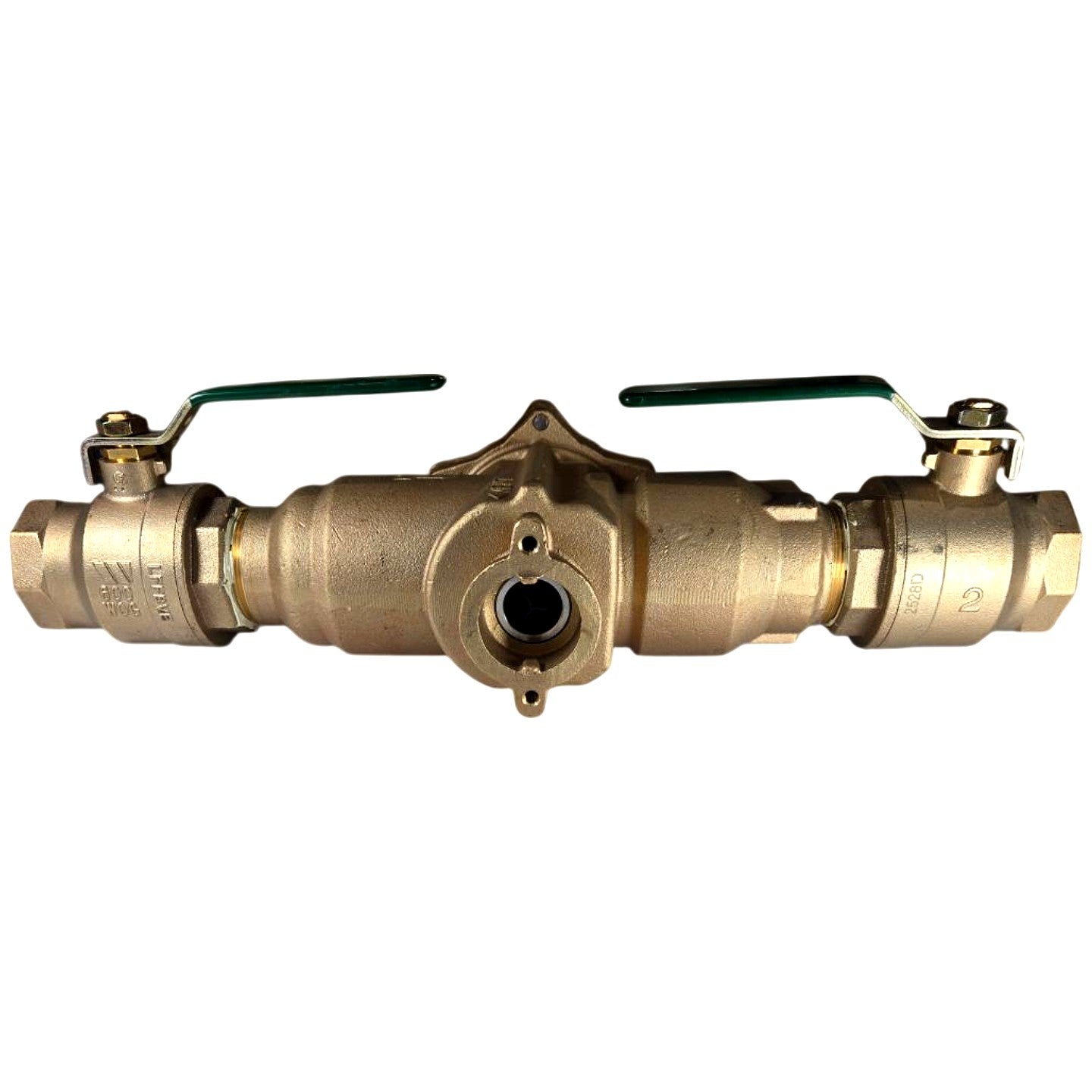

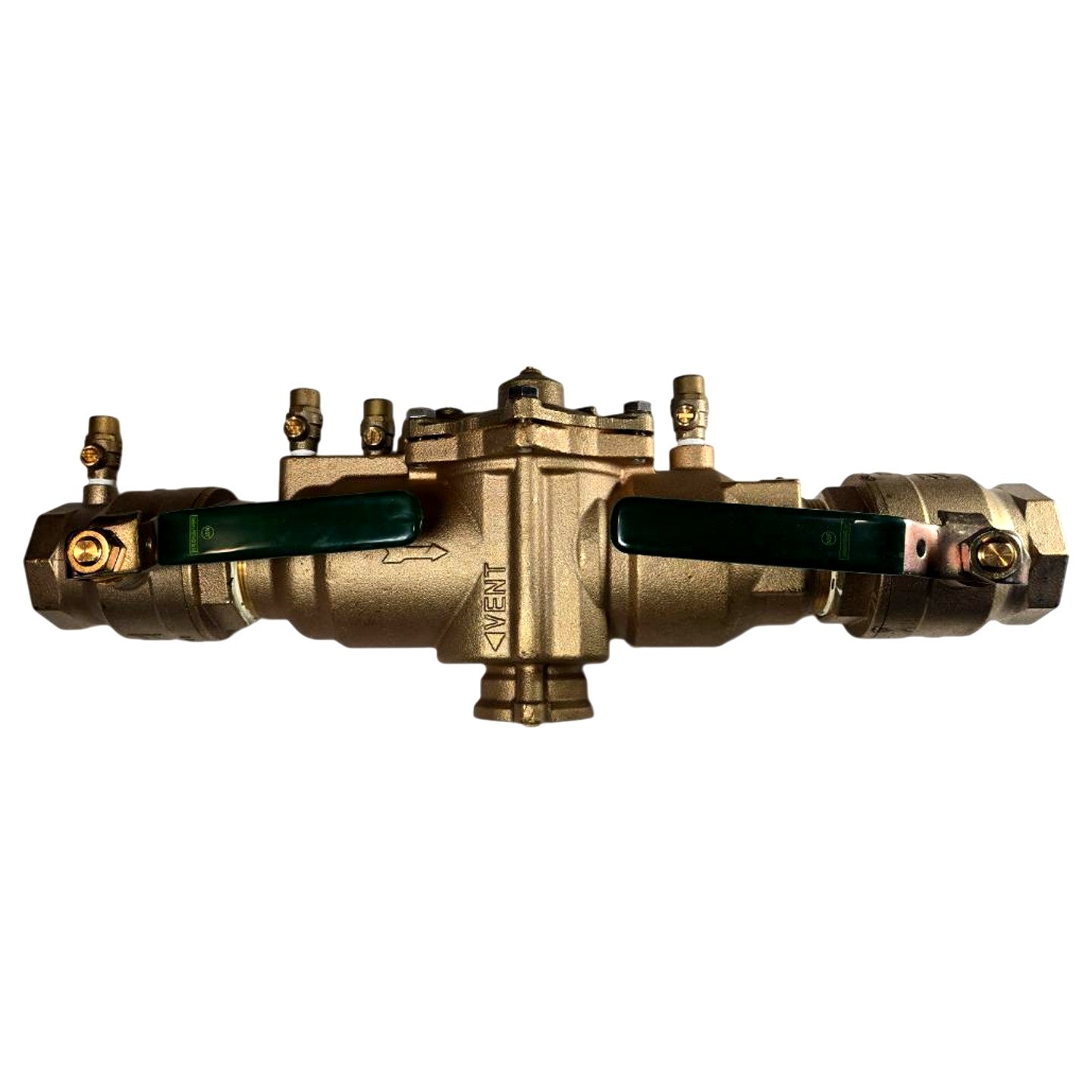

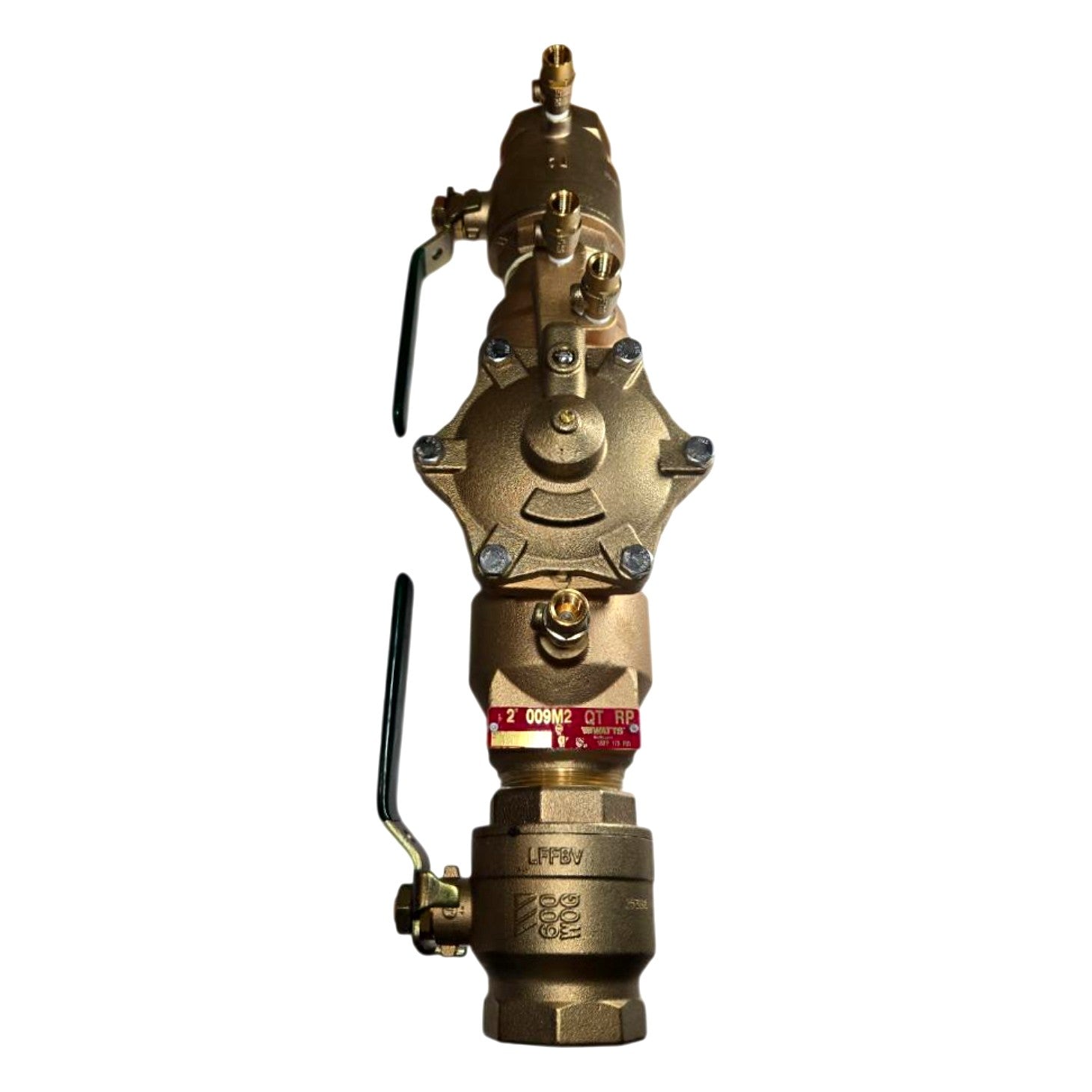

The Watts 2 009M2-QT is a new 2-inch reduced pressure zone (RPZ) backflow preventer assembly from the 009 Series, manufactured in the USA and confirmed as such on the product label visible in photos. Constructed of lead-free bronze (LF designation visible on the ball valve bodies — "LFFBv" — confirming compliance with NSF/ANSI 61 and 372 lead-free requirements), it features two internally loaded independently operating check valves separated by a differential pressure relief valve zone, providing the highest level of backflow protection against both back-siphonage and back-pressure. The "QT" suffix denotes quarter-turn ball valve shutoffs on both the inlet and outlet (replacing the traditional OS&Y gate valves), rated at 600 WOG as visible on the body markings, with threaded FNPT connections and a working pressure of 175 PSI at up to 210°F; maximum flow capacity is 200 GPM. It carries ASSE 1013, AWWA C511, CSA B64.4, and USC FCCCHR approvals, making it suitable for commercial and industrial potable water systems, irrigation, fire protection, and other high-hazard cross-connection control applications requiring USC/ASSE 1013-listed protection.

Product Specifications
