Watts 2 LF009M2-QT-S 2in FNPT Lead Free Reduced Pressure Backflow Preventer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

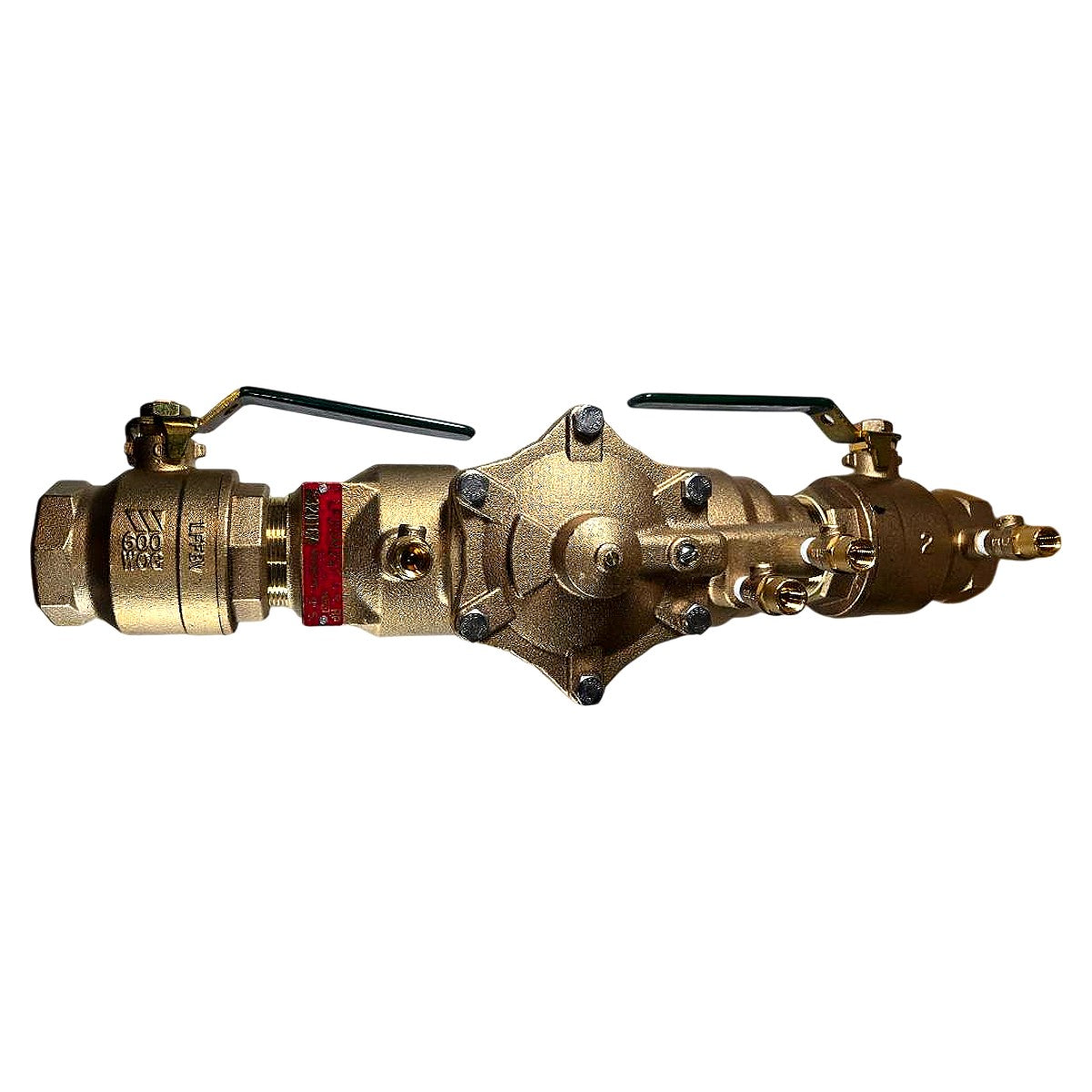

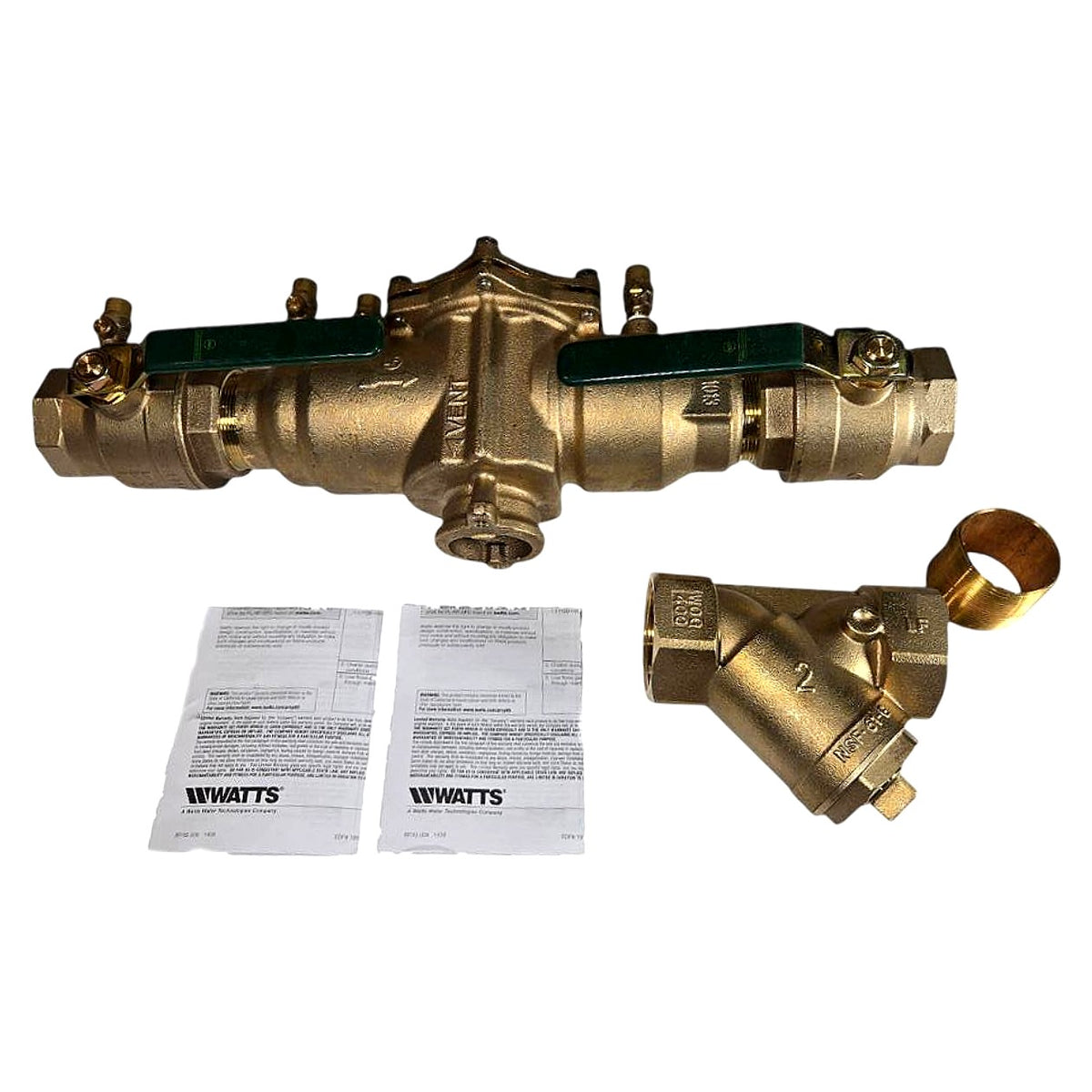

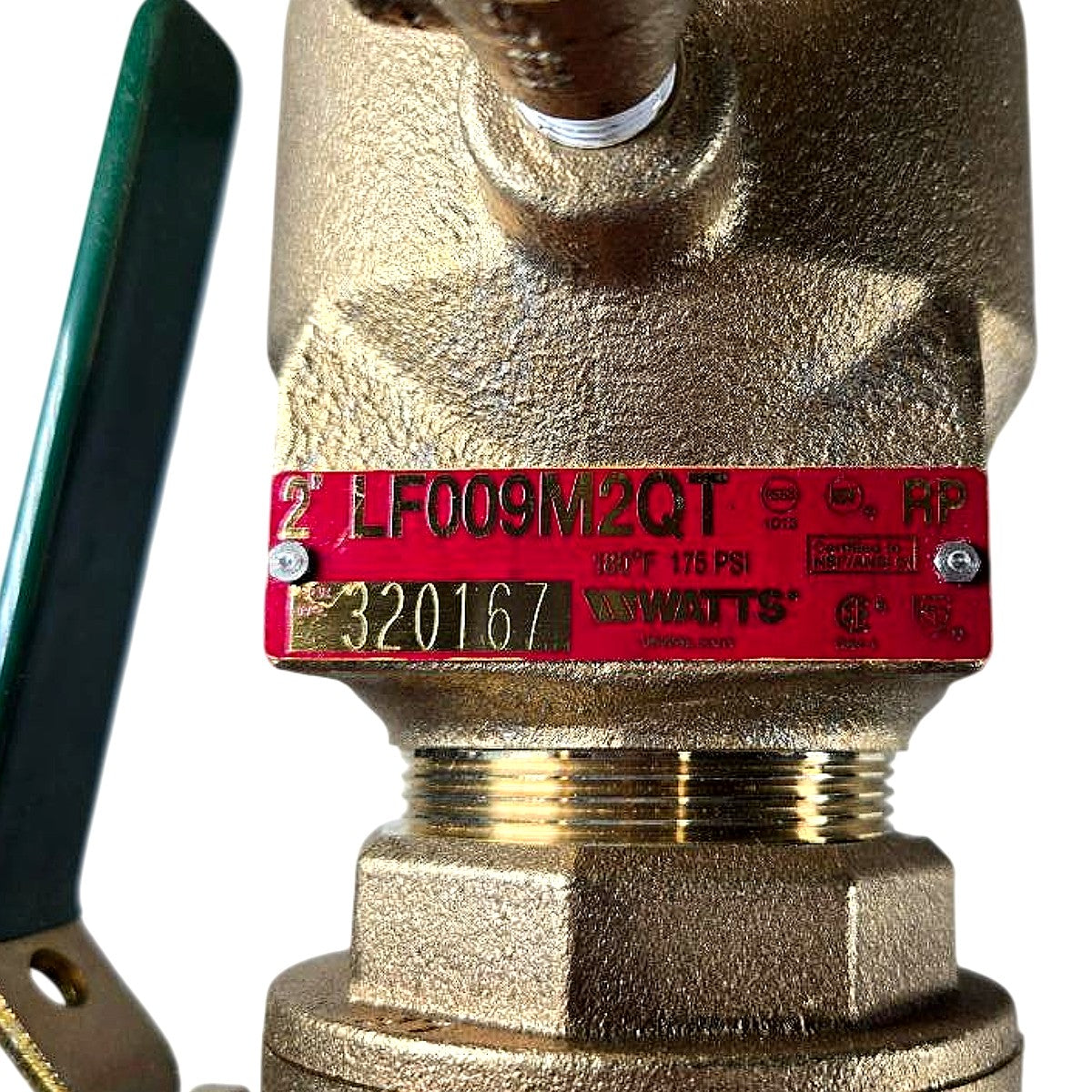

This Watts LF009M2-QT-S is a 2 in reduced pressure zone (RPZ) backflow preventer assembly from the Series LF009 line, built with a lead-free cast bronze body and 2 in female NPT end connections. It includes two quarter-turn full-port ball valve shutoffs with green handles, integral test cocks, and a matching 2 in Y-strainer supplied in the box with a union-style adapter for field installation. The nameplate is marked 2 in LF009M2QT, RP, 175 PSI, 180°F, and shows IAPMO, CSA and NSF/ANSI 61 certification marks, which makes it suitable for protecting potable water supplies from backflow in high-hazard cross-connection applications. This unit is new, packed in the original Watts carton with the strainer and two paper instruction and warranty sheets.
Product Specifications
| Brand | Watts |
| MPN | LF009M2-QT-S |
| Alternate Part Number | 793HL8 |
| Series | LF009 |
| Type | Reduced Pressure Zone (RP) Backflow Preventer |
| Nominal Pipe Size | 2 in |
| Connection Type | FNPT |
| Body Material | Lead Free Bronze |
| Max Working Pressure | 175 PSI |
| Max Temperature | 180°F |
| Min Temperature | 33°F |
| Shutoff Valves | 2 Quarter-Turn Ball Valves, 600 WOG |
| Handle Color | Green |
| Strainer | Included, 2 in Y-Strainer |
| Test Cocks | 4 |
| Lead Free | Yes, <0.25% wetted lead |
| Certifications | IAPMO, CSA, NSF/ANSI 61 |
| Country of Origin | USA |
