Watts LF009-QT-FS 1-1/2 in NPT Reduced Pressure Zone Backflow Preventer

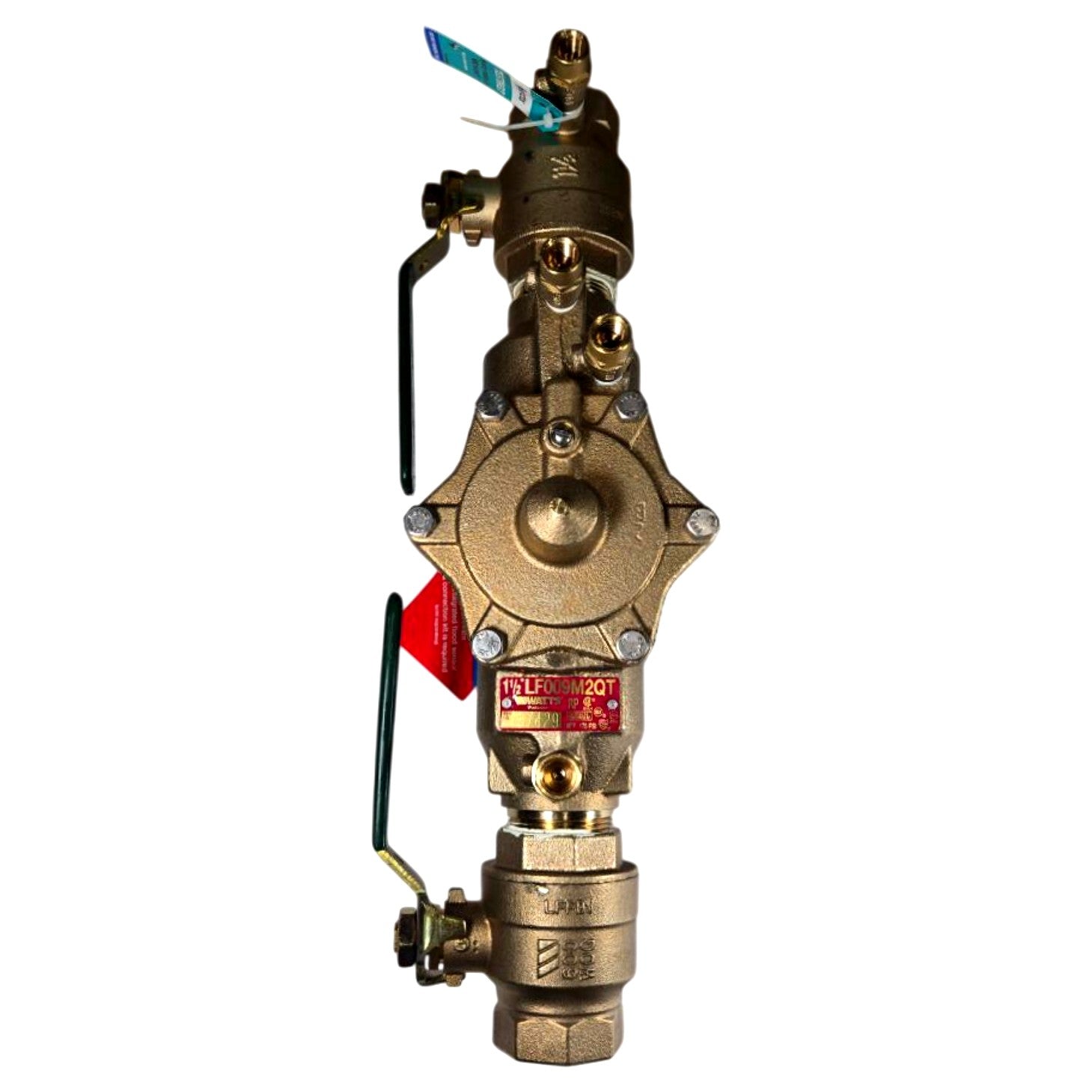

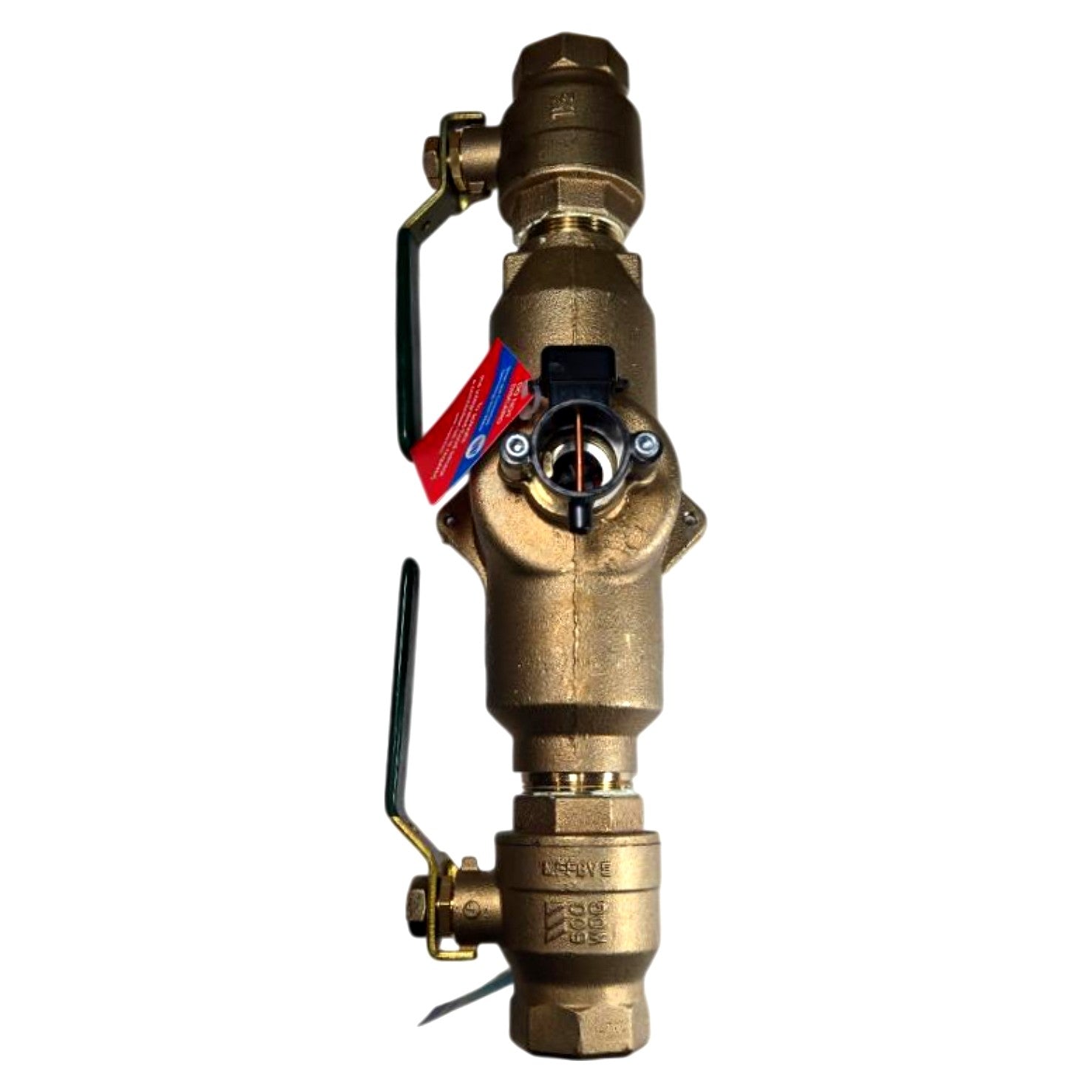

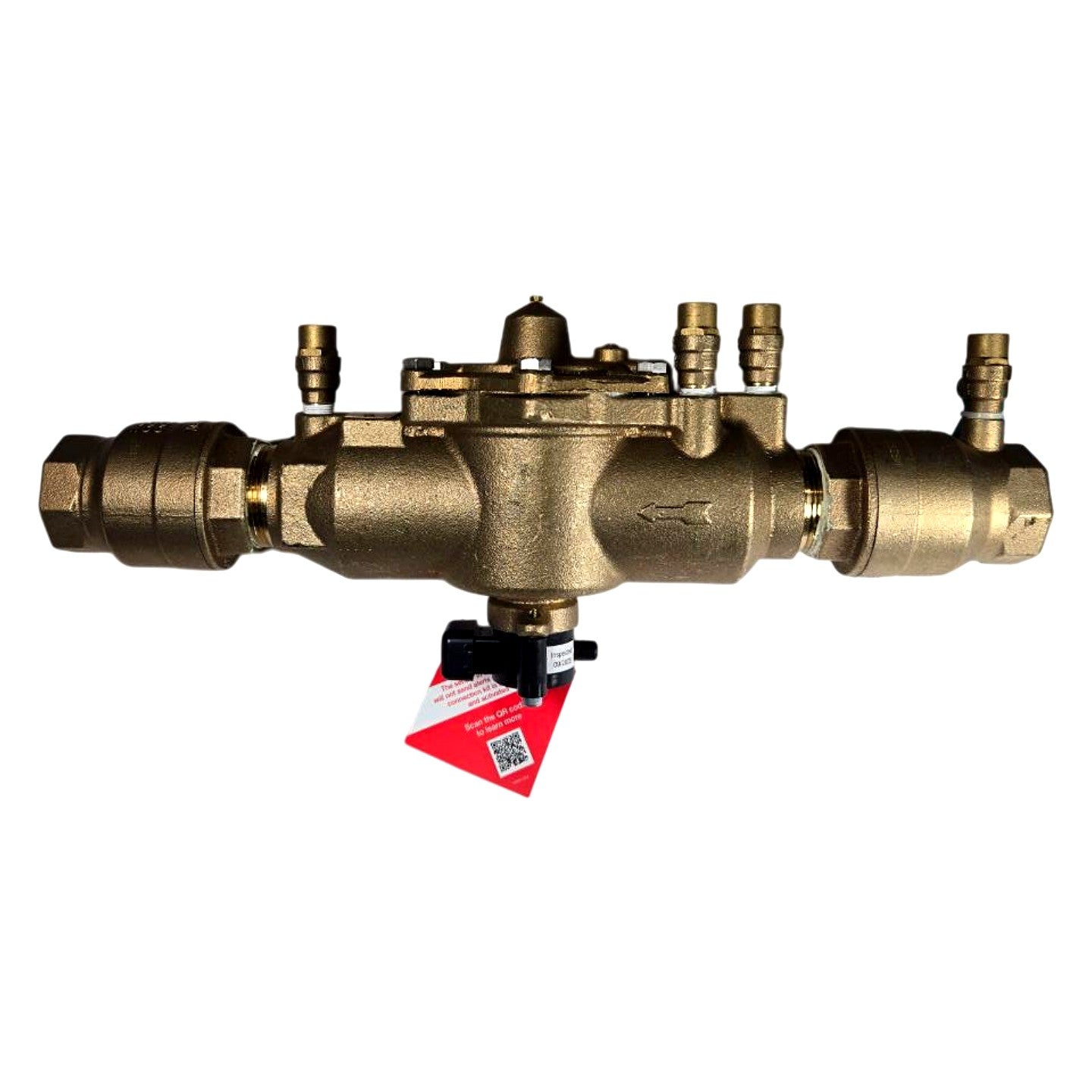

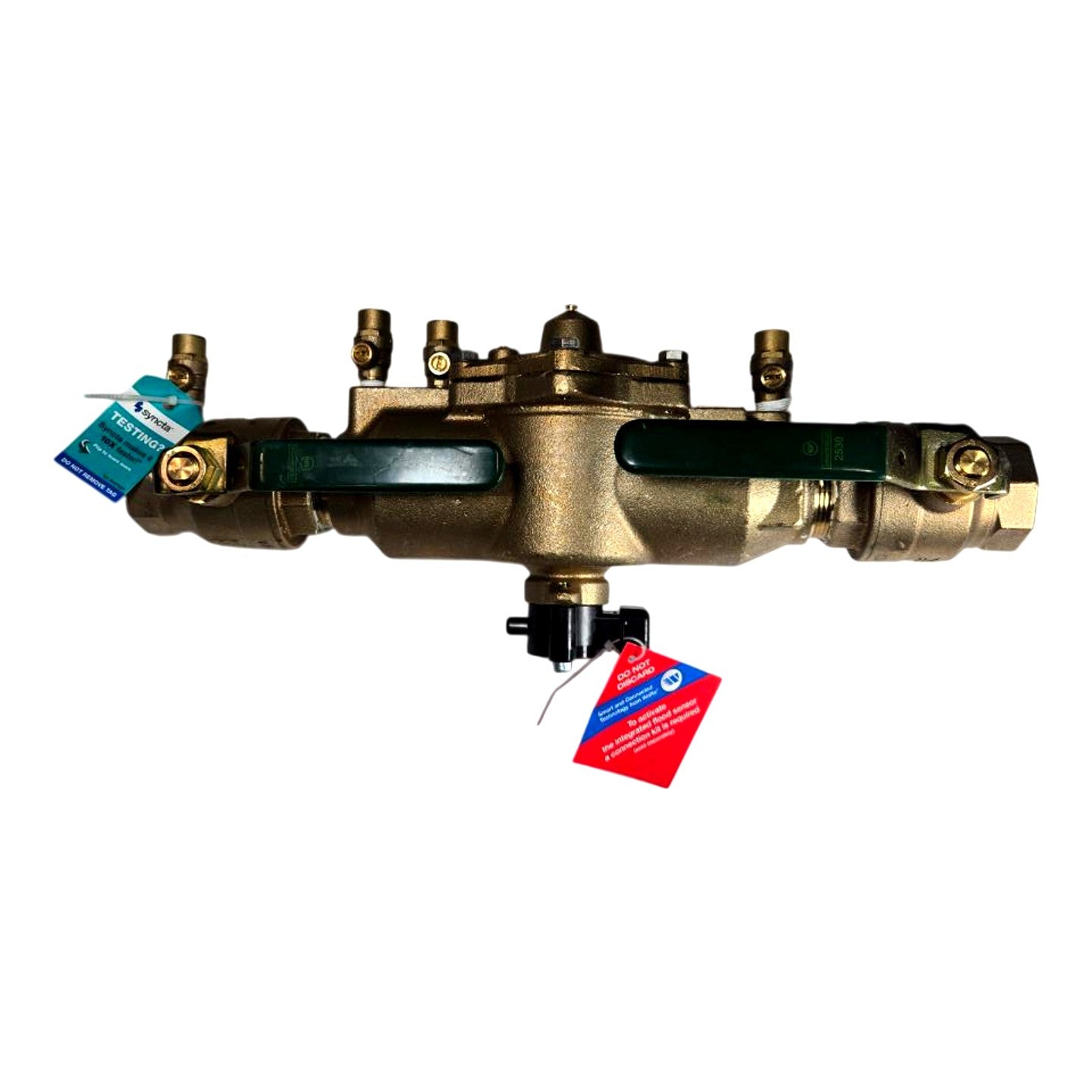

The Watts LF009-QT-FS is a new, lead-free 1-1/2 in NPT reduced pressure zone (RPZ) backflow preventer assembled in the USA, confirmed by the box label reading "1 1/2 LF009-QT-FS" and Watts part number 818DD9. Decoding the model: "LF" = Lead Free (≤0.25% weighted average lead on wetted surfaces, compliant with NSF/ANSI 61 & 372 and Safe Drinking Water Act); "009" = the Watts Series 009 double-check RPZ assembly with internal differential pressure relief valve; "QT" = quarter-turn ball valve shutoffs; "FS" = Flow Smart / full-port shutoff valves. The unit features a lead-free brass body, two independently spring-loaded stainless-steel check valves, a diaphragm-actuated differential pressure relief valve that vents to atmosphere when zone pressure drops below supply pressure, and four test cocks for field verification per ASSE 1013 / AWWA C511 standards. It includes an integrated Syncta smart sensor module (visible in photos, confirmed by Syncta testing tag) for IoT-enabled remote monitoring and annual test reporting; a commissioning kit is required to activate the sensor (noted on the red "Do Not Discard" tag). Rated for potable water service in commercial and industrial irrigation, fire protection, and process water applications requiring high-hazard backflow protection.

Product Specifications
