Watts LF009-QT-FS 1/2 in Lead-Free Reduced Pressure Backflow Preventer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

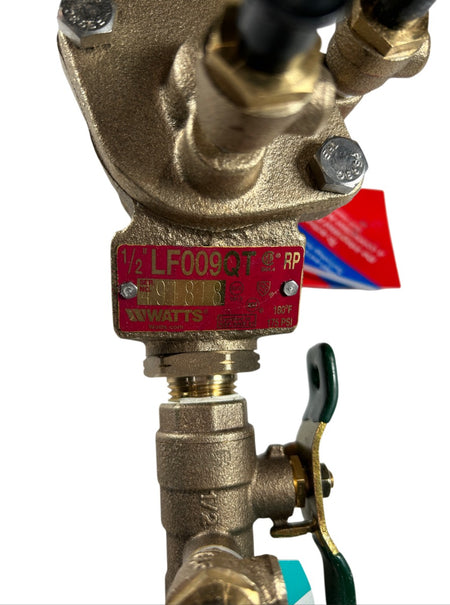

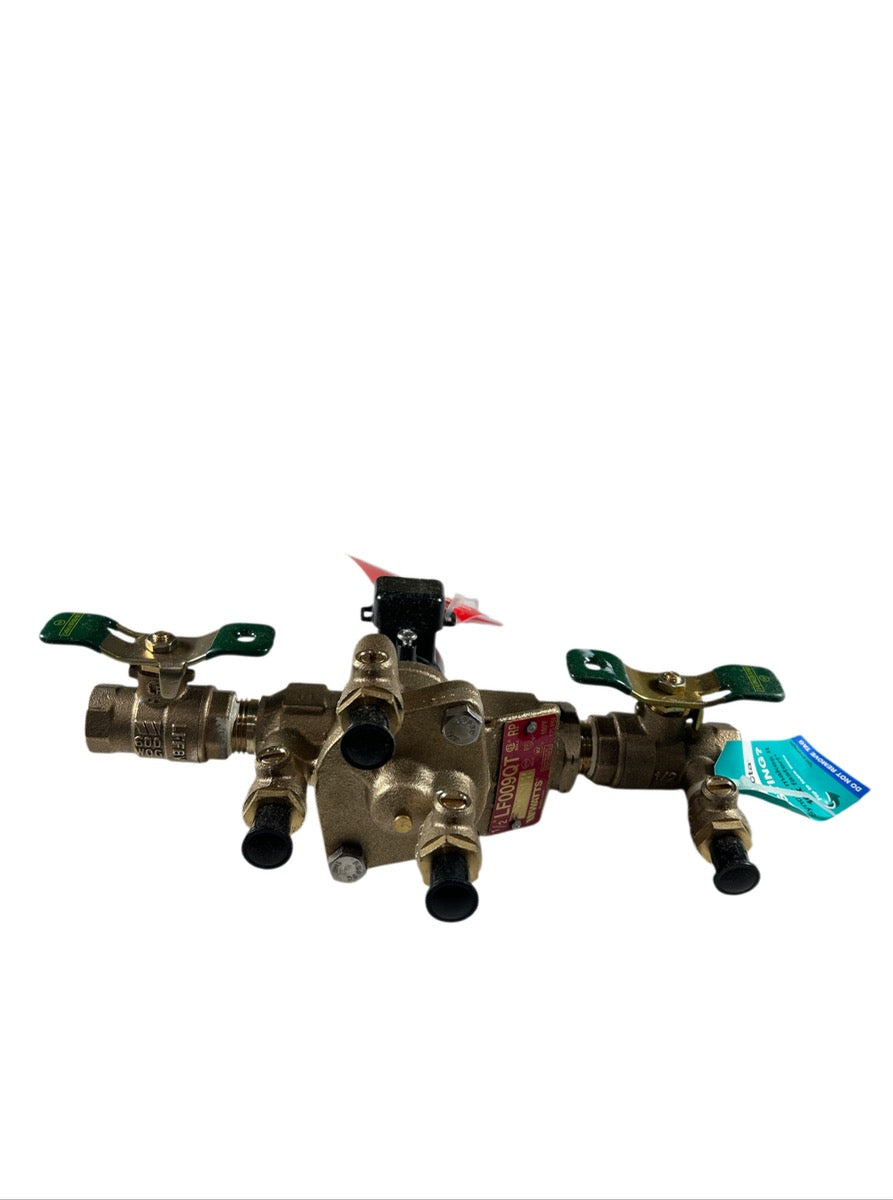

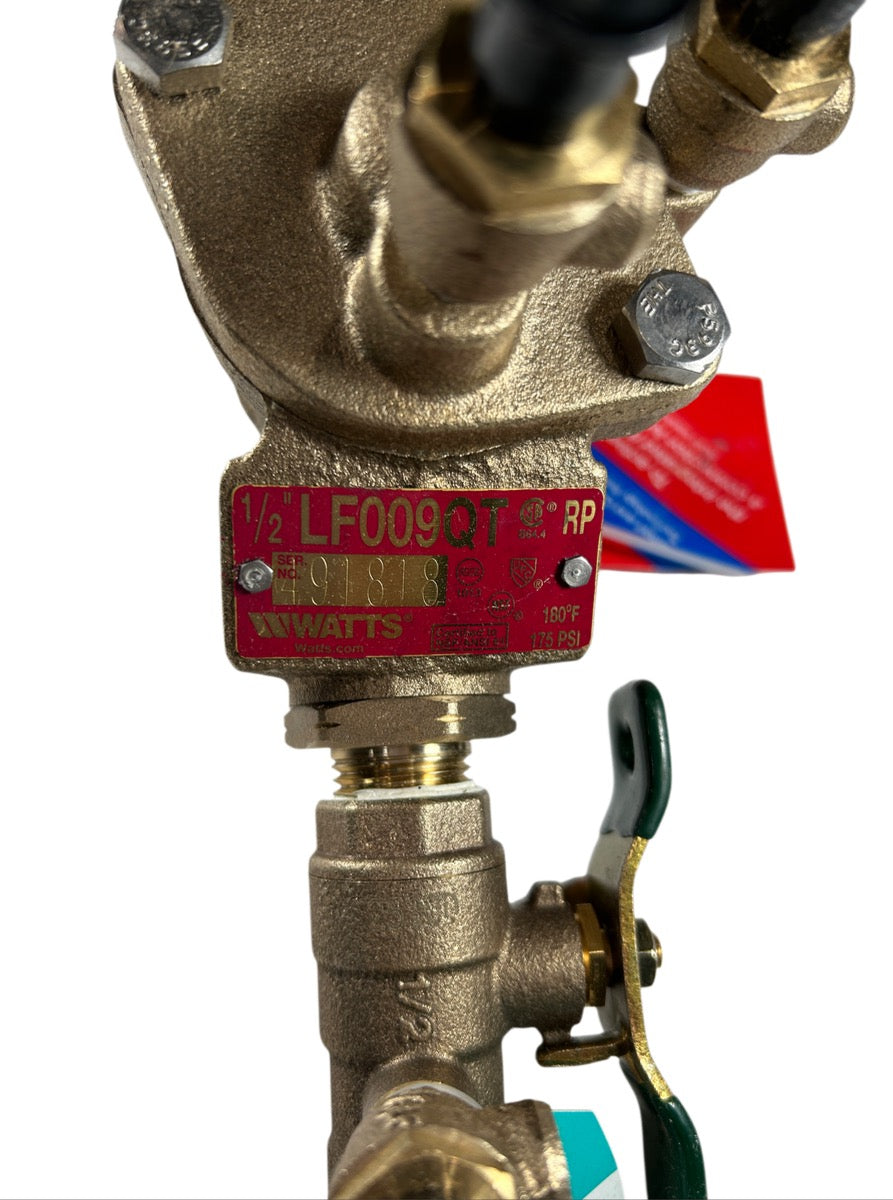

The Watts 1/2 LF009-QT-FS is a new, lead-free reduced pressure zone (RPZ) backflow preventer with full-port quarter-turn ball valve shutoffs and a freeze-resistant bottom-seated relief valve design, assembled in the USA to ASSE 1013, AWWA C511, and CSA B64.4 standards. The body and wetted surfaces are lead-free bronze (less than 0.25% lead by weight per the Reduction of Lead in Drinking Water Act), rated for 175 PSI maximum working pressure and up to 180°F, making it suitable for potable water, irrigation, and hydronic heating applications. The QT suffix denotes quarter-turn full-port ball valve shutoffs with green lever handles on both inlet and outlet, and the FS suffix designates the freeze-shield (bottom-outlet relief valve) configuration that helps reduce freeze damage in exposed installations. Four resilient-seated test cocks are included for field testing to USC FCCCHR and IAPMO listing requirements. The unit carries UL listing and is certified to NSF/ANSI 61 for contact with potable water.
Product Specifications
| Brand | Watts |
| Model / MPN | LF009-QT-FS |
| Full Part Number | 1/2 LF009-QT-FS |
| Watts Catalog # | 818DD5 |
| Connection Size | 1/2 in |
| Connection Type | Female NPT (FNPT) |
| Valve Type | Reduced Pressure Zone (RPZ) Backflow Preventer |
| Shutoff Valve Style | Quarter-Turn Full-Port Ball Valve (QT) |
| Relief Valve Config | Freeze Shield / Bottom-Seat Relief (FS) |
| Body Material | Lead-Free Bronze |
| Lead Content | < 0.25% by weight (wetted surfaces) |
| Max Working Pressure | 175 PSI |
| Max Temperature | 180°F |
| Standards | ASSE 1013, AWWA C511, CSA B64.4 |
| Certifications | UL Listed, NSF/ANSI 61, IAPMO, USC FCCCHR |
| Test Cocks | 4 included, resilient-seated |
| Origin | Assembled in USA |
| Condition | New |
