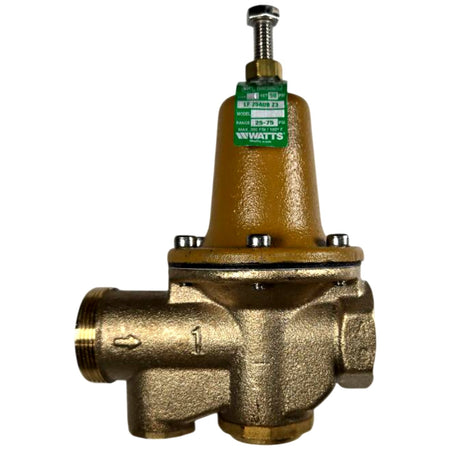

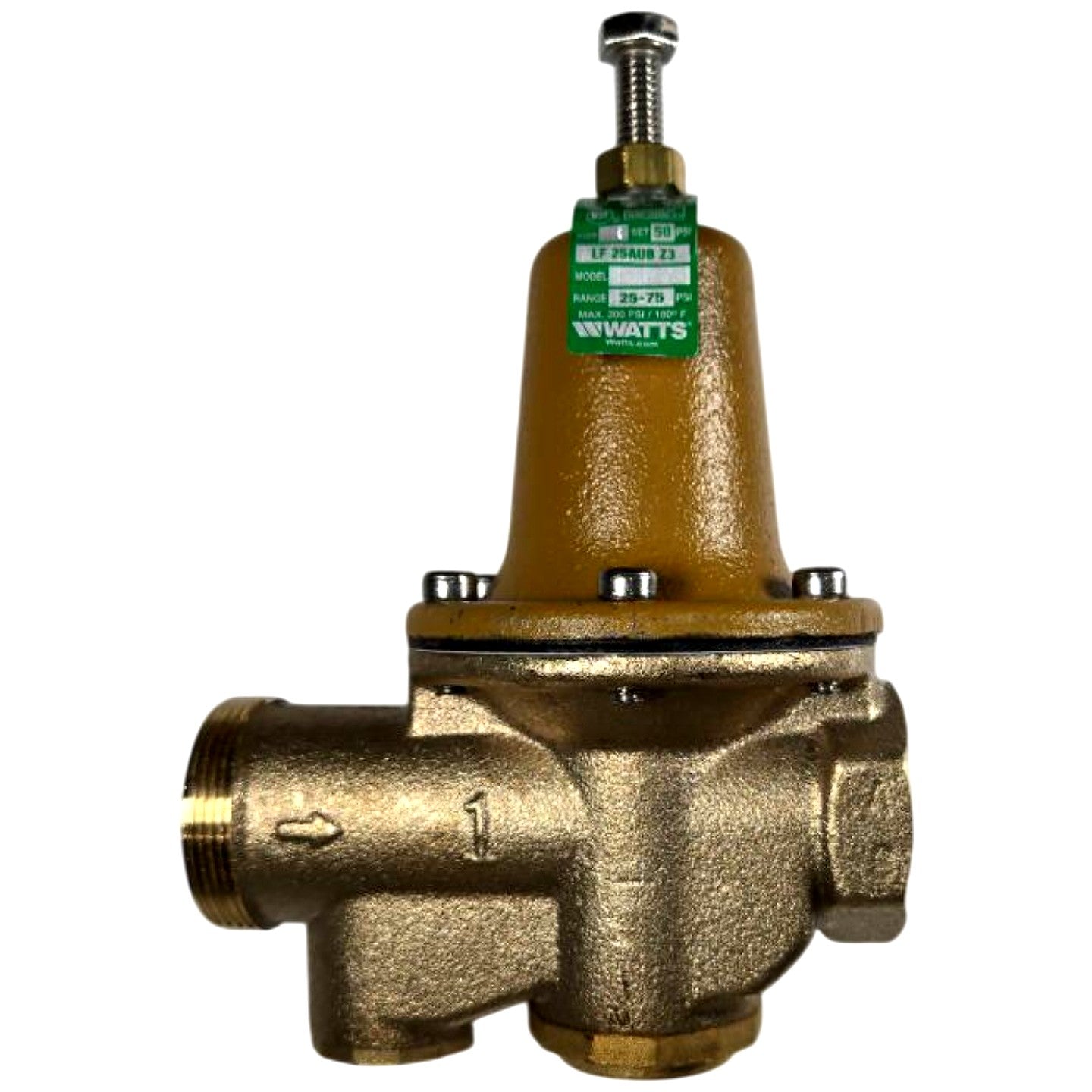

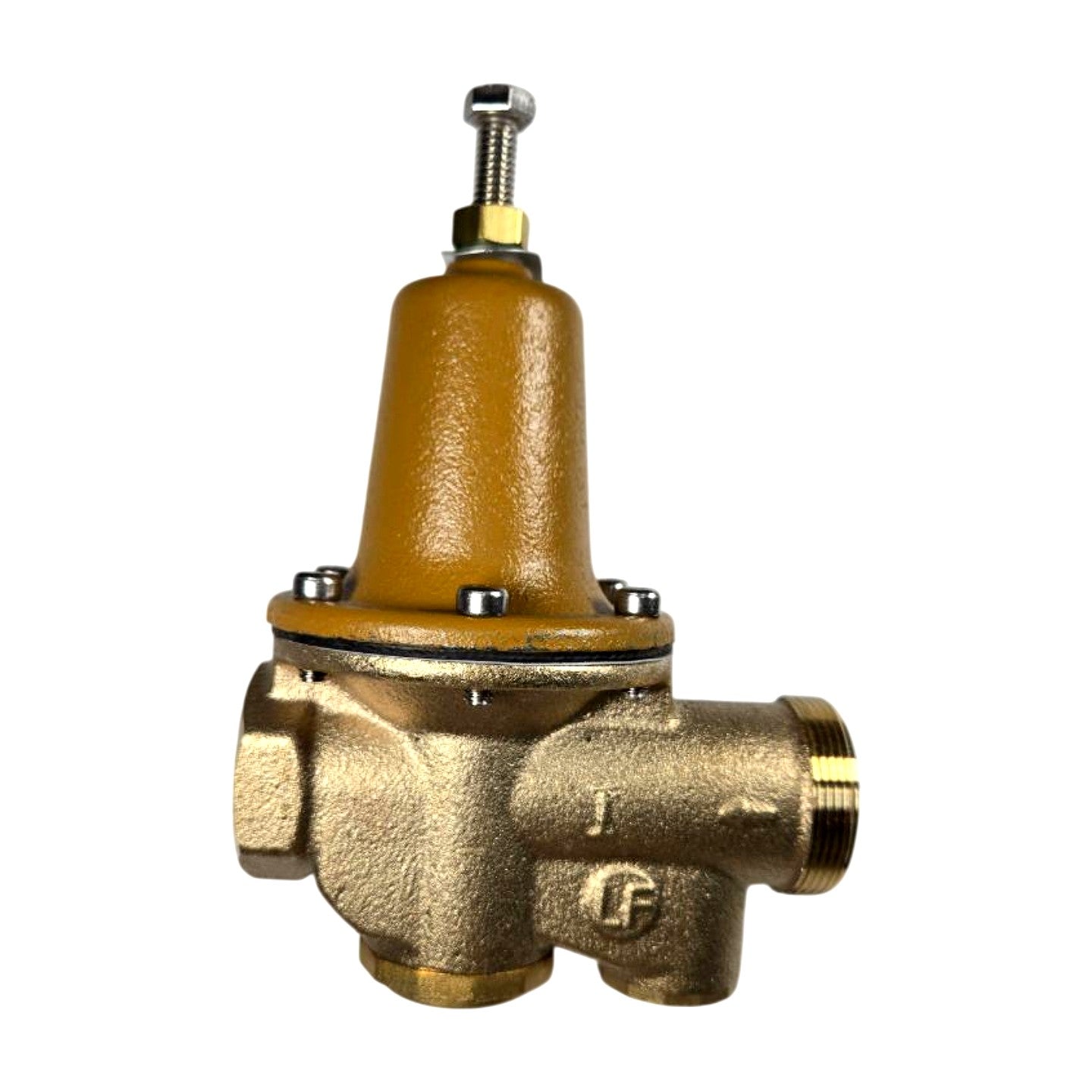

This is a new Watts LF25AUB-Z3 lead-free water pressure reducing valve (PRV), 1-inch NPT inlet x NPT outlet, cast from copper silicon alloy (silicon bronze) body construction to meet NSF/ANSI 61 and NSF/ANSI 372 lead-free (<0.25% weighted average lead content) requirements for potable water service. The valve features a diaphragm-actuated, single-union design with an adjustable spring range of 25–75 PSI and a maximum inlet pressure rating of 300 PSI at 180°F (per label and Watts published data for the 25AUB series). The yellow powder-coated cast iron bonnet houses the adjustment screw mechanism, secured by four bolts to the bronze body, and the valve ships with a factory-preset outlet pressure; field adjustment is made via the top hex adjustment screw. Assembled in the USA per the box label, this valve is designed for residential and commercial potable water supply pressure regulation, compatible with standard 1-inch NPT pipe and fittings. Grainger item number 5DMA7 is cross-referenced on the shipping label.
Product Specifications
| Brand | Watts |
| Manufacturer Part Number | LF25AUB-Z3 |
| Grainger Item Number | 5DMA7 |
| Valve Type | Water Pressure Reducing Valve (PRV) |
| Pipe Size | 1 in |
| Connection Type | NPT x NPT |
| Body Material | Copper Silicon Alloy (Silicon Bronze) |
| Bonnet Material | Cast Iron, Yellow Powder Coated |
| Lead-Free Compliant | Yes, NSF/ANSI 372 (<0.25% weighted avg lead) |
| NSF/ANSI 61 Certified | Yes |
| Outlet Pressure Range | 25–75 PSI |
| Max Inlet Pressure | 300 PSI |
| Max Temperature | 180°F (82°C) |
| Actuation Type | Diaphragm |
| Flow Direction | Unidirectional (arrow marked on body) |
| Condition | New |
| Country of Assembly | USA |
| Series | 25AUB |
