Watts LF909-QT-FS 3/4 in Lead-Free RPZ Backflow Preventer Assembly
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

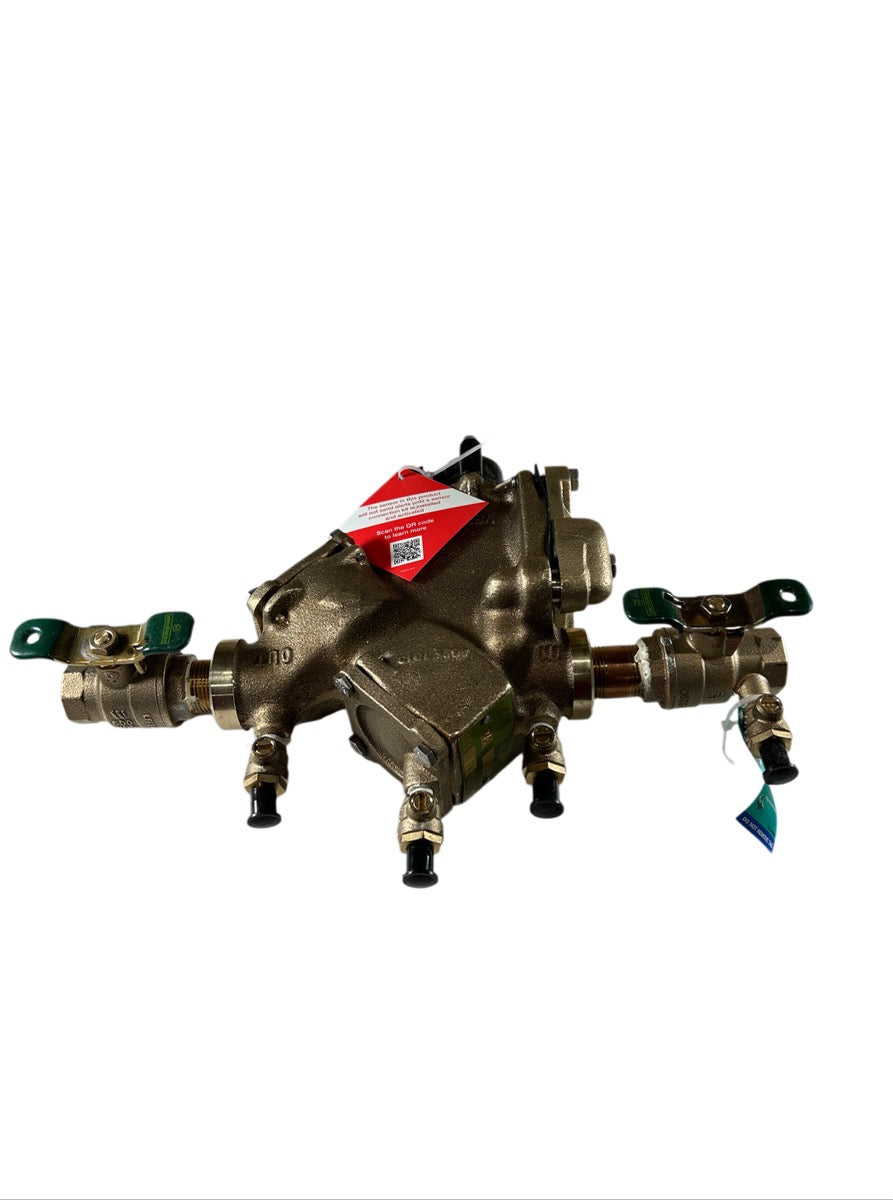

The Watts LF909-QT-FS is a new, lead-free reduced pressure zone (RPZ) backflow preventer assembly in 3/4 in pipe size, designed to provide the highest level of backflow protection for potable water systems per ASSE 1013 / AWWA C511 / CSA B64.4 standards. The assembly includes two resilient-seated shutoff ball valves with lever handles (QT suffix = quarter-turn ball valves), four test cocks, and an integral differential pressure relief valve that opens to atmosphere if the pressure differential between the two check valves drops to or below 2 psi, preventing back-siphonage and backpressure contamination. The LF (Lead-Free) designation confirms wetted surfaces contain ≤0.25% lead by weight, making it compliant with the Reduction of Lead in Drinking Water Act and California Prop 65 requirements. The FS suffix denotes full-flow, stainless steel internal components. Typical applications include commercial and industrial potable water supply, irrigation systems, boiler make-up water, and fire protection connections requiring high-hazard backflow prevention. Assembled in the USA as indicated on the box label.
Product Specifications
| Manufacturer | Watts Water Technologies |
| Part Number (MPN) | LF909-QT-FS |

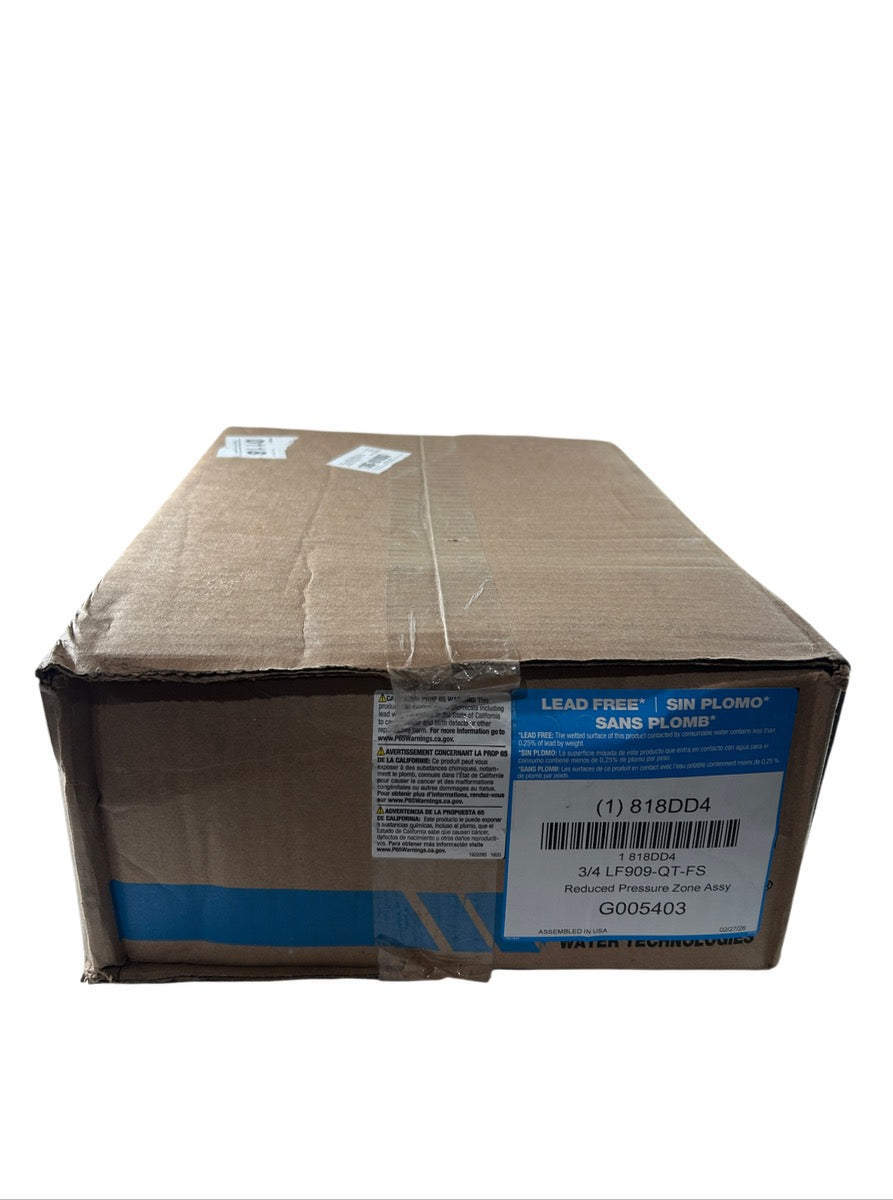

| Box Label Item # | 818DD4 |
| Pipe Size | 3/4 in |
| Connection Type | Threaded (NPT) |
| Valve Type | Reduced Pressure Zone (RPZ) Backflow Preventer |
| Body Material | Lead-Free Bronze |
| Lead-Free Compliant | Yes, ≤0.25% lead by weight on wetted surfaces |
| Shutoff Valve Type | Quarter-Turn Ball Valves (QT) |
| Internal Components | Stainless Steel (FS suffix) |
| Test Cocks | 4 included |
| Standards | ASSE 1013, AWWA C511, CSA B64.4 |
| Origin | Assembled in USA |
| Condition | New |
