Weeflos WZB-ED1100A 1.5HP 1600GPH 120ft Residential Water Booster Pump
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

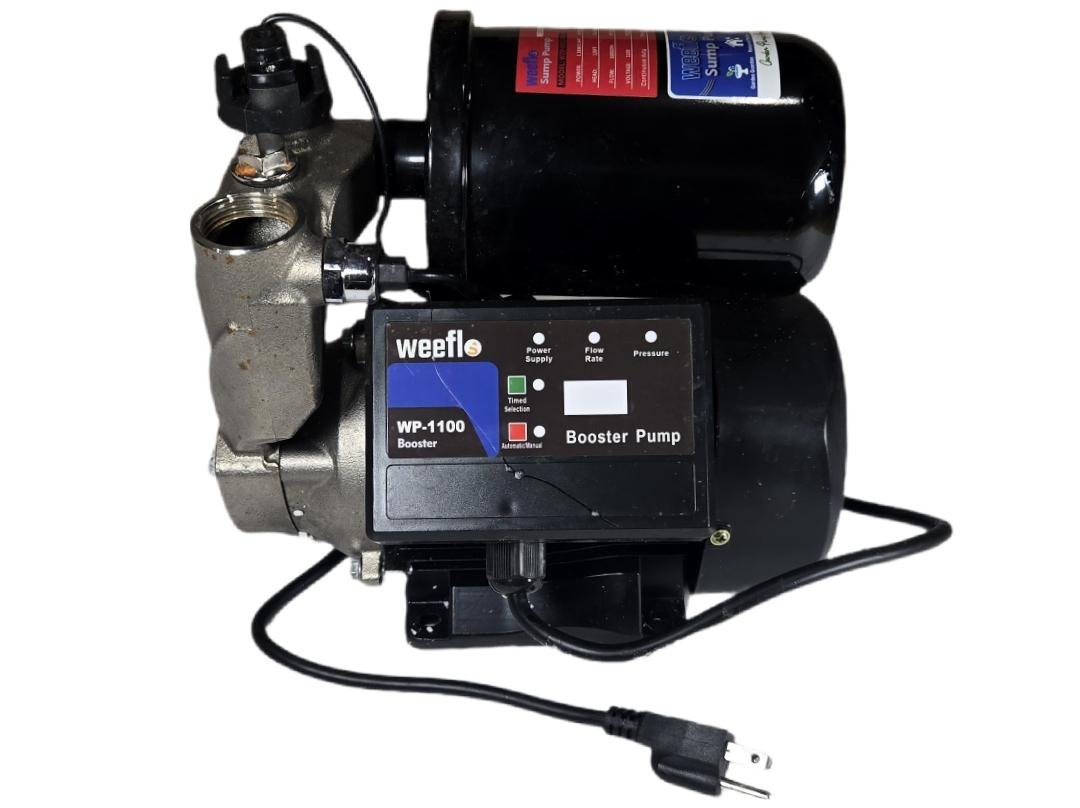

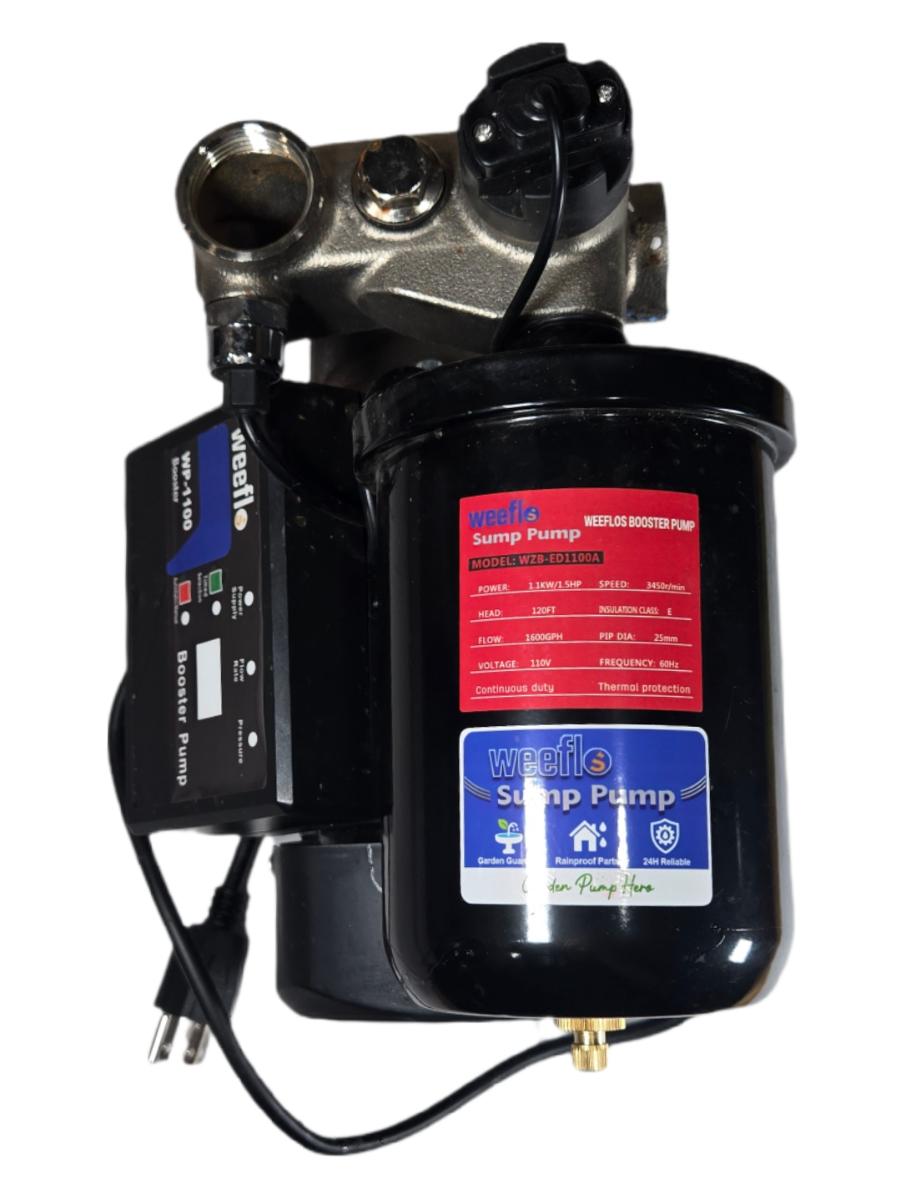

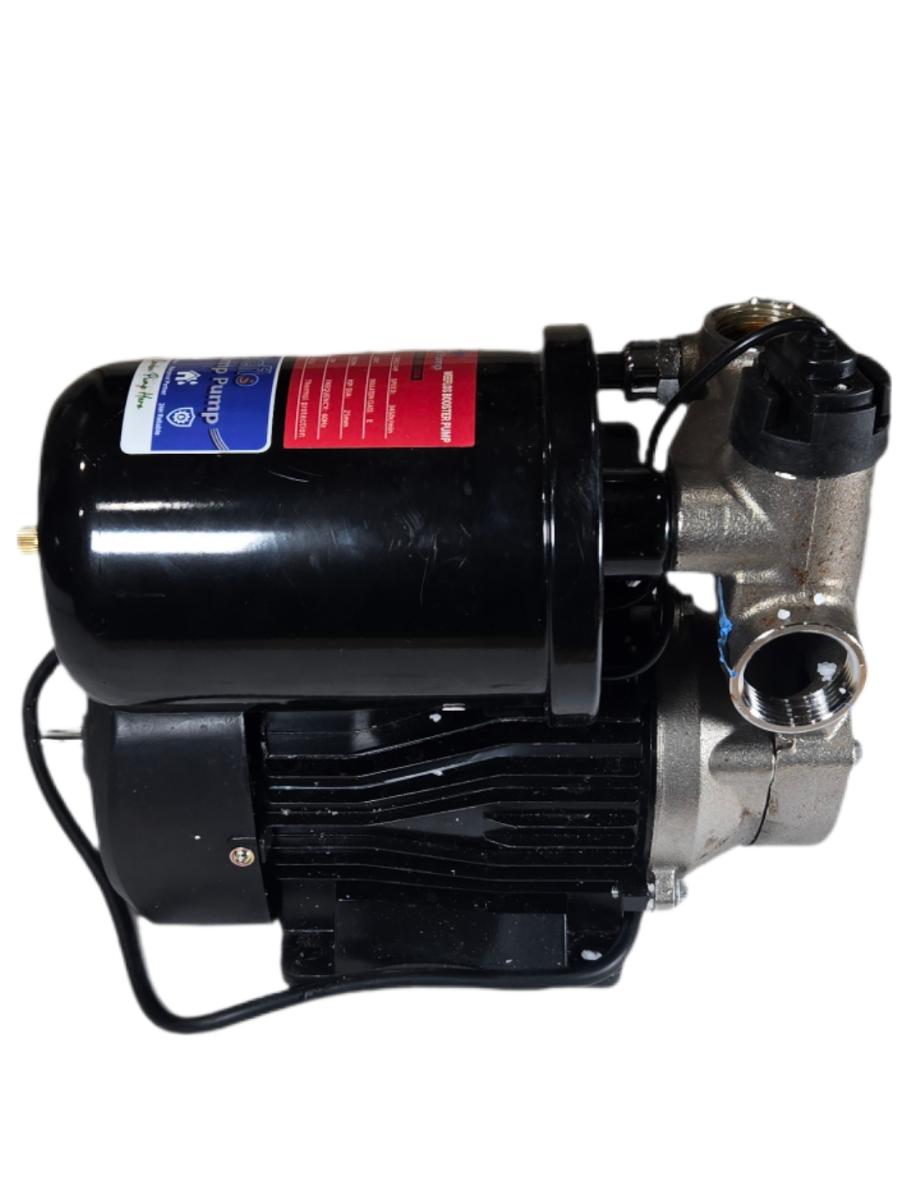

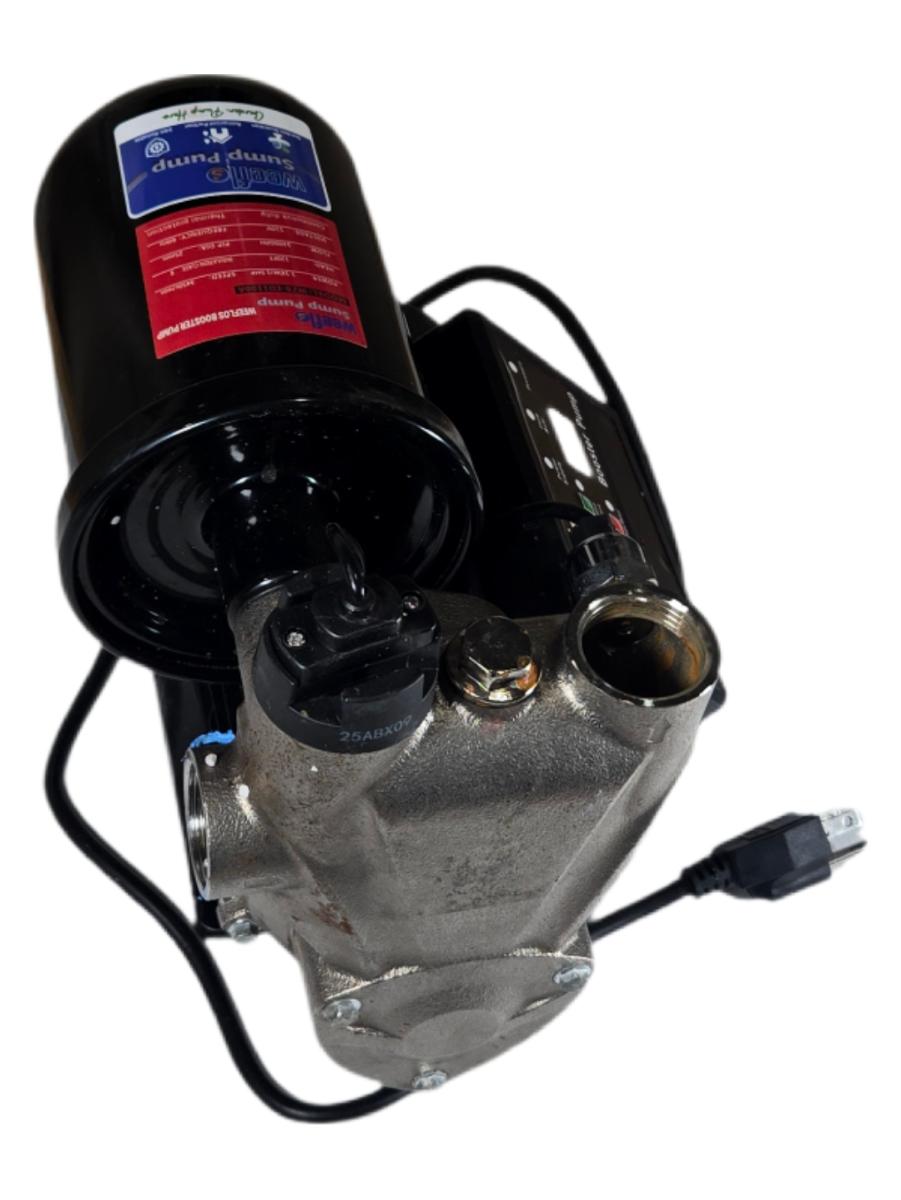

The Weeflos WZB-ED1100A (controller model WP-1100) is a new 1.5HP (1.1kW) residential water pressure booster pump rated for 1,600 GPH flow and 120 ft maximum head at 3,450 RPM on 110V/60Hz single-phase power, with a 25mm (1 in) pipe diameter and Insulation Class E motor. The pump body is stainless steel construction with an integrated electronic controller featuring Power Supply, Flow Rate, and Pressure LED indicators, Timed Selection mode, and Automatic/Manual switching via a front-panel pushbutton, allowing fully automatic pressure-demand operation without a separate pressure tank. Designed for continuous duty with built-in thermal protection, the WZB-ED1100A is suited for domestic water supply boosting, multi-story residential buildings, office buildings, garden irrigation, and fountain applications where incoming line pressure is insufficient.
Product Specifications
| Brand | Weeflos |
| Model Number | WZB-ED1100A |
| Controller Model | WP-1100 Booster |
| Power | 1.1 kW / 1.5 HP |
| Voltage | 110V |
| Frequency | 60 Hz |
| Motor Speed | 3,450 RPM |
| Max Head | 120 ft |
| Max Flow Rate | 1,600 GPH |
| Pipe Diameter | 25 mm (1 in) |
| Insulation Class | Class E |
| Duty Cycle | Continuous duty |
| Thermal Protection | Yes, built-in |
| Pump Body Material | Stainless steel |
| Control Modes | Automatic, Manual, Timed Selection |
| Indicator Lights | Power Supply, Flow Rate, Pressure LEDs |
| Power Cord | Standard 110V NEMA 5-15 plug |
| Condition | New |
| Applications | Domestic water, multi-story buildings, garden, fountains |
