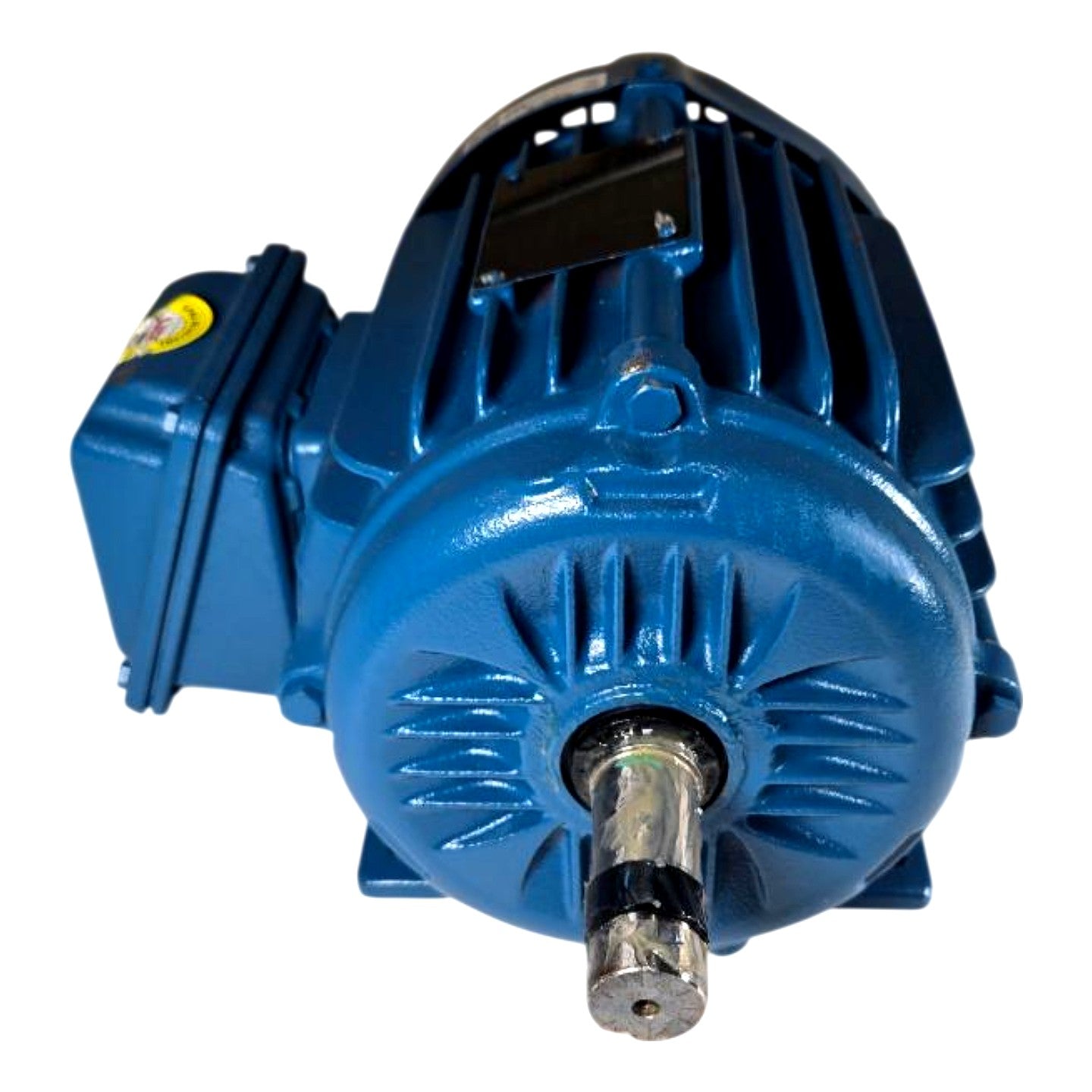

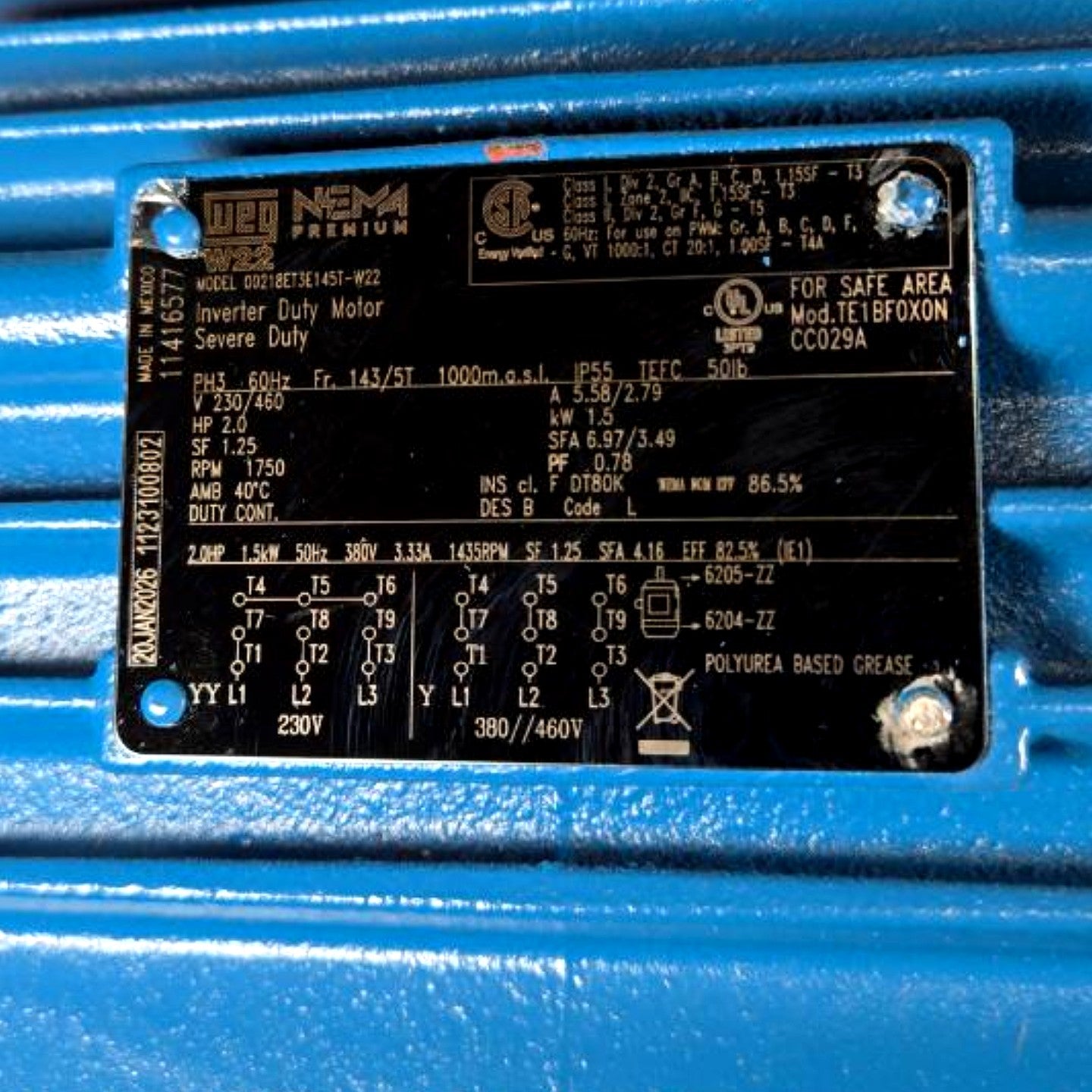

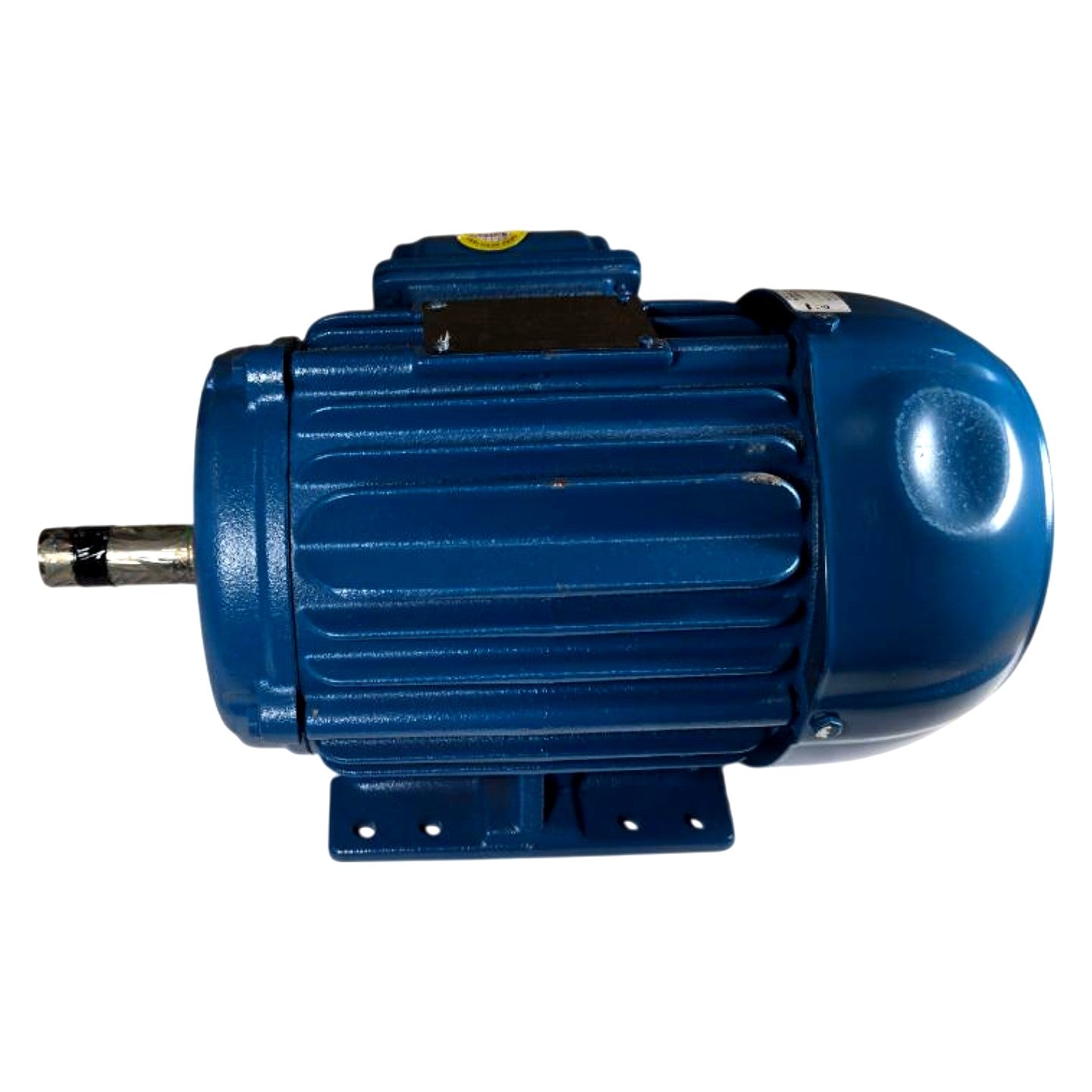

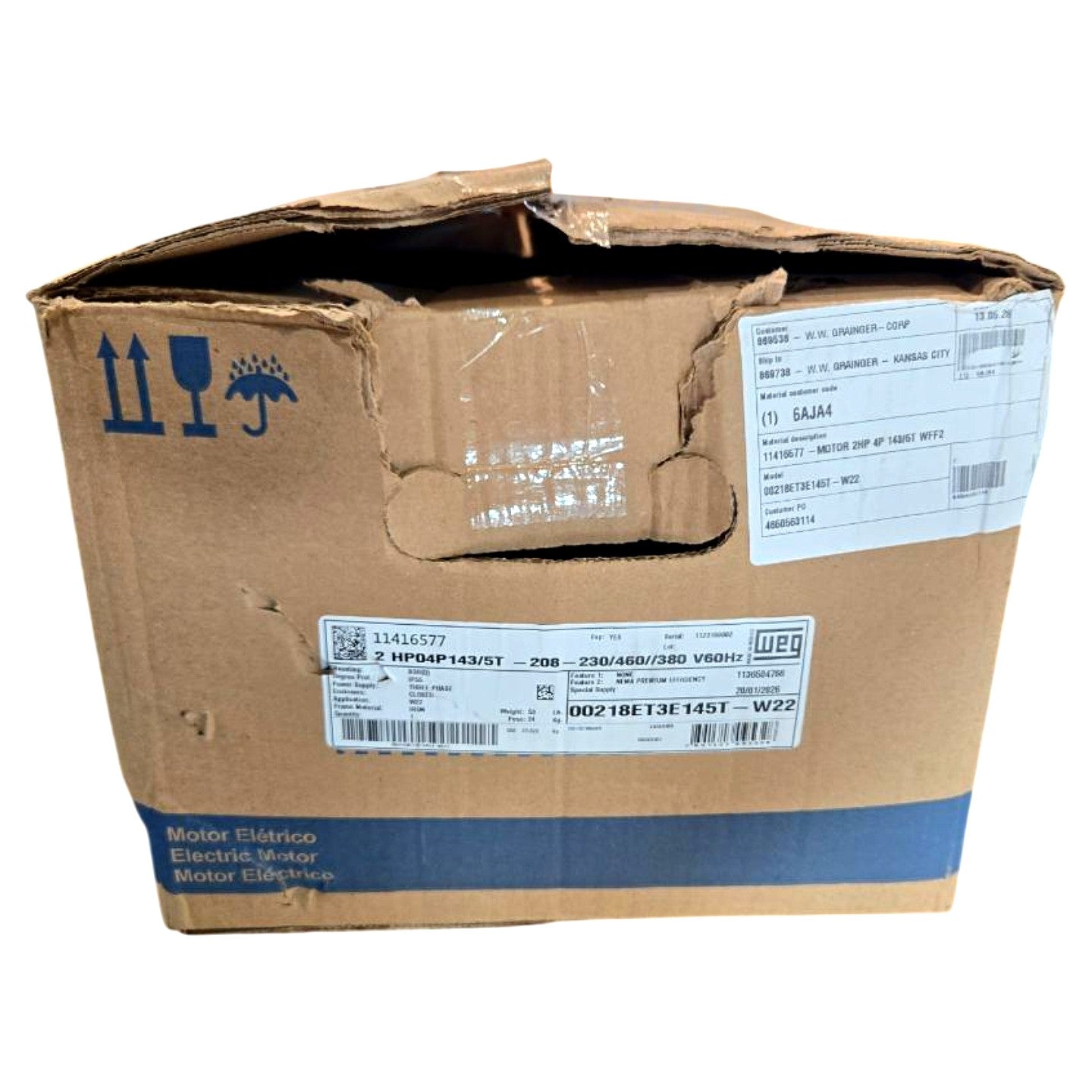

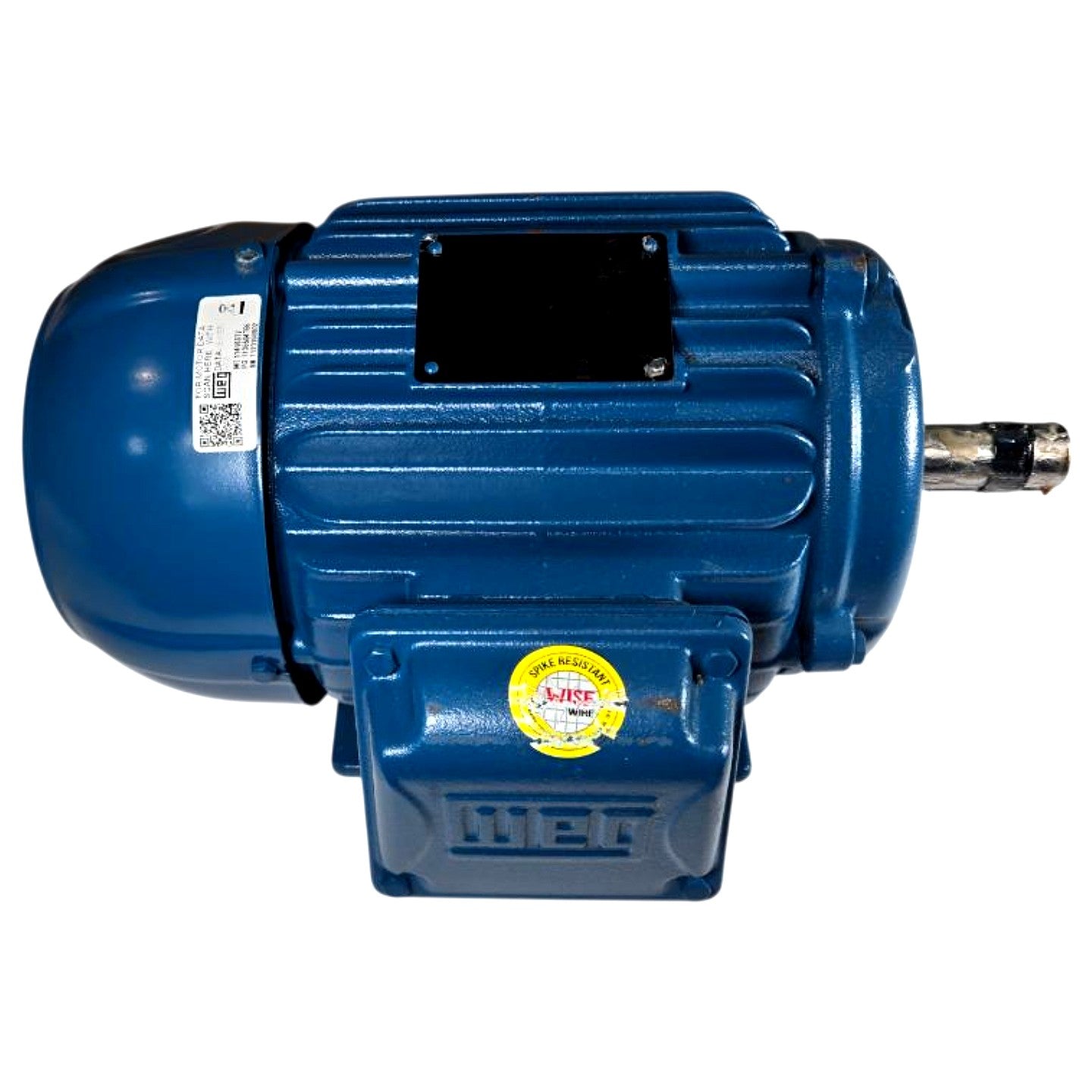

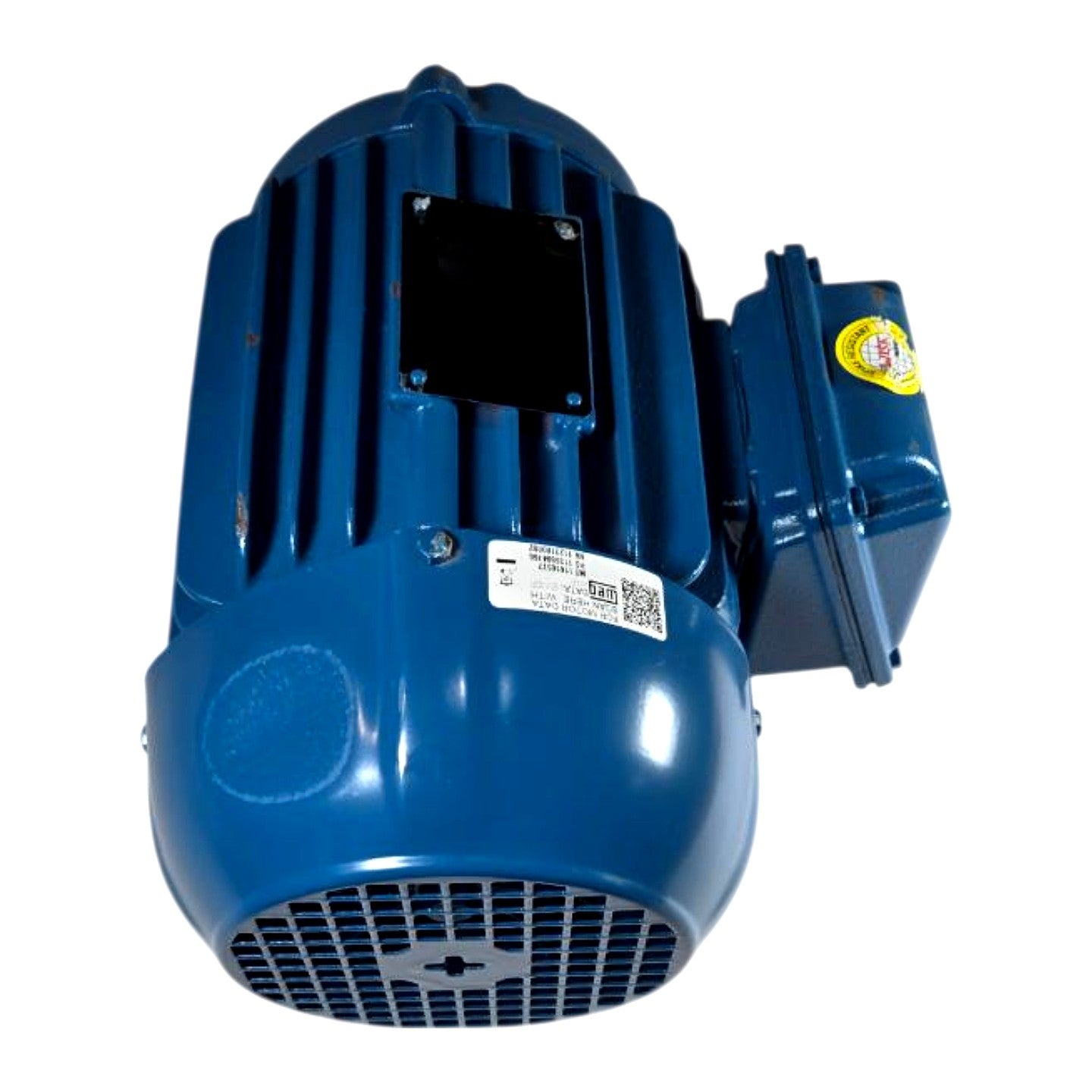

The WEG 00218ET3E145T-W22 is a 2 HP, three-phase, 60 Hz NEMA Premium Efficiency inverter-duty and severe-duty AC induction motor in a NEMA 143/5T frame, rated 230/460V (wye-delta configurable) at 1750 RPM with a 1.25 service factor, drawing 5.58/2.79A FLA and producing 1.5 kW output; the nameplate also lists a 50 Hz rating of 380V, 3.33A, 1435 RPM, SF 1.25, SFA 4.16A, EFF 82.5% (IE1). The totally enclosed fan-cooled (TEFC) cast-iron frame carries an IP55 ingress protection rating, Class F insulation (DT80K rise), NEMA Design B, Code L locked-rotor kVA, and a 40°C ambient rating, with polyurea-based grease in 6205-ZZ (drive end) and 6204-ZZ (opposite drive end) sealed bearings. The W22 line features WEG's "Wise Wire" spike-resistant winding system, a rigid foot (base) mount, CSA/UL listing (CC029A / TE1BFOXON), and meets NEMA Premium efficiency (86.5% at 60 Hz); this unit is new-other — motor is unused but original packaging shows shipping damage consistent with the box photos.
Product Specifications
| Brand | WEG |
| Model / MPN | 00218ET3E145T-W22 |
| Horsepower | 2 HP |
| Power Output (kW) | 1.5 kW |
| Phase | 3-Phase |
| Voltage | 208-230/460 V AC |
| Full Load Amps (FLA) | 5.58 A (230V) / 2.79 A (460V) |
| Frequency | 60 Hz |
| Speed (RPM) | 1750 RPM |
| Poles | 4 |
| NEMA Frame | 143/5T |
| Service Factor (SF) | 1.25 |
| Service Factor Amps (SFA) | 6.97 A (230V) / 3.49 A (460V) |
| Power Factor (PF) | 0.78 |
| Efficiency (NEMA Premium) | 86.5% @ 60 Hz |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| IP Rating | IP55 |
| Insulation Class | Class F, DT80K rise |
| NEMA Design | Design B |
| NEMA Code | Code L |
| Ambient Temperature | 40°C max |
| Duty Cycle | Continuous (DUTY CONT) |
| Mount Type | Rigid Base (Foot Mount) |
| Frame Material | Cast Iron |
| Drive End Bearing | 6205-ZZ |
| Opposite Drive End Bearing | 6204-ZZ |
| Grease Type | Polyurea Based |
| Motor Type | Inverter Duty / Severe Duty |
| Winding System | Wise Wire Spike Resistant |
| Certifications | CSA, UL (CC029A) |
| Altitude Rating | 1000 m a.s.l. |
| 50 Hz Voltage | 380 V |
| 50 Hz Speed | 1435 RPM |
| 50 Hz FLA | 3.33 A |
| 50 Hz Efficiency | 82.5% (IE1) |
| Country of Origin | Mexico |
| Shipping Weight (nameplate) | 50 lb |
| Condition | New – other (unused, box damaged) |
