WEG 00518OS1CCD184T 5HP 1750RPM 208-230V ODP Capacitor-Start AC Motor

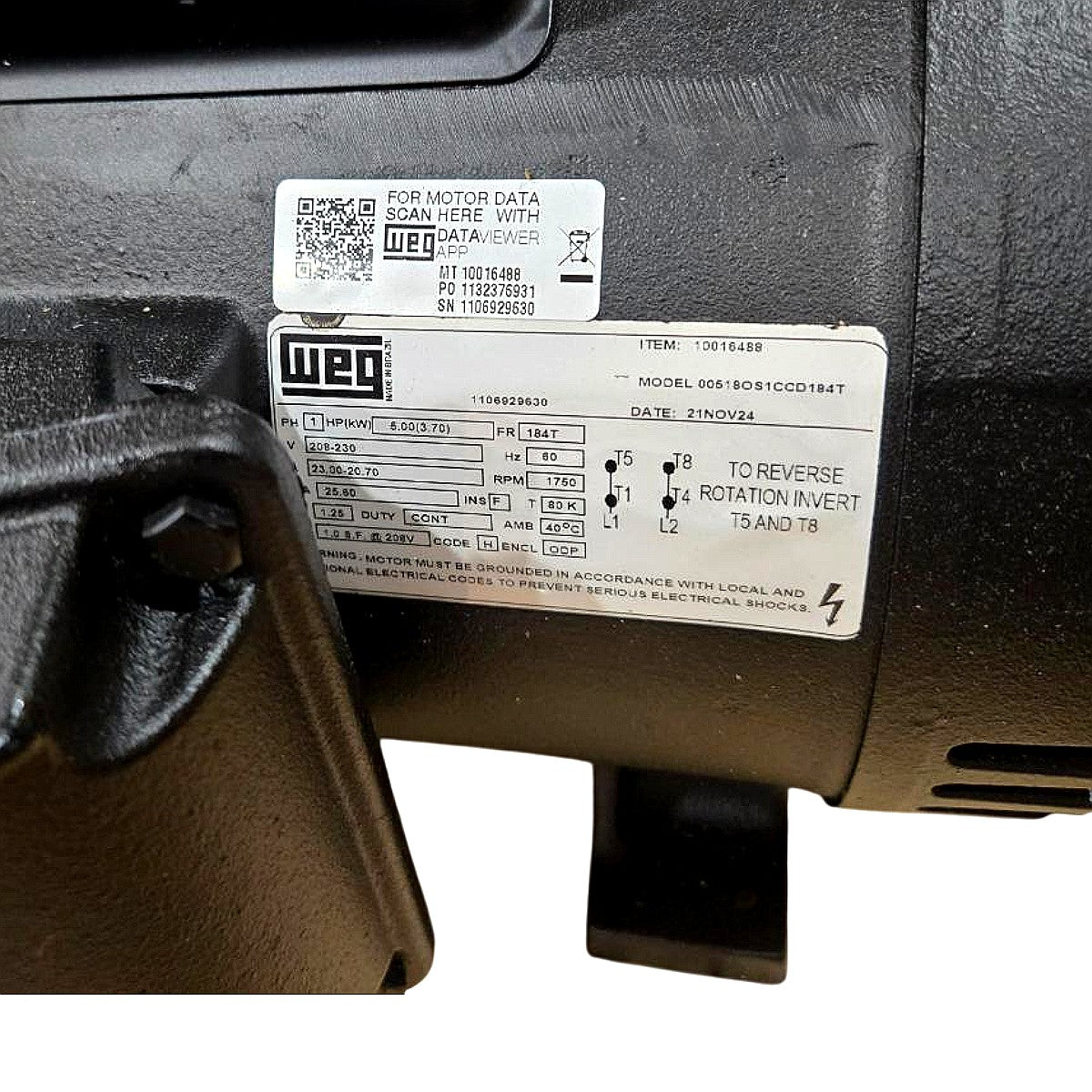

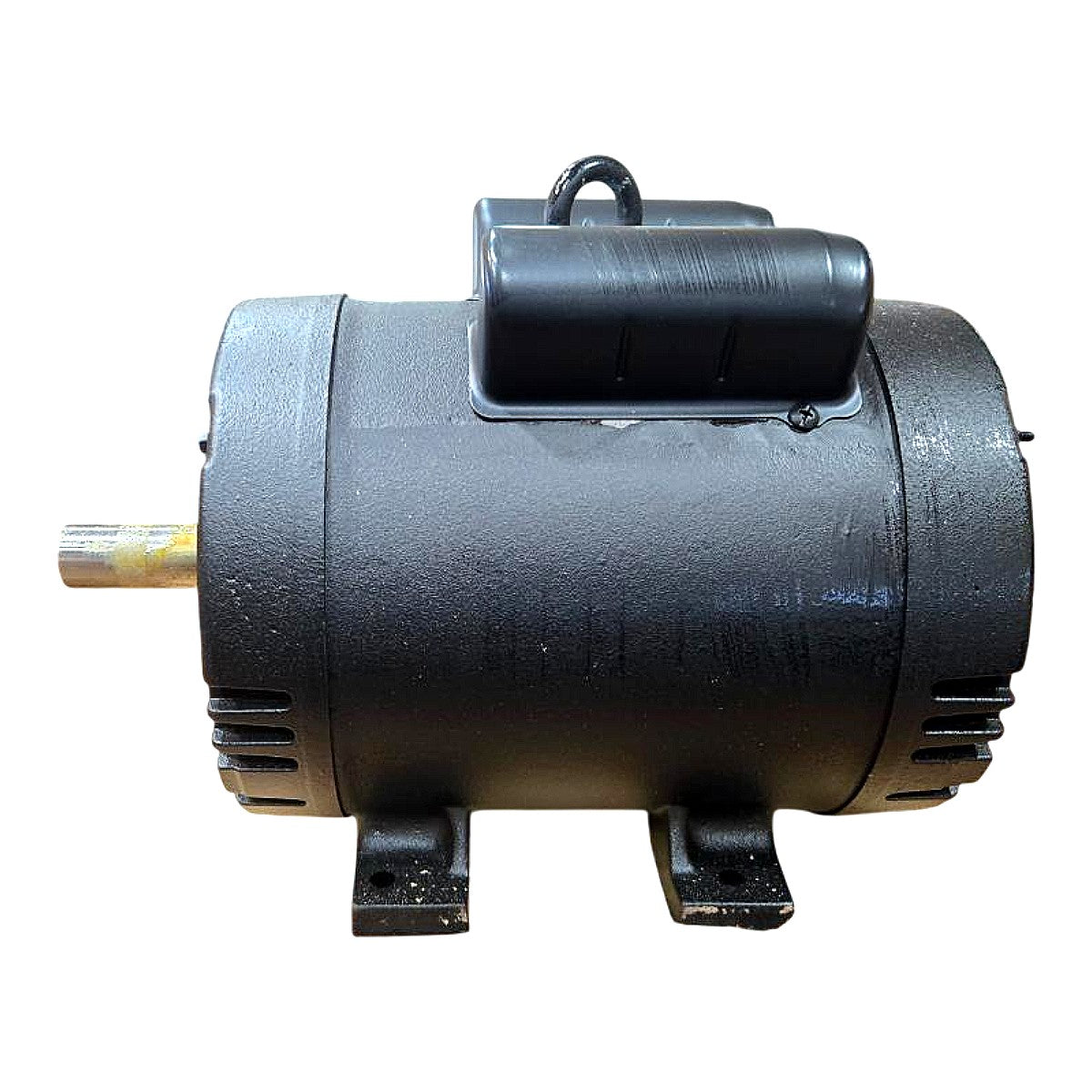

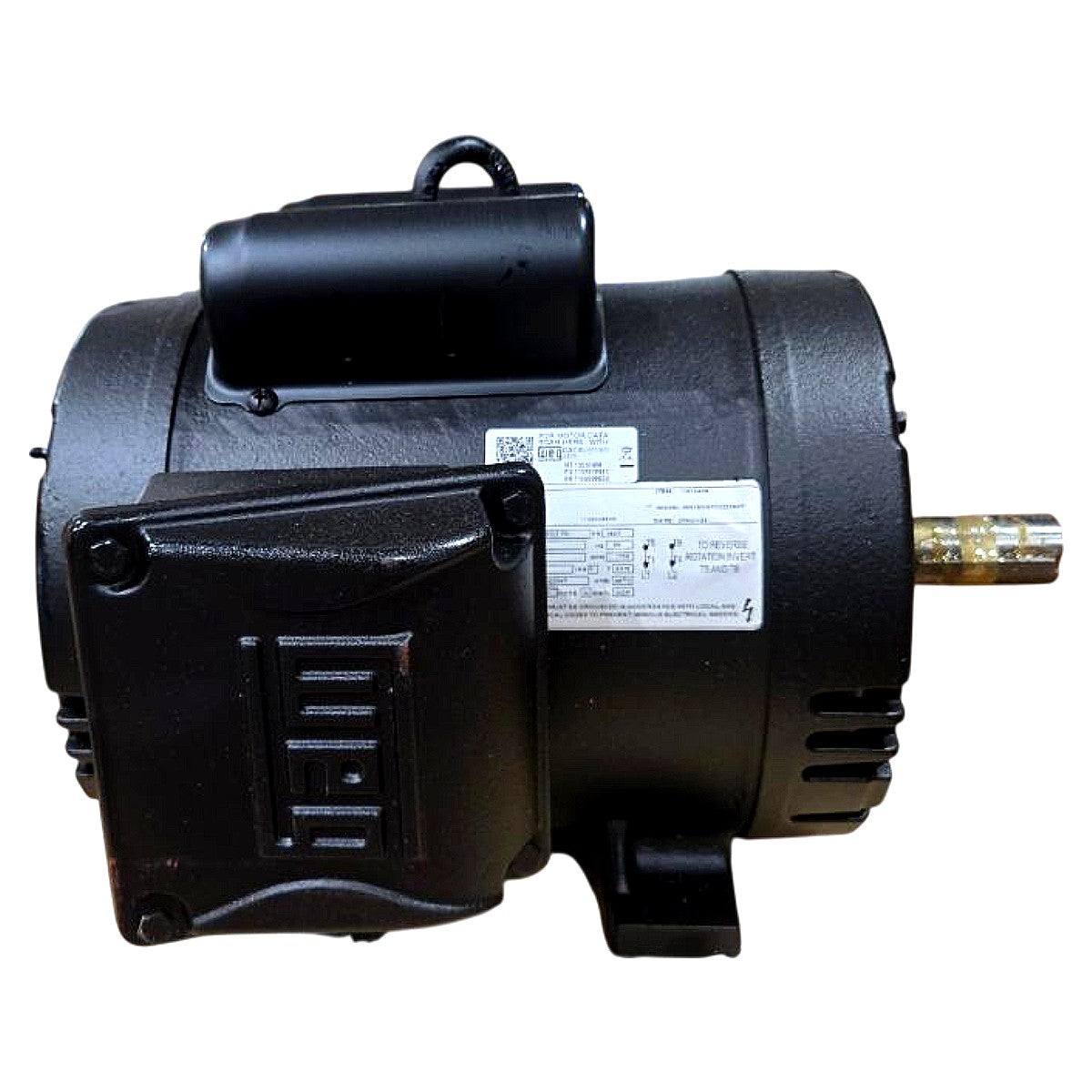

The WEG 00518OS1CCD184T is a new, single-phase, 5 HP (3.70 kW) open drip-proof (ODP) AC induction motor in a NEMA 184T frame, manufactured in Brazil and dated 21NOV24 per the nameplate. It operates on 208–230V / 60 Hz with a capacitor-start/capacitor-run (CS/CR) design — the "CCD" suffix in WEG's model nomenclature denotes dual capacitor configuration — delivering 1,750 RPM synchronous speed (4-pole) with a full-load amperage of 23.00–20.70 A and a maximum of 25.80 A. The motor carries a 1.25 service factor at continuous duty (CONT), insulation class F rated to 80 K temperature rise, ambient rating of 40°C, and a 1.0 S.F. at 208V; NEMA Code H indicates the locked-rotor kVA range. The cast-iron frame with rigid base (foot) mounting and single-shaft extension is suited for air compressor, woodworking machinery, pump, and other single-phase industrial drive applications requiring a 184T NEMA frame drop-in; rotation is reversible by transposing leads T5 and T8 per the nameplate wiring diagram.

Product Specifications
