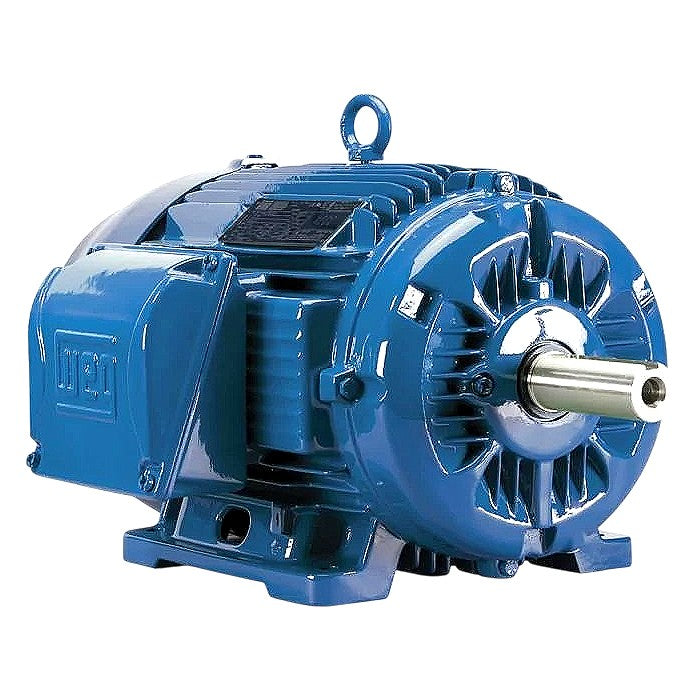

WEG 00718ET3E213T-W22 7.5HP 230/460V 3Ph TEFC 213T AC Motor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

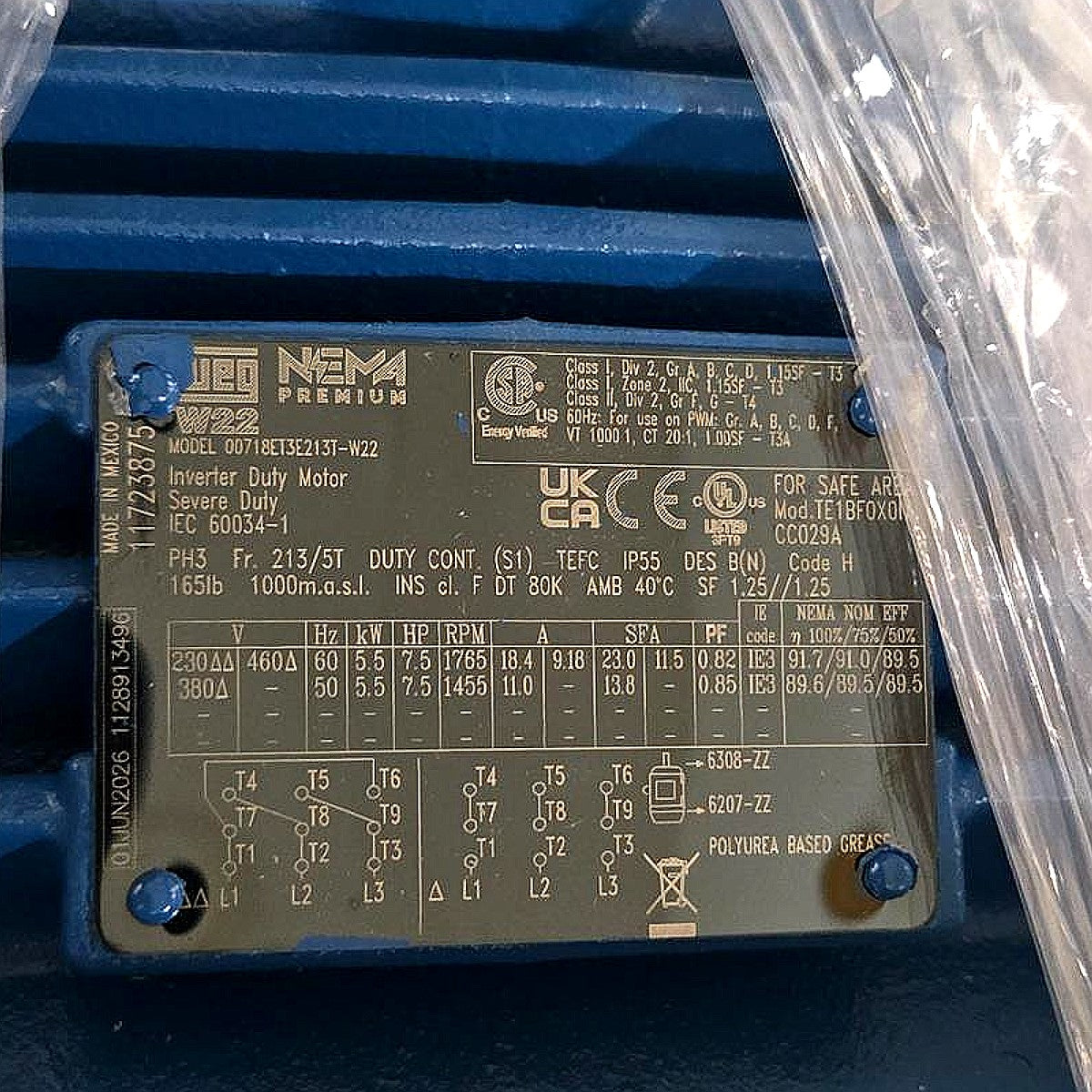

The WEG 00718ET3E213T-W22 is a new, NEMA Premium Efficiency (IE3), W22 platform three-phase AC induction motor rated at 7.5 HP (5.5 kW) in a 213/5T frame with a totally enclosed fan-cooled (TEFC) enclosure rated IP55, suitable for both general-purpose and severe-duty inverter-duty (PWM-rated) applications per IEC 60034-1. At 60 Hz on 230/460 V, the motor delivers 1765 RPM (4-pole) with full-load amperage of 18.4/9.18 A, power factor of 0.82, service factor of 1.25, and IE3-rated efficiencies of 91.7% / 91.0% / 89.5% at 100/75/50% load; a 50 Hz / 380 V configuration is also nameplate-rated at 1455 RPM, 11.0 A, IE3 efficiency 89.6/89.5/89.5%. The cast-iron frame is foot-mounted (B3R/D), insulation class F with a DT 80 K temperature rise, ambient rating 40°C, elevation to 1000 m a.s.l., and the motor is CSA/UL listed for Class I Div 2 and Class II Div 2 hazardous locations as indicated on the nameplate. Bearings are 6308-ZZ (drive end) and 6207-ZZ (opposite drive end) lubricated with polyurea-based grease; the shipping weight per the carton label is 174 lb (79 kg).
Product Specifications
| Brand | WEG |
| MPN | 00718ET3E213T-W22 |
| WEG Part Number (Item #) | 11723875 |
| Platform / Series | W22 |
| Horsepower | 7.5 HP |
| Power (kW) | 5.5 kW |
| Number of Phases | 3 |
| Voltage | 208-230/460 V (60 Hz), 380 V (50 Hz) |
| Frequency | 60 Hz / 50 Hz |
| Speed (60 Hz) | 1765 RPM |
| Speed (50 Hz) | 1455 RPM |
| Number of Poles | 4 |
| Full Load Amps (230V / 460V) | 18.4 A / 9.18 A |
| Full Load Amps (380V, 50Hz) | 11.0 A |
| Service Factor | 1.25 |
| NEMA Frame | 213/5T |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| IP Rating | IP55 |
| Insulation Class | F |
| Temperature Rise | 80 K (DT 80K) |
| Ambient Temperature Rating | 40°C |
| Altitude Rating | 1000 m a.s.l. |
| Duty Cycle | Continuous (S1) |
| Efficiency Class | IE3 / NEMA Premium |
| Efficiency @ 100/75/50% Load (60Hz) | 91.7% / 91.0% / 89.5% |
| Efficiency @ 100/75/50% Load (50Hz) | 89.6% / 89.5% / 89.5% |
| Power Factor (460V, 60Hz) | 0.82 |
| Power Factor (380V, 50Hz) | 0.85 |
| Design | B (N) per NEMA |
| Code Letter | H |
| Mounting | Foot Mount (B3R/D) – Rigid Base |
| Frame Material | Cast Iron |
| Inverter / VFD Duty | Yes – PWM rated, VT 1000:1, CT 20:1, 1.00SF-T3A |
| Severe Duty | Yes |
| Hazardous Location Rating | Class I Div 2 Gr A,B,C,D; Class II Div 2 Gr F,G |
| Standard Compliance | IEC 60034-1, CSA/UL Listed, CE, UKCA |
| Drive End Bearing | 6308-ZZ |
| Opposite Drive End Bearing | 6207-ZZ |
| Grease Type | Polyurea-based |
| Country of Origin | Mexico |
| Weight (Motor) | 165 lb (75 kg) nameplate |
| Shipping Weight (boxed) | 174 lb (79 kg) |
| Condition | New |
