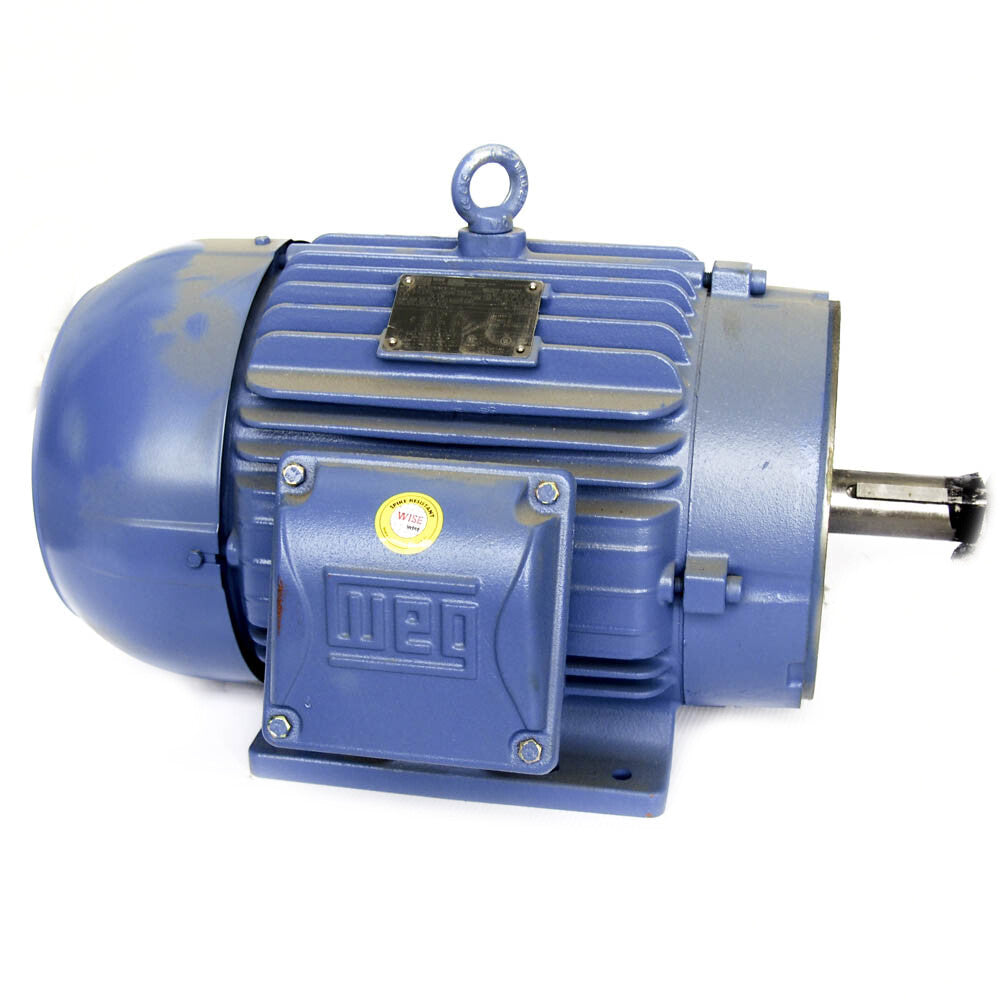

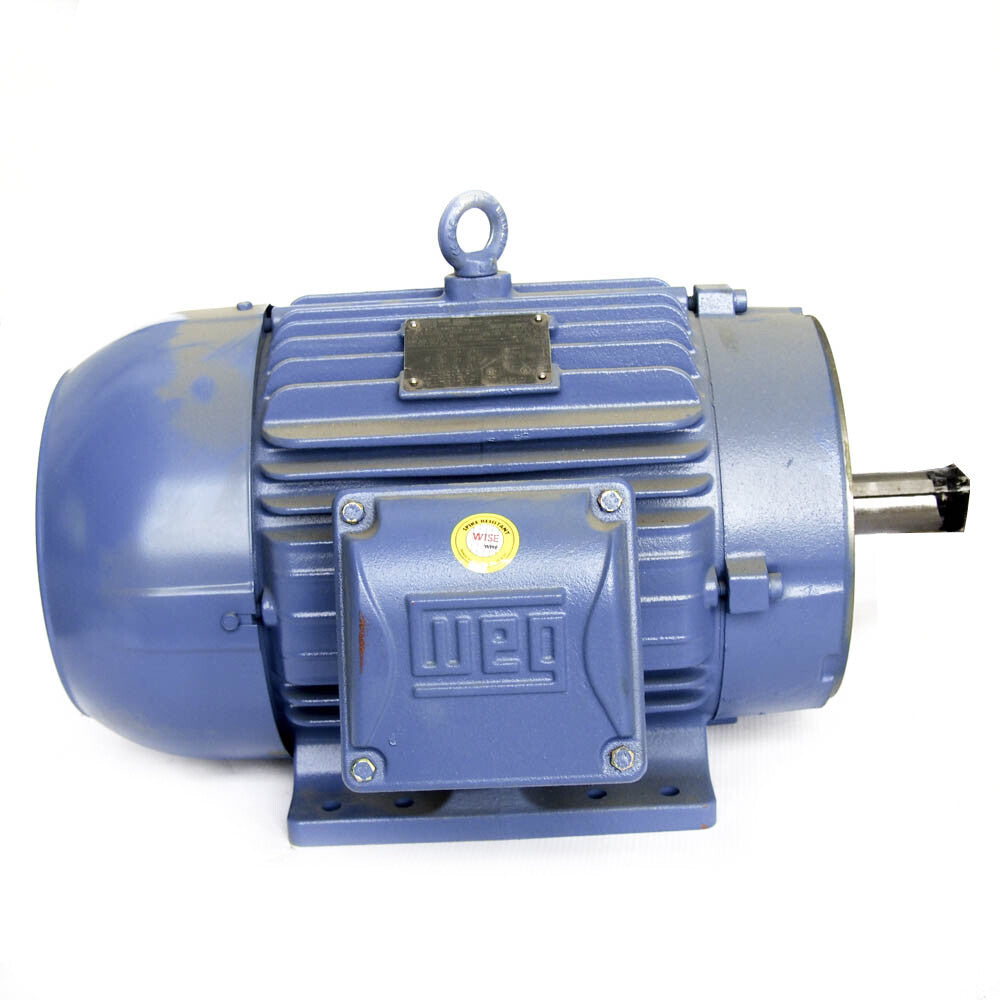

WEG 00718ET3H213TC-W22 7-1/2HP 3PH 575V 1765 RPM TEFC General Purpose Motor -
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Brand | WEG |
| MPN | 00718ET3H213TC-W22 |
| Rated Load (HP) | 7 1/2 |
| Current Type | AC |
| Nominal Rated Input Voltage | 575 V |
| AC Phase | Three Phase |
| Service Factor | 1.25 |
| NEMA Frame Suffix | N/A |
| Shaft Diameter | 1 3/8 in |
| Special Motor Construction | N/A |
| IEC Frame Size | N/A |
| AC Frequency Rating | 60 Hz |
| AC Motor Type | N/A |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Mounting Type | Rigid Base |
| Insulation Class | F (Max 311°F) |
| Model | General Purpose Motor |
| Base RPM | 1765 RPM |
| Full Load Amps | 7.34A |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Application | General Application |
| Phase | 3 |
| HP | 7-1/2 In |
| Nameplate RPM | 1,765 |
| No. of Speeds | 1 |
| Voltage | 575V AC |
| Frame | 213TC |
| Usable @ 208V | No |
| Hz | 60 |
| Motor Service Factor | 1.25 |
| Duty Cycle | Continuous |
| Ins. Class | F |
| NEMA Design | None |
| Enclosure Design | Totally Enclosed Fan-Cooled |
| Shaft Rotation | CW/CCW |
| Shaft Design | Keyed |
| Frame Material | Cast Iron |
| Shaft Dia. | 1-3/8 In |
| Shaft Length | 3-3/8 In |
| Overall Length | 19-1/2 In |
| Standards | CE, CSA, NOM, UL |
WEG 00718ET3H213TC-W22 7-1/2HP 3PH 575V 1765 RPM TEFC General Purpose Motor
