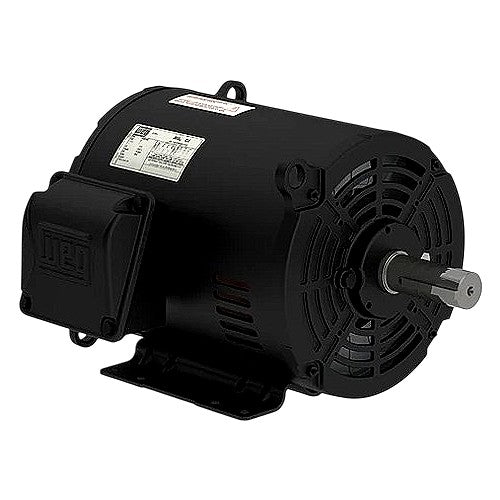

WEG 00718OT3E213T-S 7.5HP 230/460V 1770RPM ODP Three-Phase Electric Motor
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

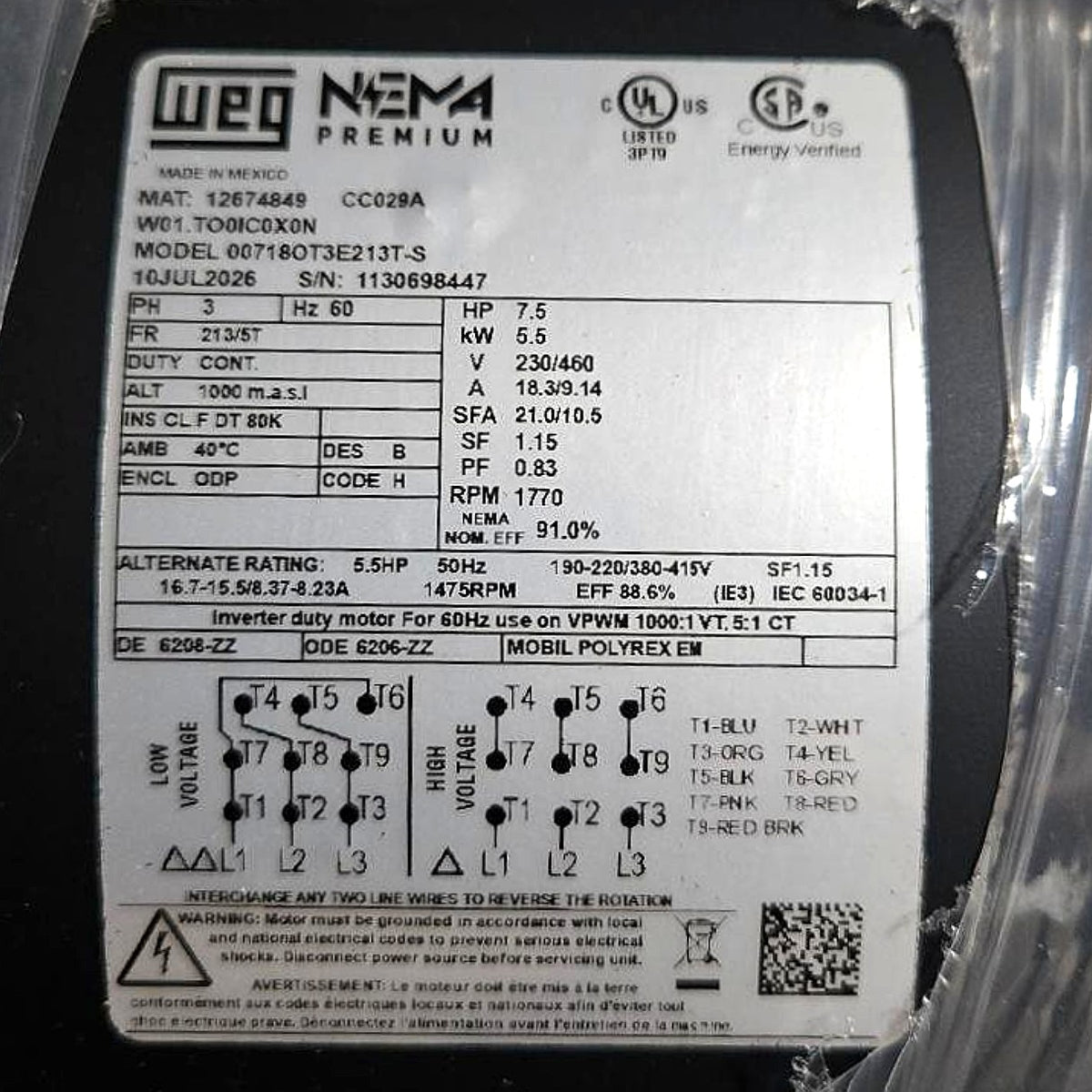

New WEG model 00718OT3E213T-S is a NEMA Premium Efficiency, three-phase, open drip-proof (ODP/IP21) general-purpose induction motor rated 7.5 HP (5.5 kW) at 1770 RPM (4-pole, 60 Hz), in a 213/5T frame with rigid base (F-1/B3(D)) mounting and rolled steel construction with steel plate frame material. Nameplate voltage is 230/460V AC (208V usable), drawing 18.3/9.14 A full-load with a 1.15 service factor, 91.0% NEMA nominal efficiency, and 0.83 power factor; the motor also carries a 50 Hz alternate rating of 5.5 HP at 1475 RPM on 190–415V with IE3 efficiency per IEC 60034-1. Insulation is Class F with a 80 K temperature rise (Design B, Code H, 40°C ambient), and the motor is inverter-duty rated for VPWM 1000:1 VT / 5:1 CT operation, making it suitable for variable-frequency drive applications in pumps, compressors, fans, conveyors, and general industrial machinery. Drive-end bearing is a 6208-ZZ and opposite drive-end is a 6206-ZZ, lubricated with Mobil Polyrex EM grease; the motor is UL Listed (3P19) and CSA Energy Verified, made in Mexico with a mat/lot number of 12674849.
Product Specifications
| Brand | WEG |
| Model / MPN | 00718OT3E213T-S |

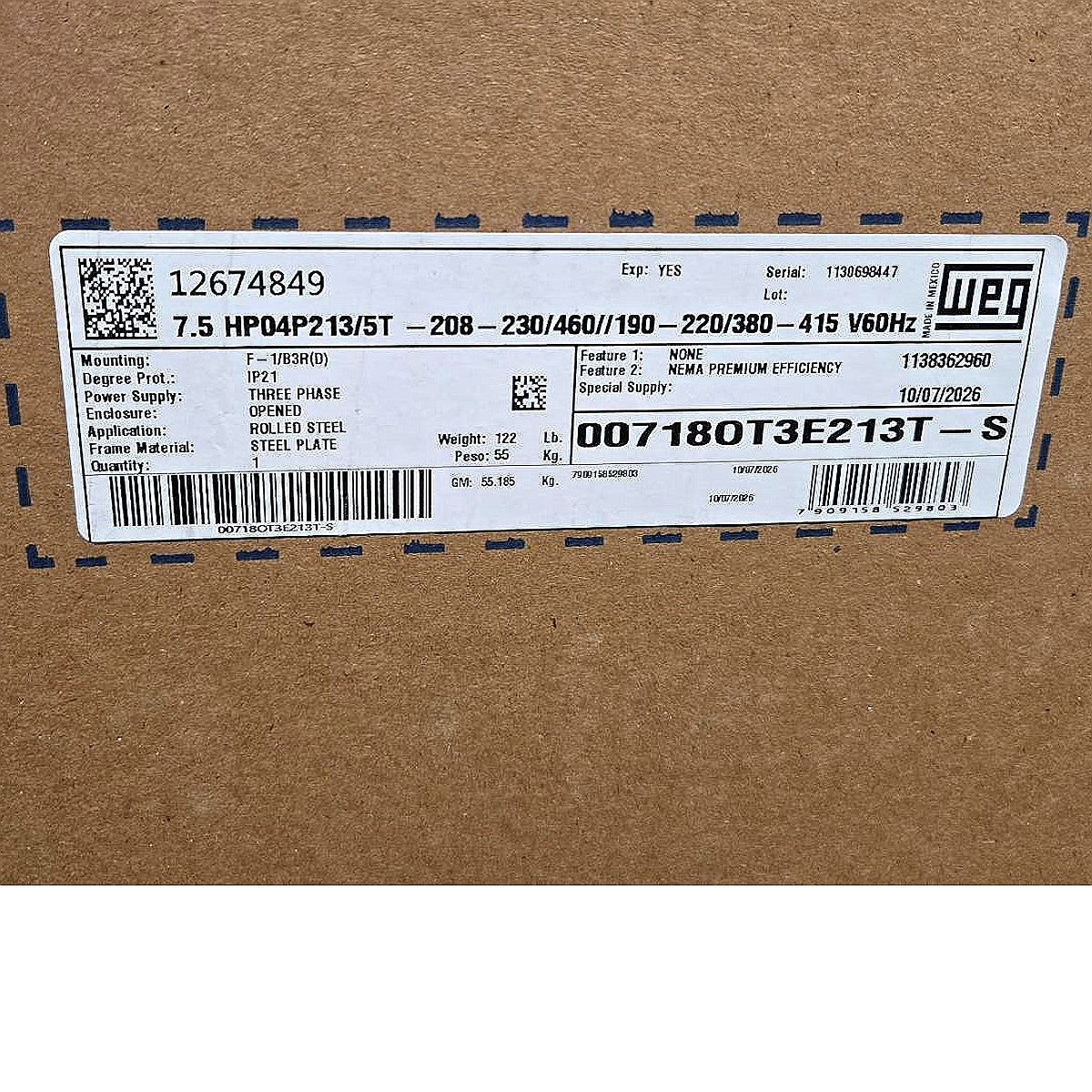

| Material Number (MAT) | 12674849 |
| Horsepower | 7.5 HP |
| Kilowatts | 5.5 kW |
| Phase | 3-Phase |
| Voltage | 208-230/460V AC |
| Frequency | 60 Hz |
| Full-Load Amperage | 18.3 A (230V) / 9.14 A (460V) |
| Service Factor Amperage (SFA) | 21.0 A (230V) / 10.5 A (460V) |
| RPM (Nameplate) | 1770 RPM |
| Number of Poles | 4 |
| NEMA Frame | 213/5T |
| Enclosure | ODP (Open Drip-Proof) / IP21 |
| Mounting | Rigid Base, F-1/B3(D) |
| Service Factor (SF) | 1.15 |
| Power Factor (PF) | 0.83 |
| NEMA Nominal Efficiency | 91.0% |
| Insulation Class | Class F |
| Temperature Rise | 80 K (DT 80K) |
| Design | NEMA Design B |
| NEMA Code Letter | H |
| Ambient Temperature | 40°C |
| Altitude Rating | 1000 m.a.s.l. |
| Duty Cycle | Continuous (CONT.) |
| Efficiency Standard | NEMA Premium Efficiency |
| Inverter Duty Rating | VPWM 1000:1 VT, 5:1 CT |
| Drive-End Bearing | 6208-ZZ |
| Opposite Drive-End Bearing | 6206-ZZ |
| Grease Type | Mobil Polyrex EM |
| Frame Material | Rolled Steel / Steel Plate |
| Alternate Rating (50 Hz) | 5.5 HP, 1475 RPM, 190-415V, IE3 |
| Certifications | UL Listed (3P19), CSA Energy Verified |
| Country of Origin | Mexico |

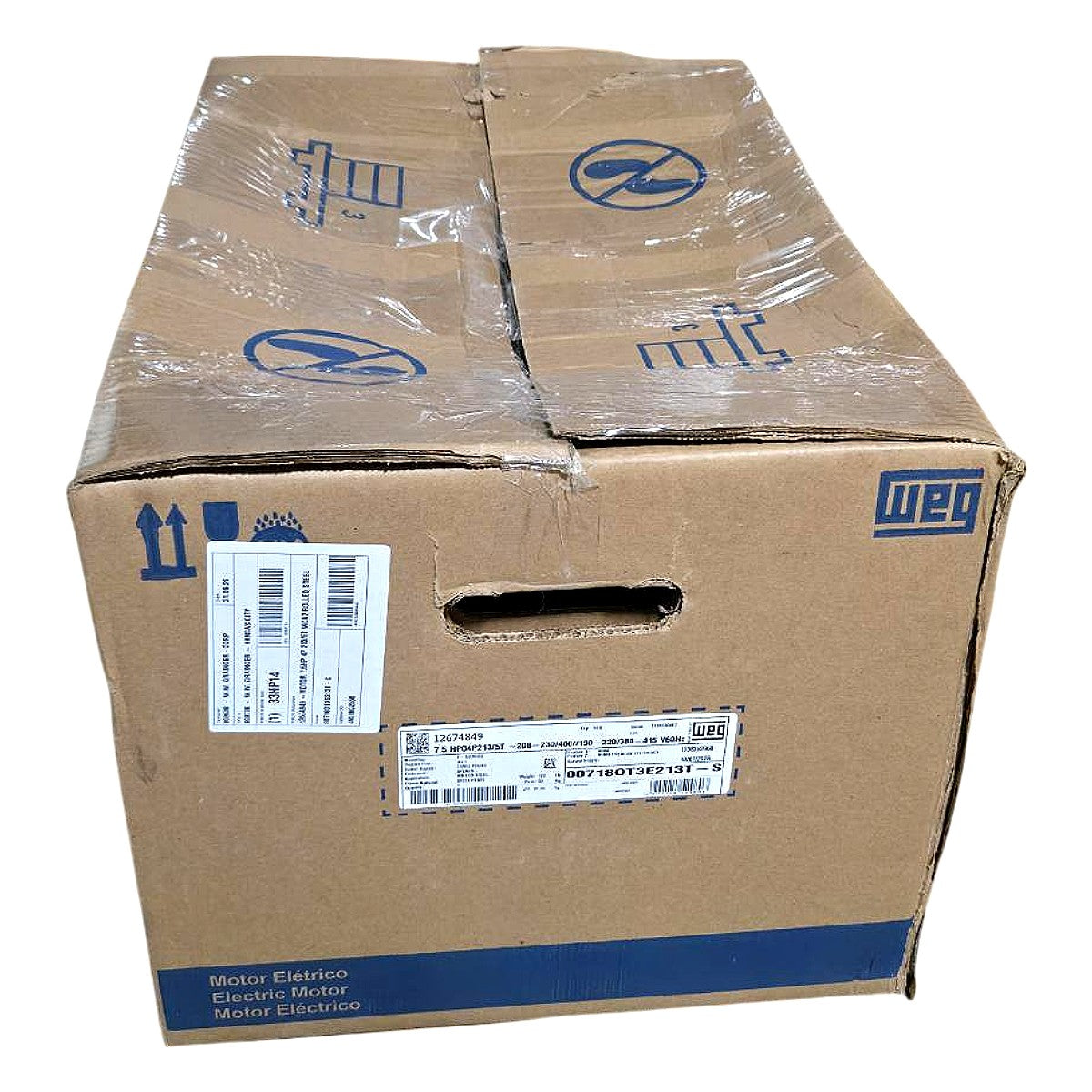

| Shipping Weight | 122 lbs (55 kg) |

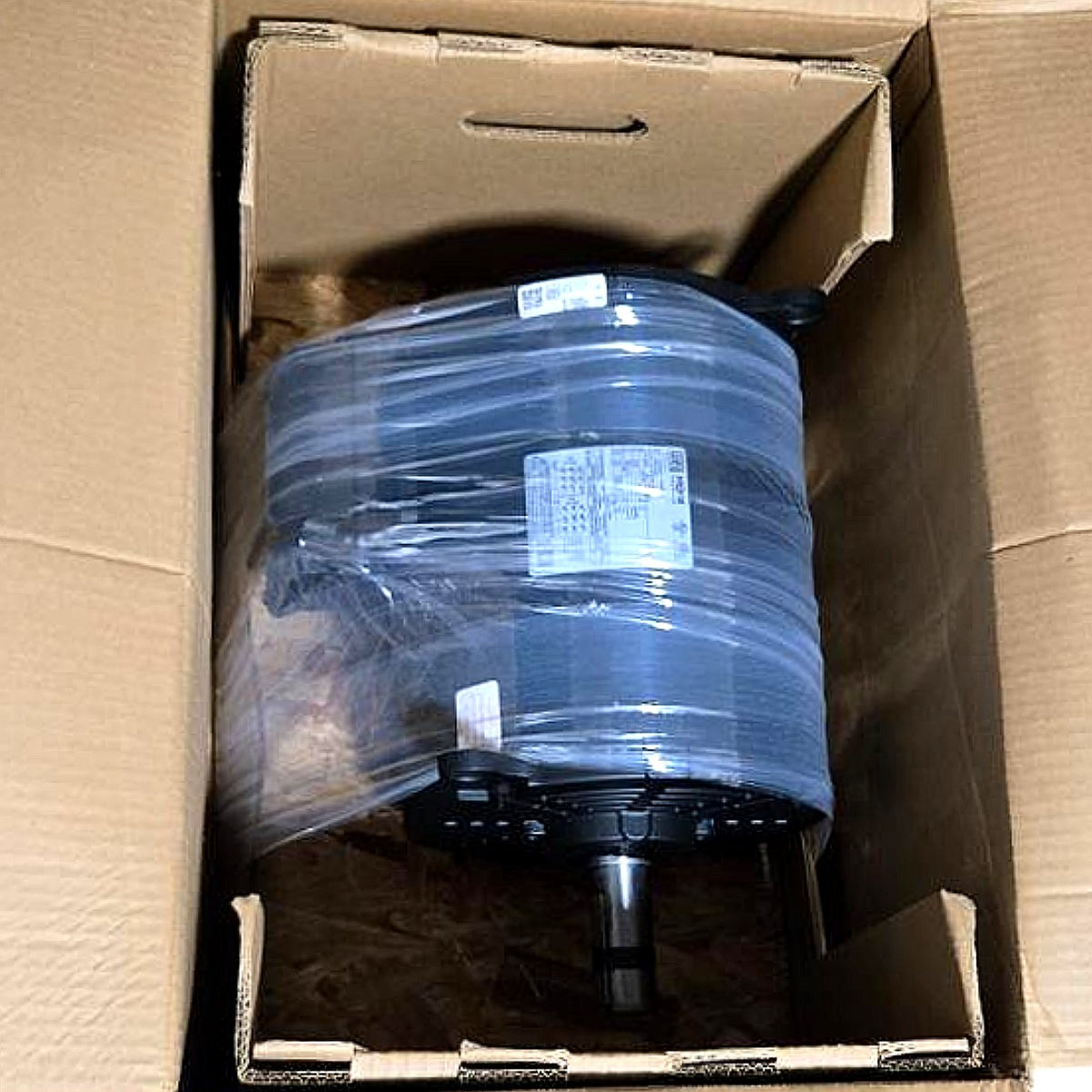

| Condition | New |
