Widia GTD VTSFT5511 M5x0.8 D4 3FL HSSE OX Spiral Flute Tap

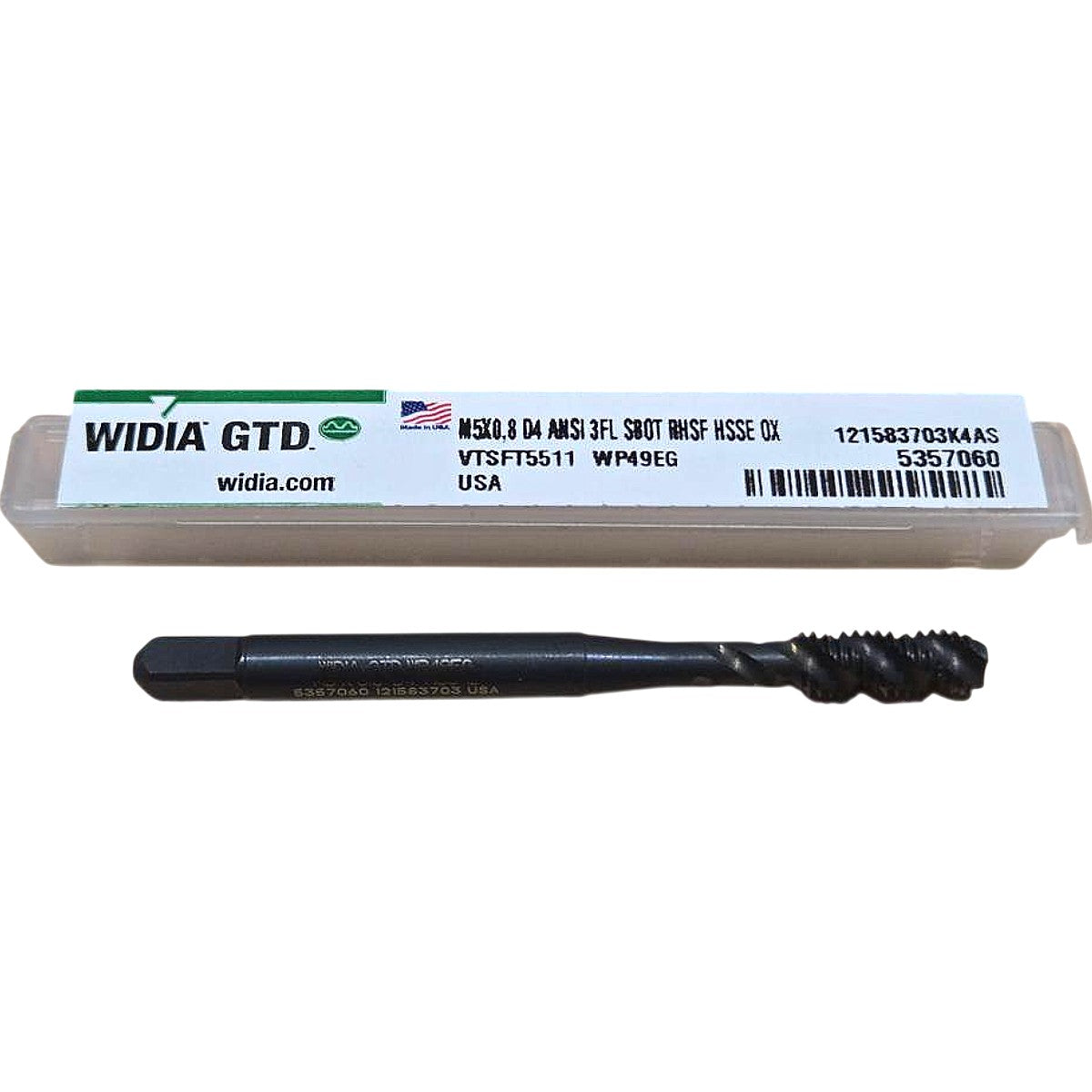

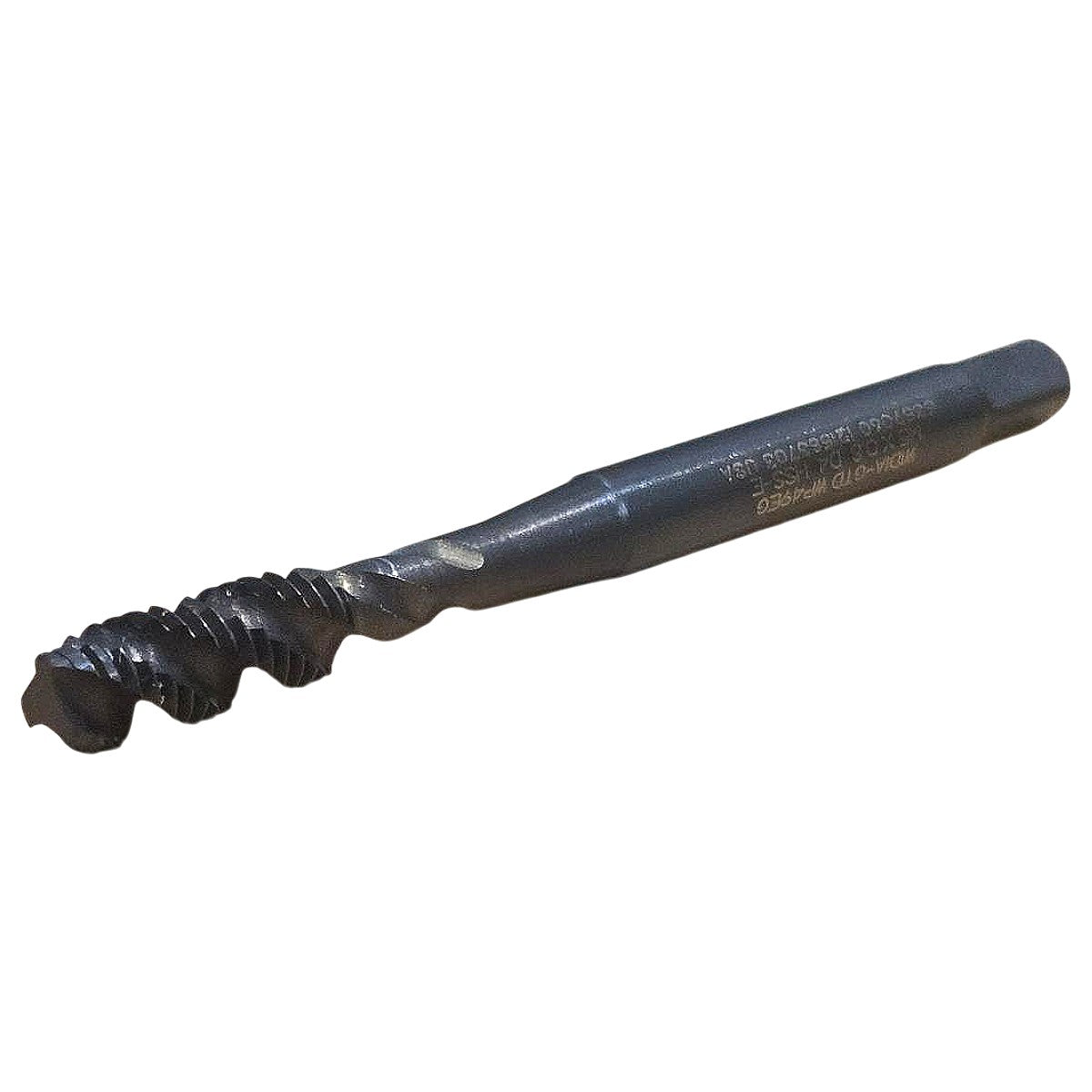

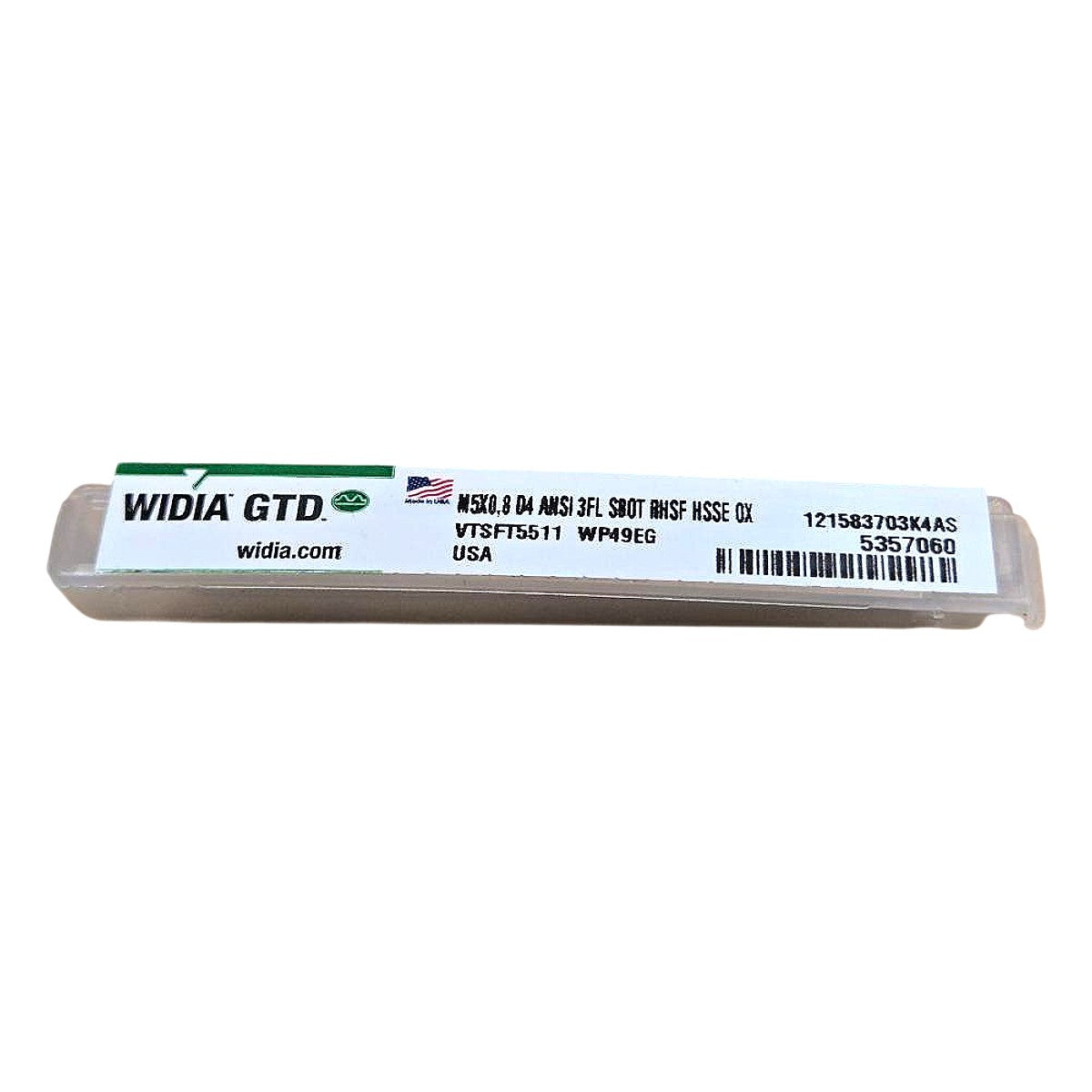

This is a new Widia GTD VTSFT5511 spiral flute machine tap (catalog #5357060, order code 121583703K4AS, internal grade code WP49EG) cutting an M5x0.8 metric thread to D4 tolerance class per ANSI standards. The tap is manufactured from HSSE (high-speed steel with cobalt addition, M35 grade) for enhanced heat and wear resistance over standard HSS, and carries a black oxide (OX) surface treatment that improves lubricity, reduces galling, and provides light corrosion resistance. The 3-flute spiral flute (helix) geometry is designed for blind-hole tapping, pulling chips up and out of the hole to prevent re-cutting, and suits through-holes as well; the right-hand spiral, right-hand cut (RHSF) configuration is compatible with standard CNC machining centers, CNC lathes with rigid tap cycles, and dedicated tapping machines using standard ER or tap collet holders. Made in the USA, this tap is suited for tapping steel, alloy steel, stainless steel, and cast iron where the cobalt content provides the extra toughness needed for harder or more abrasive workpiece materials.

Product Specifications
