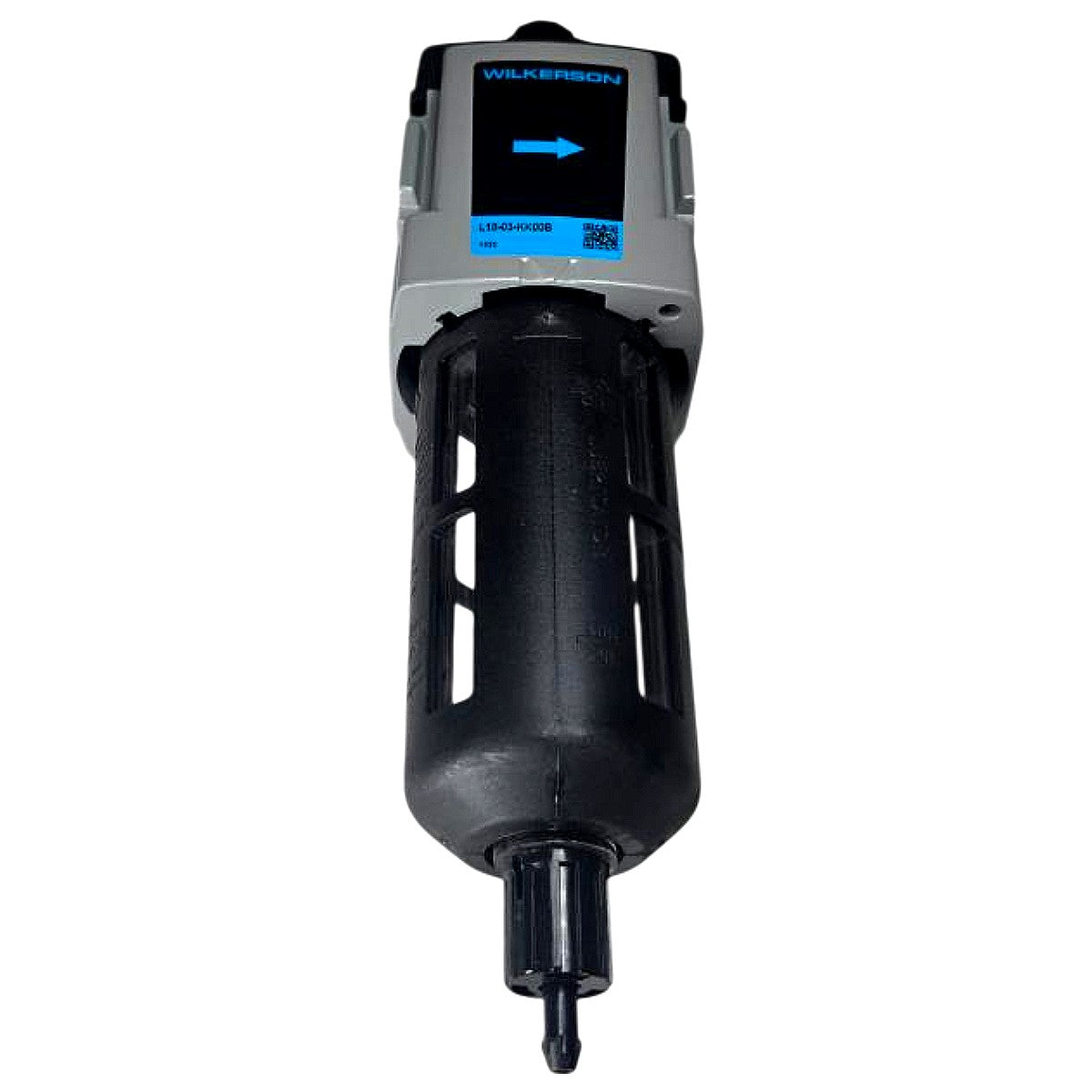

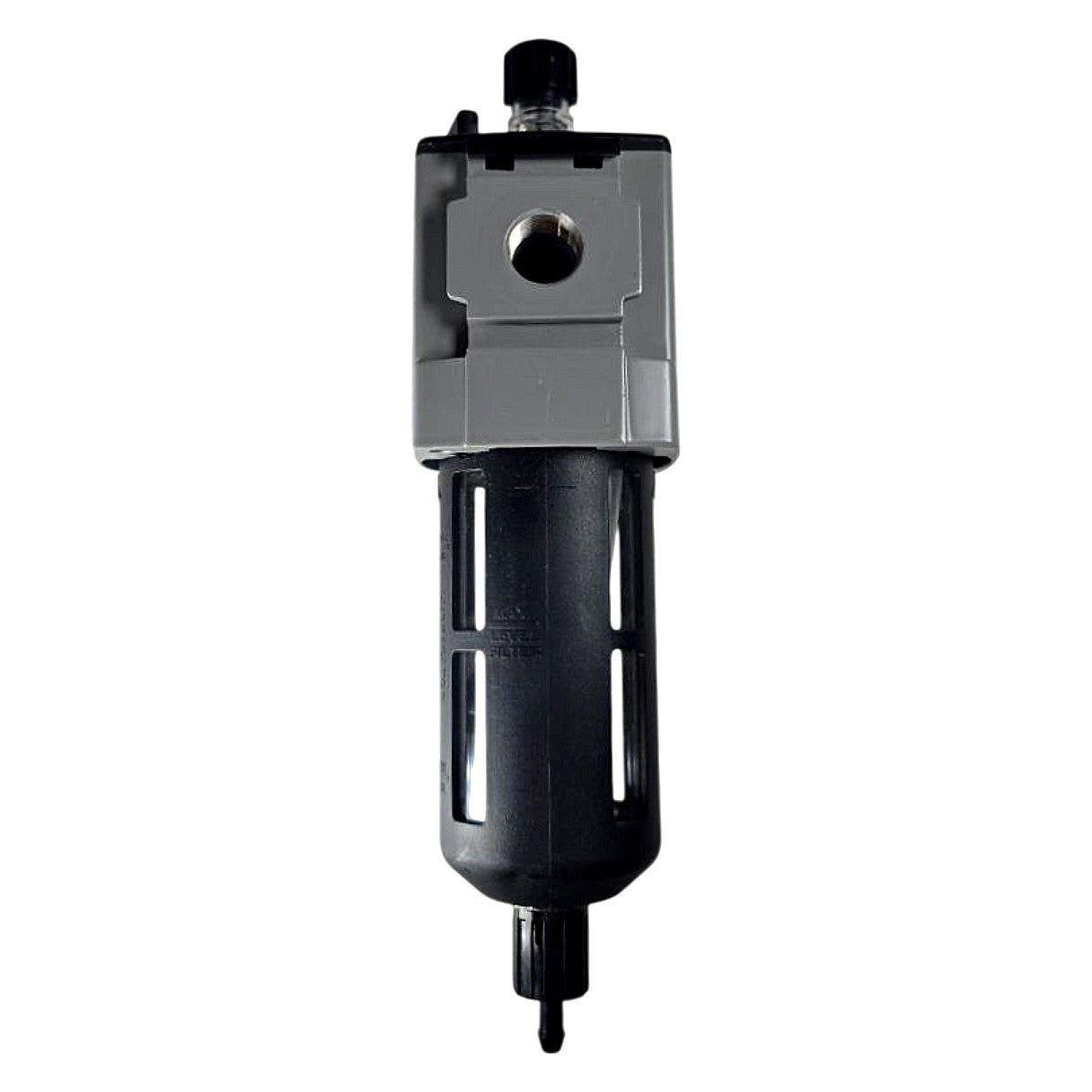

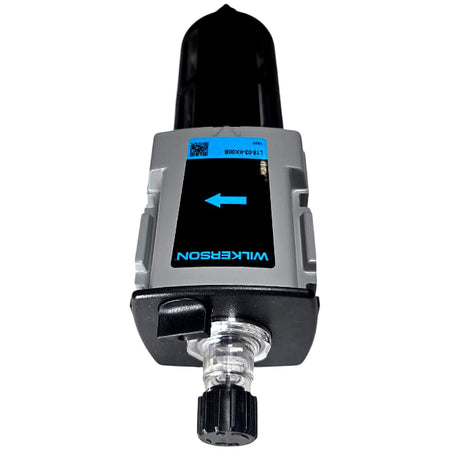

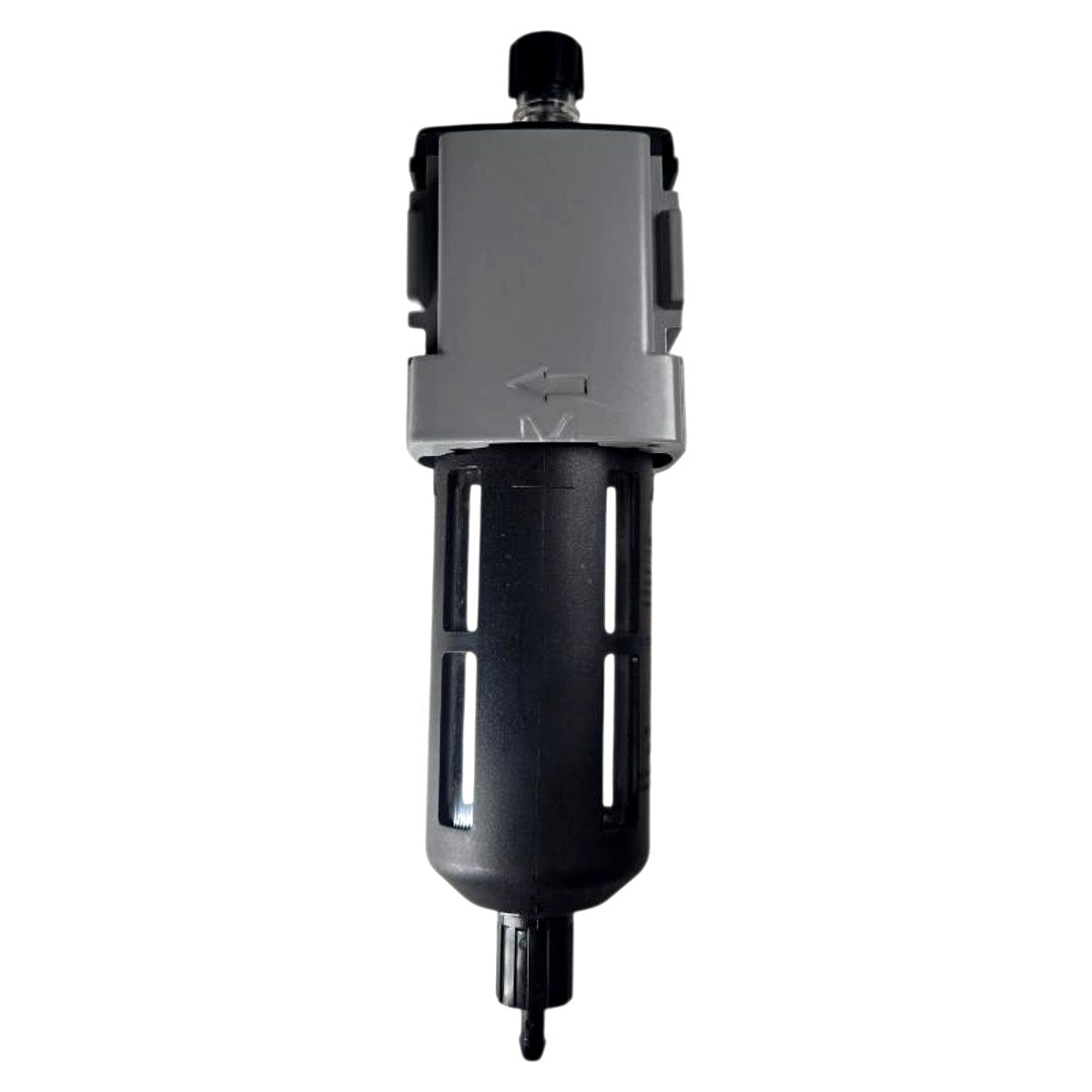

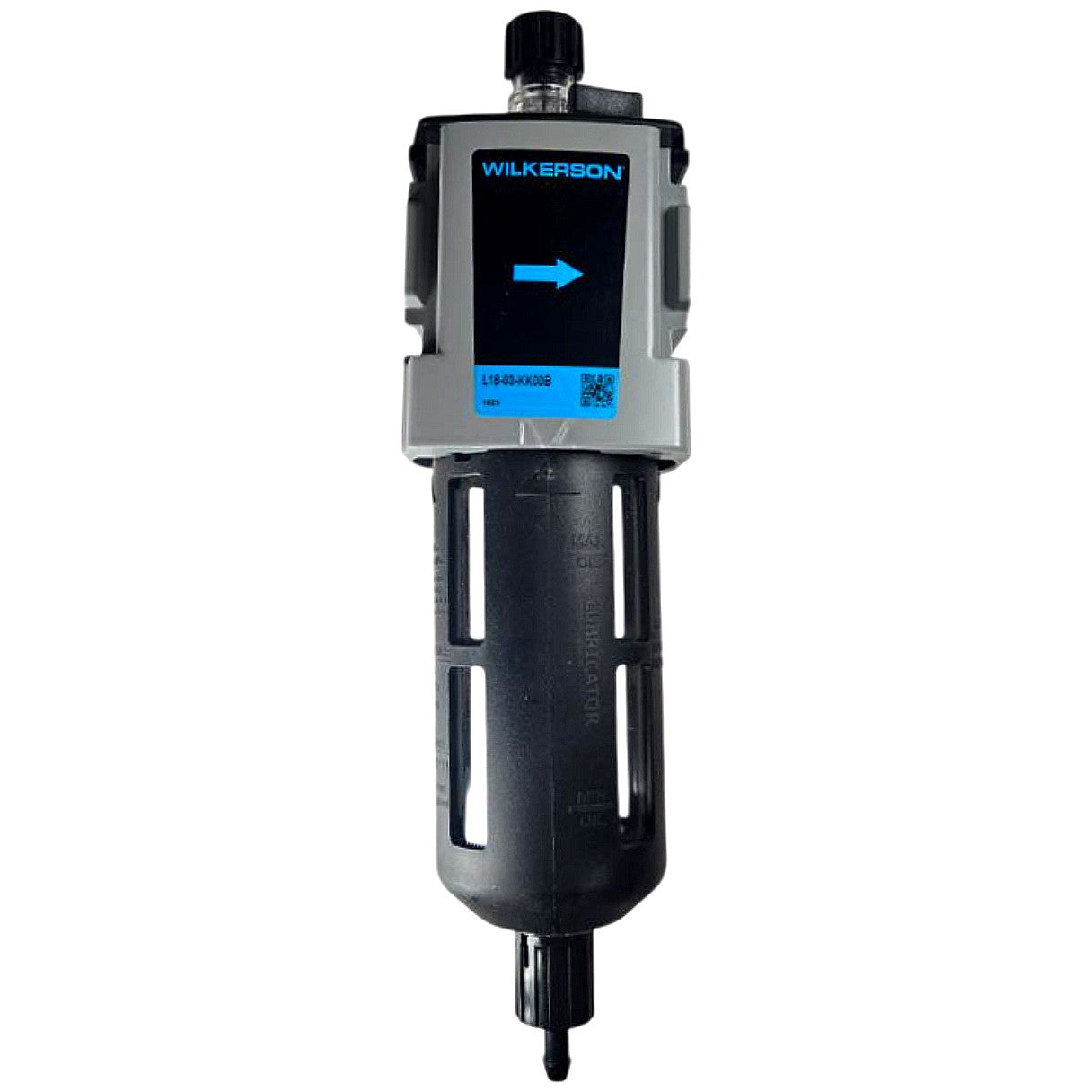

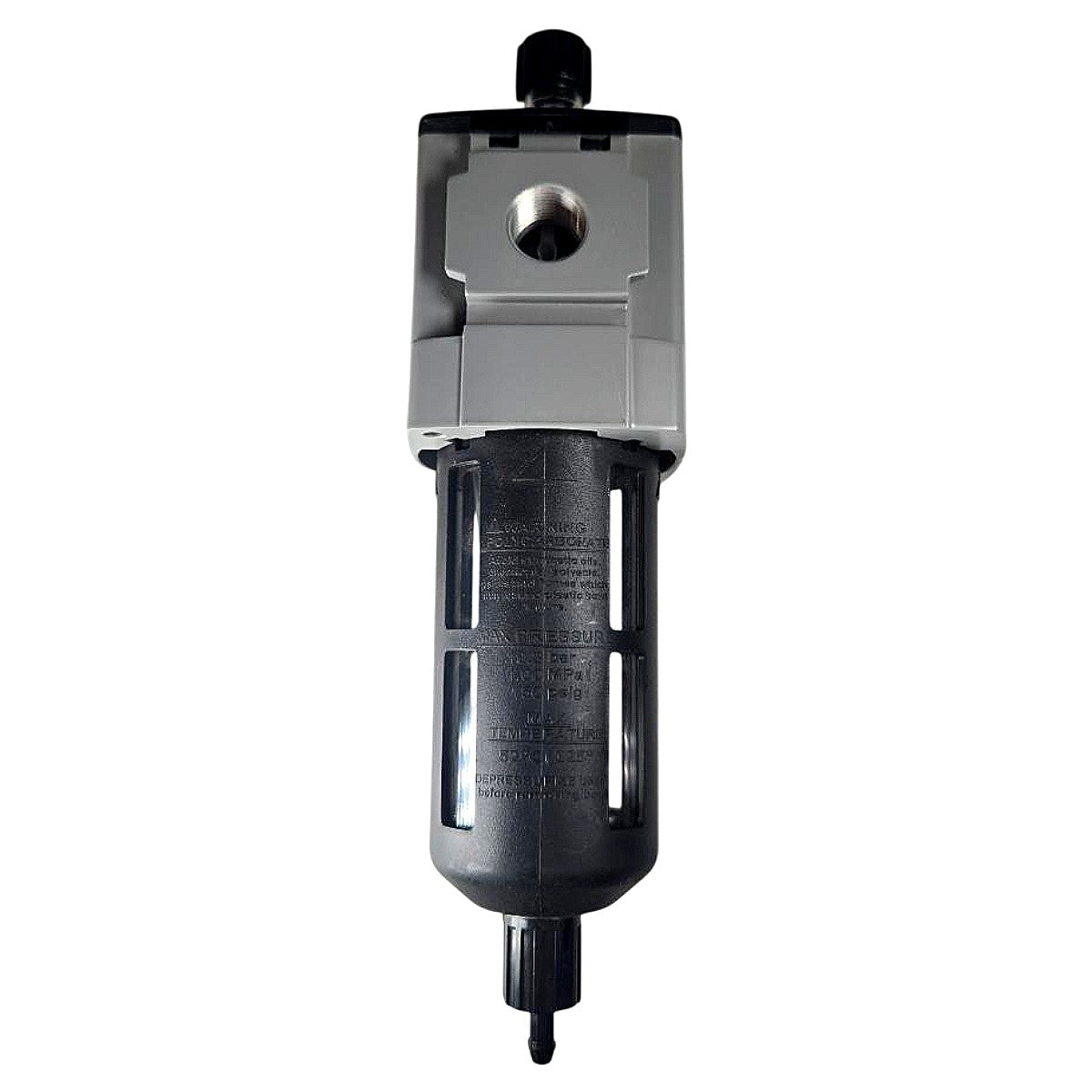

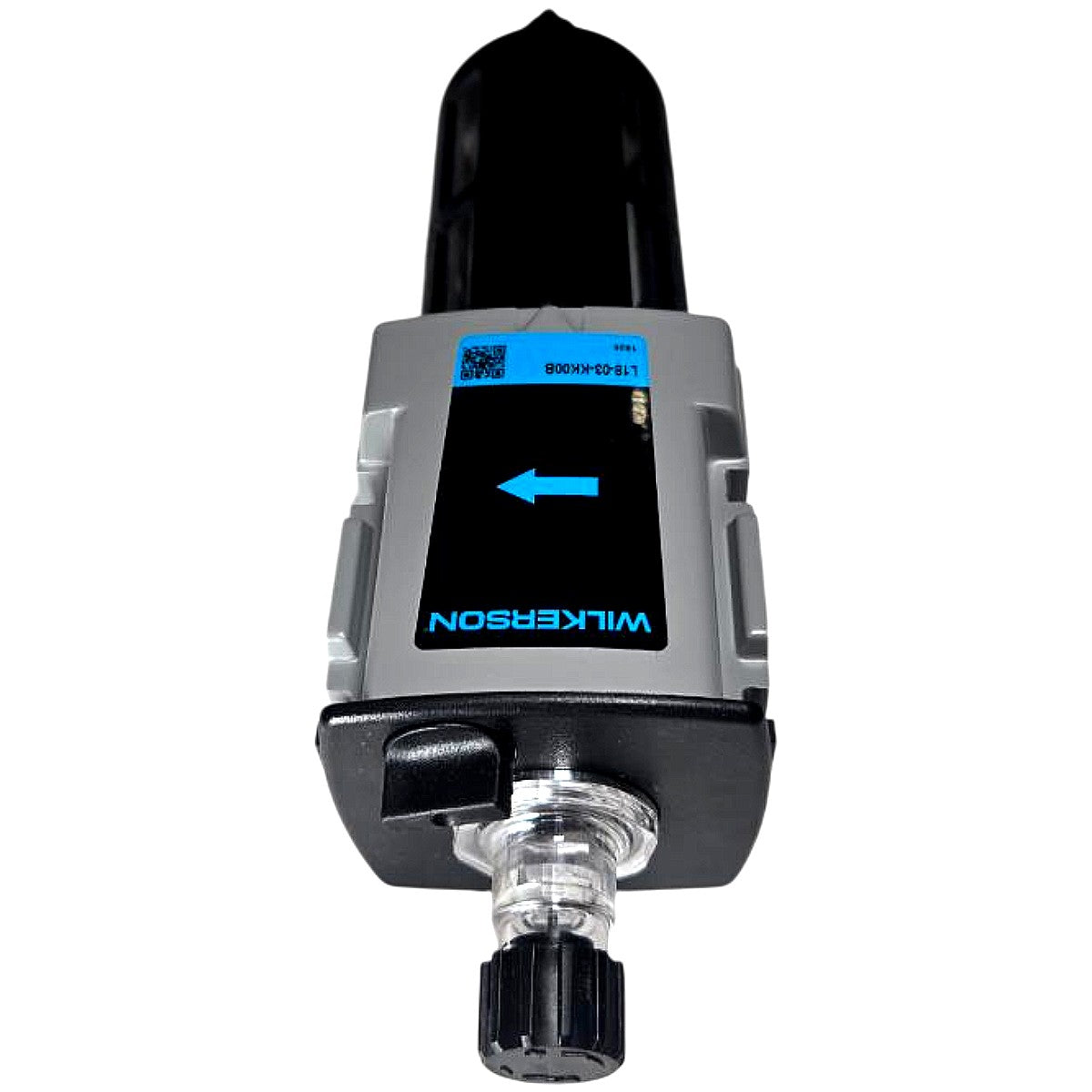

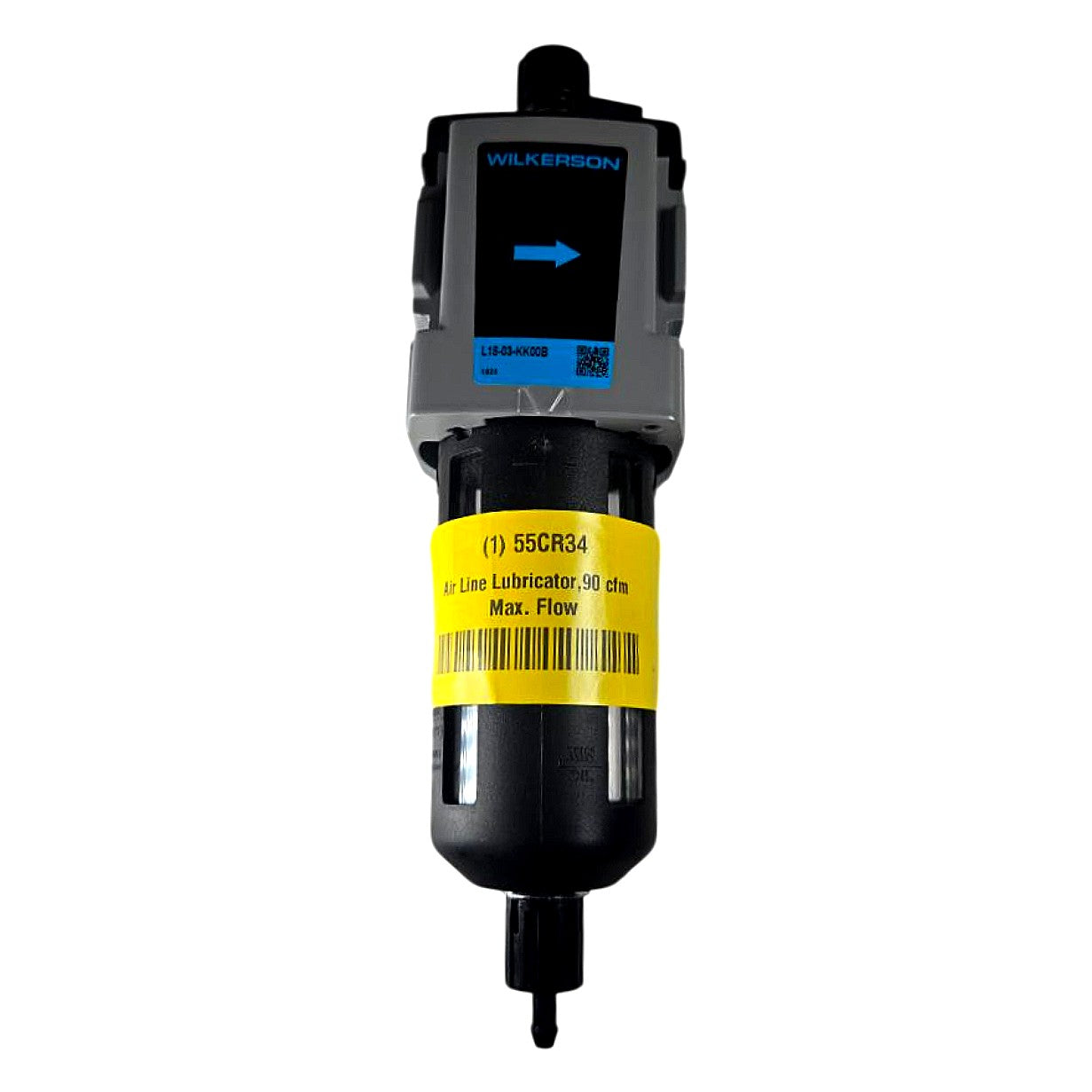

Wilkerson L18-03-KK00B 3/8 in NPT 90 cfm Micro-Mist Air Line Lubricator
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Wilkerson L18-03-KK00B is a new micro-mist air line lubricator from Wilkerson's L18 series, designed to inject a fine oil mist into compressed air lines to lubricate pneumatic tools, cylinders, valves, and other downstream equipment. It features a 3/8 in NPT port connection, supports a maximum flow rate of 90 cfm, and is rated for a maximum operating pressure of 150 psi, making it suitable for a wide range of industrial pneumatic systems. The "KK" suffix in the model code indicates a knob-style oil feed rate adjustment and a polycarbonate bowl with guard; "00B" denotes no drain and the standard B-series body configuration for the L18 platform. The unit uses a venturi-based micro-mist mechanism to produce extremely fine oil droplets that remain suspended in the airstream over longer pipe runs, unlike conventional oil-fog lubricators, making it well-suited for applications requiring lubrication at a distance from the lubricator. Compatible with Wilkerson's modular B18-series filter and R18-series regulator units for inline FRL assembly.
Product Specifications
| Brand | Wilkerson |
| MPN | L18-03-KK00B |
| Lubricator Type | Micro-Mist |
| Port Size | 3/8 in NPT |
| Max Flow Rate | 90 cfm |
| Max Operating Pressure | 150 psi (1.0 MPa) |
| Adjustment Type | Knob |
| Bowl Material | Polycarbonate w/ guard |
| Series | L18 |
| Drain Type | No drain (manual fill cap) |
| Operating Temp Range | 35°F to 125°F (2°C to 52°C) |
| Condition | New |
