Wilkerson R30-08-000 1 in NPT 125 PSI Pneumatic Pressure Regulator

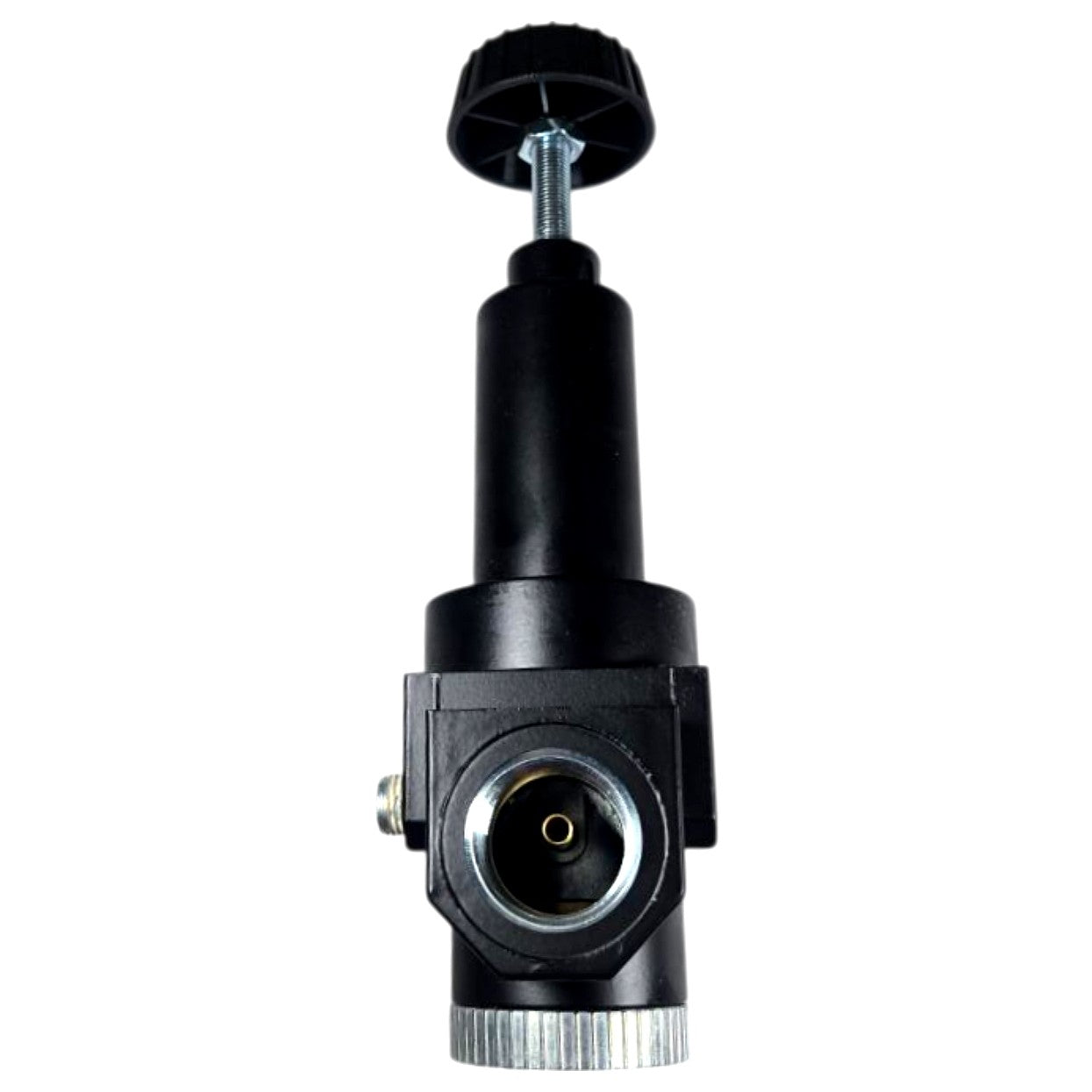

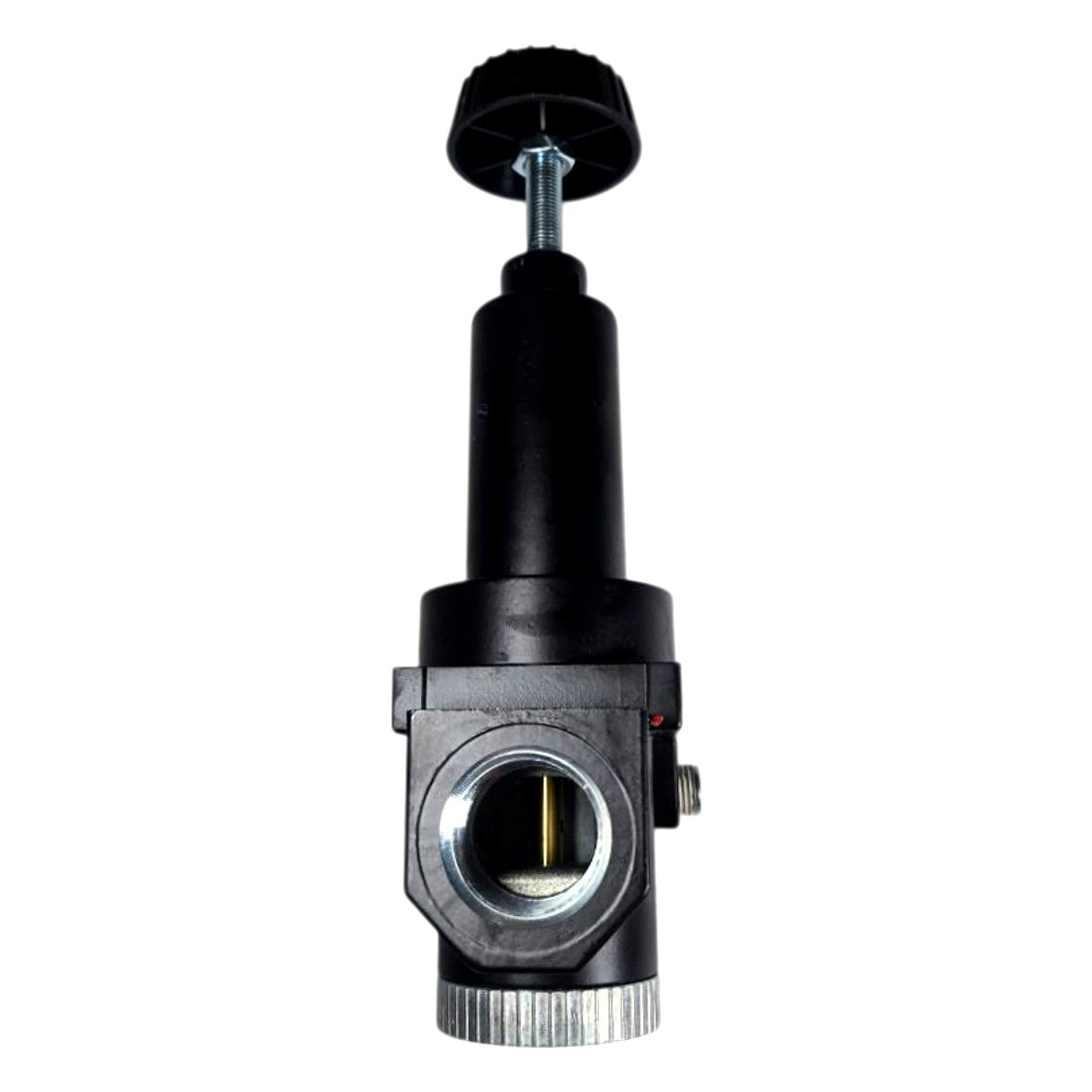

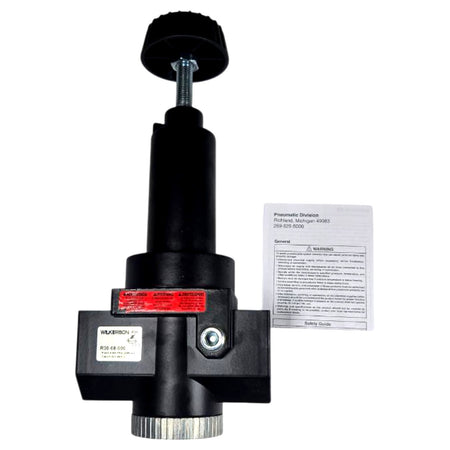

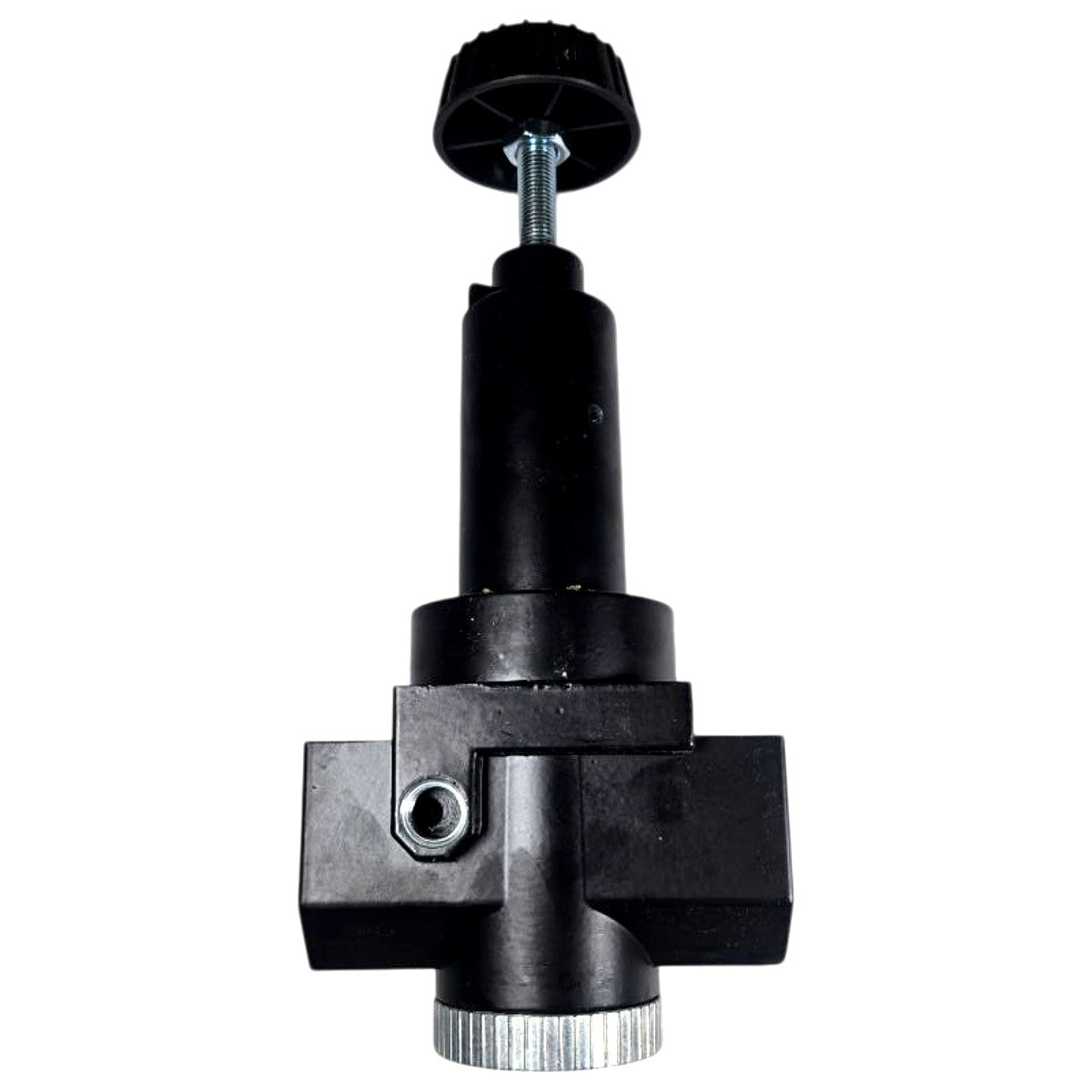

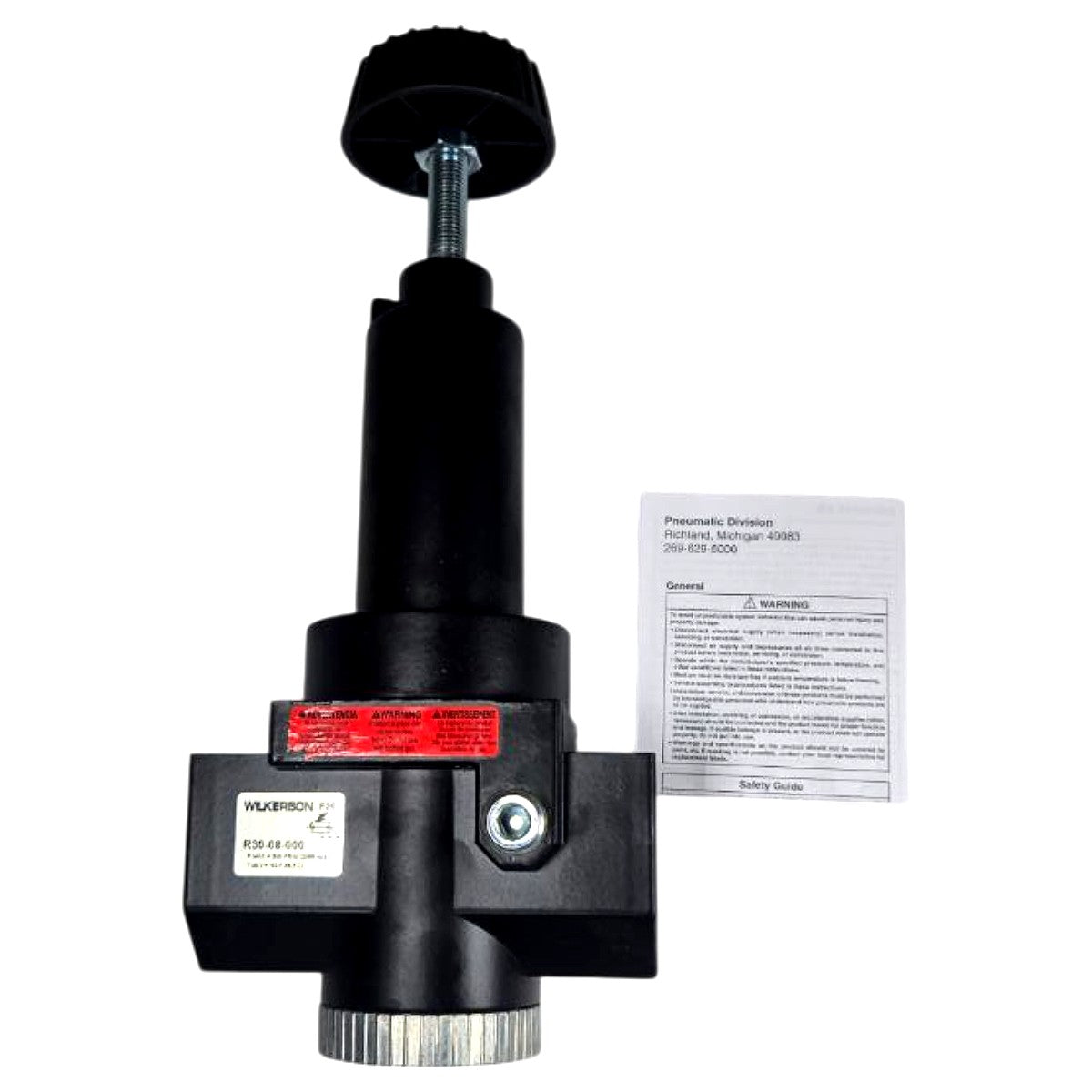

The Wilkerson R30-08-000 is a new, Series A general-purpose compressed air pressure regulator from the R30 series, featuring a zinc die-cast body with 1 in NPT porting and a non-relieving piston-type design rated for 10–125 PSI output pressure. The part number decodes as follows: R = Regulator, 30 = R30 series (large high-flow body), 08 = 1 in NPT port size (08 = 1 in in Wilkerson's port code system), 000 = standard configuration with no gauge, no bracket, no special options; the unit ships with a manual knob adjustment and a bottom-mount knurled collar for panel mounting. Rated for a maximum inlet pressure of 300 PSI and a flow capacity of 500 SCFM, this regulator is suited for high-demand pneumatic systems such as large air-powered machinery, manufacturing lines, and plant air distribution headers. The black overmolded polymer bonnet houses a spring-loaded piston mechanism with a brass poppet seat visible through the inlet port; a 1/8 in NPT gauge port is located on the side of the valve body for optional pressure gauge installation. Made in the USA per the box label, this unit is compatible with Wilkerson's R30-series modular FRL components and ships with the original box and safety instruction sheet.

Product Specifications
