Xactform 78307WCG TMX5/16X.310-18NPT-F K27C 18 TPI NPTF Carbide Thread Mill

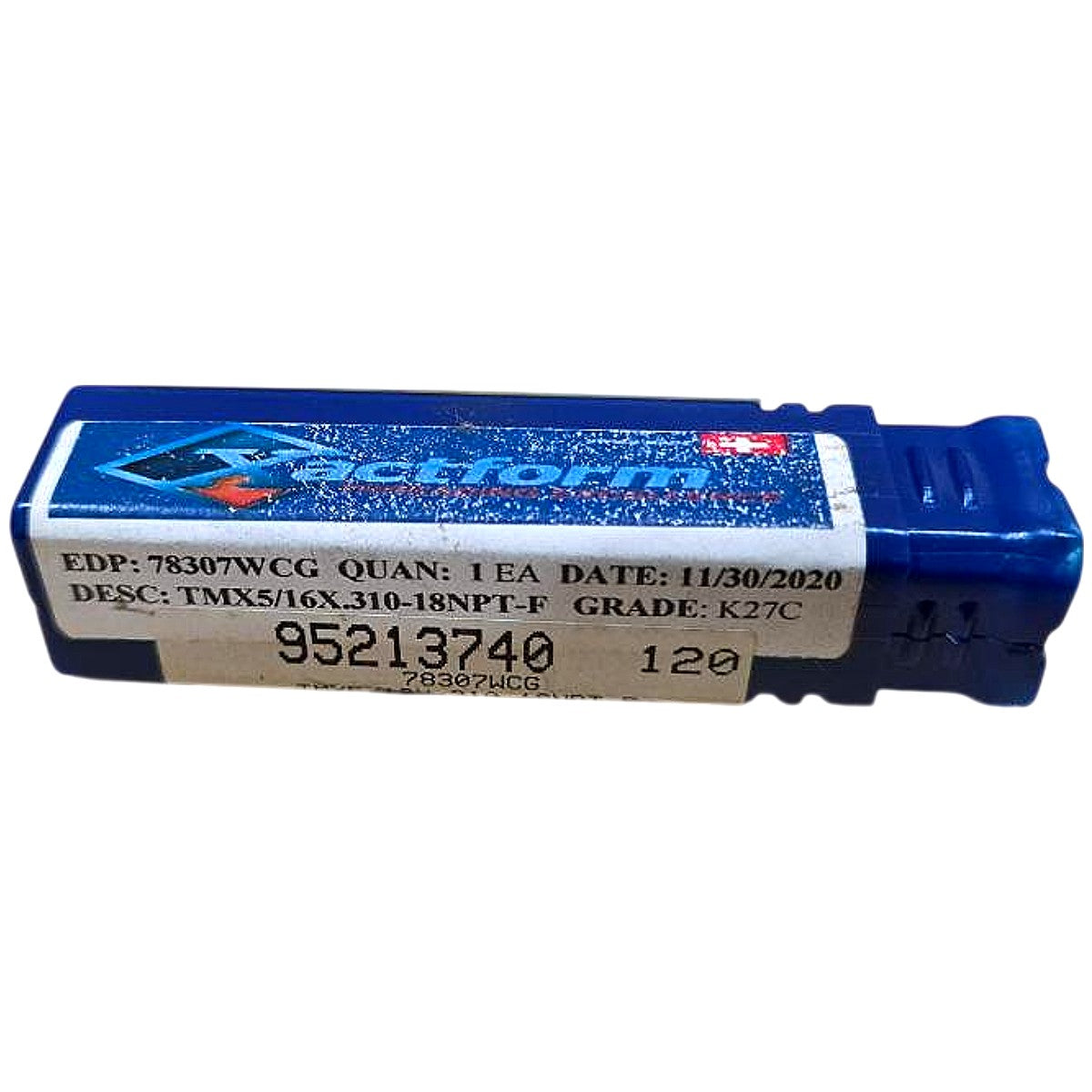

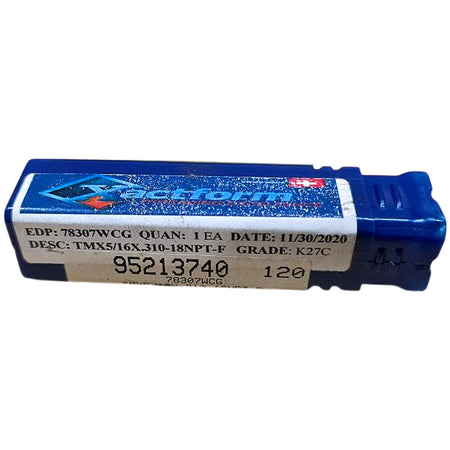

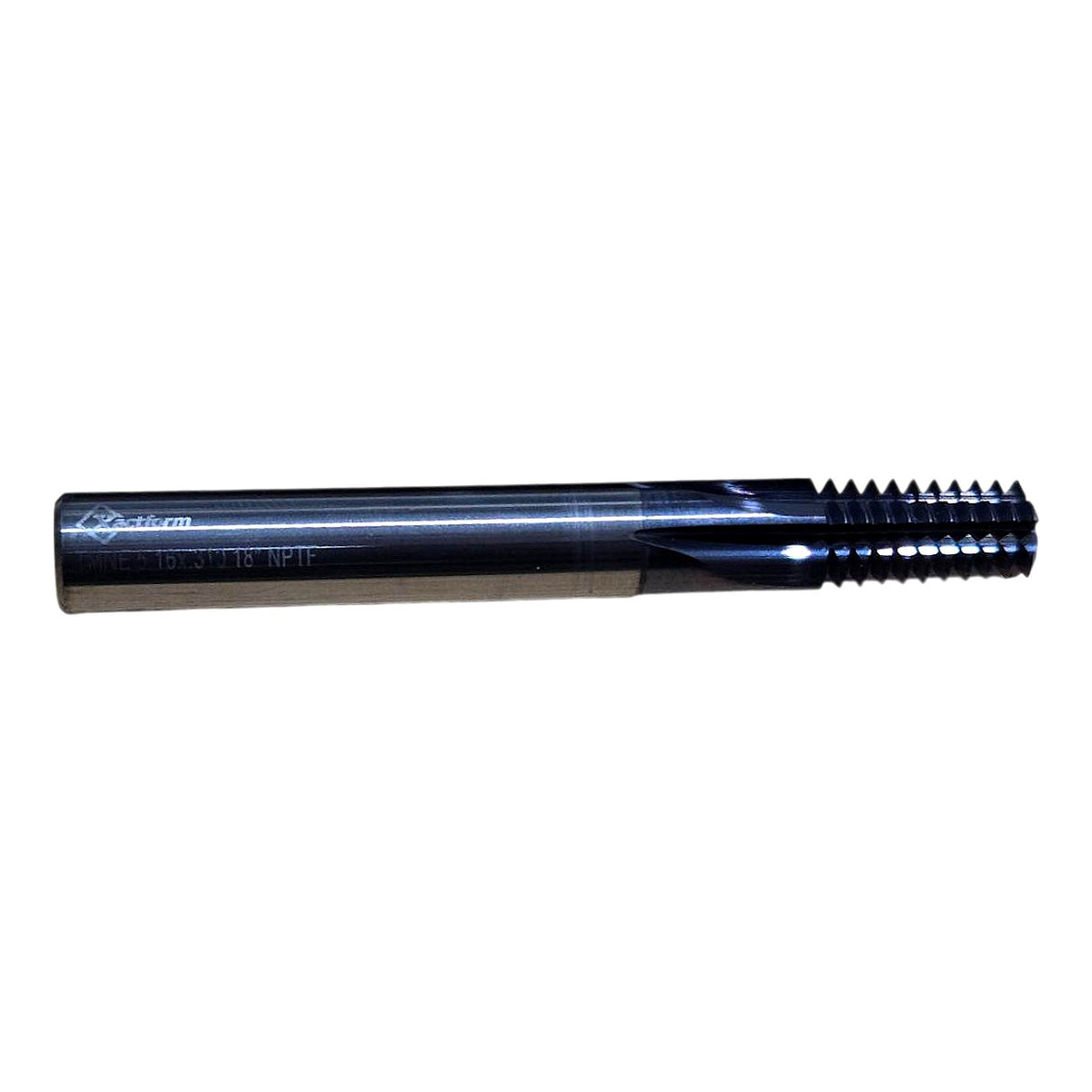

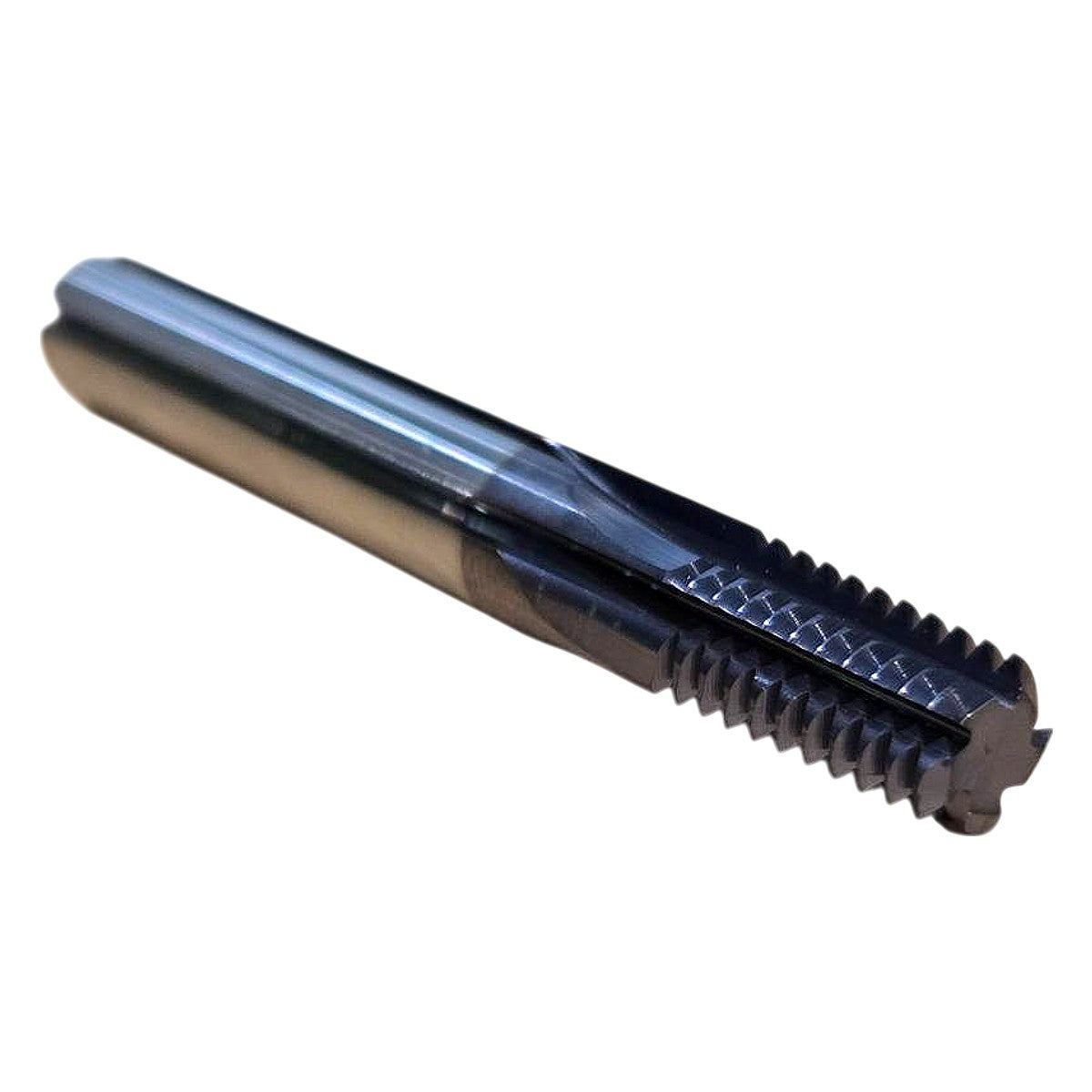

This Xactform 78307WCG (label description TMX5/16X.310-18NPT-F) is a solid carbide single-form thread mill for cutting NPTF (Dryseal American National Pipe Thread) internal and external threads at 18 TPI. It has a 5/16 in shank, a 0.310 in cutting diameter and is made from grade K27C carbide with a TiAlN coating, and the multi-flute design with a coolant groove (WCG) helps with chip evacuation and coolant delivery. The box label lists EDP 78307WCG and quantity 1 EA. Thread milling on a CNC machining center with a helical interpolation toolpath produces a full-form thread, and a single tool size can cut both right-hand and left-hand threads of the same pitch. This item is new.
