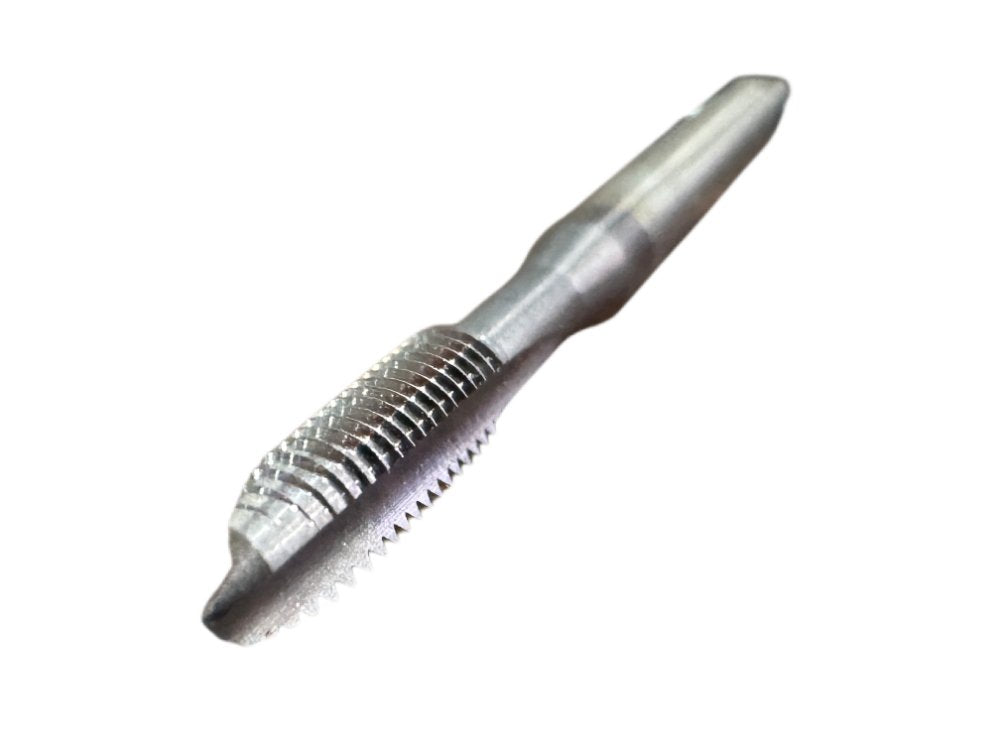

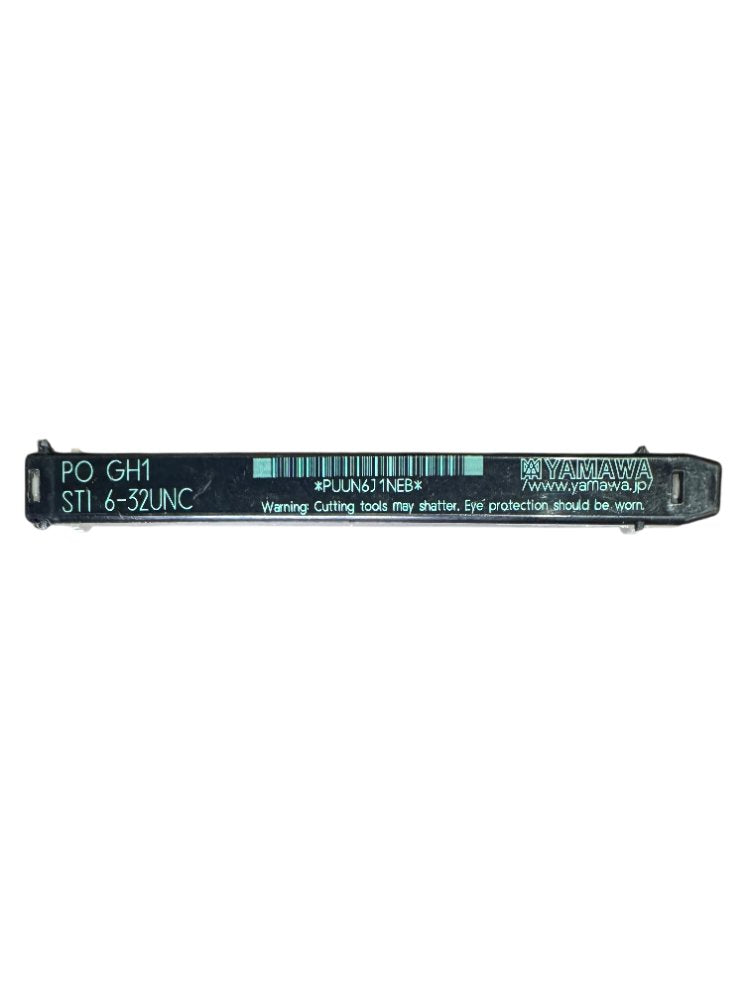

Yamawa PUUN6J1NEB STI 6-32 UNC GH1 Spiral Point Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
This is a new Yamawa PUUN6J1NEB spiral point (gun) tap designed specifically for cutting STI (Screw Thread Insert / HeliCoil-type) threads in a 6-32 UNC pattern, GH1 pitch diameter tolerance class. STI taps produce an oversized thread that accepts a helical wire insert, restoring the nominal thread size in the parent material — making them essential for repair work and insert installation in aluminum, cast iron, and steel. The spiral point (gun) flute geometry drives chips forward ahead of the tap, making it suited for through-hole tapping applications in CNC machining centers and tapping heads. Yamawa manufactures this tap in Japan to tight tolerance standards; the GH1 class specifies a pitch diameter ground tolerance of +0.0005 to +0.0010 in above basic, ensuring consistent fit with STI insert gauging.
Product Specifications
| Brand | Yamawa |
| MPN | PUUN6J1NEB |
| Thread Type | STI (Screw Thread Insert) |
| Thread Size | 6-32 |
| Thread Standard | UNC |
| Pitch Diameter Tolerance | GH1 |
| Tap Style | Spiral Point (Gun Tap) |
| Hole Type | Through Hole |
| Country of Origin | Japan |
| Condition | New |
