Yankee 433 57/64 0.8906 in HSS Straight Flute Taper Reamer
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

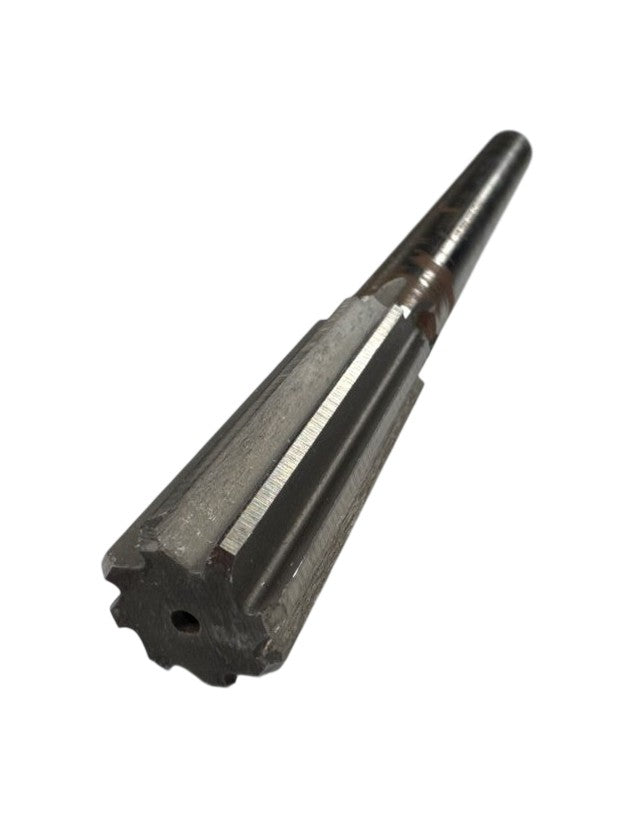

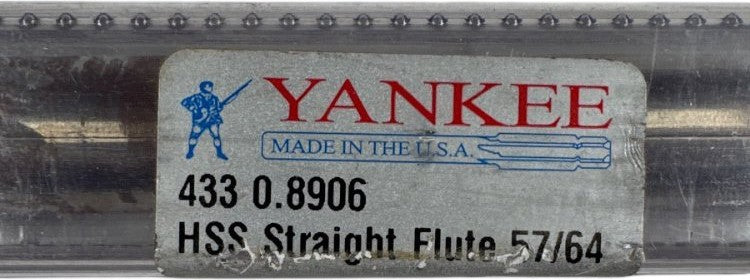

This is a new Yankee No. 433 straight-flute taper reamer in 57/64 in (0.8906 in) size, manufactured in the USA from High Speed Steel (HSS). The No. 433 series is a standard taper pin reamer designed to produce tapered holes conforming to the American Standard taper pin taper of 1/4 in per foot, used for fitting standard taper pins in shafts, hubs, and mechanical assemblies requiring precise, removable locating or locking connections. Straight flutes provide clean cutting action suited to through-hole or interrupted reaming operations in steel, cast iron, aluminum, and similar machinable materials. The reamer is driven via its straight cylindrical shank and is compatible with standard drill chucks, collet chucks, and straight-shank toolholders. New-old-stock condition with original Yankee label intact.
Product Specifications
| Brand | Yankee |
| Model / Series | 433 |
| Part Number | 433 0.8906 |
| Size (Fractional) | 57/64 in |
| Size (Decimal) | 0.8906 in |
| Flute Type | Straight Flute |
| Material | HSS (High Speed Steel) |
| Taper | Standard Taper Pin, 1/4 in per foot |
| Shank Type | Straight |
| Country of Origin | USA |
| Condition | New |
