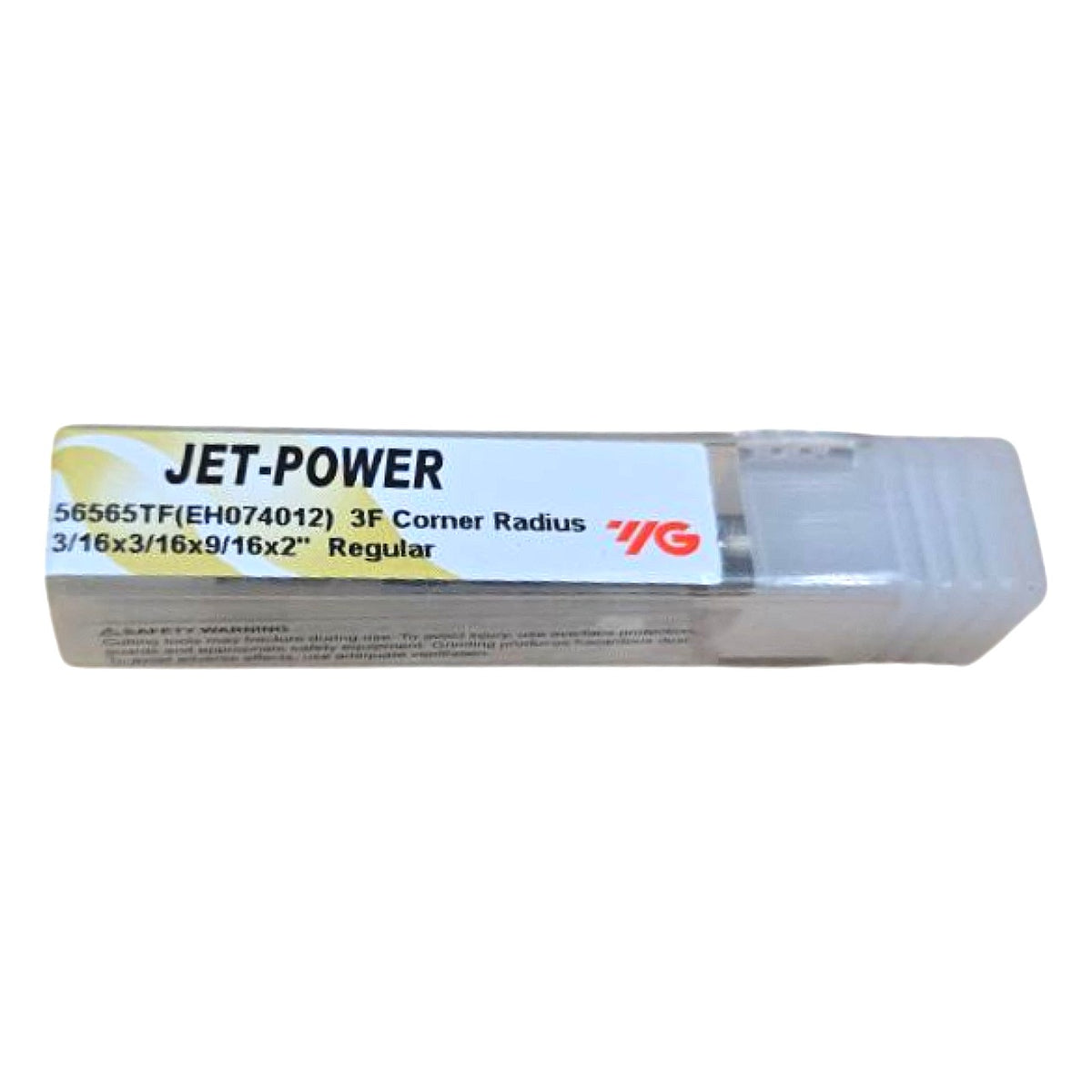

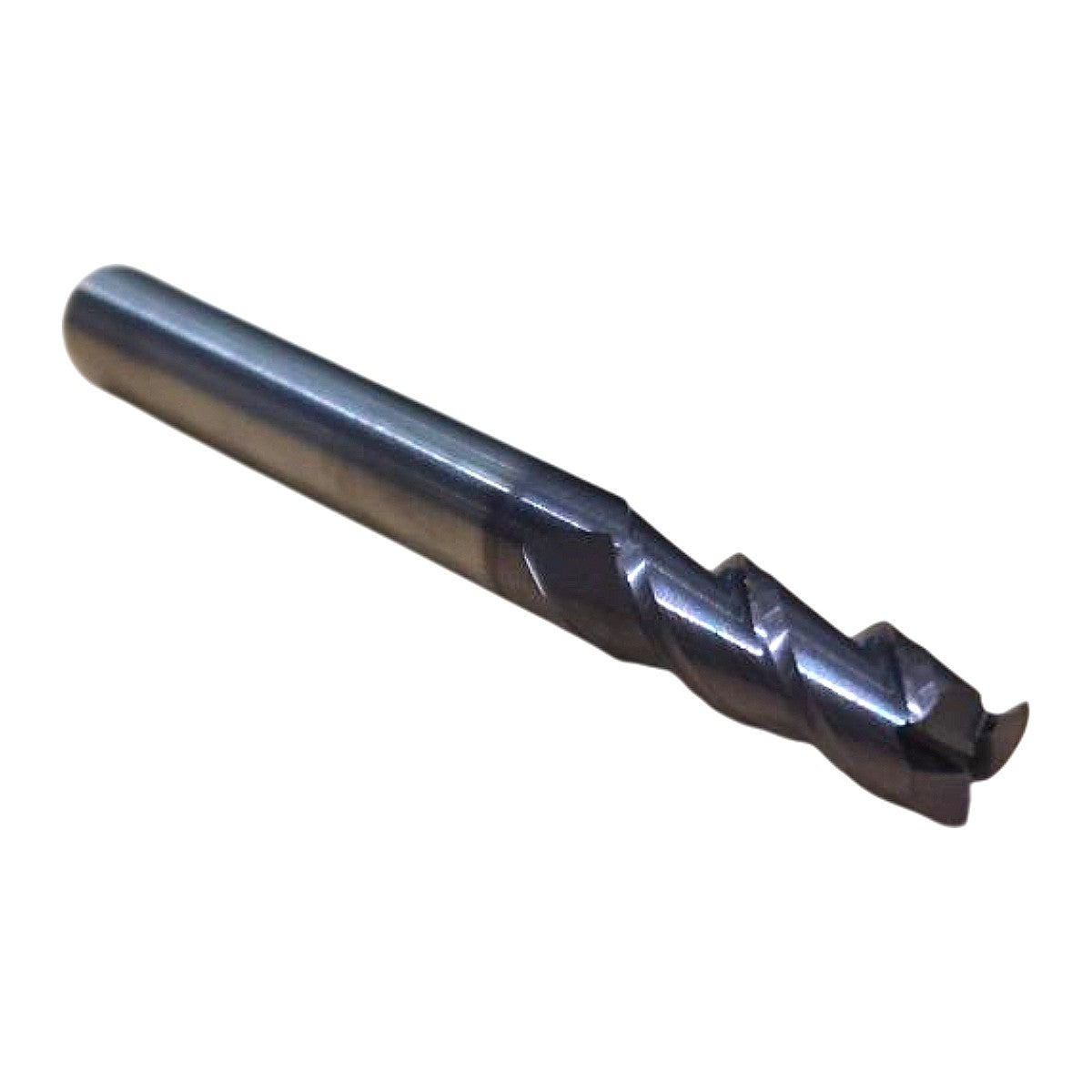

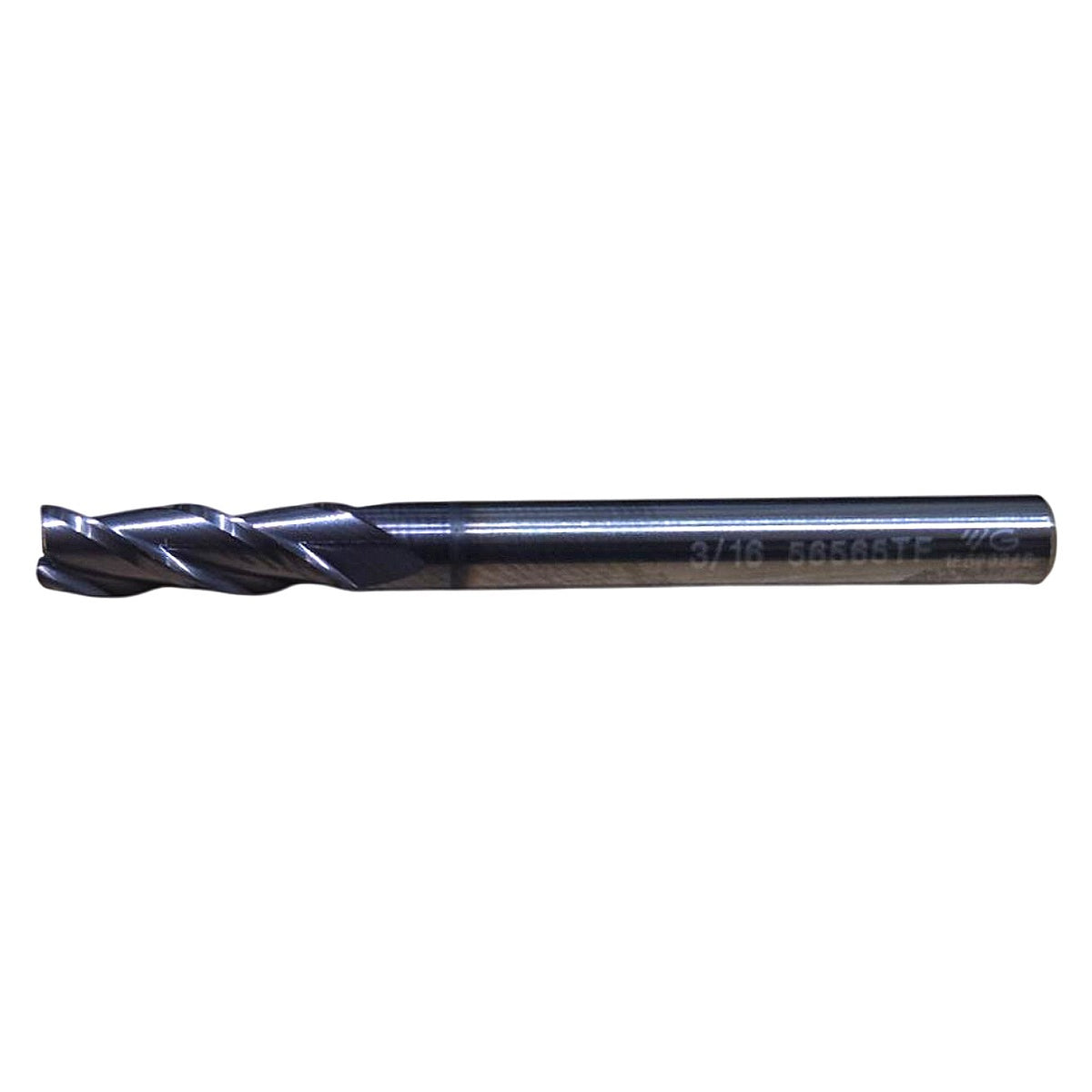

YG-1 56565TF 3/16in 3-Flute TiAlN Carbide Corner Radius End Mill

The YG-1 56565TF (cross-reference EH074012) is a new, solid carbide, 3-flute corner radius end mill from the Jet-Power series, ground to a 3/16 in cutting diameter with a 3/16 in shank diameter, 9/16 in length of cut, and 2 in overall length in a regular (stub/standard reach) configuration. The tool features a TiAlN (TF) PVD coating, which provides oxidation resistance up to approximately 800 °C and is well-suited for dry or semi-dry machining of hardened steels, alloy steels, stainless steels, and cast iron at elevated cutting speeds. The 3-flute geometry balances chip evacuation and rigidity, making this end mill effective for profiling, slotting, and contouring in ferrous materials; the corner radius—consistent with the EH074012 designation—protects the cutting edge from chipping and improves surface finish on radiused features. The 3/16 in shank is compatible with standard ER11, ER16, or ER20 collet chucks and milling chucks accepting that shank diameter.

Product Specifications
