YG-1 DH406071 7.1mm 3xD TiAlN Coolant-Through Carbide Drill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

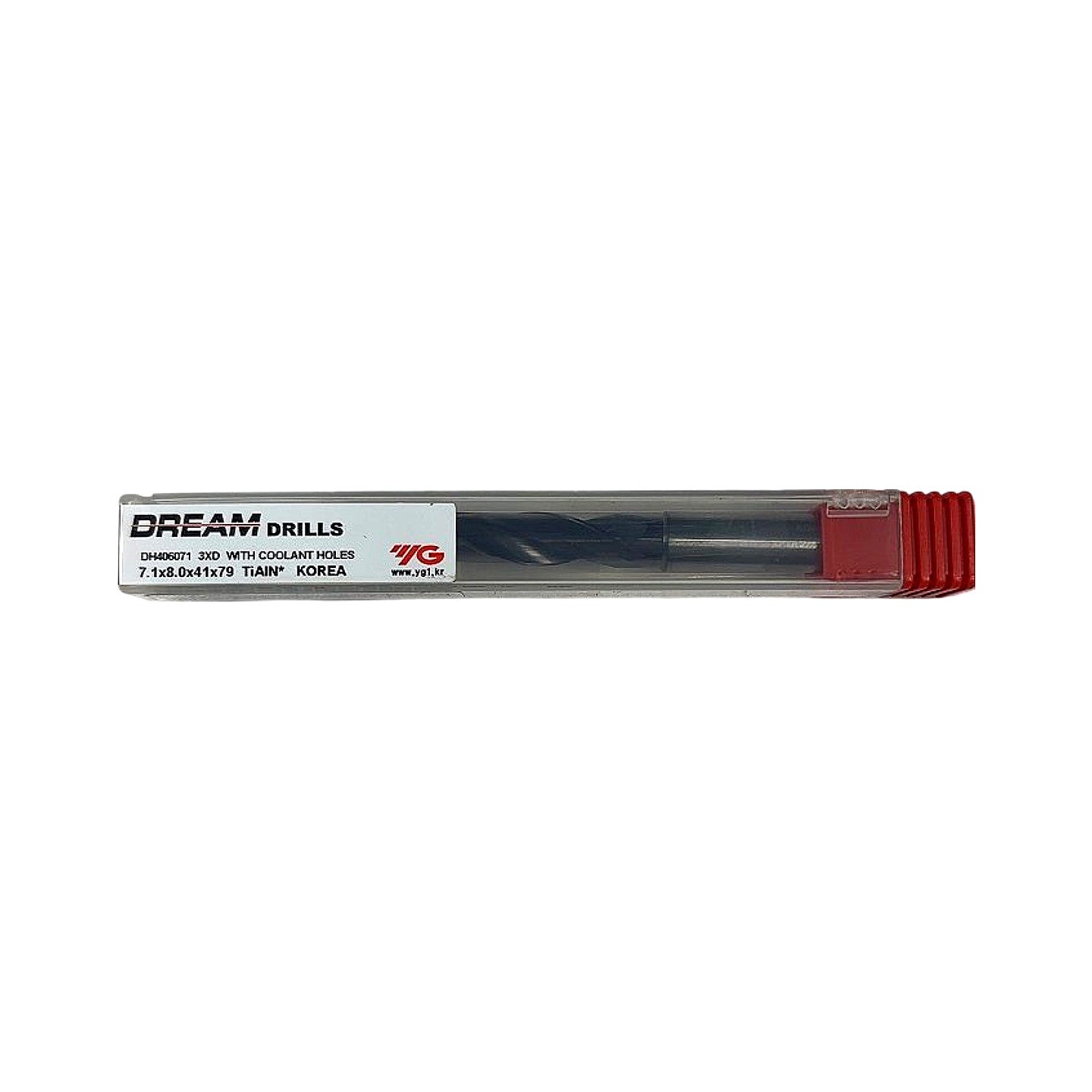

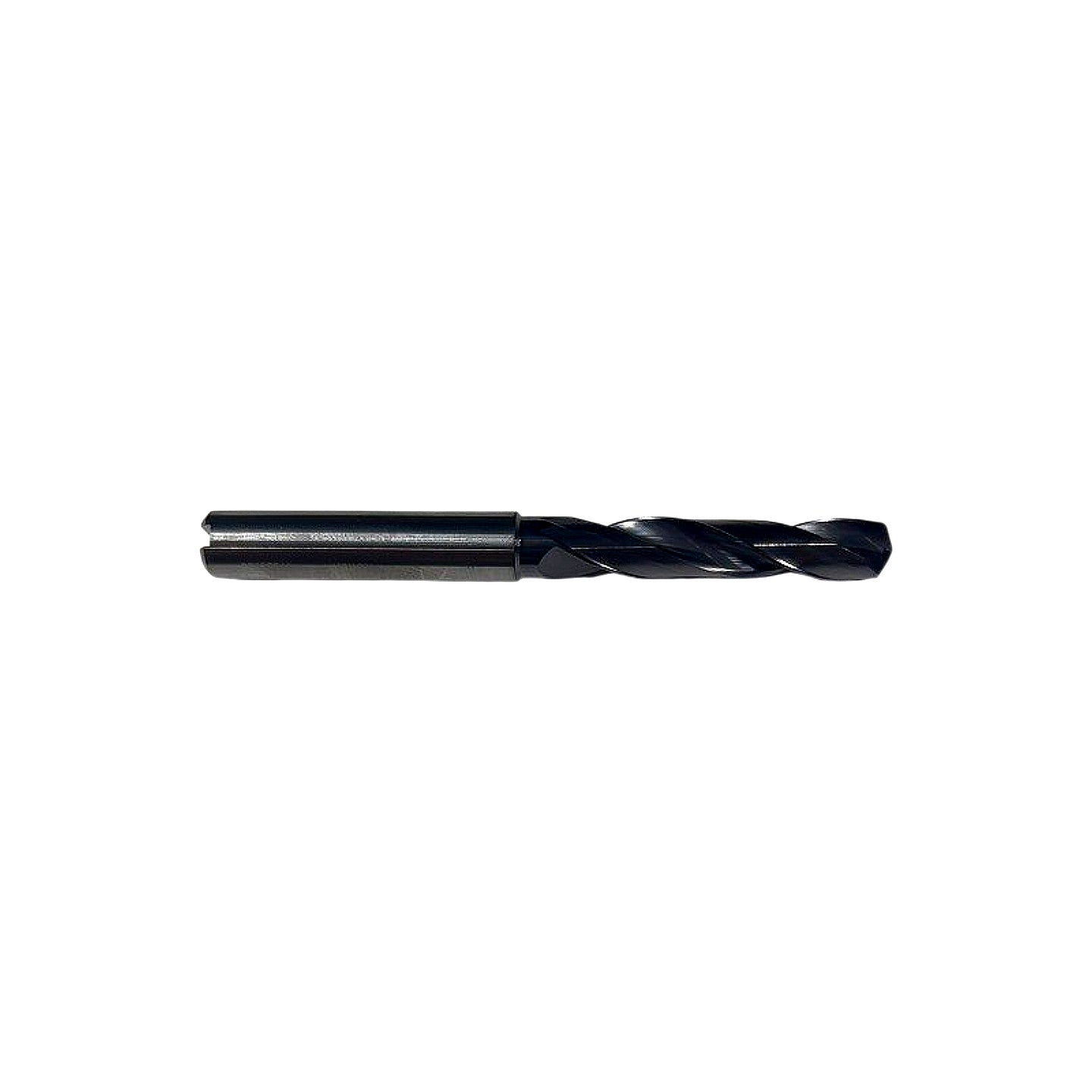

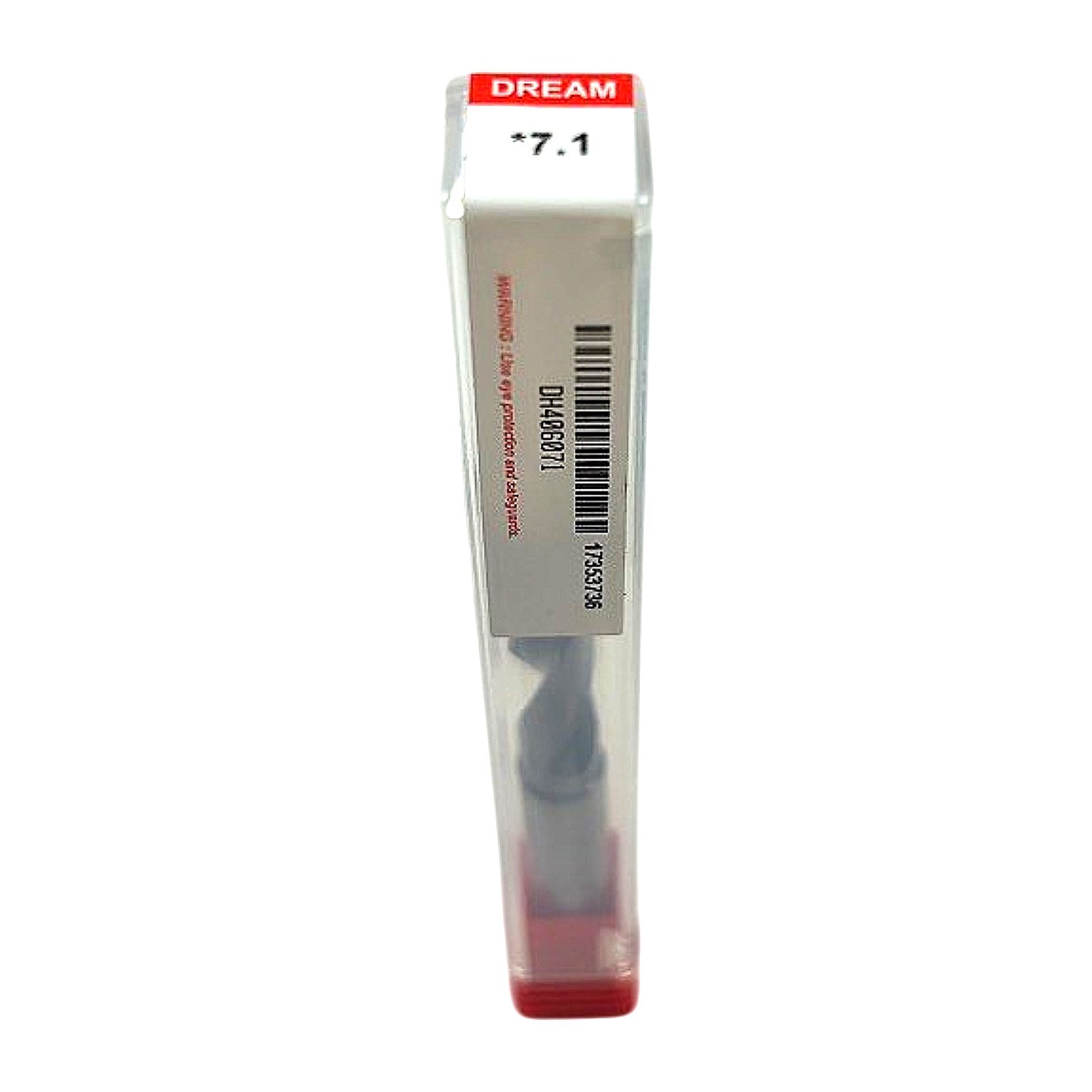

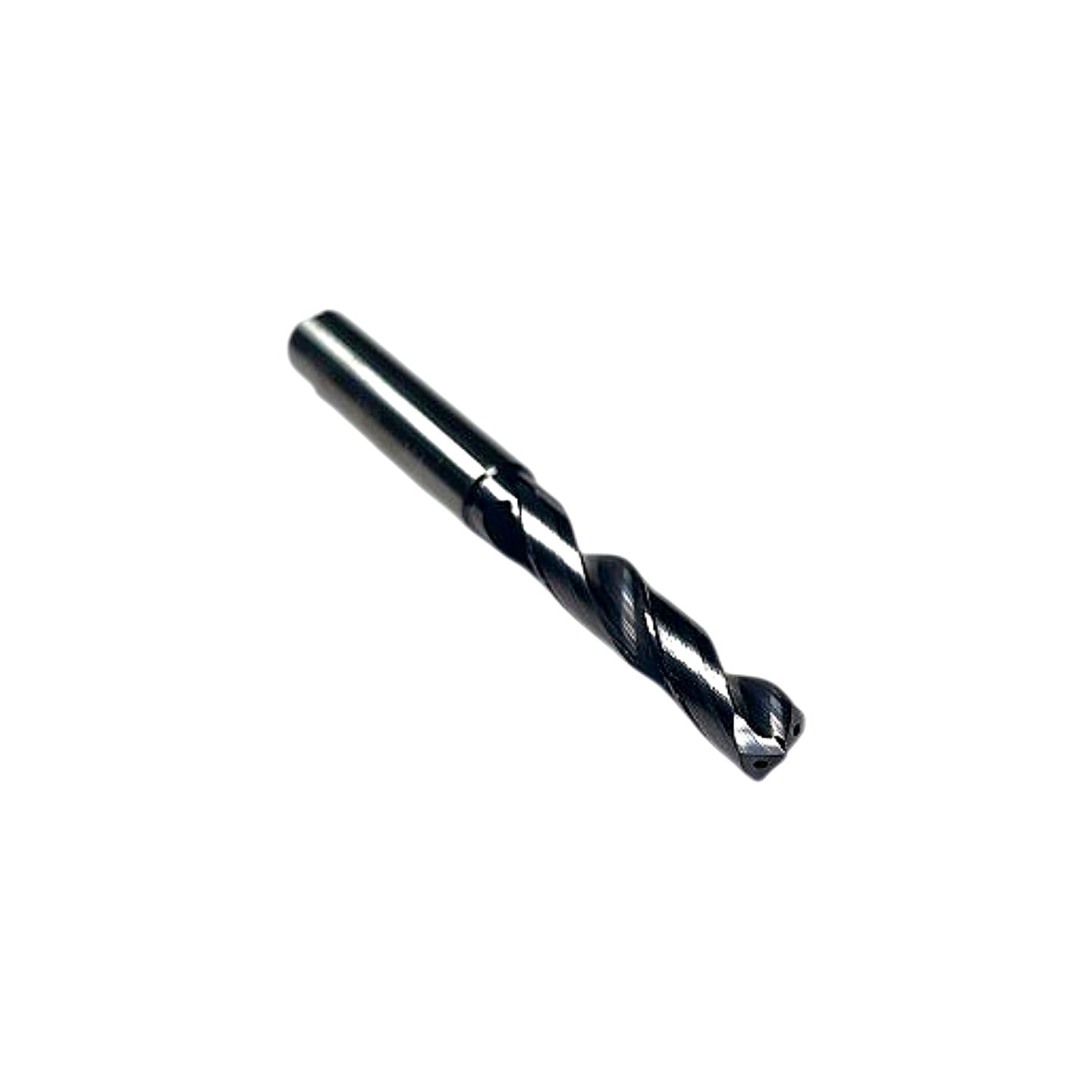

The YG-1 DH406071 is a new solid carbide Dream Drill from the DH40 series, ground to a 7.1 mm cutting diameter with an 8.0 mm straight cylindrical shank, 41 mm flute length, and 79 mm overall length — all confirmed from the package label. Designed for 3xD depth-of-cut applications, the drill features through-coolant holes for high-pressure coolant delivery directly to the cutting edge, enabling aggressive feed rates and extended tool life in steel, cast iron, and stainless steel. The TiAlN* coating (YG-1's proprietary TiAlN variant) provides oxidation resistance up to approximately 800°C, making the drill well-suited for dry or minimum-quantity lubrication (MQL) machining on CNC machining centers with spindle coolant capability. The 8.0 mm shank is compatible with standard ER, hydraulic, and shrink-fit toolholders accepting 8 mm bore; the step-down from shank to flute diameter is visible in the product images.
Product Specifications
| Brand | YG-1 |
| Series | Dream Drill DH40 |
| Part Number (MPN) | DH406071 |
| Cutting Diameter | 7.1 mm |
| Shank Diameter | 8.0 mm |
| Flute Length | 41 mm |
| Overall Length (OAL) | 79 mm |
| Depth of Cut Ratio | 3xD |
| Coolant Through | Yes — internal coolant holes |
| Coating | TiAlN* (YG-1 proprietary TiAlN variant) |
| Substrate | Solid carbide |
| Number of Flutes | 2 |
| Shank Type | Straight cylindrical (reduced neck) |
| Country of Origin | Korea |
| Condition | New |
