YG-1 Dream Drill X DTX416038 19/32" in 3XD Coolant-Thru Carbide Drill
Regular price
$84.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

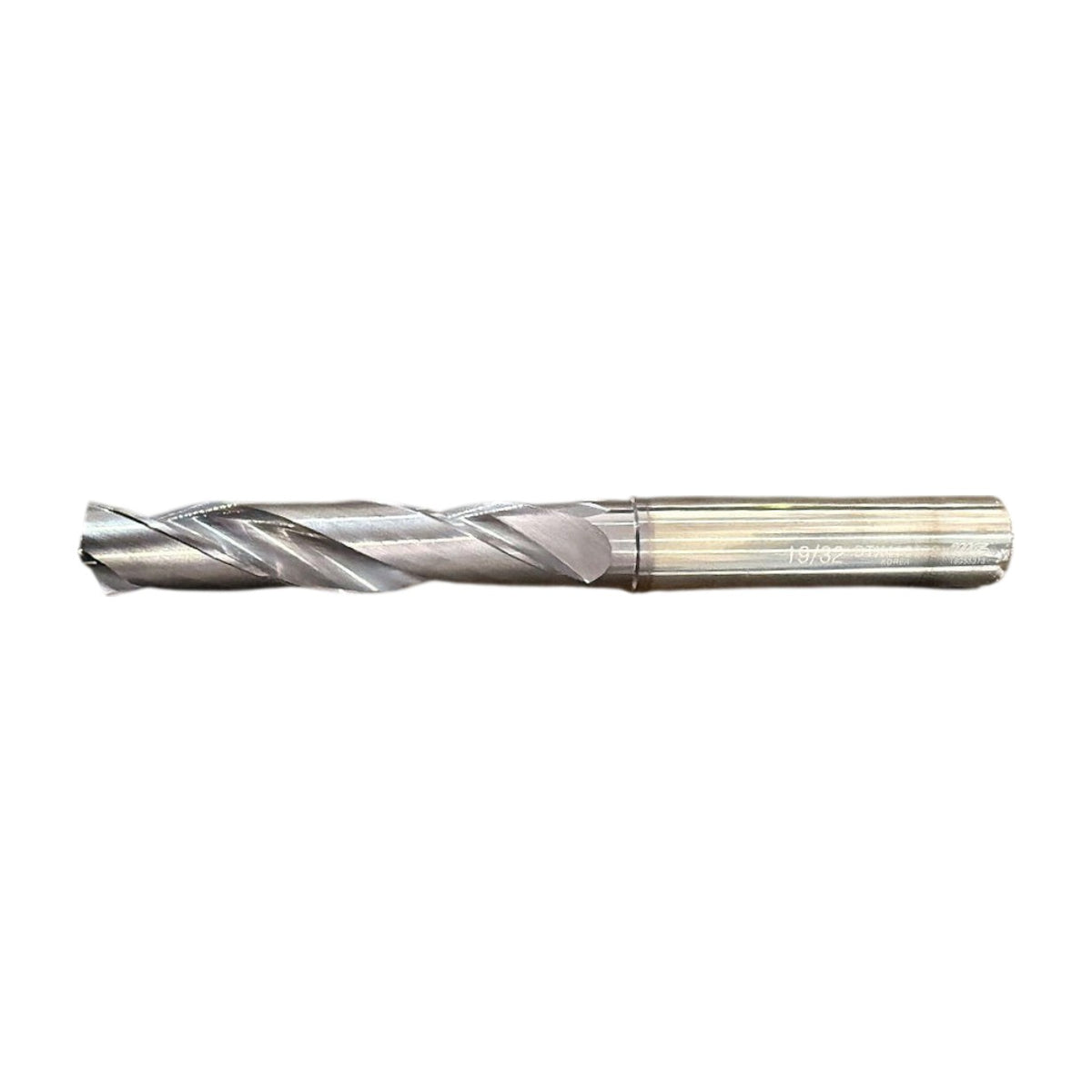

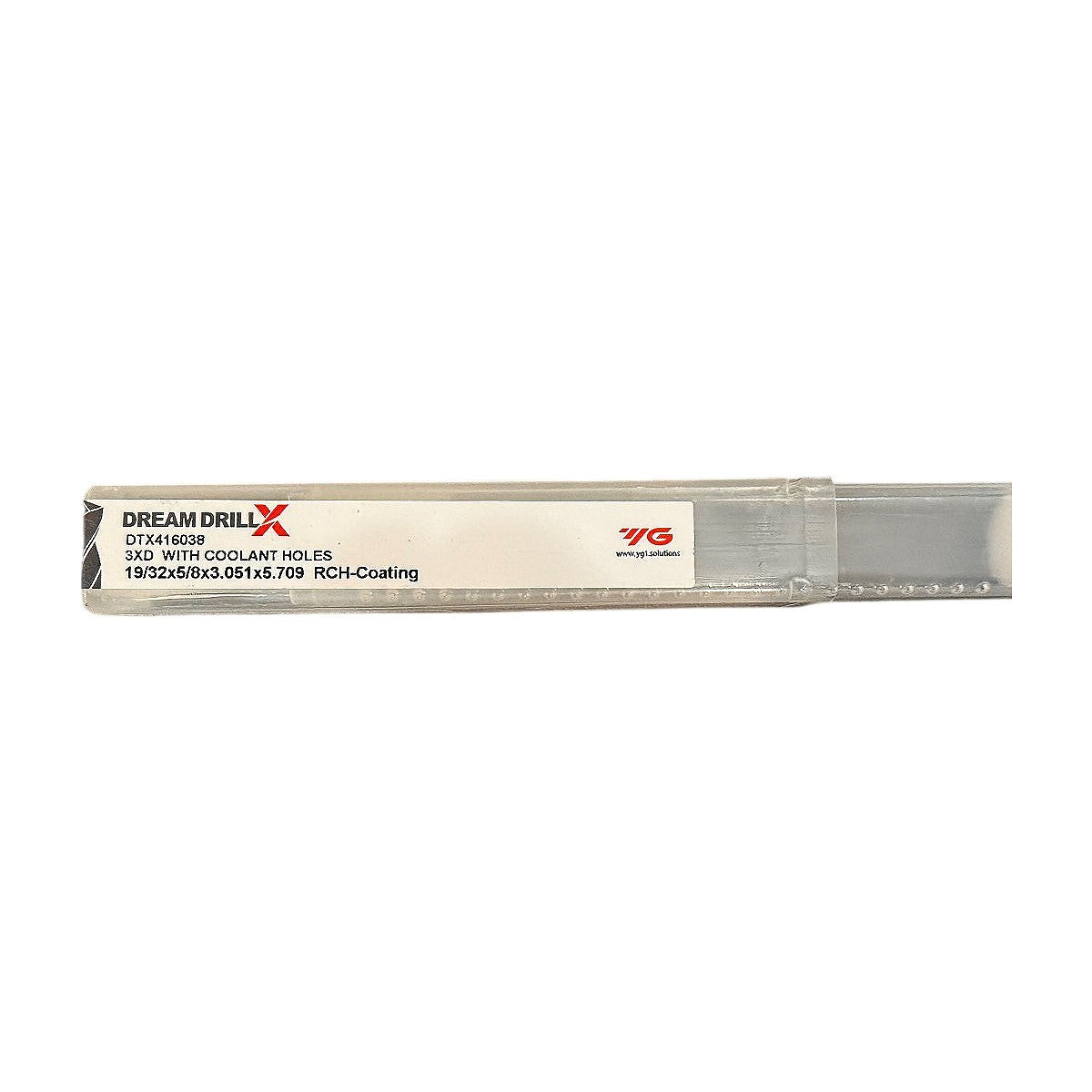

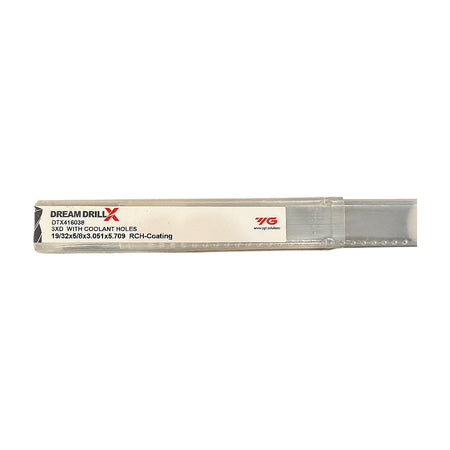

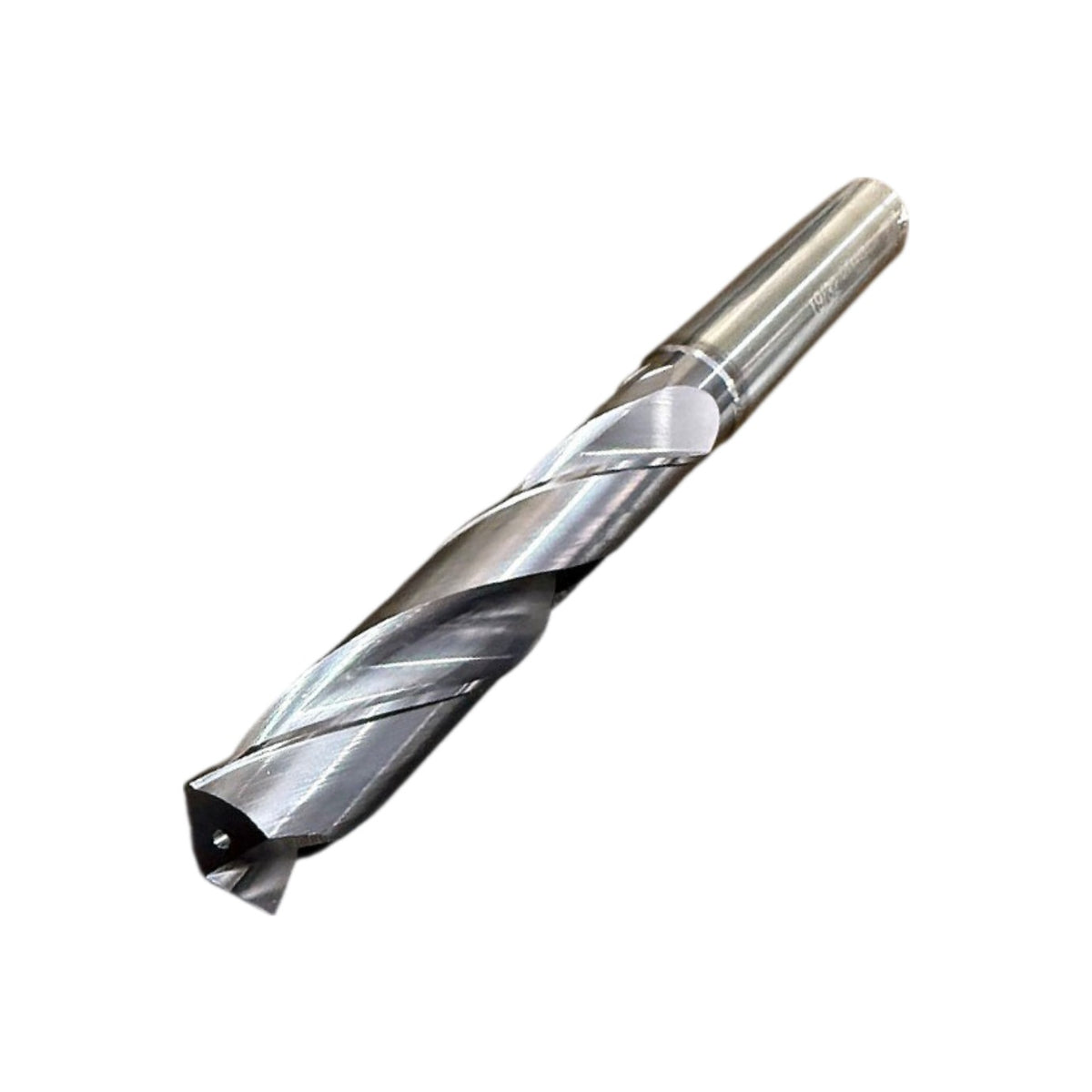

The YG-1 Dream Drill X DTX416038 is a 3XD solid carbide twist drill with internal coolant holes, 19/32 in (0.5938 in) cutting diameter and a 5/8 in shank. It has an overall length of 5.709 in and a flute length of 3.051 in, and carries YG-1 RCH coating for heat and wear resistance. The 3XD depth ratio suits short-hole drilling in CNC machining centers and lathes, where through-tool coolant helps evacuate chips and cool the cutting edge. This drill is new and shipped in its original clear plastic sleeve.
Product Specifications
| Brand | YG-1 |
| MPN | DTX416038 |
| Series | Dream Drill X |
| Drill Diameter | 19/32 in |
| Decimal Diameter | 0.5938 in |
| Shank Diameter | 5/8 in |
| Flute Length | 3.051 in |
| Overall Length | 5.709 in |
| Depth Ratio | 3XD |
| Coolant | Through-Tool Coolant Holes |
| Coating | RCH |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Operation | Drilling |
| Shank Type | Straight w/ flat |
| Unit of Measure | Inch |
