YG-1 WNMG432-UR YG3020 CVD Carbide Turning Insert (10 pcs)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

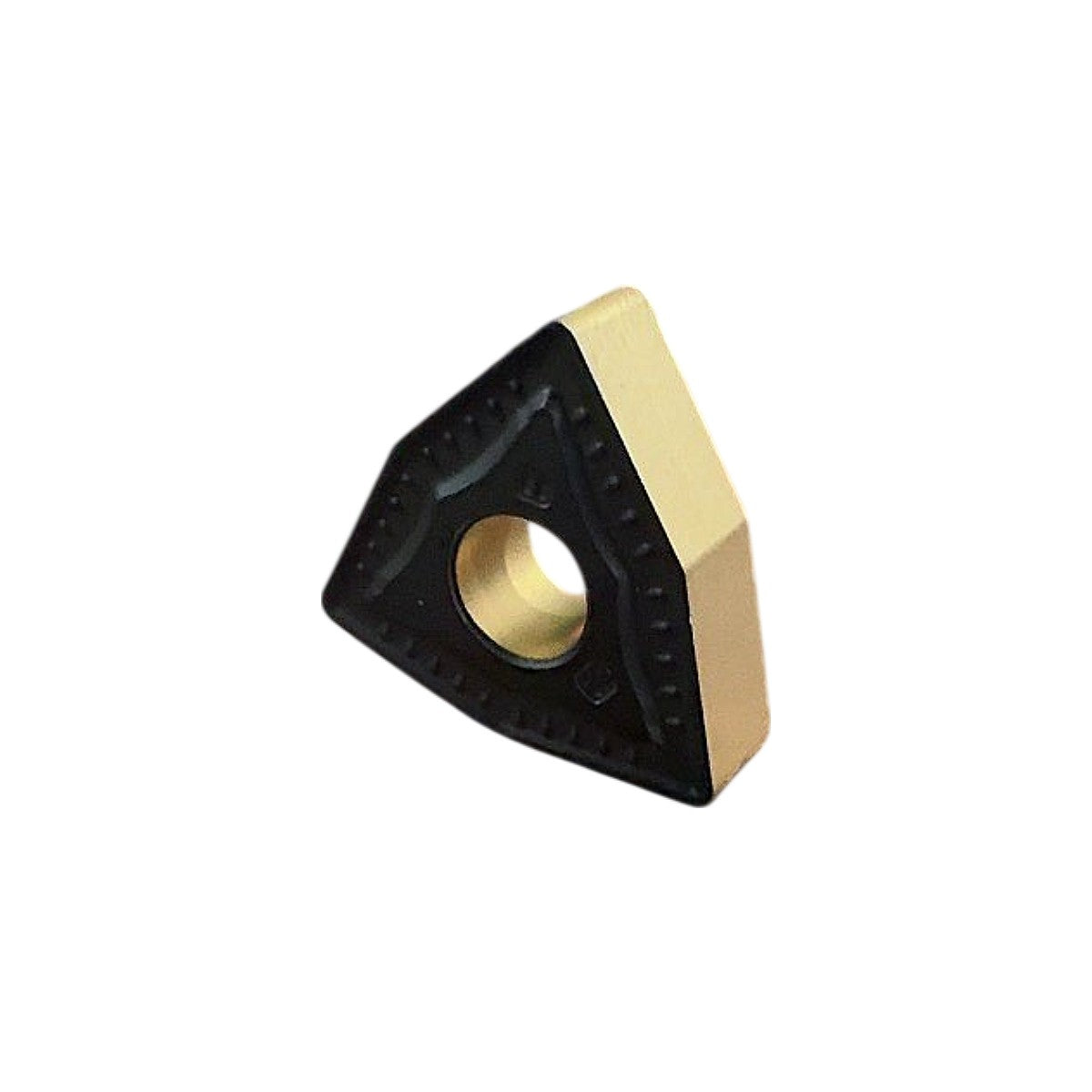

The YG-1 WNMG432-UR (metric: WNMG080408-UR) is a new, indexable carbide turning insert in grade YG3020, a CVD-coated cemented carbide designed for steel (ISO P) turning applications. Decoding the ISO designation: W = trigon (80° included angle), N = 0° clearance angle, M = M-tolerance, G = with hole and chipbreaker, 08 = 12.7 mm inscribed circle, 04 = 4.76 mm thickness, 08 = 0.8 mm nose radius; the -UR suffix denotes the universal roughing chipbreaker geometry. YG3020 is YG-1's CVD multi-layer coated grade (TiCN/Al₂O₃) optimized for roughing to semi-finishing of steel and cast iron, with published cutting parameters of Vc 60–380 m/min, feed 0.30–0.50 mm/rev, and depth of cut 1.0–5.0 mm. Each box contains 10 factory-inspected inserts made in Korea and is compatible with MWLNR/L, DWLNR/L, and other WNMG-style toolholders per ISO/ANSI standards.
Product Specifications
| Manufacturer | YG-1 |
| ISO Part Number (Metric) | WNMG080408-UR |
| ANSI Part Number (Inch) | WNMG432-UR |
| Grade | YG3020 |
| Insert Shape | W - Trigon 80° |
| Clearance Angle | N - 0° |
| Tolerance Class | M |
| Insert Type | G - With hole and chipbreaker |
| Inscribed Circle (IC) | 12.7 mm (1/2 in) |
| Thickness | 4.76 mm (3/16 in) |
| Nose Radius | 0.8 mm (1/32 in) |
| Chipbreaker | UR - Universal Roughing |
| Coating | CVD (TiCN/Al₂O₃) |
| ISO Material Application | P (Steel) |

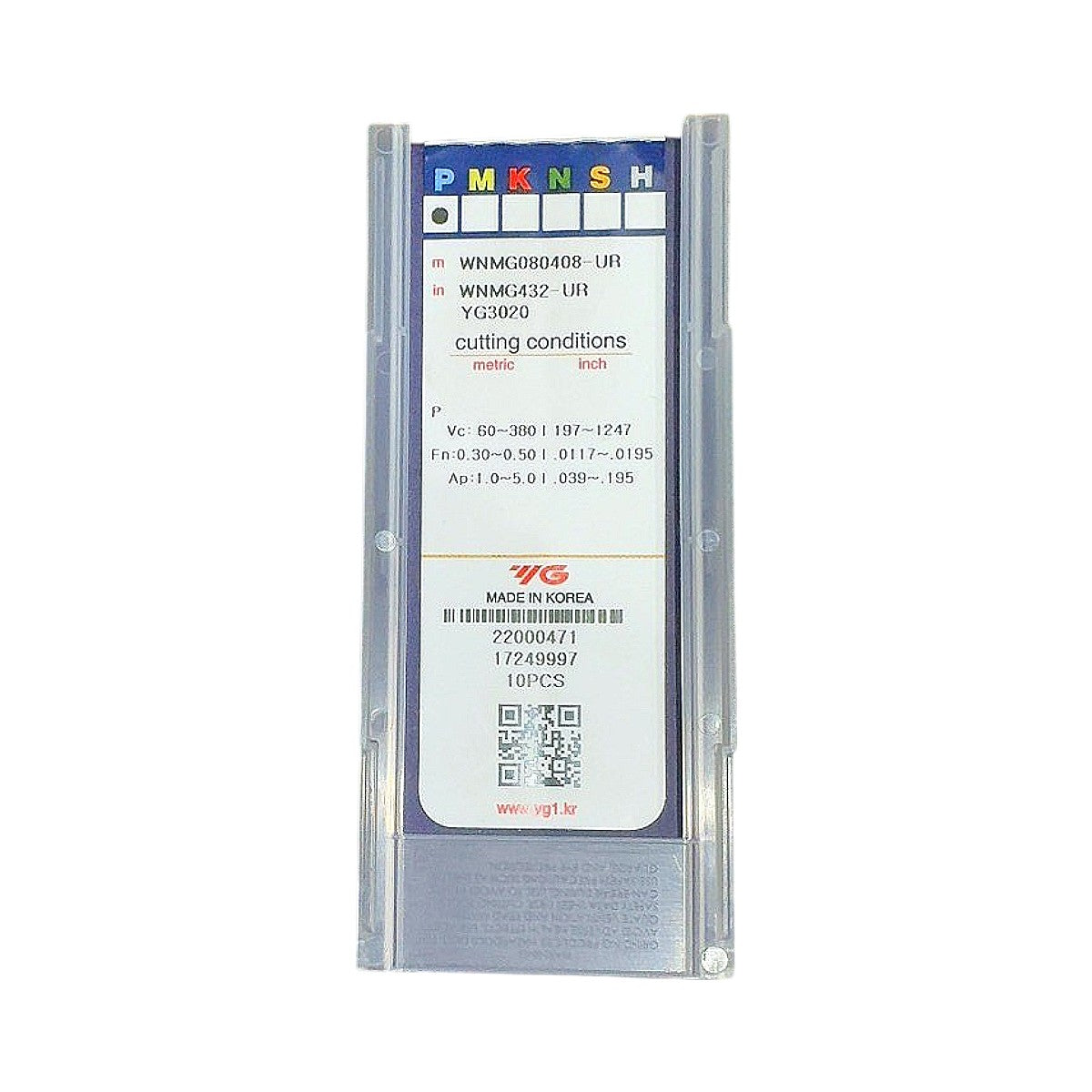

| Cutting Speed (Vc) | 60–380 m/min | 197–1247 SFM |
| Feed Rate (Fn) | 0.30–0.50 mm/rev | .0117–.0195 in/rev |
| Depth of Cut (Ap) | 1.0–5.0 mm | .039–.195 in |

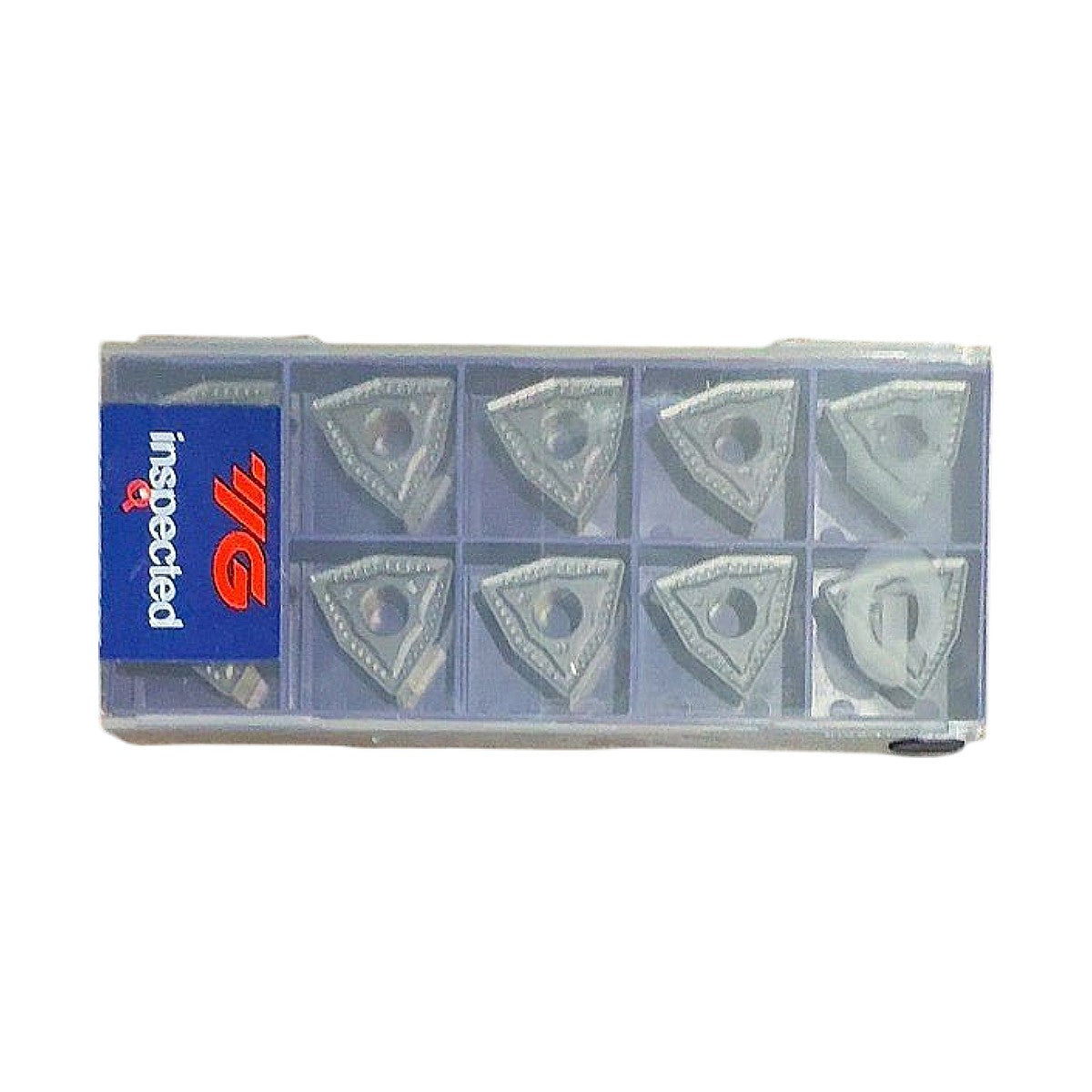

| Quantity | 10 pcs per box |
| Country of Origin | South Korea |
| Compatible Toolholder Style | MWLNR/L, DWLNR/L (WNMG style) |
