YG-1 Z4DSW-3204 1/2x1/2 4-Flute Stub Double End TiCN Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

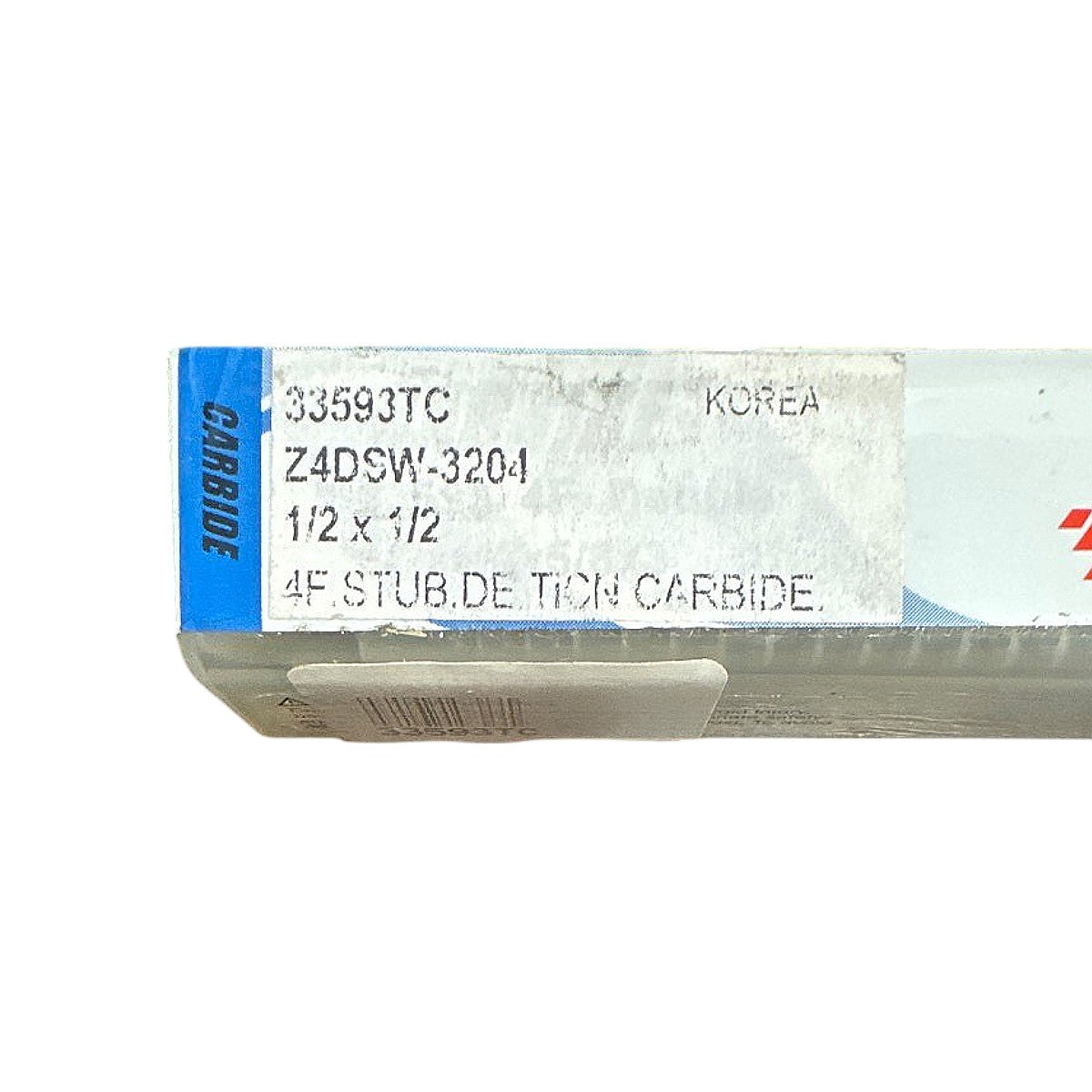

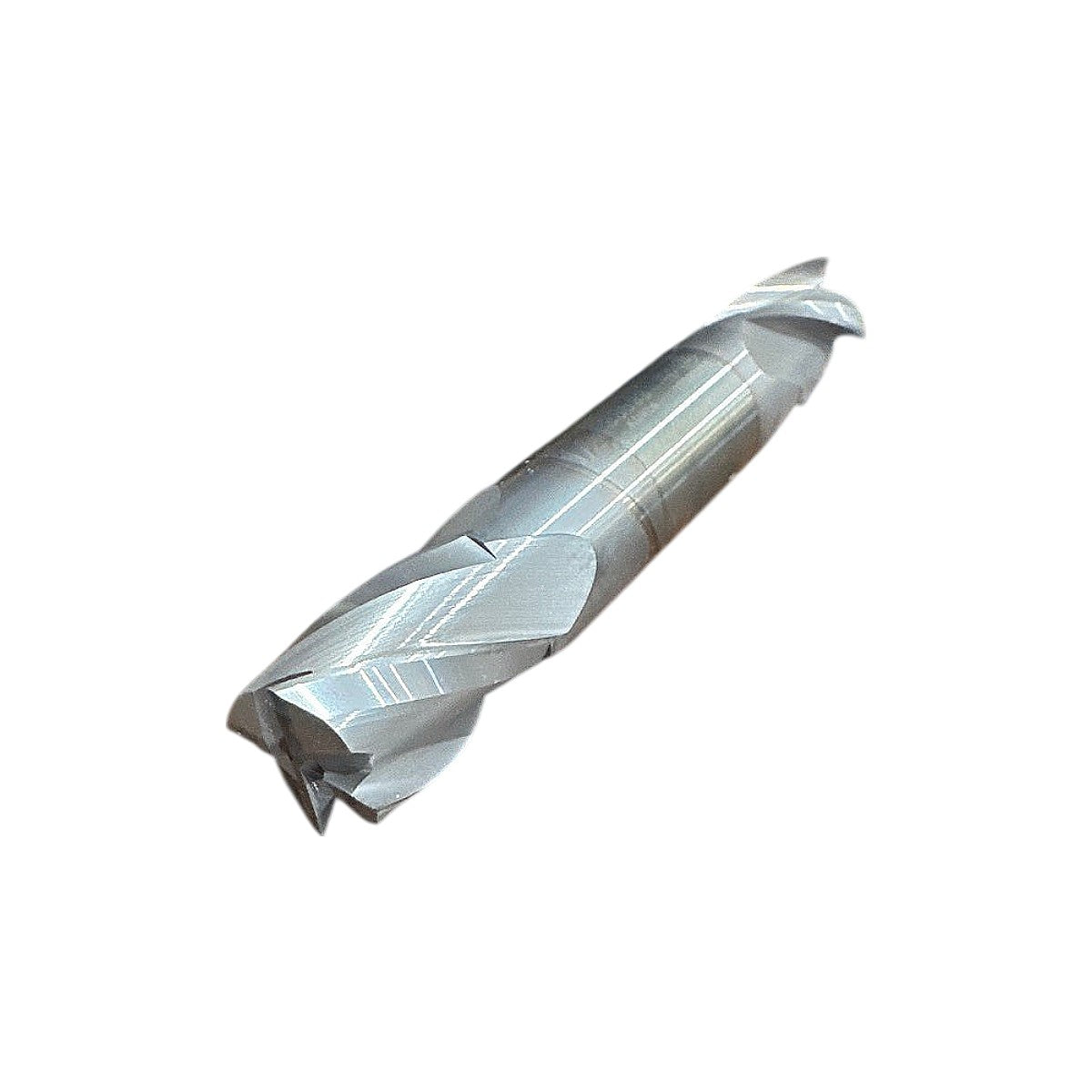

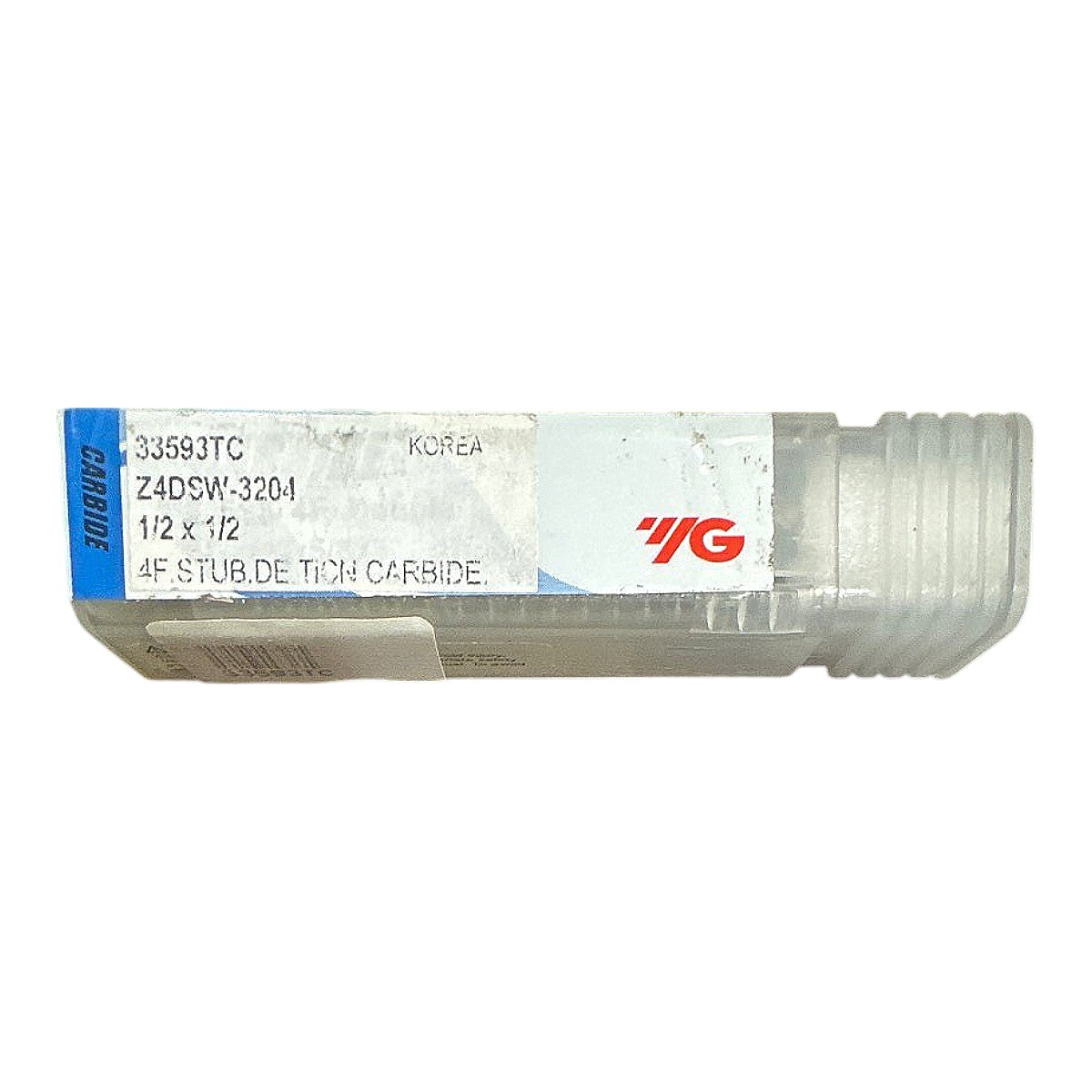

The YG-1 Z4DSW-3204 (catalog ref. 33593TC) is a new, solid carbide, 4-flute double-end stub-length square-end mill measuring 1/2 in. cutting diameter with a 1/2 in. straight shank, manufactured in Korea to YG-1's standard tolerances. The tool carries a TiCN (Titanium Carbonitride) coating, which provides higher surface hardness and lower friction than uncoated carbide, making it well-suited for milling steel, stainless steel, cast iron, and hardened materials at elevated surface speeds. The stub-length flute geometry reduces overhang deflection and maximizes rigidity for high-feed slotting, peripheral milling, and shoulder milling in CNC machining centers and manual knee mills accepting 1/2 in. ER or end-mill-style collets and toolholders. Being double-ended, the tool delivers two usable cutting ends per shank, effectively doubling tool life per unit cost before regrind or discard.
Product Specifications
| Brand | YG-1 |
| Model Number | Z4DSW-3204 |
| Catalog / Item Number | 33593TC |
| Country of Origin | Korea |
| Cutting Diameter | 1/2 in (0.500 in) |
| Shank Diameter | 1/2 in (0.500 in) |
| Number of Flutes | 4 |
| End Type | Double End (both ends cutting) |
| End Geometry | Square (flat) end |
| Length Series | Stub length |
| Material | Solid carbide |
| Coating | TiCN (Titanium Carbonitride) |
| Condition | New |
| Shank Style | Straight shank |
