YG1 07598TF F4SRW-4806 3/4x3/4x1-1/2x4 4FL TiAlN Carbide End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

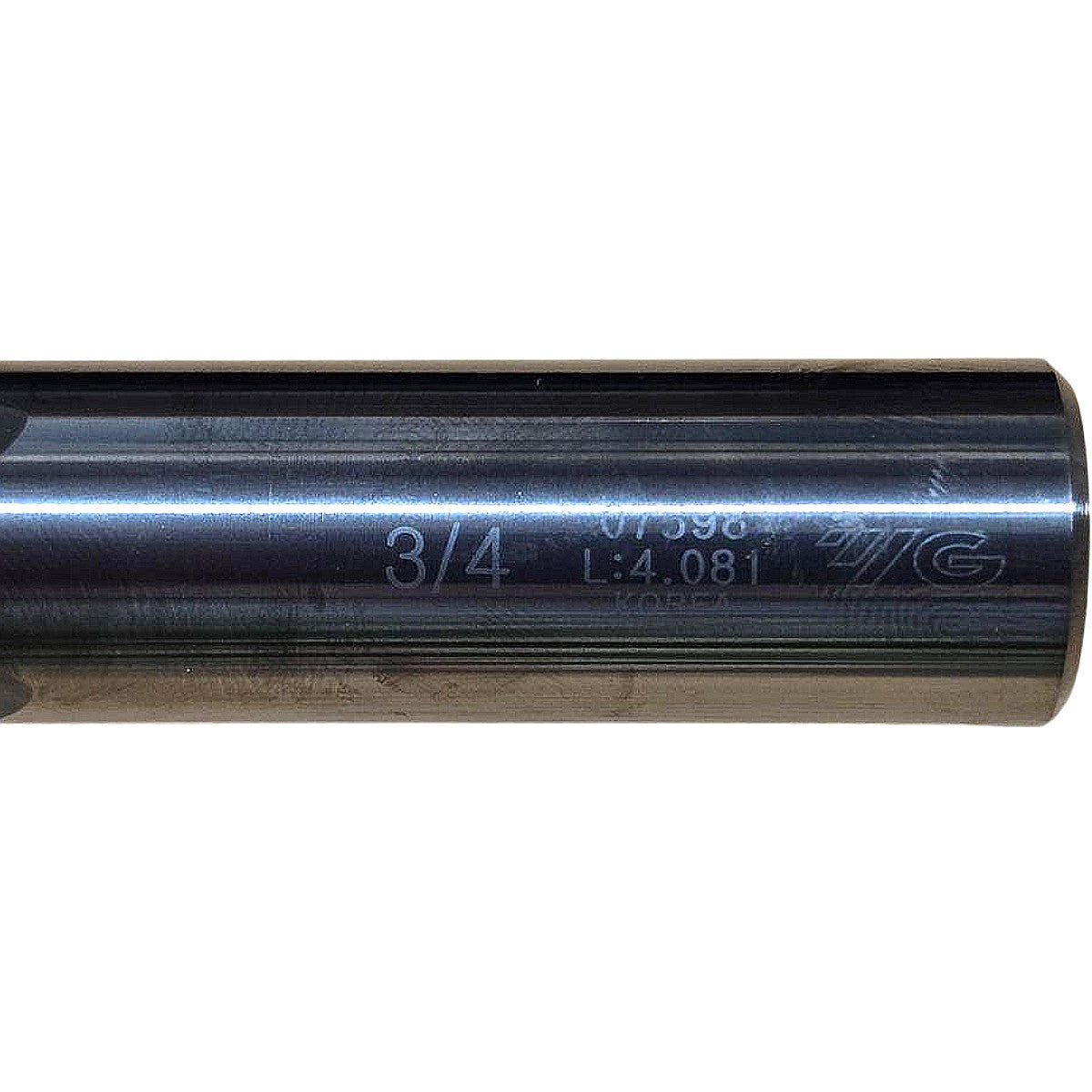

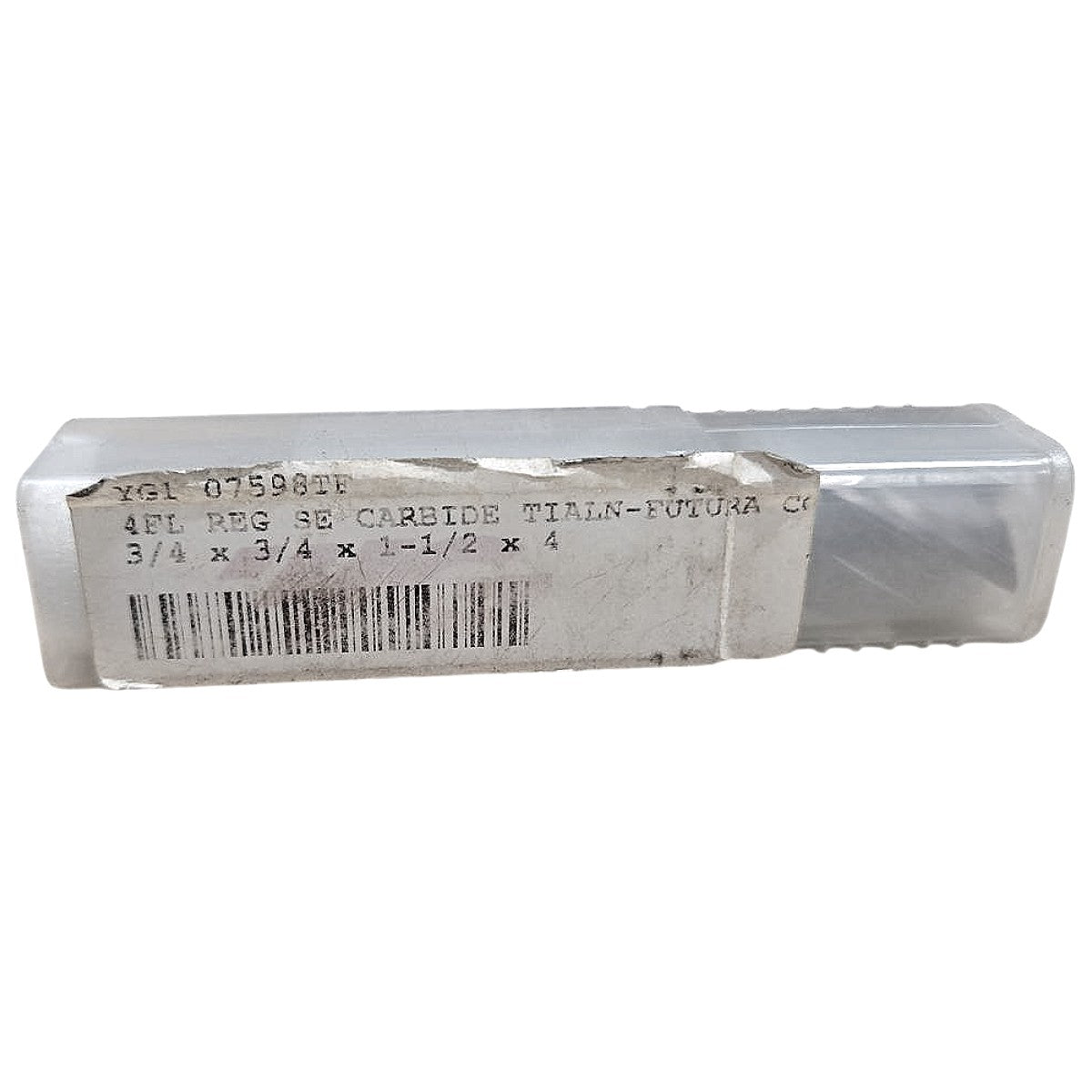

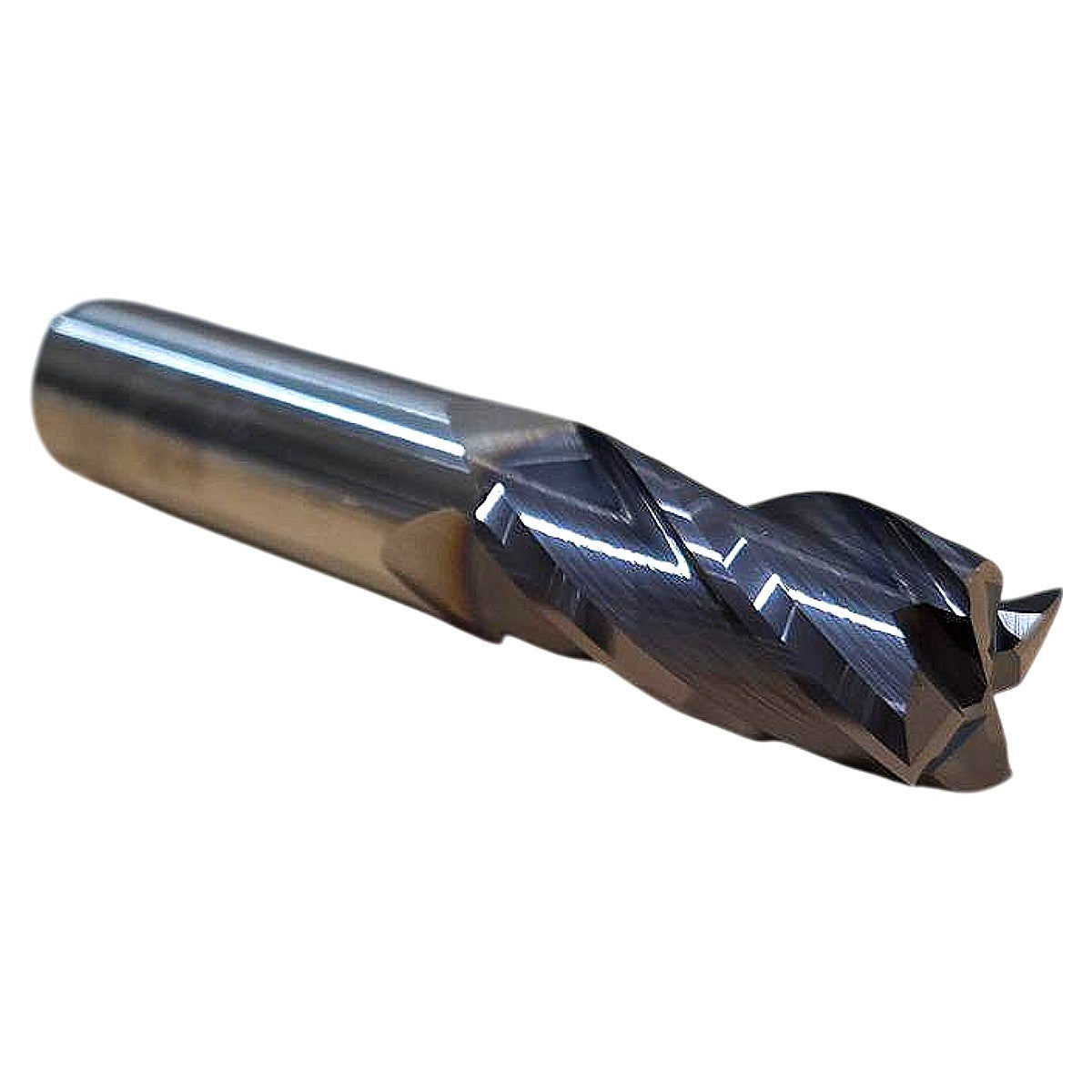

The YG-1 07598TF (model F4SRW-4806) is a new, solid carbide, 4-flute square-end end mill with a 3/4 in cutting diameter, 3/4 in shank diameter, 1-1/2 in length of cut, and 4.081 in overall length, manufactured in Korea. It carries YG-1's proprietary "Futura" TiAlN (Titanium Aluminum Nitride) PVD coating, which provides enhanced hardness, oxidation resistance up to ~800 °C, and significantly extended tool life compared to uncoated or TiN-coated carbide — making it well-suited for dry or near-dry machining of steels, stainless steels, cast iron, and high-temperature alloys. The regular-length geometry with a single-end configuration and right-hand cut/right-hand helix is designed for peripheral milling, slotting, and profiling operations in CNC machining centers using standard ER or end-mill holders accepting a 3/4 in straight shank. As a new, factory-packaged tool in its original YG-1 plastic case, it shows no use or wear.
Product Specifications
| Brand | YG-1 |
| Part Number (MPN) | 07598TF |
| Model Code | F4SRW-4806 |
| Cutting Diameter | 3/4 in (0.750 in) |
| Shank Diameter | 3/4 in (0.750 in) |
| Length of Cut (LOC) | 1-1/2 in (1.500 in) |
| Overall Length (OAL) | 4.081 in |
| Number of Flutes | 4 |
| End Type | Square (Flat) |
| Cut Length Type | Regular Length |
| Single/Double End | Single End |
| Substrate | Solid Carbide |
| Coating | TiAlN (Futura) |
| Coating Color | Dark gray/black (visible in photos) |
| Hand of Cut | Right Hand |
| Hand of Helix | Right Hand |
| Shank Type | Straight Shank |
| Country of Origin | Korea |
| Condition | New |
| Compatible Toolholders | ER collet chuck, end mill holder, 3/4 in bore |
