YG1 B2623 9/16-18 GH3 TiN HSSE-V3 Spiral Flute Bottom Tap
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

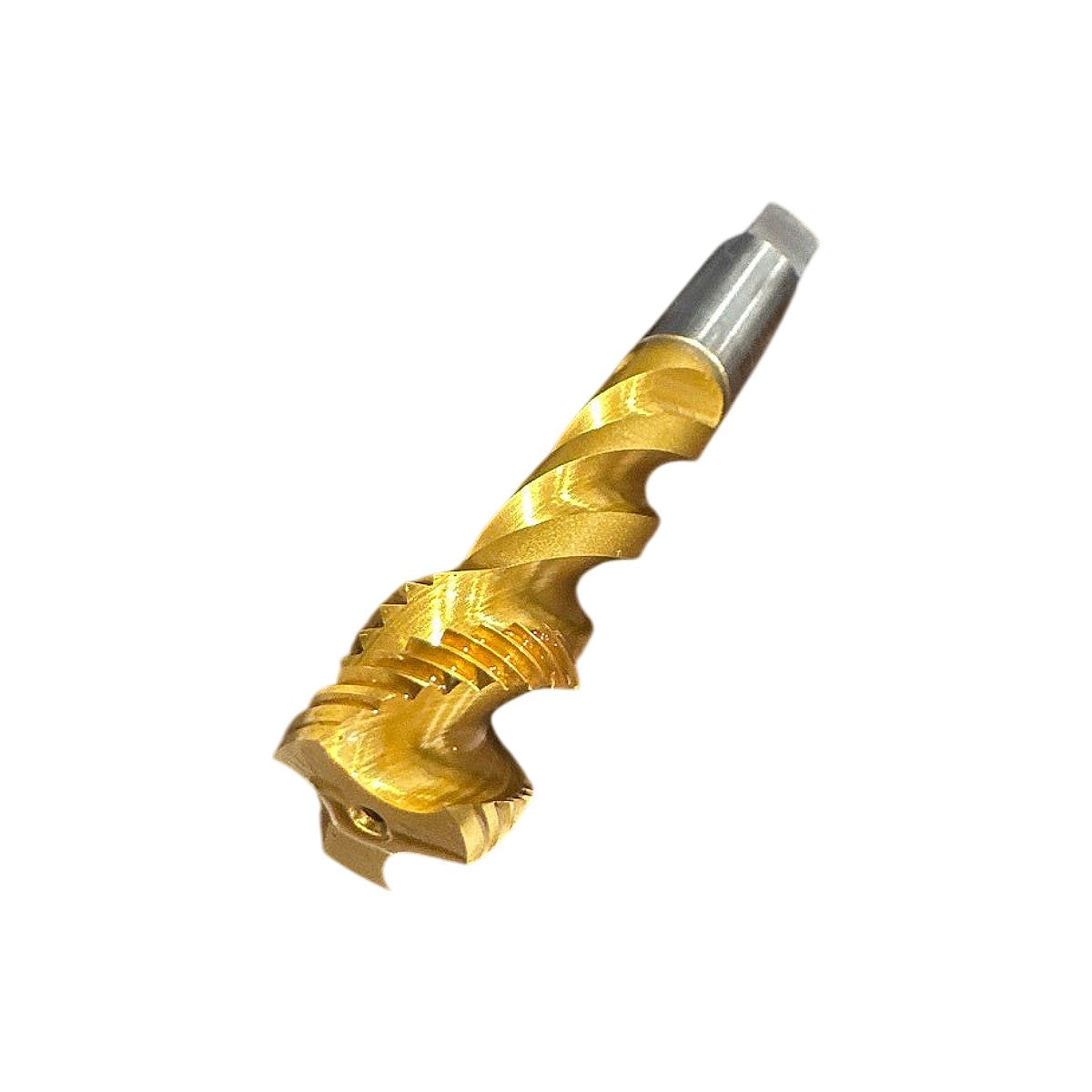

The YG-1 B2623 is a 9/16-18 UNF spiral flute bottom (plug) tap manufactured from HSSE-V3 (cobalt-enriched high-speed steel, ~8% Co, Vanadium grade 3) and finished with a TiN (Titanium Nitride) coating — the golden color visible on the flutes and chamfer confirms this. The GH3 tolerance class designates a ground thread limit of H3 (+0.0005 in to +0.0015 in oversize), making it suitable for threading tough, work-hardening alloys including stainless steels, titanium, heat-resistant superalloys, and hardened steels up to ~38 HRC. The spiral flute geometry — 3 flutes, modified bottom chamfer — pulls chips up and out of blind holes, making this tap the correct choice for bottom threading applications where through-chip evacuation is not possible. The modified (MODI) bottom chamfer provides approximately 1–2 thread lead for close-to-bottom threading, maximizing thread depth in blind bores. This tap is new, made in Korea, and compatible with standard 9/16 in tap holders, quick-change tapping chucks, and CNC tapping cycles requiring reversing spindle or rigid tapping.
Product Specifications
| Brand | YG-1 |
| MPN | B2623 |
| Thread Size | 9/16-18 |
| Thread Standard | UNF (Unified National Fine) |
| Pitch | 18 TPI |
| Thread Tolerance Class | GH3 (H3 limit, +0.0005 to +0.0015 in oversize) |
| Number of Flutes | 3 |
| Flute Type | Spiral Flute |
| Chamfer Type | Modified Bottom (MODI BTM), ~1-2 thread lead |
| Material | HSSE-V3 (Cobalt HSS, ~8% Co, Vanadium Grade 3) |
| Coating | TiN (Titanium Nitride) |
| Application | Blind hole bottom threading |
| Country of Origin | Korea |
| Condition | New |
| Shank Type | Square drive, uncoated shank |
