YG-1 TitaNox Power UGMG34S836 3/4in 5 Flute Corner Radius End Mill
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

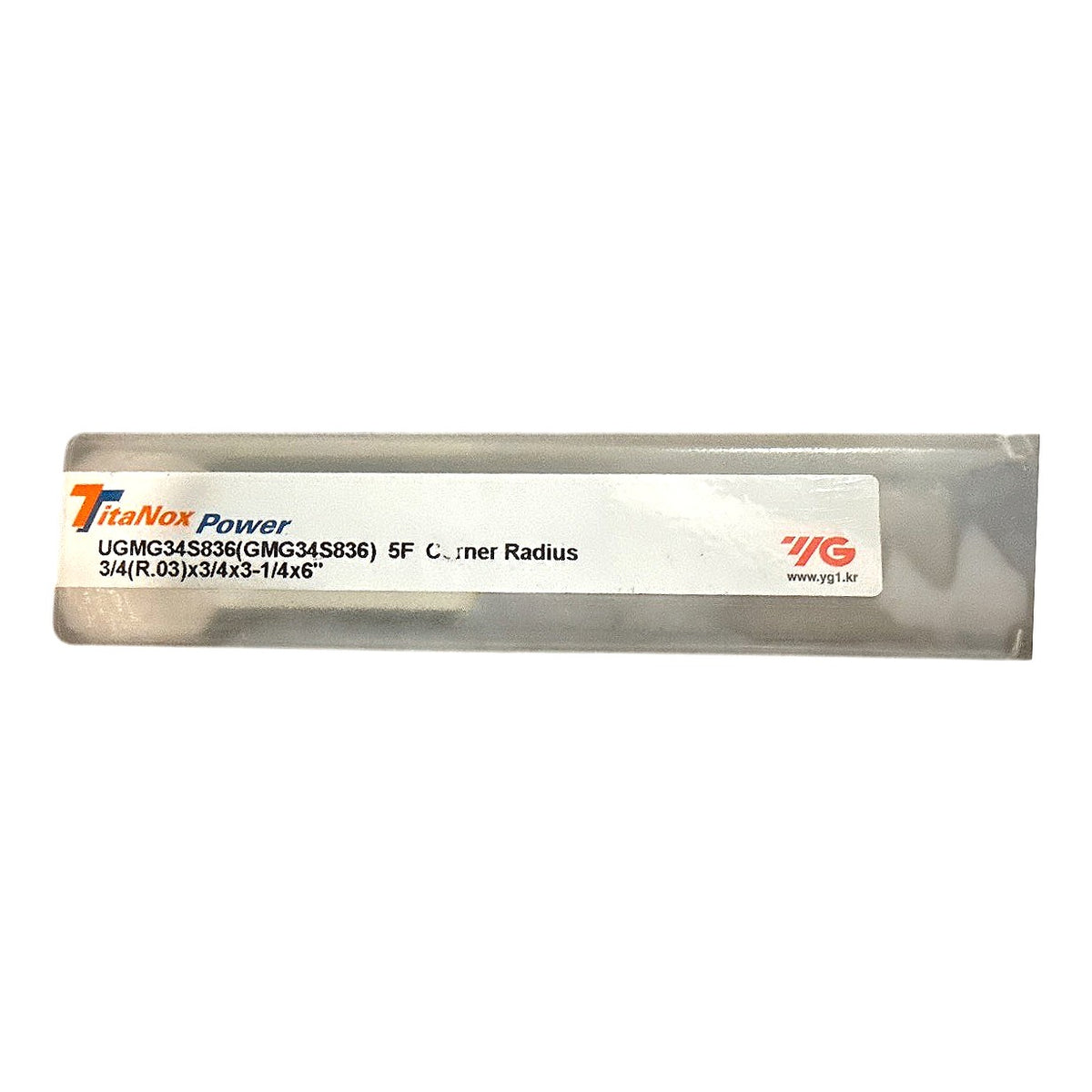

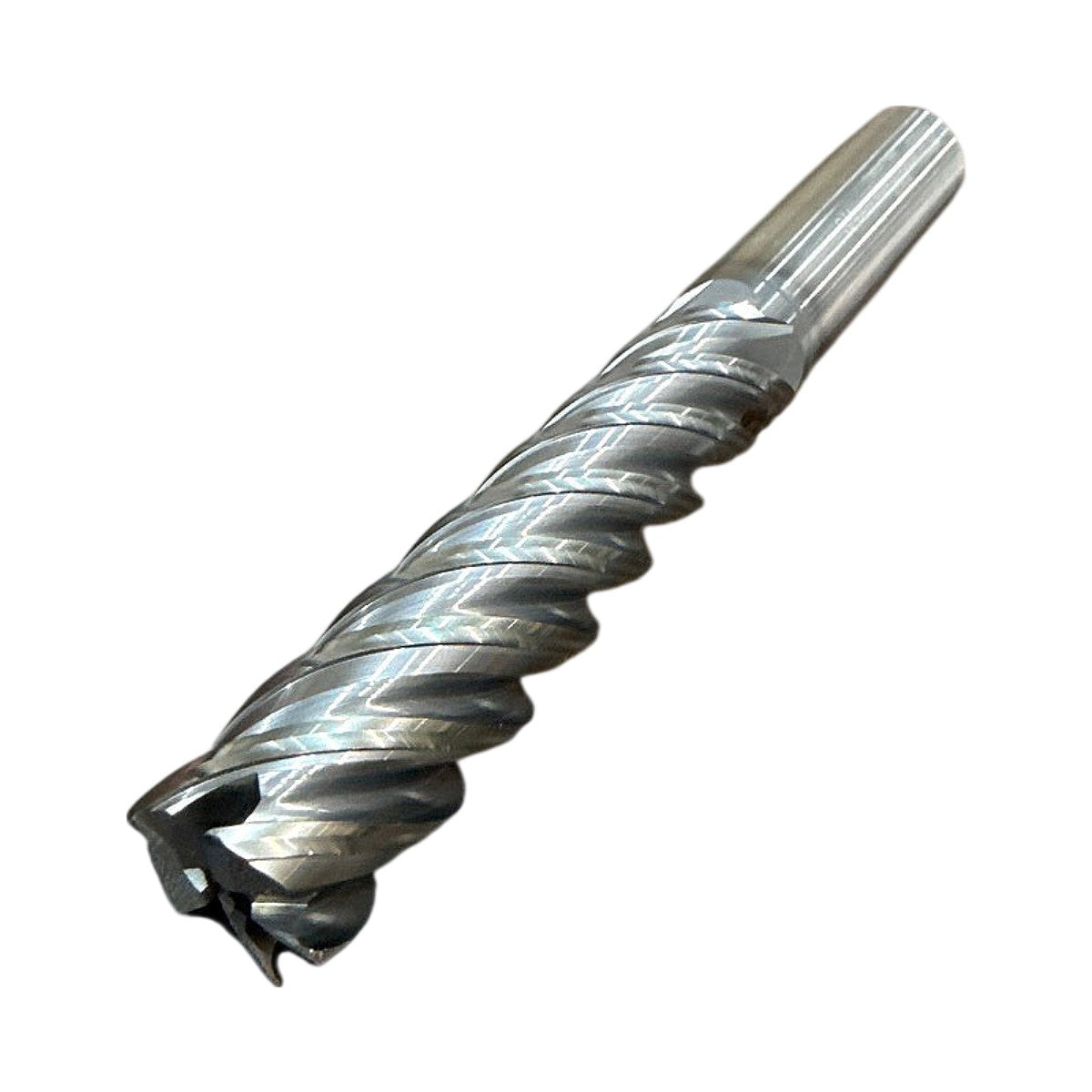

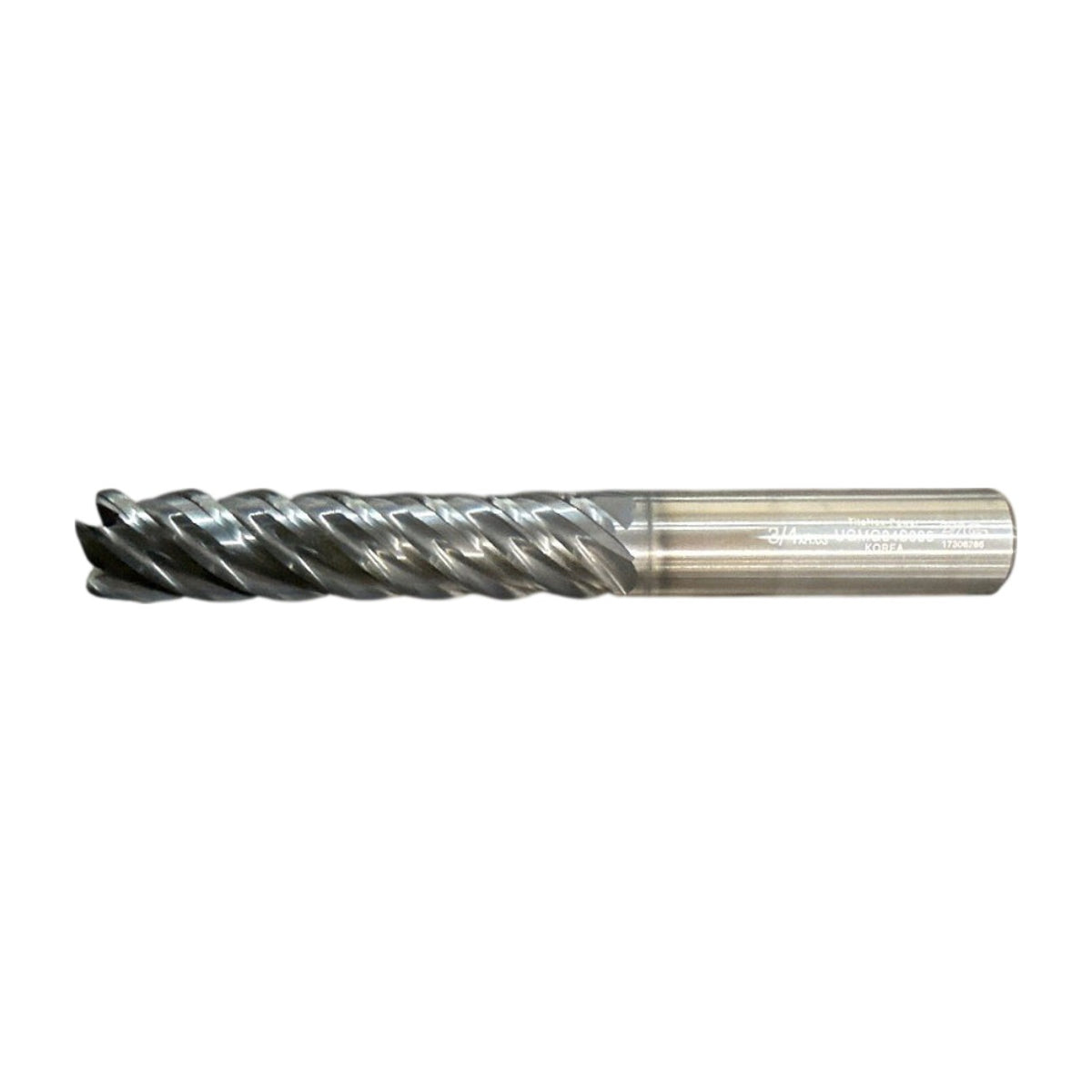

The YG1 TitaNox Power UGMG34S836 (also listed as GMG34S836) is a 5-flute solid carbide corner radius end mill with a 3/4 in cutting diameter, 0.030 in corner radius, 3/4 in shank, 3-1/4 in length of cut and 6 in overall length, made in Korea. The TitaNox Power series is YG1's line for machining stainless steels, titanium and other difficult-to-machine alloys, and the tool shows a variable-helix flute form with a ground corner radius that strengthens the cutting corners. The shank is cylindrical and marked with the part number and size, and the tool is suited to roughing and finishing profile, slot and side milling in CNC machining centers. This end mill is new.
Product Specifications
| Brand | YG1 |
| Series | TitaNox Power |
| MPN | UGMG34S836 |
| Alternate Part Number | GMG34S836 |
| Number of Flutes | 5 |
| End Type | Corner Radius |
| Cutting Diameter | 3/4 in |
| Corner Radius | 0.030 in |
| Shank Diameter | 3/4 in |
| Length of Cut | 3-1/4 in |
| Overall Length | 6 in |
| Material | Solid Carbide |
| Shank Type | Straight |
| Operation | Milling, Roughing, Finishing |
| Workpiece Materials | Stainless Steel, Titanium, High-Temp Alloys |
| Country of Origin | Korea |
| Unit of Measure | Inch |
